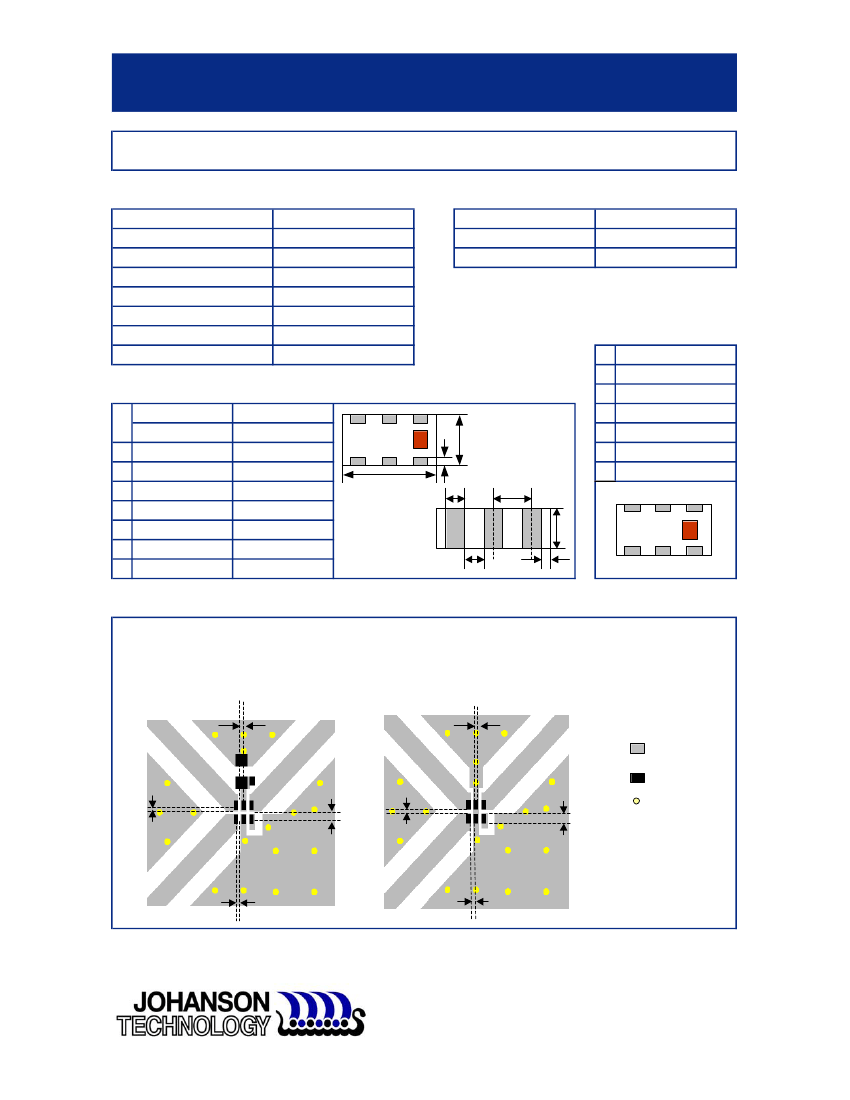

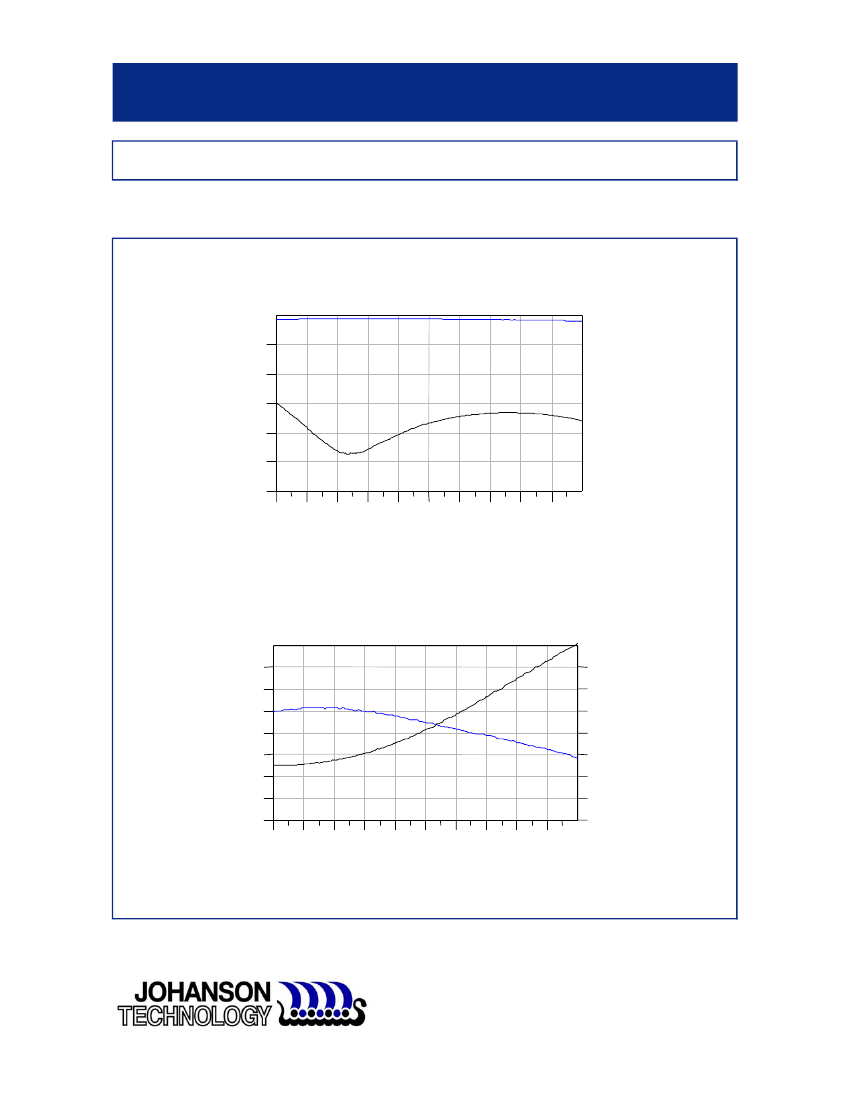

High Frequency Ceramic Solutions
Balun, Ultra-WideBand, 4 GHz
Detail Specification: 09/20/05
P/N 4000BL14U100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Unbalanced Impedence
Differential Balanced Imp.
Insertion Loss
Return Loss
Phase Difference (degree)
4000BL14U100
3100 - 4800
50
Ω
100
Ω
1.2 dB max.
9.5 dB min.
180 ± 20
1.5 dB max.
Operating Temperature
Reel Quanity
Power Capacity
-40 to +85°C
4,000
3 W max.
Terminal Configuration
No.
Amplitude Difference
Function
Unbalanced Port (IN)
GND or DC feed+RF GND
1
Mechanical Dimensions
In
L
0.063 ± 0.004
W
0.031 ± 0.004
T
0.024 ± 0.004
a
0.008 ± 0.004
b
0.008
+.004/-.006
c
0.006 ± 0.004
g
0.012 ± 0.004
p
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20
+0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
c
a
p
2
3
W
4
5
6
Balanced Port (OUT1)
Balanced Port (OUT2)
GND
NC
3
2
1
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide proper impedance matching characteristics.
Units: mm
With DC feed
0.25
Without DC feed
0.25
*
*
*
*
Solder
i
Land
0.55
Through-hole
(φ0.3)
0.3
0.55
0.3
*
0.25
*
0.25
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
Balun, Ultra-WideBand, 4 GHz
Detail Specification: 07/07/05
P/N 4000BL14U100
Page 2 of 2
Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
Insertion and Return Loss
0
)
dB(IL)
-5
-10
dB(RL)
-15
-20
-25
-30
3.0
3.2
3.4
3.6
3.8
4.0
)
4.2
4.4
4.6
4.8
5.0
freq, GHz
)
Amplitude and Phase Balance
)
2.0
1.5
1.0
dif_amplitude
)
200
195
190
185
180
175
170
165
160
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
freq, GHz
dif_phase
0.5
0.0
-0.5
-1.0
-1.5
-2.0
(dB)
(dB)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
