Multi-layer Chip Inductors - Ferrite
ctparts.com
CTML0805F Series
From .047 µH to 27 µH
Part
Number
CTML0805F-R047M
CTML0805F-R068M
CTML0805F-R082M
Not shown at actual size.
CTML0805F-R10_
CTML0805F-R12_
CTML0805F-R15_
CTML0805F-R18_
CTML0805F-R22_
CTML0805F-R27_
CTML0805F-R33_
CTML0805F-R39_
CTML0805F-R47_
CTML0805F-R56_
CTML0805F-R68_
CTML0805F-R82_
CTML0805F-1R0_
CTML0805F-1R2_
CTML0805F-1R5_
CTML0805F-1R8_
CTML0805F-2R2_
CTML0805F-2R7_
CTML0805F-3R3_
CTML0805F-3R9_
CTML0805F-4R7_
CTML0805F-5R6_
CTML0805F-6R8_
CTML0805F-8R2_
CTML0805F-100_
CTML0805F-120_
CTML0805F-150_
CTML0805F-180_
CTML0805F-220_
CTML0805F-270_
SPECIFICATIONS
Please specify tolerance code when ordering.
CTML0805F-R10_
K = ±10%, M = ±20%
Inductance
(µH)
.047
.068
.082
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
L Test
Freq.
(MHz)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4.0
4.0
4.0
2.0
2.0
1.0
1.0
1.0
1.0
Q
Factor
Min.
15
15
15
20
20
20
20
20
20
25
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
45
50
30
30
30
30
Q Test
Freq.
(MHz)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4.0
4.0
4.0
2.0
2.0
1.0
1.0
1.0
1.0
SRF
Min.
(MHz)
320
280
255
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
DCR
Max.
Ω
(Ω)
.20
.20
.20
.30
.30
.40
.40
.50
.50
.55
.65
.65
.75
.80
1.0
.40
.50
.50
.60
.65
.75
.80
.90
1.0
.90
1.0
1.1
1.1
1.2
.80
.90
1.1
1.1
Rated
DC
(mA)
300
300
300
250
250
250
250
250
250
250
200
200
150
150
150
50
50
50
50
30
30
30
30
30
15
15
15
15
15
5.0
5.0
5.0
5.0
Height
C
(mm)
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
0.90±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
1.25±0.2
Compliant
RoHS
CHARACTERISTICS
Description:
Ferrite core, multi-layer chip inductor. Magnetic
shielded.
Applications:
LC resonant circuits such as oscillator and signal
generators, RF filters, disk drives, audio and video equipment, TV,
radio and telecommunication equipment
Operating Temperature:
-55°C to +125°C
Inductance Tolerance:
±10% & ±20%
Testing:
Inductance and Q are tested on an HP4285A or
HP4286A at specified frequency
Packaging:
Tape & Reel
Marking:
Reels marked with inductance code and tolerance
Miscellaneous:
RoHS Compliant
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.

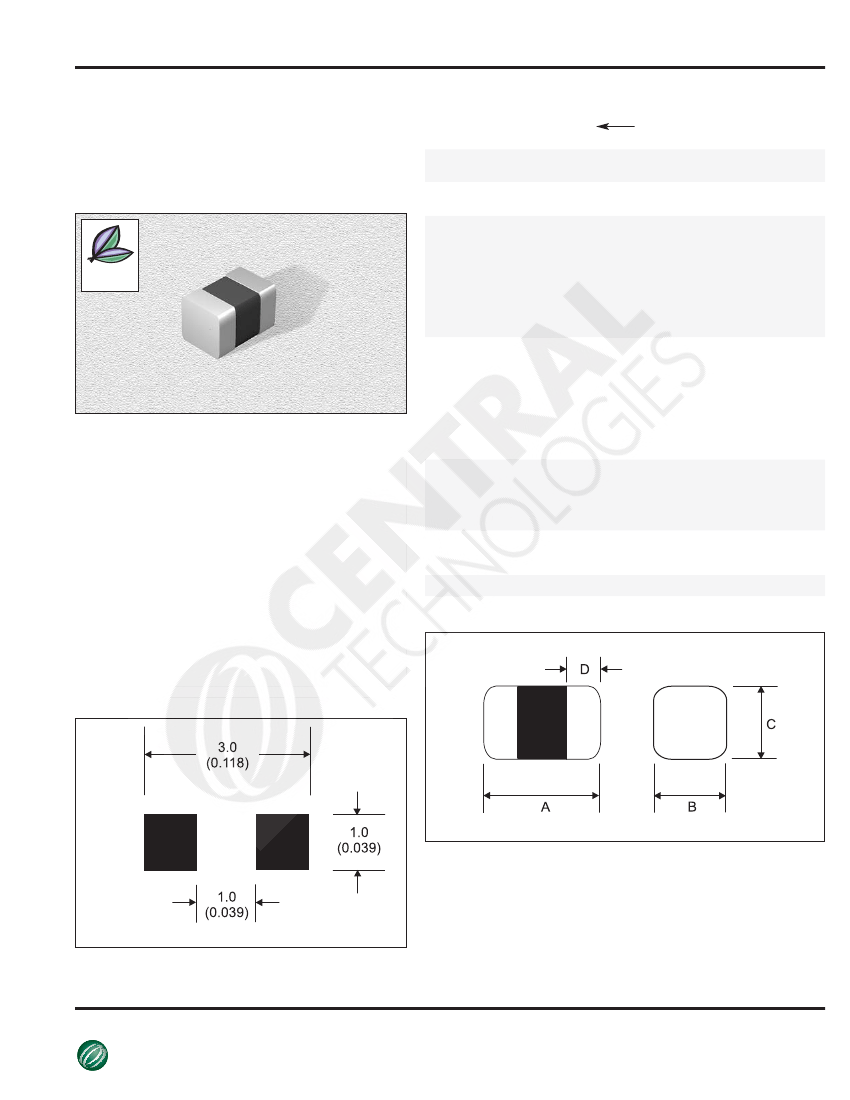

PHYSICAL DIMENSIONS
Size
mm
inches
A
2±0.2
0.08±0.008
B
1.25±0.2
0.05±0.008
C
See
Ordering Info
D
0.5±0.3
0.02±0.012
PAD LAYOUT
03.16.11
CENTRAL
Manufacturer of Passive Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2011 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
TECHNOLOGIES
