16Mx64 bits
Unbuffered DDR SO-DIMM
HYMD216M646C(L)6-J/M/K/H/L
Document Title
16M x 64 bits Unbuffered DDR SO-DIMM
Revision History
No.
0.1
0.2
0.3
Defined Preliminary Specification
1) Reflected a "notational" change in module thickness on page 17 - Not Real ! -
2) Corrected some typos
Modified the side view of module including additional device at page 17
History
Draft Date
Mar. 2003
Apr. 2004
Oct. 2004
Remark
This document is a general product description and is subject to change without notice. Hynix Semiconductor does not assume any
responsibility for use of circuits described. No patent licenses are implied.
Rev. 0.3 / Oct. 2004
1
16Mx64 bits
Unbuffered DDR SO-DIMM
HYMD216M646C(L)6-J/M/K/H/L
DESCRIPTION
Hynix HYMD216M646C(L)6-J/M/K/H/L series is unbuffered 200-pin double data rate Synchronous DRAM Small Out-
line Dual In-Line Memory Modules (SO-DIMMs) which are organized as 16Mx64 high-speed memoryarrays. Hynix
HYMD216M646C(L)6-J/M/K/H/L series consists of four 16Mx16 DDR SDRAM in 400mil TSOP II packages on a
200pin glass-epoxy substrate. Hynix HYMD216M646C(L)6-J/M/K/H/L series provide a high performance 8-byte inter-
face in 67.60mmX 31.75mm form factor of industry standard. It is suitable for easy interchange and addition.
Hynix HYMD216M646C(L)6-J/M/K/H/L series is designed for high speed of up to 166MHz and offers fully synchronous
operations referenced to both rising and falling edges of differential clock inputs. While all addresses and control inputs
are latched on the rising edges of the clock, Data, Data strobes and Write data masks inputs are sampled on both ris-
ing and falling edges of it. The data paths are internally pipelined and 2-bit prefetched to achieve very high bandwidth.
All input and output voltage levels are compatible with SSTL_2. High speed frequencies, programmable latencies and
burst lengths allow variety of device operation in high performance memory system.
Hynix HYMD216M646C(L)6-J/M/K/H/L series incorporates SPD(serial presence detect). Serial presence detect func-
tion is implemented via a serial 2,048-bit EEPROM. The first 128 bytes of serial PD data are programmed by Hynix to
identify DIMM type, capacity and other the information of DIMM and the last 128 bytes are available to the customer.
FEATURES
•
•
•
•
•
•
128MB (16M x 64) Unbuffered DDR SO-DIMM
based on 16Mx16 DDR SDRAM
JEDEC Standard 200-pin small outline dual in-line
memory module (SO-DIMM)
2.5V +/- 0.2V VDD and VDDQ Power supply
All inputs and outputs are compatible with SSTL_2
interface
Fully differential clock operations (CK & /CK) with
100MHz/125MHz/133MHz/166MHz
All addresses and control inputs except Data, Data
strobes and Data masks latched on the rising edges
of the clock
Data(DQ), Data strobes and Write masks latched on
both rising and falling edges of the clock
•
•
•
•
•
•
•
•
Data inputs on DQS centers when write (centered
DQ)
Data strobes synchronized with output data for read
and input data for write
Programmable CAS Latency 2 / 2.5 supported
Programmable Burst Length 2 / 4 / 8 with both
sequential and interleave mode
tRAS Lock-out function supported
Internal four bank operations with single pulsed RAS
Auto refresh and self refresh supported
8192 refresh cycles / 64ms
•
ORDERING INFORMATION
Part No.
HYMD216M646C(L)6-J
HYMD216M646C(L)6-M
HYMD216M646C(L)6-K
HYMD216M646C(L)6-H
HYMD216M646C(L)6-L
V
DD
=2.5V
V
DDQ
=2.5V
Power Supply
Clock Frequency
166MHz (*DDR333)
133MHz (*DDR266:2-2-2)
133MHz(*DDR266A)
133MHz(*DDR266B)
100MHz(*DDR200)
Interface
Form Factor
SSTL_2
200pin Unbuffered SO-DIMM
67.6mm x 31.75mm x 1mm
* JEDEC Defined Specifications compliant
This document is a general product description and is subject to change without notice. Hynix Semiconductor does not assume any
responsibility for use of circuits described. No patent licenses are implied.
Rev. 0.3 / Oct. 2004
2

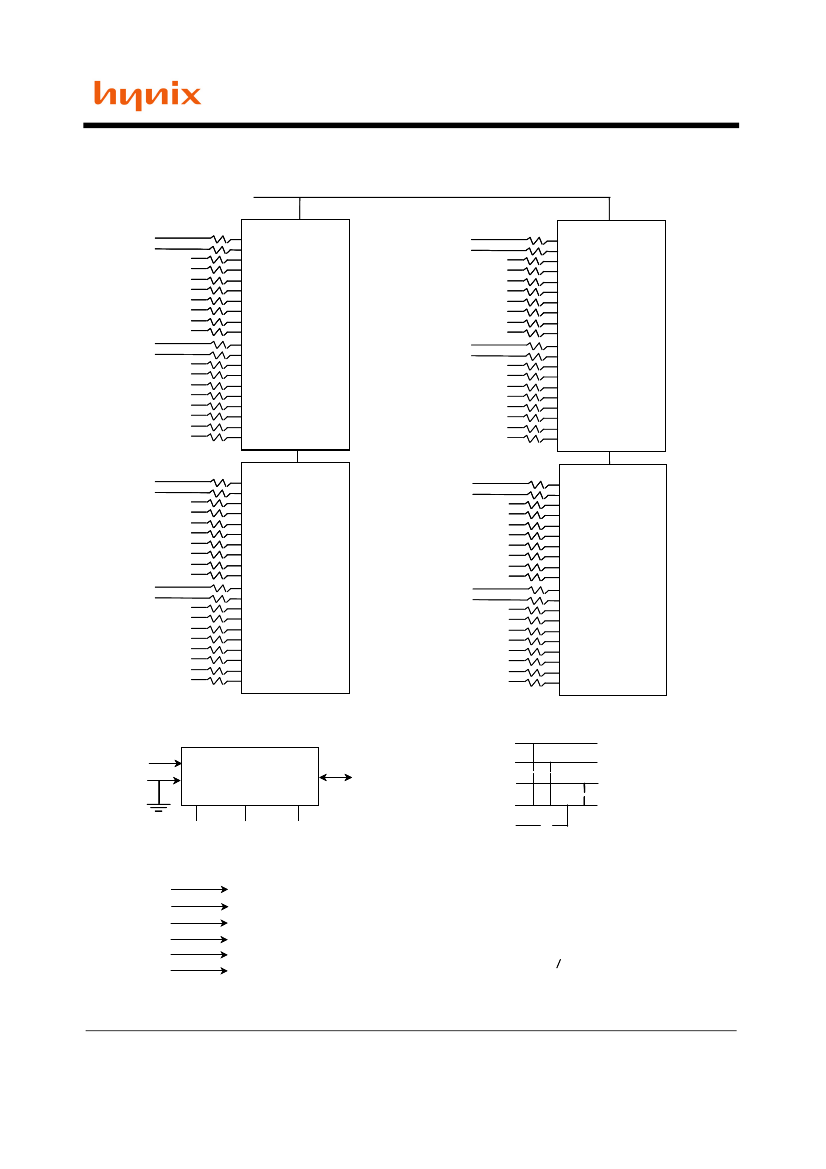

HYMD216M646C(L)6-J/M/K/H/L
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Rating
Unit
o
Operating Temperature (Ambient)
Storage Temperature
Voltage on Any Pin relative to V
SS
Voltage on V
DD
relative to V
SS
Voltage on V
DDQ
relative to V
SS
Output Short Circuit Current
Power Dissipation
Soldering Temperature Þ Time
T
A
T
STG
V
IN
, V
OUT
V
DD
V
DDQ
I
OS
P
D
T
SOLDER
0 ~ 70
-55 ~ 125
-0.5 ~ 3.6
-0.5 ~ 3.6
-0.5 ~ 3.6
50
1.0 x # of Components
260 / 10
C
o
C
V
V
V
mA
W
o
C
/ Sec
Note :
Operation at above absolute maximum rating can adversely affect device reliability
DC OPERATING CONDITIONS
(TA=0 to 70
o
C, Voltage referenced to V
SS
= 0V)
Parameter
Symbol
Min
Typ.
Max
Unit
Note
Power Supply Voltage
Power Supply Voltage
Input High Voltage
Input Low Voltage
Termination Voltage
Reference Voltage
V
DD
V
DDQ
V
IH
V
IL
V
TT
V
REF
2.3
2.3
V
REF
+ 0.15
-0.3
V
REF
- 0.04
1.15
2.5
2.5
-
-
V
REF
1.25
2.7
2.7
V
DDQ
+ 0.3
V
REF
- 0.15
V
REF
+ 0.04
1.35
V
V
V
V
V
V
3
2
1
Note :
1. V
DDQ
must not exceed the level of V
DD
.
2. V
IL
(min) is acceptable -1.5V AC pulse width with < 5ns of duration.
3. The value of V
REF
is approximately equal to 0.5V
DDQ
.
AC OPERATING CONDITIONS
(TA=0 to 70
o
C, Voltage referenced to V
SS
= 0V)
Parameter
Symbol
Min
Max
Unit
Note
Input High (Logic 1) Voltage, DQ, DQS and DM signals
Input Low (Logic 0) Voltage, DQ, DQS and DM signals
Input Differential Voltage, CK and /CK inputs
Input Crossing Point Voltage, CK and /CK inputs
V
IH(AC)
V
IL(AC)
V
ID(AC)
V
IX(AC)
V
REF
+ 0.31
V
REF
- 0.31
0.7
0.5*V
DDQ
-0.2
V
DDQ
+ 0.6
0.5*V
DDQ
+0.2
V
V
V
V
1
2
Note :
1. VID is the magnitude of the difference between the input level on CK and the input on /CK.
2. The value of V IX is expected to equal 0.5*V DDQ of the transmitting device and must track variations in the DC level of the same.
Rev. 0.3 / Oct. 2004
5
