SURFACE MOUNT
High capacitance range complimenting the standard DS range
Available in X7R, X5R, Y5V and Z5U
Suitable for many applications including digital consumer
goods and high resolution LCD displays

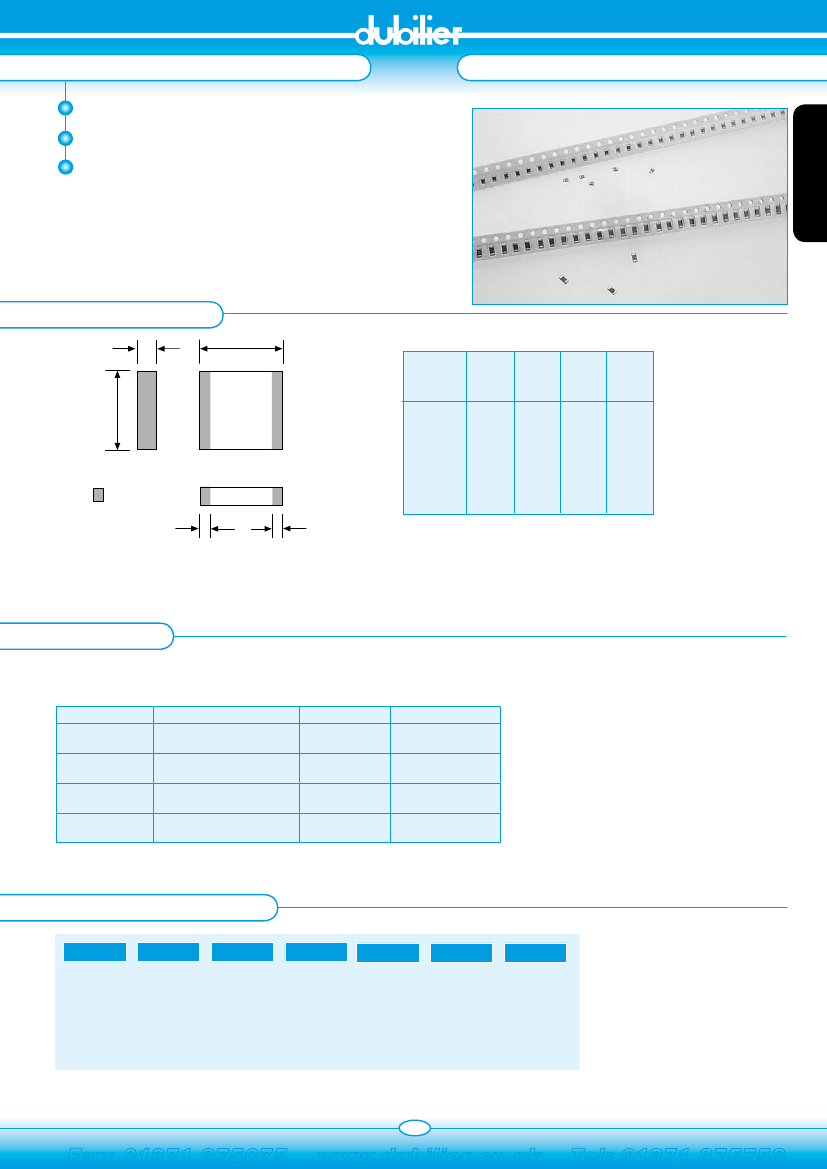

CERAMIC SMD MULTI-LAYER HIGH CAPACITANCE DS
SECTION 1
OUTLINE DRAWING
T
L
W
L
mm
1.0±0.1
1.6±0.15
2.0±0.2
3.2±0.2
3.2±0.3
4.5±0.3
W
mm
0.5±0.05
0.8±0.1
1.25±0.15
1.6±0.15
2.5±0.3
3.2±0.3
T
mm
0.6 MAX
0.9 MAX
1.3 MAX
1.3 MAX
1.7 MAX
1.6 MAX
P
mm
0.2
0.3
0.5
0.5
0.5
0.5
Size Code
0402
0603
0805
1206
1210
1812
P
C
P
Indicates
termination area
Dimensions in mm
TOLERANCE
DIELECTRIC MATERIALS, CAPACITANCE VALUES AND TOLERANCE AVAILABLE
Dielectric
X7R
X5R
Y5V
Z5U
Available Tolerance
+/- 10%, +/- 20%
+/- 10%, +/- 20%
+/- 20%, - 20% + 80%
+/- 20%, - 20% + 80%
Capacitance
As Tables
As Tables
As Tables
As Tables
Tolerance Codes
K=10%
M=20%
K=10%
M=20%
M=20%
Z= -20% + 80%
M=20%
Z= -20% + 80%
ORDERING INFORMATION
DS
Part
B
Voltage
U = 50
E = 25V
C = 16V
B = 10V
D = 6.3V
005
Size
0402
0603
0805
1206
1210
1812
X
Dielectric
R =- X7R
X = X5R
G = Y5V
W = Z5U
10
Value
Example
104 = 100nF
105 = 1µF
106 = 10µF
K
Tolerance
K = 10%
M = 20%
Z = 20+80%
N
Plating
N = Nickel barrier
1
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
SURFACE MOUNT

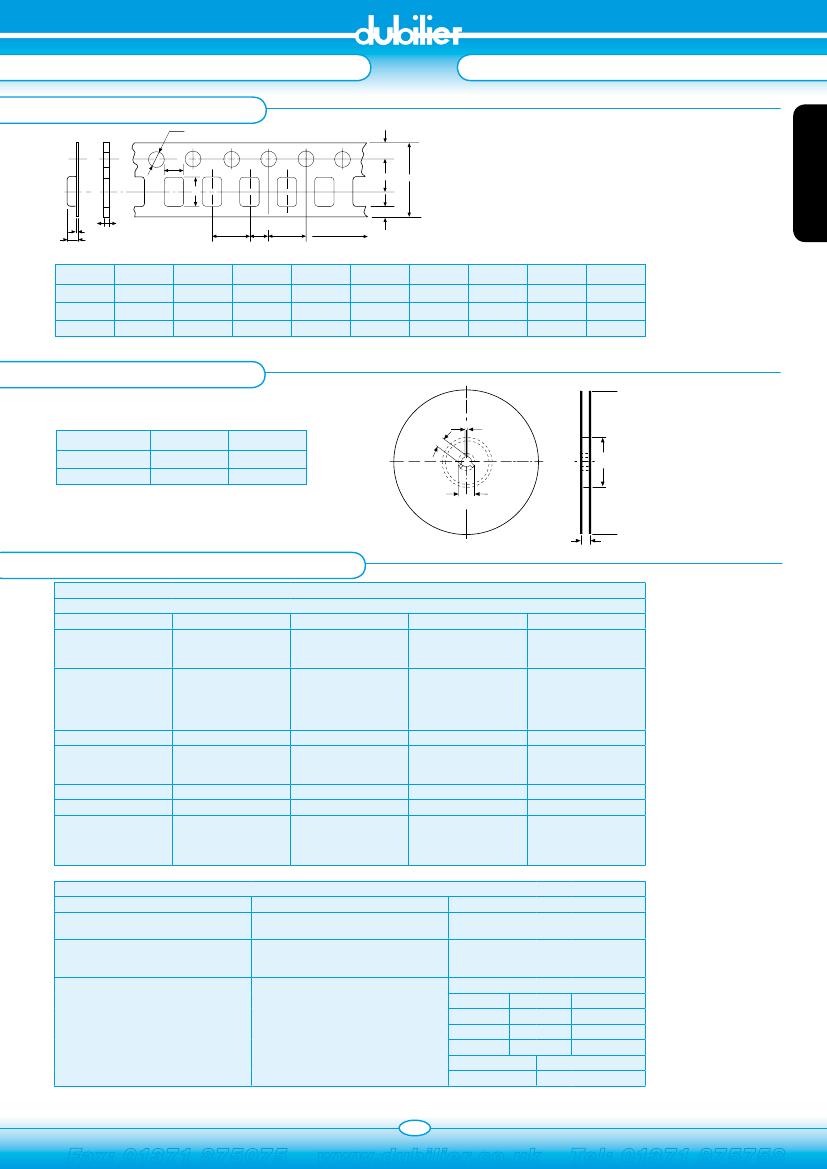

TAPE DIMENSIONS (mm)
Type P
Type C
D
0
CERAMIC SMD MULTI-LAYER HIGH CAPACITANCE DS
SECTION 1
E
A
0
F
B
0
G
t
t
P
P
2
P
0
directional of unreeling
W
K
1
W
8.0 ± 0.3
8.0 ± 0.3
12.0 ± 0.3
Type
C
P
P
D0
1.5 +0.1, -0
1.5 +0.1, -0
1.5 +0.1, -0
P
4.0 ± 0.1
4.0 ± 0.1
8.0 ± 0.1
P0
4.0 ± 0.1
4.0 ± 0.1
4.0 ± 0.1
P
2.0 ± -0.05
2.0 ± 0.05
2.0 ± 0.05
E
1.75 ± 0.1
1.75 ± 0.1
1.75 ± 0.1
F
3.5 ± 0.05
3.5 ± 0.05
5.5 ± 0.05
G
0.75 min
0.75 min
0.75 min
t
1.1 max
0.3 max
0.1 max
C = Card P = Plastic
REEL DIMENSIONS (mm)
2
±
0.5
Nom. Tape Width
8
12
A
180 or 330 +0-2
180 or 330 +0-2
W1
8.4 +1.5-0
12.4 +2-0
12.75 +0.15
-0
62
±
1.5
A
+0.5
20.5 -0
W
PERFORMANCE CHARACTERISTICS
PERFROMANCE CHARACTERISTICS
1. ELECTRICAL
Dielectric Code
General
X7R
X5R
Y5V
1
Z5U
X7R dielectrics offer higher X5R dielectrics offer higher Y5V dielectrics offer the
Z5U dielectrics offer the
capacitance for a given
capacitance for a given
highest capacitance for
highest cpacitance for a
case size than COG.
case size than X7R.
a given case size than X5R. given case size than Y5V.
Applications would include Applictaions would include Applications would include
bypass, coupling and filter- bypass, coupling and filter- bypass and decoupling
ing circuits.
ing circuits.
circuits or where tempera-
ture dependence is not of
major importance.
-55° to + 125°
>100G ohms or 1000 sec
whichever is less
10, 16, 25, 50
2.5 x rated voltage
± 15%
- 55° to + 85°
>100G ohms or 1000sec
whichever is less.
10,16,25
2.5 X rated voltage.
± 15%
- 25° to + 85°
>10G ohms or 100 sec
whichever is less.
10, 16, 25, 35
2 x rated voltage
+30% to - 80%
Applications would include
bypass and decoupling
circuits or where tempera-
ture dependance is not of
major importance.
- 25° to + 85°
>10G ohms or 100 sec
whichever is less.
10, 16, 25, 35
2.5 x rated voltage
+22% to - 56%
Examples of Applications
Temperature Range
Insulation Resistance (I.R.)
after 1 min charging at
Rated Voltage
Voltage Ratings dc
Proof Voltage
Max allowable Capaci-
tance
Variation over Temperature
Range
. ENVIRONMENT
Test
Resistance to soldering heat
Adhesion
Conditions
Components completely immersed in a solder
bath at 260 ± 10° for 5 secs.
Component mounted to substrate a force of
5N applied normal to the line joining the termi-
nation and in a line parallel to the substrate.
- 55 to 125°C, 5 cycles (1B, 2C1)
- 25 to +85°, 5 cycles (2F4)
Requirement
25% Max leaching on each edge
No visible damage
Rapid change or Temperature
No visible damage. After recovery
∆ C/C
∆ C/C
∆ C/C
∆ C/C
Tan
IR.
≤±1% or pF
≤±10%
≤±10%
≤±20%
COG
X7R
X5R
Y5V
≤1.5 x specified value
≤0.25 x specified value
1
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
Embedded System
