225261608621 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 225261608621

225261608621: DescriptionCAPACITOR, CERAMIC, 100V, Y5P, 0.0068uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size112KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

225261608621 Overview

CAPACITOR, CERAMIC, 100V, Y5P, 0.0068uF, THROUGH HOLE MOUNT, RADIAL LEADED

225261608621 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.0068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Installation features	THROUGH HOLE MOUNT
multi-layer	N
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	DISK PACKAGE

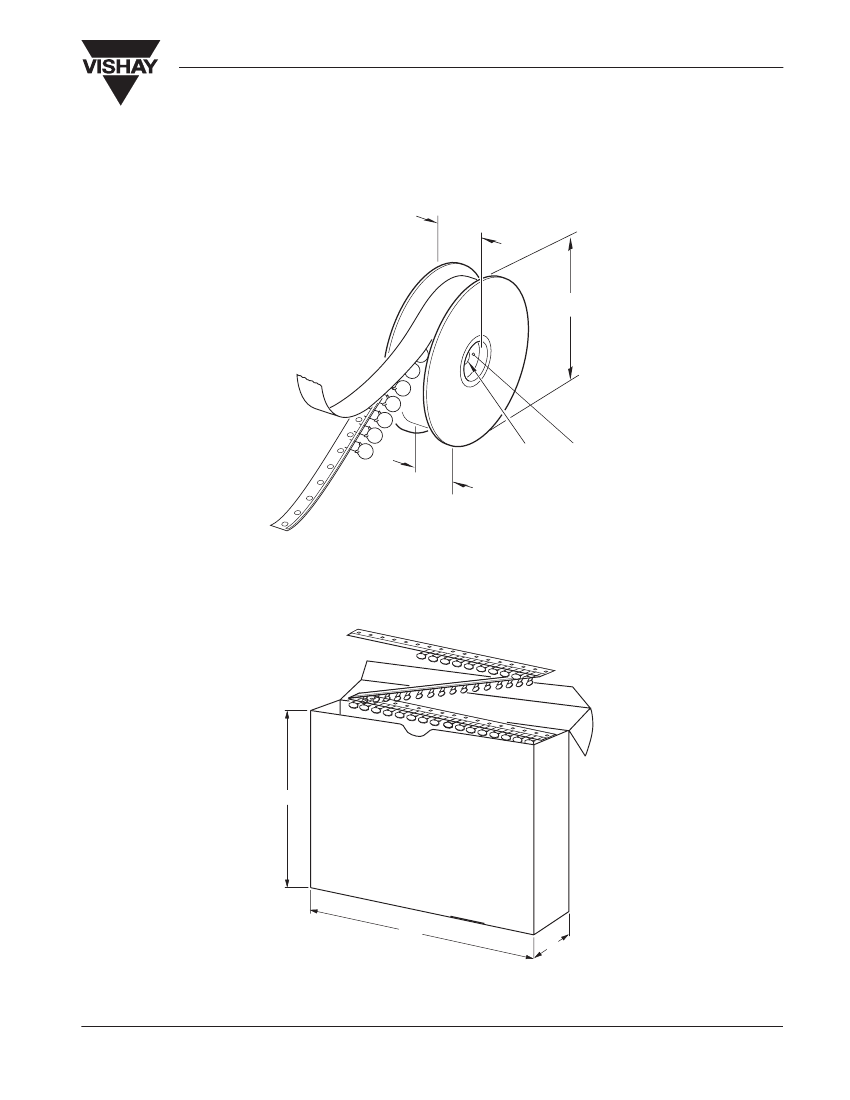

method of packing	AMMO PACK
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
surface mount	NO
Temperature characteristic code	Y5P
Temperature Coefficient	10% ppm/°C
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

LV 100 V

Vishay BCcomponents

Ceramic Disc Capacitors

Class 1 and 2, 100 V (DC) General Purpose

FEATURES

•

Low losses

•

High stability

•

High capacitance in small size

•

Kinked (preferred) or straight leads.

APPLICATIONS

•

Bypassing

•

Coupling

•

Resonant circuit.

tangent

line

DESIGN

The capacitors consist of a ceramic disc both sides of which

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.6 mm.

The capacitors have inward kinked leads with a spacing of

5 mm (0.200") and a lead length from 4 to 30 mm.

Encapsulation is made of phenolic resin.

Capacitors with 5 mm (0.20") lead spacing.

CAPACITANCE RANGE:

Class 1, at 1 MHz, 1.2 V (RMS); 1.0 to 100 pF

1 kHz, 1 ± 0.2V (RMS) for capacitance values higher than 1000 pF.

Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 150 to 47000 pF

TEMPERATURE COEFFICIENTS:

Class 1 NP0; SL0

Class 2 Y5P; Z5U; Y5V; Z5V

SECTIONAL SPECIFICATIONS:

RATED DC VOLTAGE:

100 V

Class 1 IEC 60 384-8,

Class 2 IEC 60 384-9,

EIA 198

DIELECTRIC STRENGTH:

250 % of rated voltage

CLIMATIC CATEGORY:

Class 1 55/125/21

Class 2 10/85/21 and 30/85/21

INSULATION RESISTANCE AT 100V (DC):

≥

10000 M

Ω

TOLERANCE ON CAPACITANCE:

± 0.25 pF; ± 0.5 pF; ± 5 % ; ± 10 %; ± 20 %; + 80 /- 20 %

OPERATING TEMPERATURE RANGE:

Class 1 - 55 to + 125 °C

Class 2 - 30 to + 85 °C

DISSIPATION FACTOR:

Class 1, C

≤

30 pF;

≤

20 x (10/C + 0.7) x 10

-4

maximum

Class 1, C > 30 pF;

≤

20 x 10

-4

Class 2,

≤

3.0 %

MARKING

Marking indicates capacitance value and tolerance in

accordance with

“EIA 198”

The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient

temperature of 25 ± 3 °C, at normal atmospheric conditions

Document Number: 28511

Revision: 14-Oct-03

www.vishay.com
