Steckbare Anschlussklemmen, Raster 5,08 mm

Preview

Download Datasheet

View All

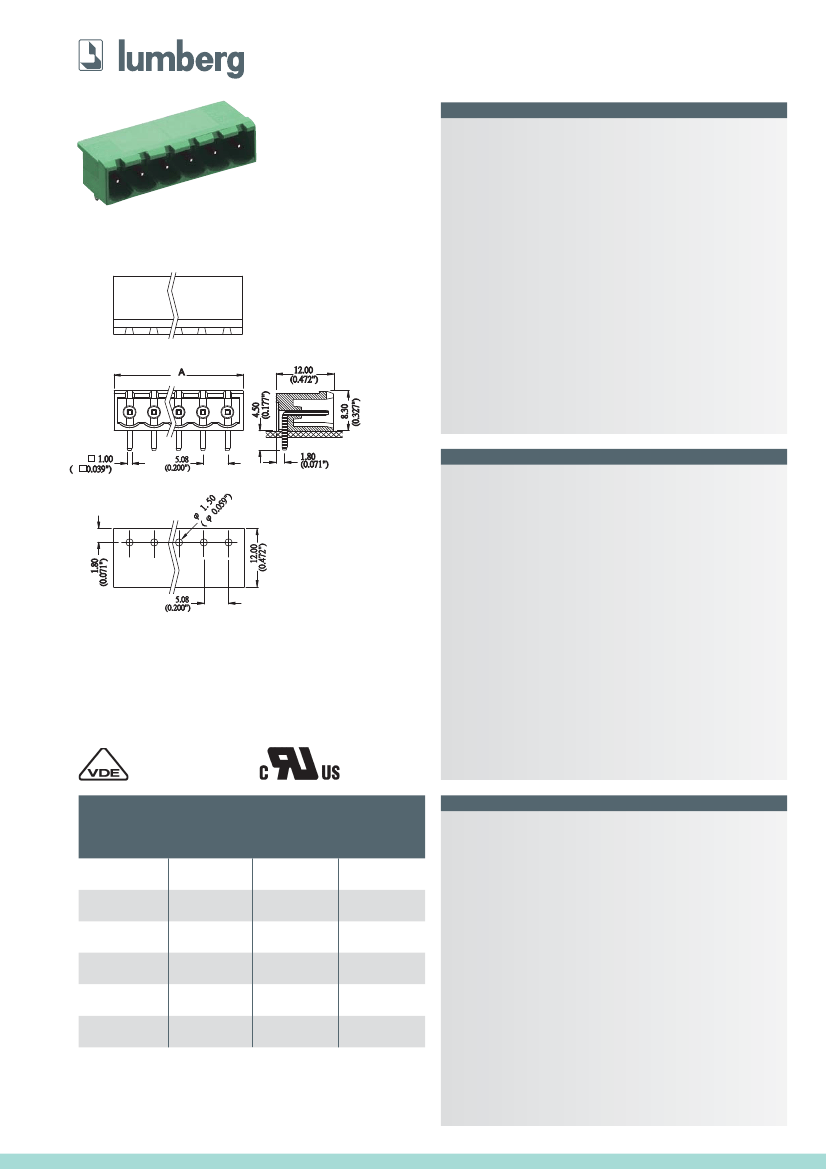

Steckbare Anschlussklemmen, Raster 5,08 mm

Pluggable terminal blocks, pitch 5.08 mm

Borniers de raccordement enfichables, pas 5,08 mm

ME 030-508

Stiftleiste, mit Seitenwänden, abgewinkelt

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontakt

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Bemessungsstrom

Bemessungsspannung

Prüfspannung

Isolationswiderstand

16 A

300 V AC

≥

2 kV

> 5 GΩ

steckbaren Anschlussklemmen

6770, MC ...-508

PA, V0 nach UL 94

CuZn, verzinnt

-40 °C/+105 °C

ME 030-508

Pin header, with sidewalls, angular

*a

1. Temperature range

2. Materials

Insulating body

Contact

3. Mechanical data

Mating with

4. Electrical data

Rated current

Rated voltage

Test voltage

Insulation resistance

16 A

300 V AC

≥

2 kV

> 5 GΩ

pluggable terminal blocks

6770, MC ...-508

PA, V0 according to UL 94

CuZn, tinned

-40 °C/+105 °C

*a Leiterplattenlayout

printed circuit board layout

modèle de la carte imprimée

®

-Reg.-Nr. 115483

Bestellbezeichnung

Designation

Désignation

Polzahl

Poles

Pôles

VE

PU

UE

Abmessungen

Dimensions

A (mm)

ME 030-508

Réglette à broches, avec parois latérales, angulaire

1. Température d’utilisation

2. Matériaux

Corps isolant

Contact

3. Caractéristiques mécaniques

PA, V0 suivant UL 94

CuZn, étamé

-40 °C/+105 °C

ME 030-50802

ME 030-50803

ME 030-50804

ME 030-50805

ME 030-50806

ME 030-50808

2

3

4

5

6

8

500

400

300

200

11,76

16,84

21,92

27,00

32,08

42,24

Raccordement avec

4. Caractéristiques électriques

Courant assigné

Tension assignée

Tension de claquage

Résistance d’isolement

borniers de raccordement enfichables

6770, MC ...-508

16 A

300 V AC

≥

2 kV

> 5 GΩ

Weitere Polzahlen auf Anfrage

Further pole numbers on request

Autres nombres de pôles sur demande

Verpackung: im Kunststoffbeutel

Packaging: in bulk, in a plastic bag

Emballage: en vrac, dans un sachet en plastique

www.lumberg.com

12/2009
