3513-206

Description
6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size101KB,2 Pages
ManufacturerLumberg
Websitehttp://www.lumberg.com/zh/
Download Datasheet Parametric View All

3513-206 Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

3513-206 Parametric

Parameter NameAttribute value
MakerLumberg
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number3513-2
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts6
UL Flammability Code94V-0
Base Number Matches1

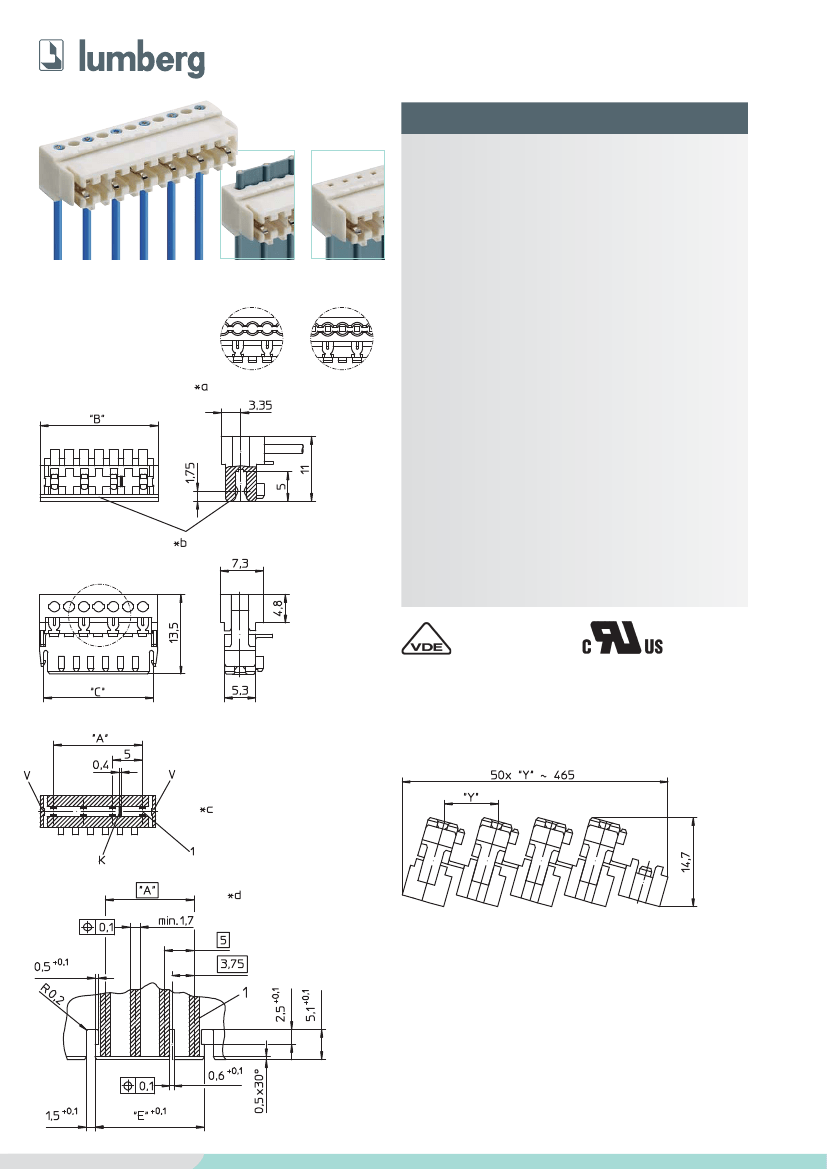

RAST-2.5-Steckverbinder, Raster 2,5/5,0 mm
RAST 2.5 connectors, pitch 2.5/5.0 mm
Connecteurs RAST 2.5, pas 2,5/5,0 mm
3513
3513-1
3513-2
RAST-2.5-Steckverbinder für direktes Stecken, in Schneid-
klemmtechnik (SKT), mit Verrastung auf der Leiterplatte
durch seitliche Rasthaken, mit Kodiersteg
Kontaktraster 5,0 mm
3513: für Einzelleiter
3513-1: für Rasterstegleitung, busfähig
3513-2: für Rasterstegleitung
1. Temperaturbereich
-40 °C/+130 °C
2. Werkstoffe
Kontaktträger 3513(-...) (S0...)
PBT, V0 nach UL 94
Kontaktträger 3513(-...) M12(S0...)
1
PA, V2 nach UL 94
Kontaktfeder
CuSn, feuerverzinnt
3. Mechanische Daten
Steckkraft/Kontakt
2
4,0 N
Ziehkraft/Kontakt
2
0,5 N
Haltekraft/Verrastung
3
Kontaktierung mit
Leiterplatte 1,5 ± 0,14 mm
Anschließbare Leiter Schneidklemmbereich
Querschnitt 3513(-...) (M12)
0,22–0,38 mm
2
Querschnitt 3513(-...) (M12)S01
0,34 mm
2
(7-drähtig)
Querschnitt 3513(-...) (M12)S02
0,14–0,22 mm
2
Querschnitt 3513(-...) (M12)S03
Spezialanwendungen, z.B. Lackdraht
Isolationsdurchmesser
1,6 mm
Freigegebene Leitungen im Internet unter www.lumberg.com
Kodiervorschläge im Internet unter www.lumberg.com
4. Elektrische Daten
(bei T
U
20 °C)
Durchgangswiderstand
5 mΩ
Bemessungsstrom
4 A bei T
U
60 °C
2 A bei T
U
100 °C
Bemessungsspannung
4
250 V AC
Isolierstoffgruppe
4
IIIa (CTI
250)
Kriechstrecke
3,0 mm
Luftstrecke
3,0 mm
Isolationswiderstand
> 1 GΩ
1
Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,
Beurteilung nach IEC 60335-1 (Flamme < 2 s)
2
gemessen mit einem polierten Stahlstift, Nennmaß 1,5 mm
3
gemessen mit einer polierten Stahllehre, Nennmaß 1,5 mm
4
nach DIN EN 60664/IEC 60664
®
3513
3513-1
X
3513-2
X
X
Reg.-Nr. 6937
3513
3513-2
*e
*a konfektionierter Zustand
terminated connector
connecteur après montage
3513(-...) (M12)S01 blau/blue/bleu
*b Farbkennzeichnung:
color marking:
3513(-...) (M12)S02 grün/green/vert
marque en couleur:
3513(-...) (M12)S03 braun/brown/marron
*c K = Kodierung (wahlweise)
K = keying (alternatively)
K = codage (au choix)
V = Verrastung
V = lock
V = verrouillage
*d Leiterplattenbeispiel
example for printed circuit board
exemple de carte imprimée
*e Verkettung der Bauteile (Lieferzustand)
chaining of the component parts (state of delivery)
composants en bande (état de livraison)
