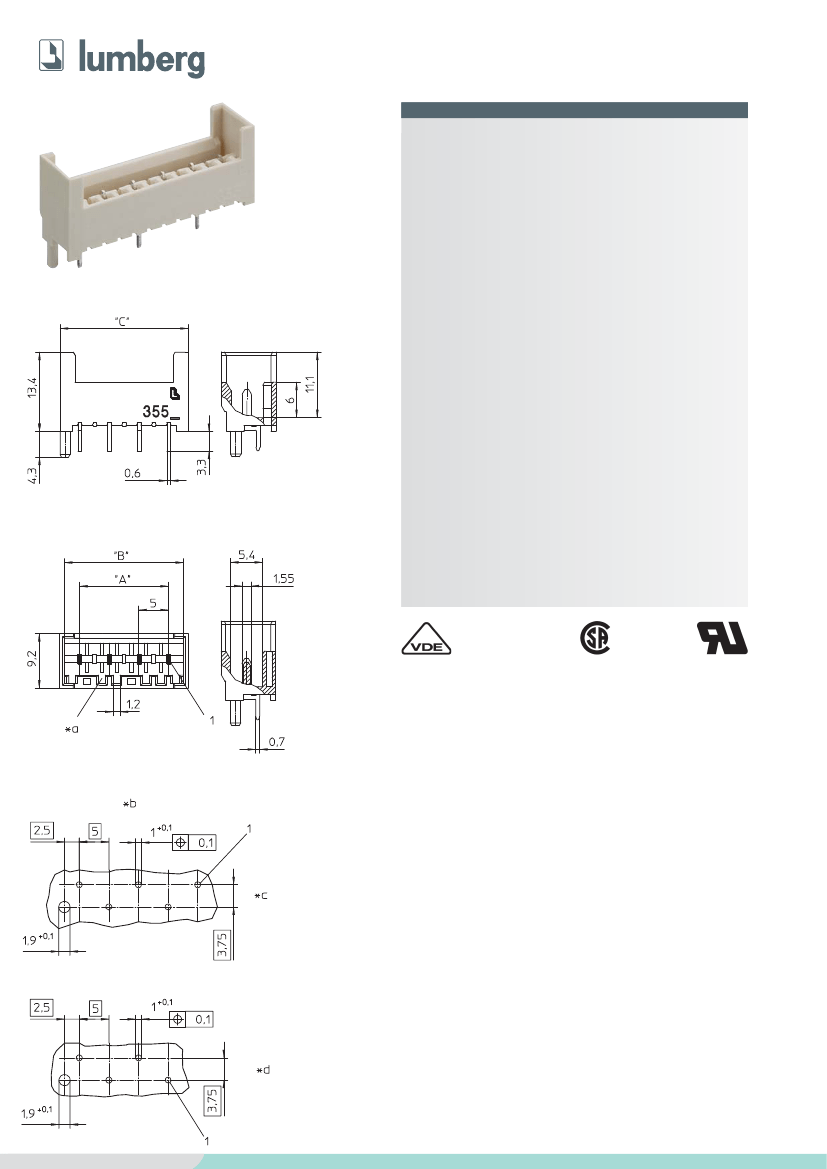

RAST-2.5-Steckverbinder, Raster 2,5/5,0 mm

RAST 2.5 connectors, pitch 2.5/5.0 mm

Connecteurs RAST 2.5, pas 2,5/5,0 mm

3553

RAST-2.5-Stiftleiste, stehend, mit Positionierungszapfen,

für Innenverrastung

Kontaktraster 5,0 mm

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktstift

3. Mechanische Daten

Kontaktierung mit

Steckverbindern 3522, 3522-1, 3522-2,

Steckverbindern nach RAST-2,5-

Standard

Kodiervorschläge im Internet unter www.lumberg.com

PA 6.6 GF, V0 nach UL 94

CuZn, unternickelt und verzinnt

-40 °C/+120 °C

4. Elektrische Daten

(bei T

20 °C)

4 A bei T

60 °C

2 A bei T

120 °C

250 V AC

Bemessungsspannung

IIIa (CTI

≥

250)

Isolierstoffgruppe

Kriechstrecke

≥

4,4 mm

Luftstrecke

≥

4,4 mm

Isolationswiderstand

> 1 GΩ

Bauteil glühdrahtbeständig nach IEC 60695-2-11 bzw. IEC 60335-1

(GWT 750 °C ohne Flamme)

nach DIN EN 60664/IEC 60664 in Zusammenhang mit RAST-2,5-Steck-

verbinder

Bemessungsstrom

Reg.-Nr. 6937

*a Kodierung (wahlweise)

keying (alternatively)

codage (au choix)

*b Lochbilder in der Leiterplatte, von der Lötseite gesehen

printed circuit board layouts, solder side view

modèles de la carte imprimée, vue du côté à souder

*c ungerade Polzahl

uneven pole numbers

nombres de pôles impairs

*d gerade Polzahl

even pole numbers

nombres de pôles pairs

www.lumberg.com

11/2009
