RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

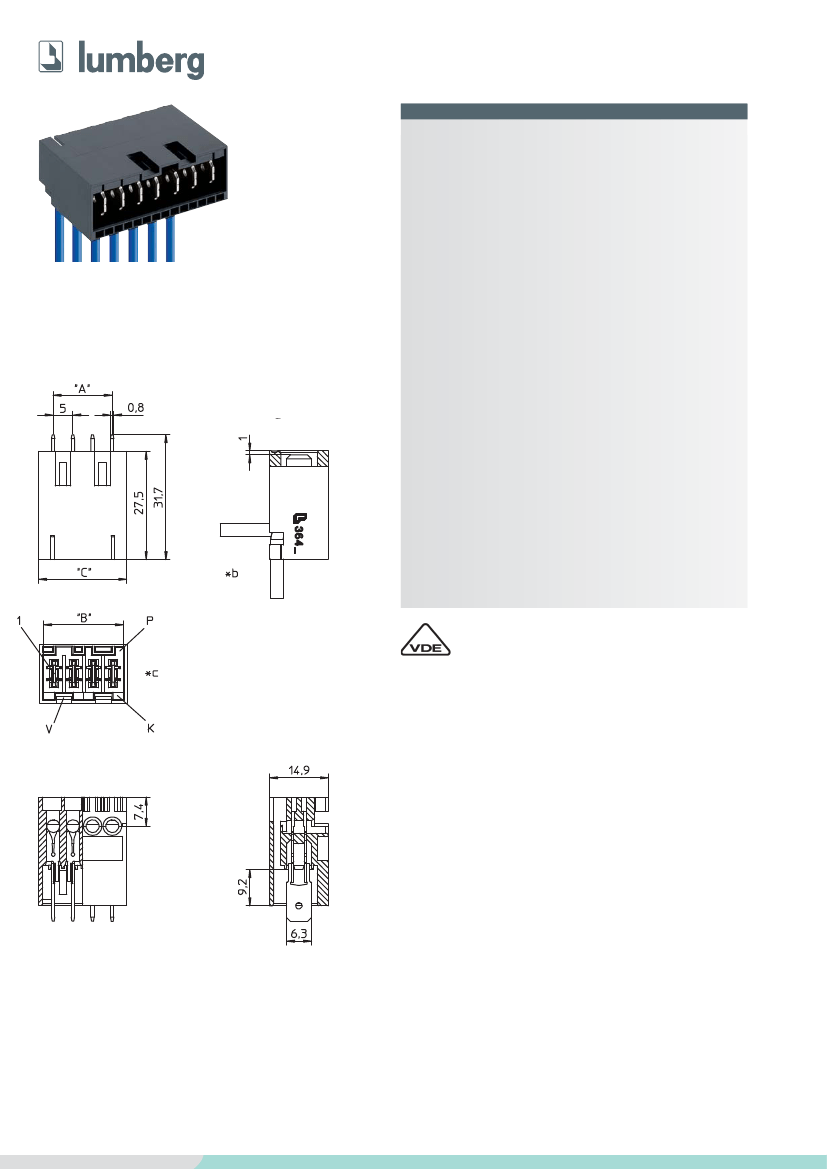

3647-1

RAST-5-Messerleiste, in Schneidklemmtechnik (SKT), zur

Verwendung im

erhöhten Temperaturbereich

1. Temperaturbereich

2. Werkstoffe

Kontaktträger 3647-1 M07(S03)

Kontaktmesser

3. Mechanische Daten

6,3 x 0,8 mm nach DIN 46244

Steckverbindern 362...-1 M05S03,

Steckverbindern nach RAST-5-

Standard

Anschließbare Leiter Schneidklemmbereich

Querschnitt 3647-1 (M07)S03

1,0 mm

Isolationsdurchmesser

≤

3,0 mm

Freigegebene Leitungen im Internet unter www.lumberg.com

Kodiervorschläge im Internet unter www.lumberg.com

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

Isolierstoffgruppe

Kriechstrecke

Luftstrecke

Isolationswiderstand

nach DIN EN 60664/IEC 60664

≤

5 mΩ

10,5 A bei T

120 °C

250 V AC

IIIa (CTI

≥

250)

≥

3,2 mm

≥

3,2 mm

> 10 GΩ

Kontaktmesser

Kontaktierung mit

PA, V2 nach UL 94

CuSn, versilbert

-40 °C/+150 °C

Reg.-Nr. A502

*a konfektionierter Zustand

terminated connector

connecteur après montage

*b Leiterabgang 90° oder 180°, mit Grifflasche nur 90°

cable departure 90° or 180°, with handle latch only 90°

sortie des câbles 90° ou 180°, 90° avec languette de maniement

*c K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Raum für Verriegelung

V = space for lock

V = emplacement pour verrouillage

www.lumberg.com

12/2009
