364807M08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 364807M08

364807M08: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

364807M08 Overview

TWO PART BOARD CONNECTOR

364807M08 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
body width	0.587 inch
subject depth	1.083 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3648
Plug contact pitch	0.197 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	10 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	7
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

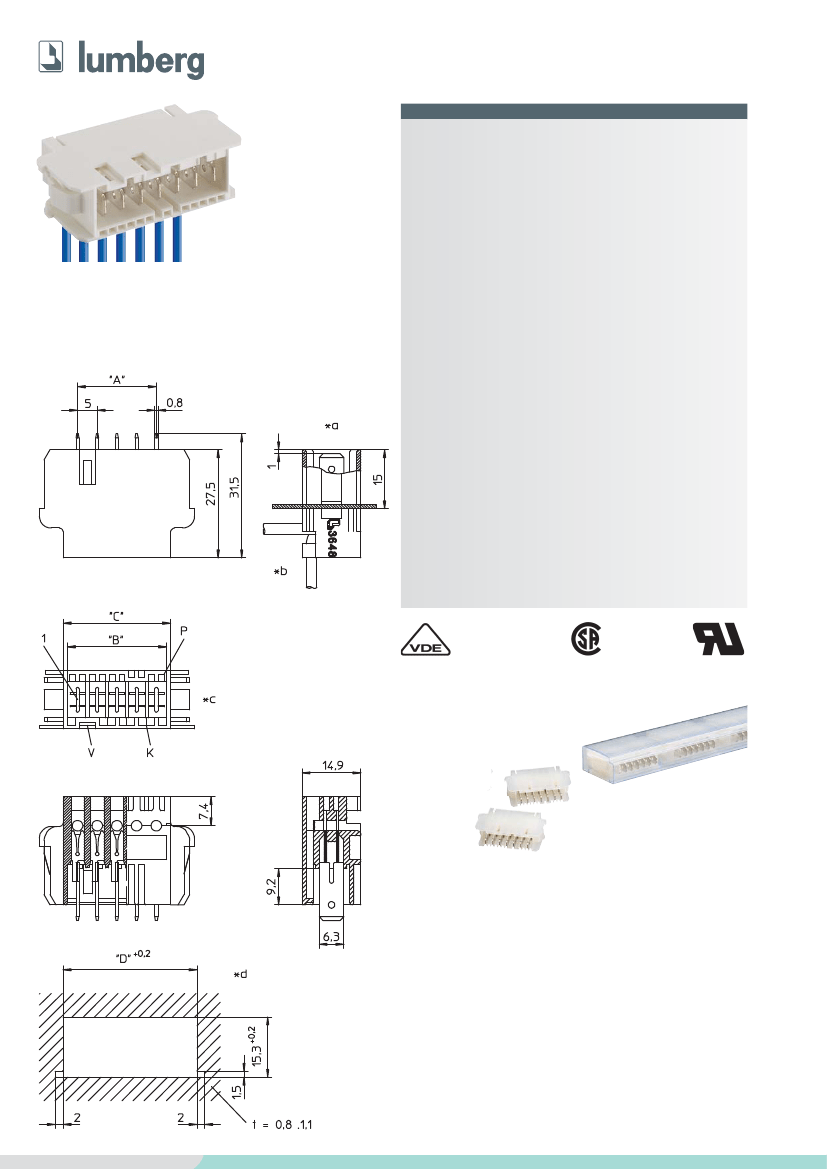

RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

3648

RAST-5-Einbaumesserleiste, in Schneidklemmtechnik (SKT)

1. Temperaturbereich

2. Werkstoffe

Kontaktträger 3648 M08

Kontaktmesser

3. Mechanische Daten

Kontaktmesser

Kontaktierung mit

6,3 x 0,8 mm nach DIN 46244

Steckverbindern 3611, 3615, 3623,

3626, 3628, 368...,

Steckverbindern nach RAST-5-

Standard

Anschließbare Leiter Schneidklemmbereich

Querschnitt

0,50–0,75 mm

Isolationsdurchmesser

≤

2,5 mm

Freigegebene Leitungen im Internet unter www.lumberg.com

Kodiervorschläge im Internet unter www.lumberg.com

PA, V2 nach UL 94

CuSn, verzinnt

-40 °C/+130 °C

4. Elektrische Daten

(bei T

25 °C)

Durchgangswiderstand

Bemessungsstrom

≤

5 mΩ

6 A/0,75 mm

bei T

90 °C

10 A/0,75 mm

bei T

60 °C

250 V AC

Bemessungsspannung

IIIa (CTI

≥

325)

Isolierstoffgruppe

Kriechstrecke

≥

3,2 mm

Luftstrecke

≥

3,2 mm

Isolationswiderstand

> 10 GΩ

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

nach DIN EN 60664/IEC 60664

Reg.-Nr. B317

*a konfektionierter Zustand

terminated connector

connecteur après montage

*b Leiterabgang 90° oder 180°

cable departure 90° or 180°

sortie des câbles 90° ou 180°

*c K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Raum für Verriegelung

V = space for lock

V = emplacement pour verrouillage

*d Einbauöffnung

port

ouverture d’emplacement

www.lumberg.com

12/2009

364807M08 Related Products

	364807M08	3648	364802M08	364803M08	364804M08	364805M08	364806M08	364808M08
Description	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Maker	Lumberg	-	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.587 inch	-	0.587 inch	0.587 inch	0.587 inch	0.587 inch	0.587 inch	0.587 inch
subject depth	1.083 inch	-	1.083 inch	1.083 inch	1.083 inch	1.083 inch	1.083 inch	1.083 inch
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	TIN	-	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	-	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRONZE	-	BRONZE	BRONZE	BRONZE	BRONZE	BRONZE	BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	-	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	BLADE PIN-SKT	-	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO
Insulation resistance	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	POLYAMIDE	-	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	3648	-	3648	3648	3648	3648	3648	3648
Plug contact pitch	0.197 inch	-	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	-	1	1	1	1	1	1
Maximum operating temperature	130 °C	-	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	10 A	-	10 A	10 A	10 A	10 A	10 A	10 A
Guideline	UL	-	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	-	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	7	-	2	3	4	5	6	8
UL Flammability Code	94V-2	-	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2
Base Number Matches	1	-	1	1	1	1	1	1
