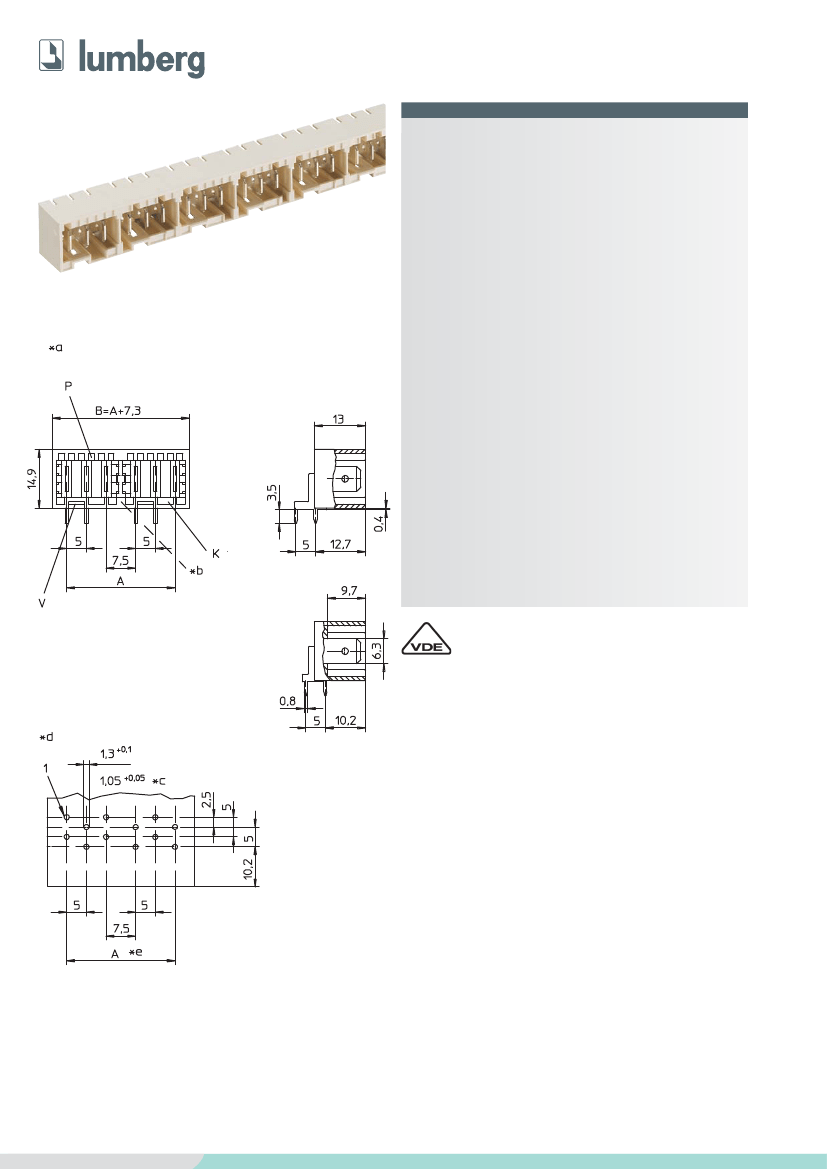

RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

3673

RAST-5-Messerleiste, abgewinkelt, mit Zwischenwänden und

untenliegender Verriegelung

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktmesser

3. Mechanische Daten

Kontaktmesser

Kontaktierung mit

6,3 x 0,8 mm nach DIN 46244

Steckverbindern 3611, 3615, 3623,

3626,

Steckverbindern nach RAST-5-

Standard

PA GF, V0 nach UL 94

CuZn, unternickelt und verzinnt

-40 °C/+120 °C

4. Elektrische Daten

Bemessungsstrom

16 A bei T

70 °C

250 V AC

Bemessungsspannung

IIIa (CTI

≥

350)

Isolierstoffgruppe

Kriechstrecke

≥

4,0 mm

Luftstrecke

≥

4,0 mm

Isolationswiderstand

> 10 GΩ

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

nach DIN EN 60664/IEC 60664

Reg.-Nr. 135721

*a K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Raum für Verriegelung

V = space for lock

V = emplacement pour verrouillage

*b Zwischenwand

partitioning

séparation

*c Maß für Presssitz auf der Leiterplatte

measure for press-fit on printed circuit board

mesure pour autofixation sur carte imprimée par pression

*d Lochbild in der Leiterplatte, von der Bauteilseite gesehen

printed circuit board layout, components side view

modèle de la carte imprimée, vue du côté à équiper

*e A = (P - 1) x 5 + (Z x 2,5)

P = Polzahl

P = poles

P = pôles

Z = Anzahl Zwischenwände (je 12 Kontakte mindestens 1 Zwischenwand)

Z = number of partitionings (at least 1 partitioning every 12 contacts)

Z = nombre de séparations (au moins 1 séparation tous les 12 contacts)
