TMPZ84C61AP-6 datasheet, PDF - EEWORLD Datasheet

TMPZ84C61AP-6: DescriptionTLCS-Z80 CGC : Z80 CLOCK GENERATOR/CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size447KB，23 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TMPZ84C61AP-6 Overview

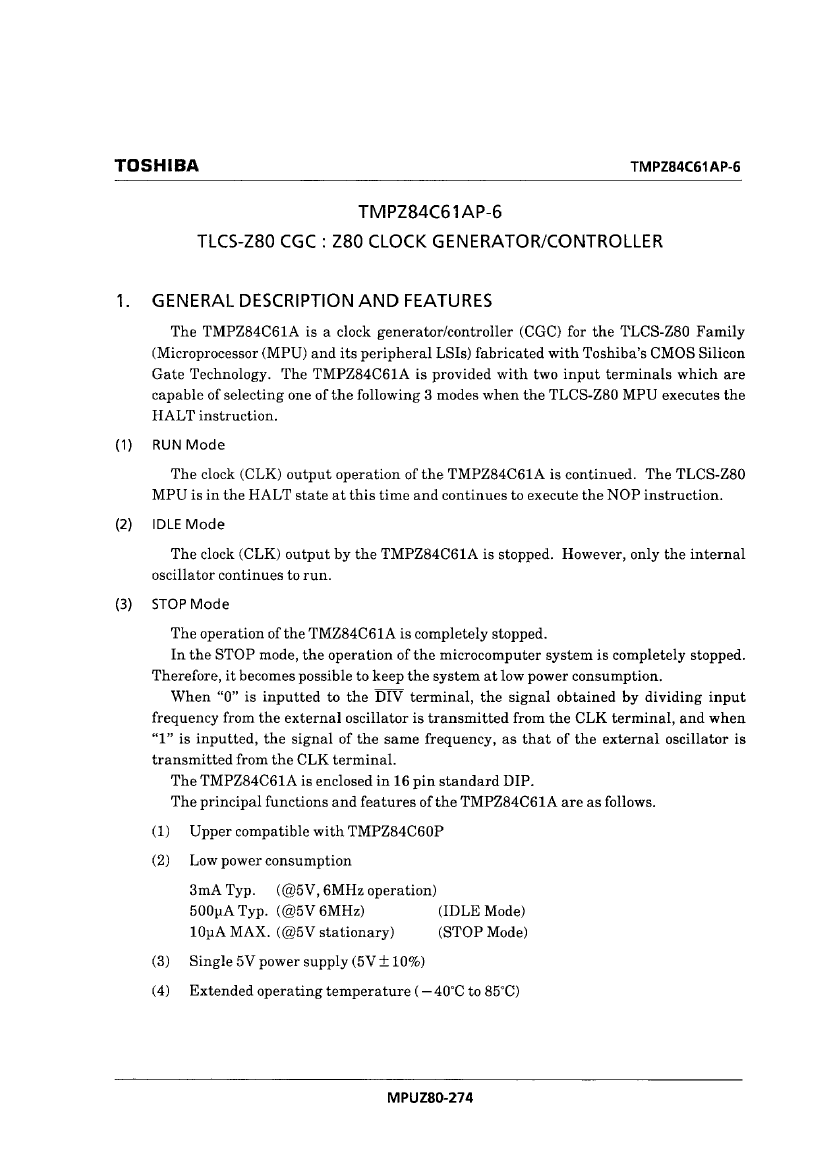

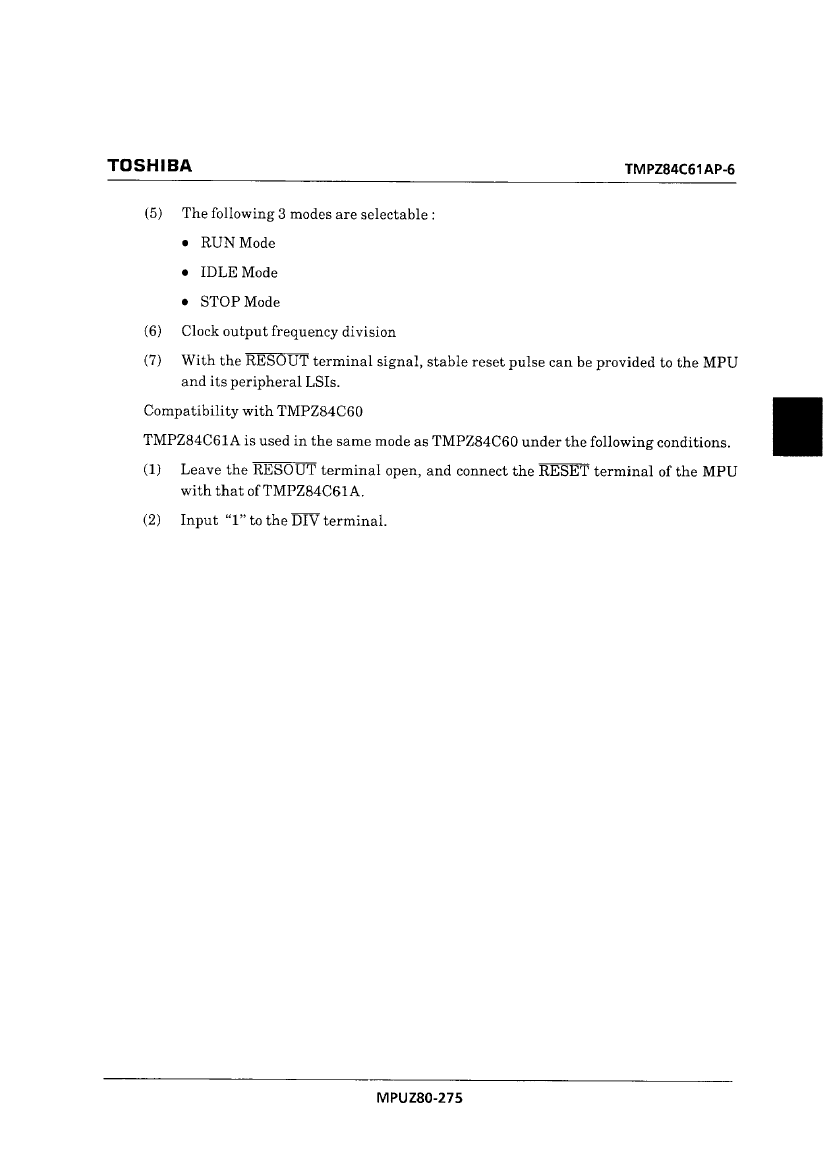

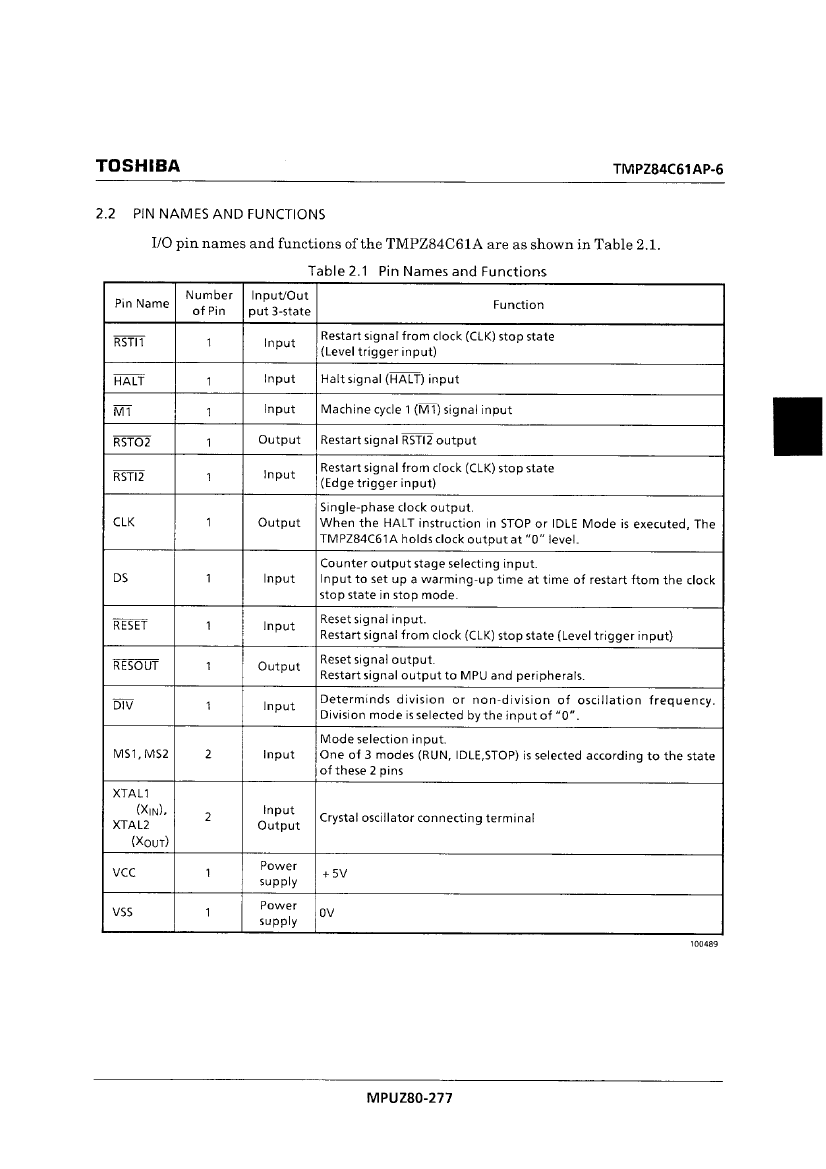

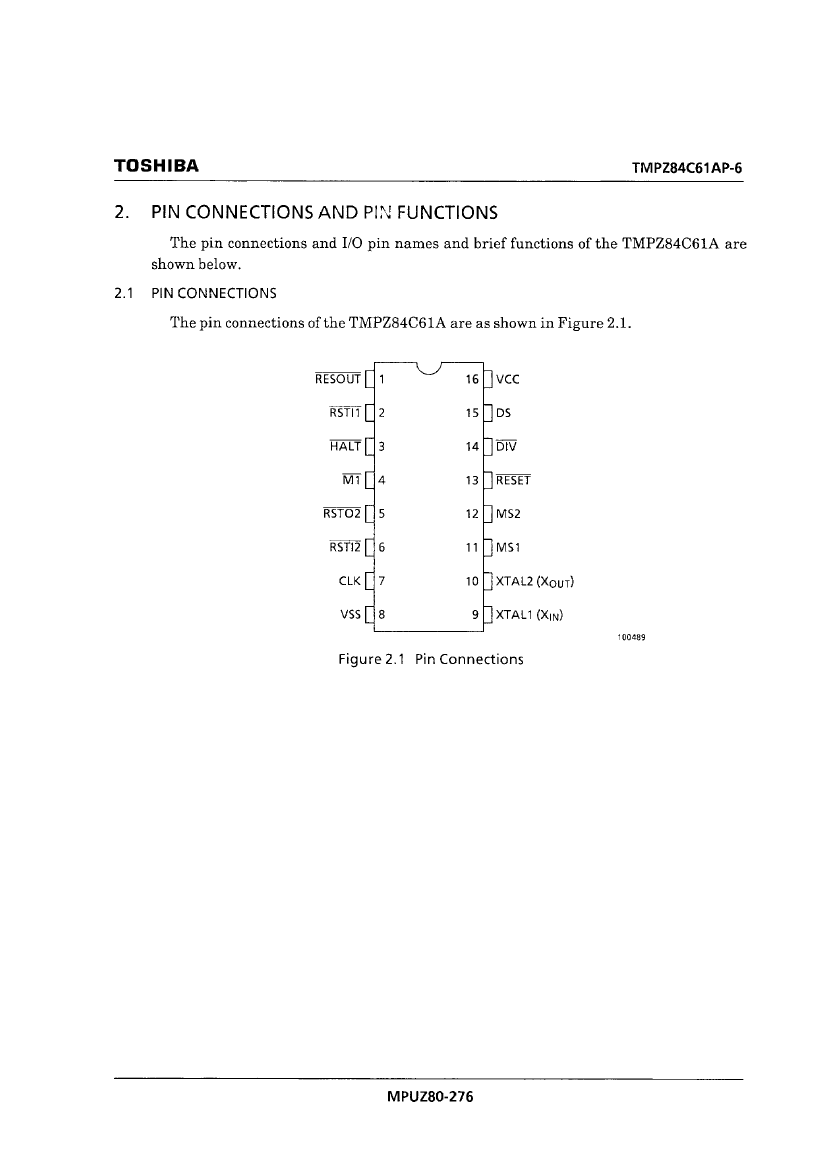

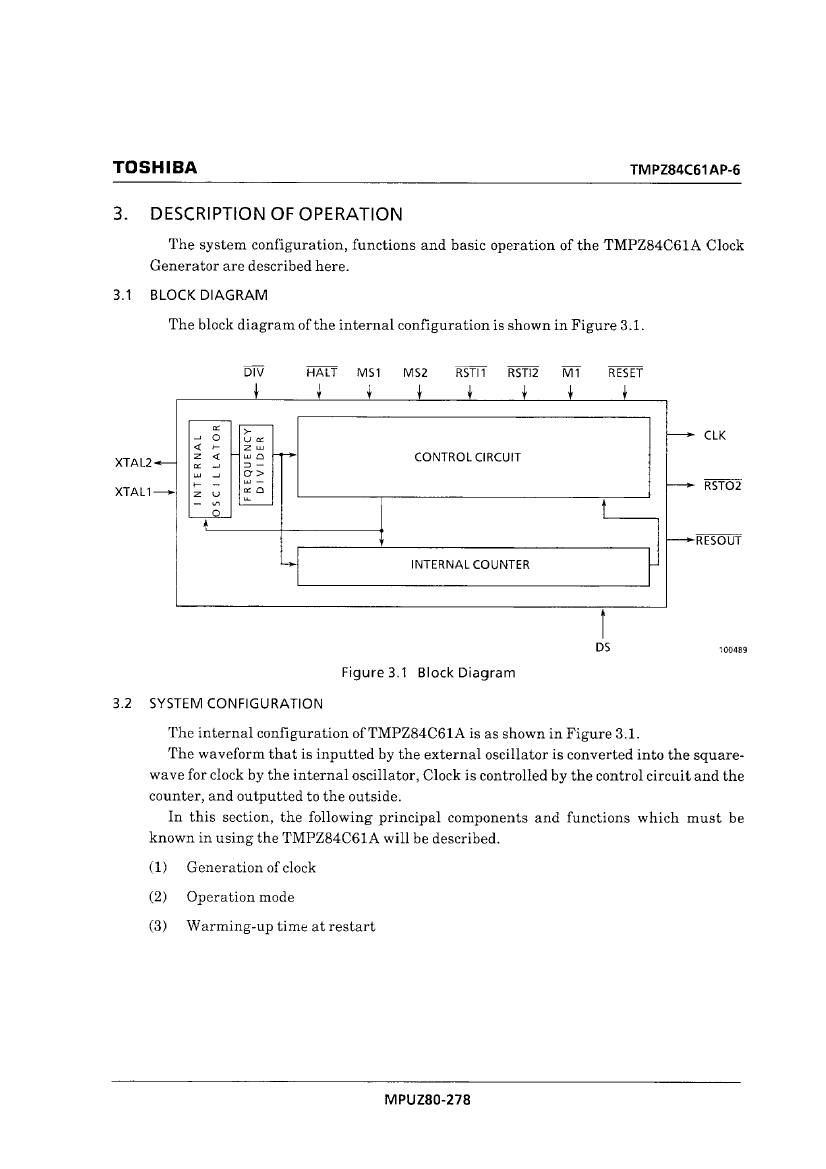

TLCS-Z80 CGC : Z80 CLOCK GENERATOR/CONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.25 mm
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	6 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Master clock/crystal nominal frequency	12 MHz
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
