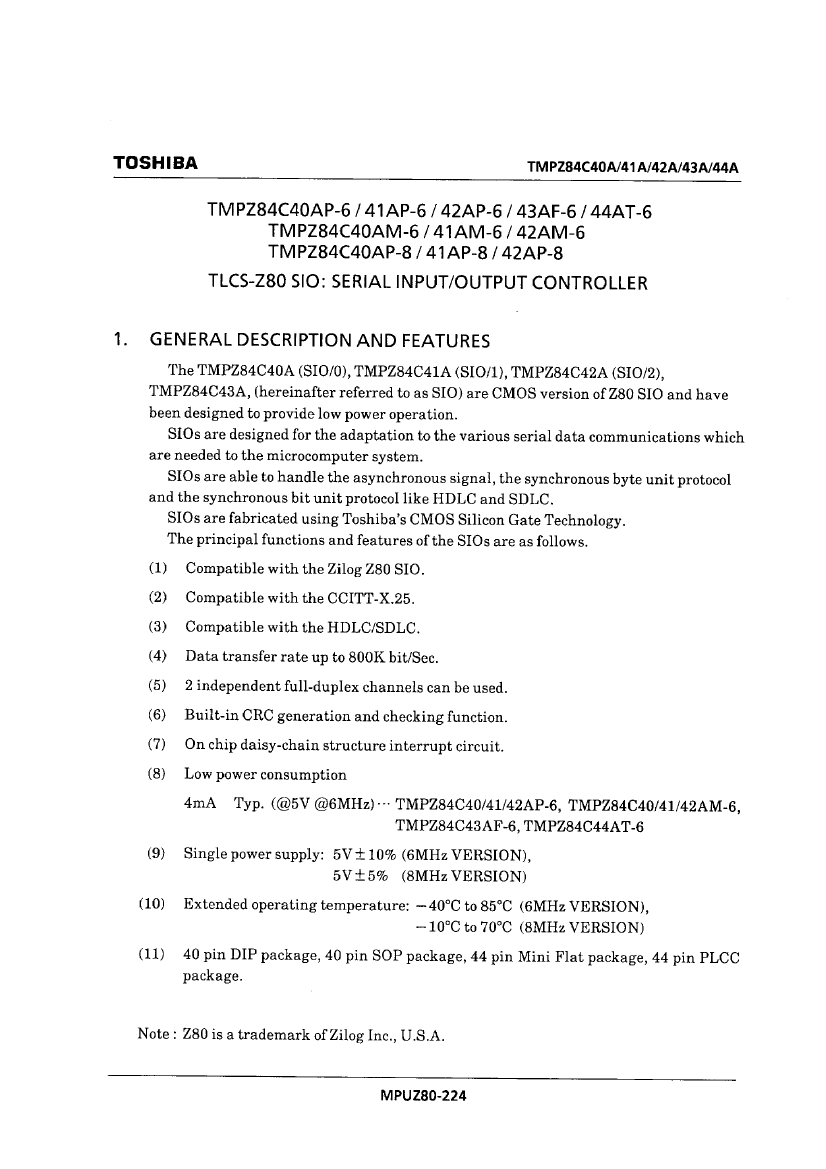

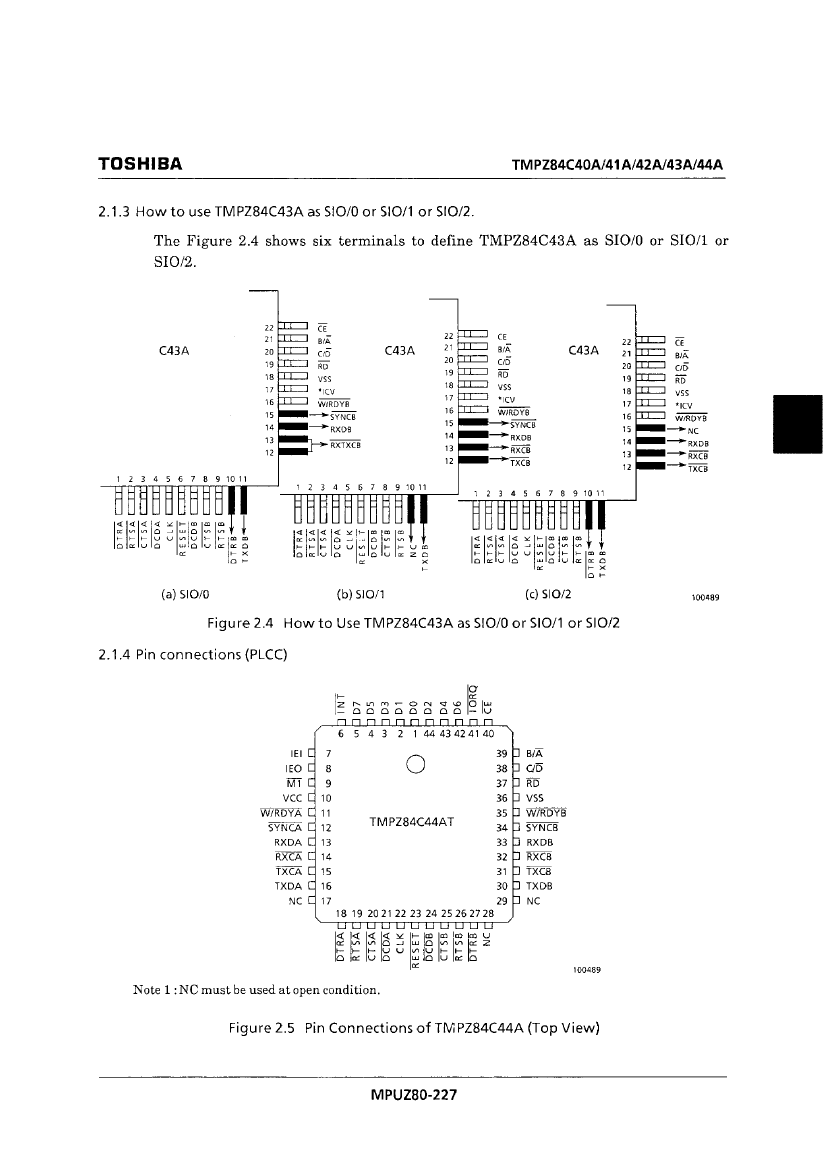

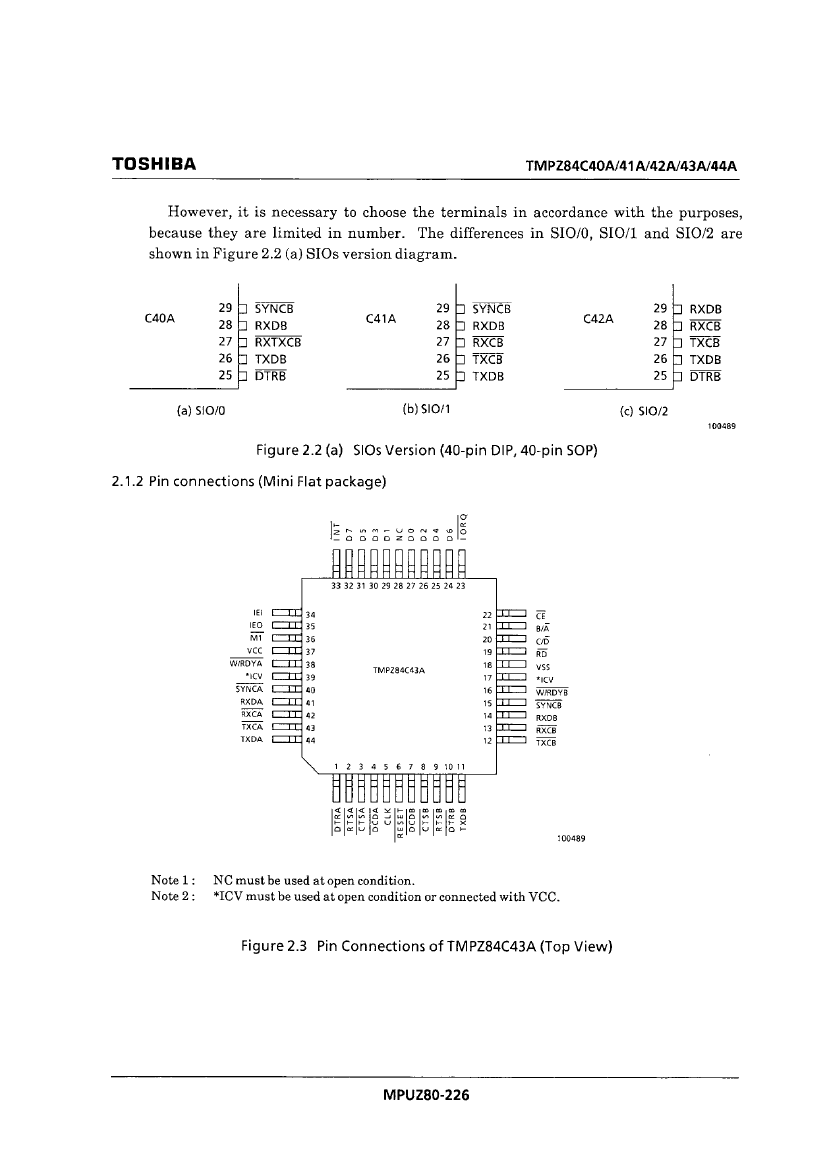

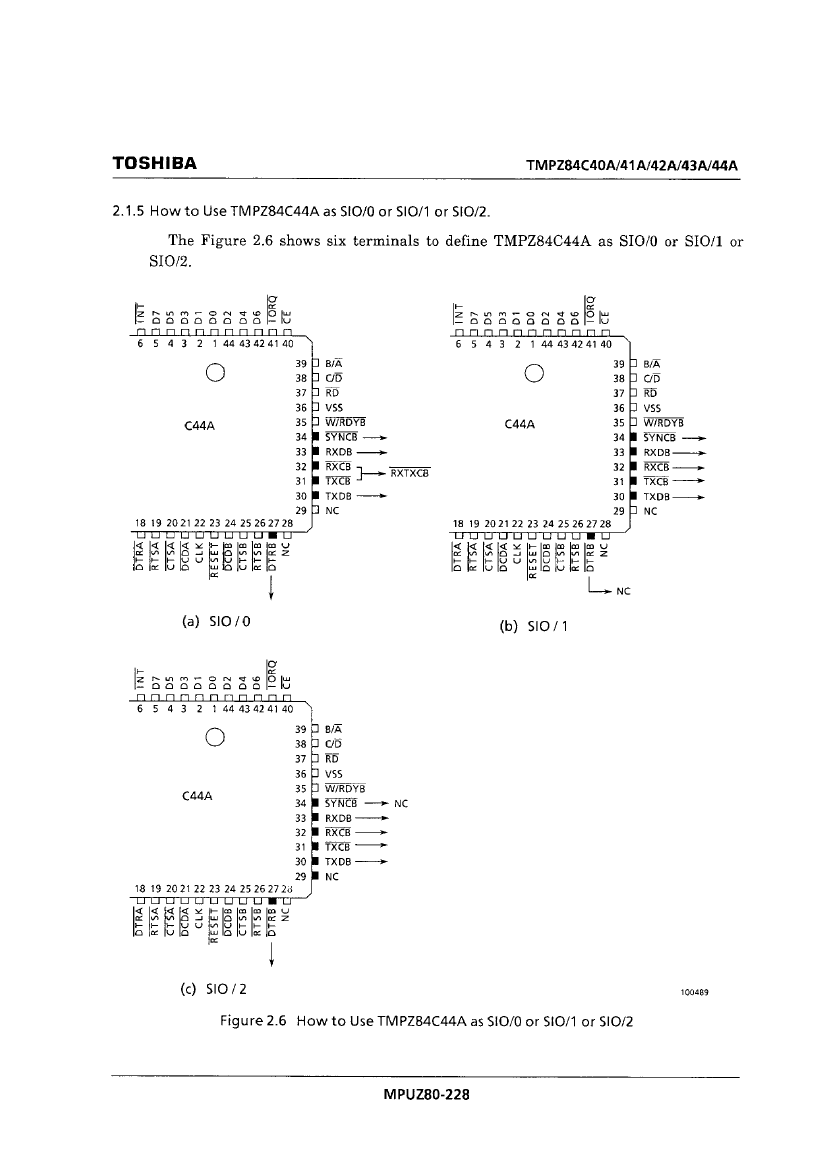

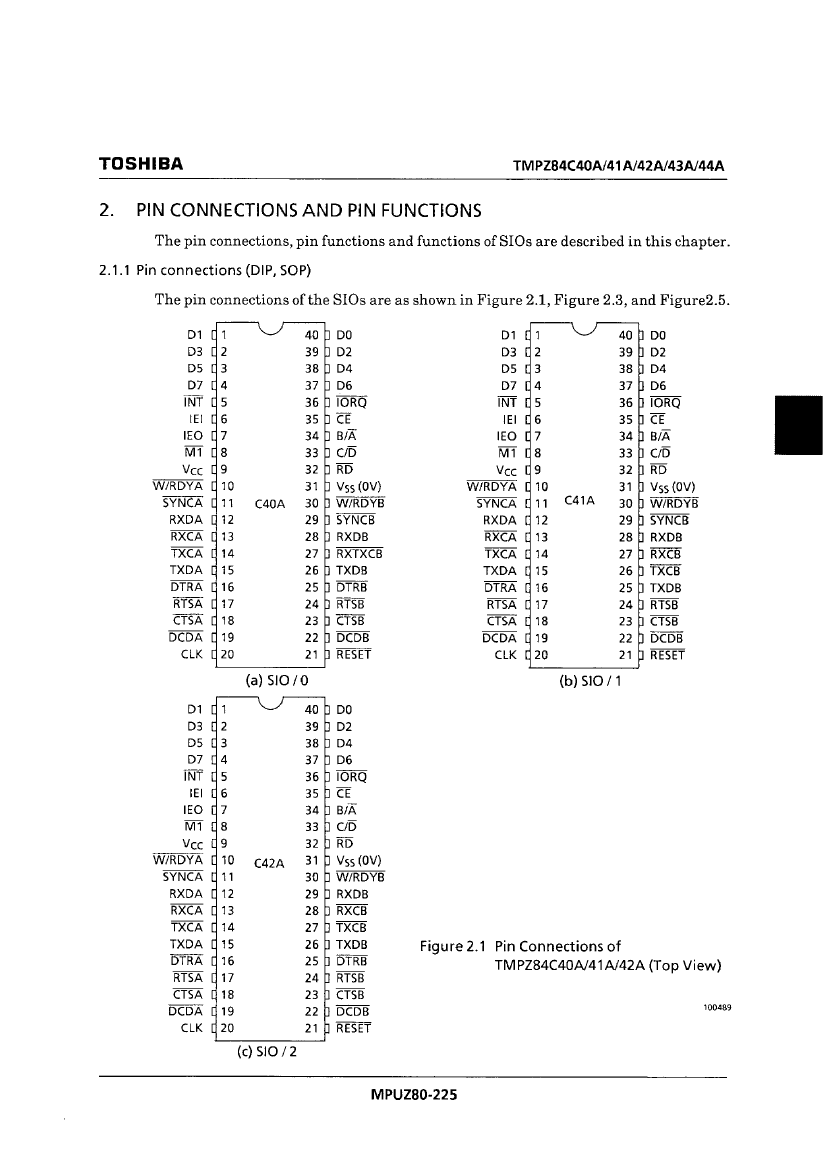

TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER
| TMPZ84C42AF-6 | TMPZ84C42AP-8 | TMPZ84C43AT-6 | TMPZ84C42AM-6 | TMPZ84C41AP-8 | TMPZ84C41AP-6 | TMPZ84C40AM-6 | TMPZ84C40AP-6 | TMPZ84C41AM-6 | TMPZ84C40AP-8 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER | TLCS-Z80 SIO: SERIAL INPUT/OUTPUT CONTROLLER |
| Is it Rohs certified? | - | incompatible | - | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | - | Toshiba Semiconductor | - | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | - | Toshiba Semiconductor | Toshiba Semiconductor |
| Parts packaging code | - | DIP | - | SSOP | DIP | DIP | SSOP | DIP | SSOP | DIP |
| package instruction | - | DIP, | - | SSOP, | DIP, | DIP, | SSOP, | DIP, | SSOP, | DIP, |
| Contacts | - | 40 | - | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Reach Compliance Code | - | unknow | - | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| Address bus width | - | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| boundary scan | - | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Bus compatibility | - | Z80 | - | Z80 | Z80 | Z80 | Z80 | Z80 | Z80 | Z80 |
| maximum clock frequency | - | 8 MHz | - | 6.144 MHz | 8 MHz | 6.144 MHz | 6.144 MHz | 6.144 MHz | 6.144 MHz | 8 MHz |
| letter of agreement | - | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | - | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC |
| Data encoding/decoding methods | - | NRZ | - | NRZ | NRZ | NRZ | NRZ | NRZ | NRZ | NRZ |
| Maximum data transfer rate | - | 0.09765625 MBps | - | 0.09765625 MBps | 0.09765625 MBps | 0.09765625 MBps | 0.09765625 MBps | 0.09765625 MBps | 0.09765625 MBps | 0.09765625 MBps |
| External data bus width | - | 8 | - | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | - | R-PDIP-T40 | - | R-PDSO-G40 | R-PDIP-T40 | R-PDIP-T40 | R-PDSO-G40 | R-PDIP-T40 | R-PDSO-G40 | R-PDIP-T40 |
| JESD-609 code | - | e0 | - | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | - | 50.7 mm | - | 17.5 mm | 50.7 mm | 50.7 mm | 17.5 mm | 50.7 mm | 17.5 mm | 50.7 mm |
| low power mode | - | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Number of serial I/Os | - | 2 | - | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | - | 40 | - | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Maximum operating temperature | - | 70 °C | - | 85 °C | 70 °C | 85 °C | 85 °C | 85 °C | 85 °C | 70 °C |
| Minimum operating temperature | - | -10 °C | - | -40 °C | -10 °C | -40 °C | -40 °C | -40 °C | -40 °C | -10 °C |
| Package body material | - | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | DIP | - | SSOP | DIP | DIP | SSOP | DIP | SSOP | DIP |
| Package shape | - | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE | - | SMALL OUTLINE, SHRINK PITCH | IN-LINE | IN-LINE | SMALL OUTLINE, SHRINK PITCH | IN-LINE | SMALL OUTLINE, SHRINK PITCH | IN-LINE |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | - | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | - | 4.8 mm | - | 2.8 mm | 4.8 mm | 4.8 mm | 2.8 mm | 4.8 mm | 2.8 mm | 4.8 mm |
| Maximum slew rate | - | 12 mA | - | 10 mA | 12 mA | 10 mA | 10 mA | 10 mA | 10 mA | 12 mA |
| Maximum supply voltage | - | 5.25 V | - | 5.5 V | 5.25 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.25 V |
| Minimum supply voltage | - | 4.75 V | - | 4.5 V | 4.75 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.75 V |
| Nominal supply voltage | - | 5 V | - | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | - | NO | - | YES | NO | NO | YES | NO | YES | NO |
| technology | - | CMOS | - | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | - | COMMERCIAL | - | INDUSTRIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | COMMERCIAL |
| Terminal surface | - | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | THROUGH-HOLE | - | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | - | 2.54 mm | - | 0.8 mm | 2.54 mm | 2.54 mm | 0.8 mm | 2.54 mm | 0.8 mm | 2.54 mm |
| Terminal location | - | DUAL | - | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | - | 15.24 mm | - | 8.8 mm | 15.24 mm | 15.24 mm | 8.8 mm | 15.24 mm | 8.8 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | - | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | - | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
