TMPZ84C10AP-6 datasheet, PDF - EEWORLD Datasheet

TMPZ84C10AP-6: DescriptionCMOS-Z80 DMA : DIRECT MEMORY ACCESS CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，70 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMPZ84C10AP-6 Overview

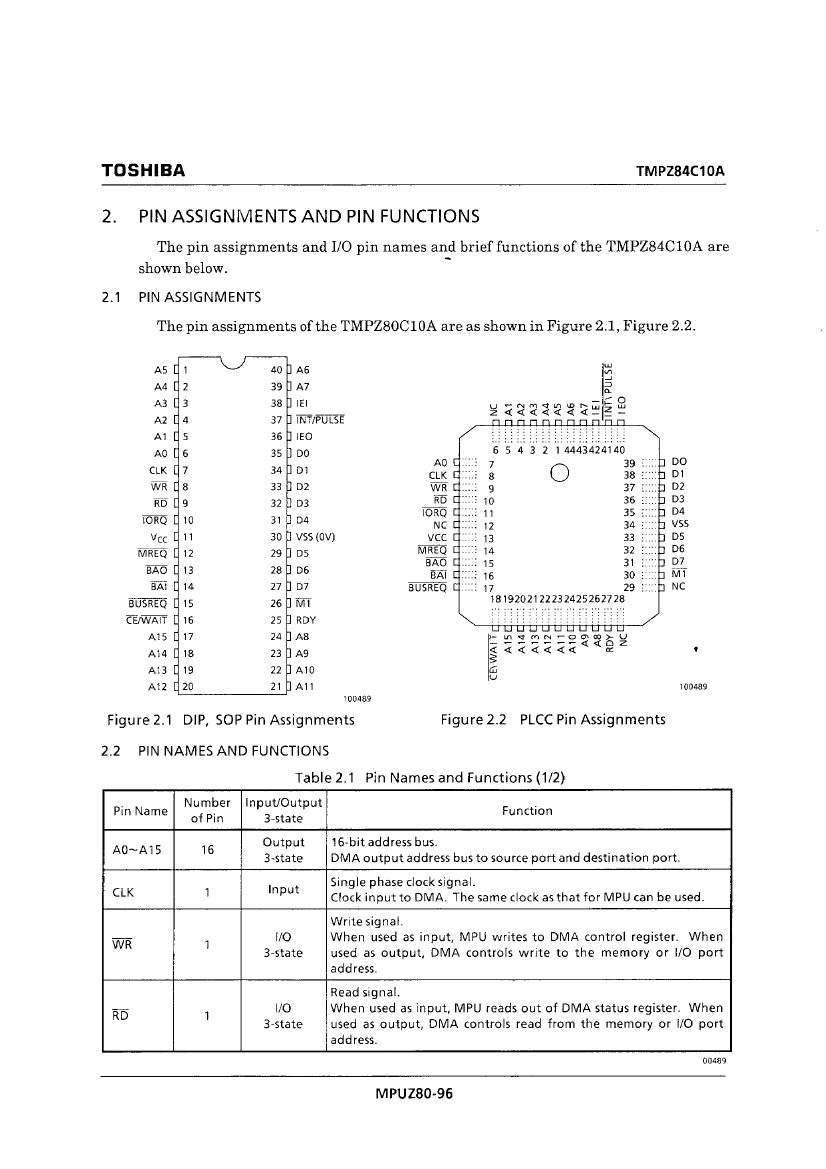

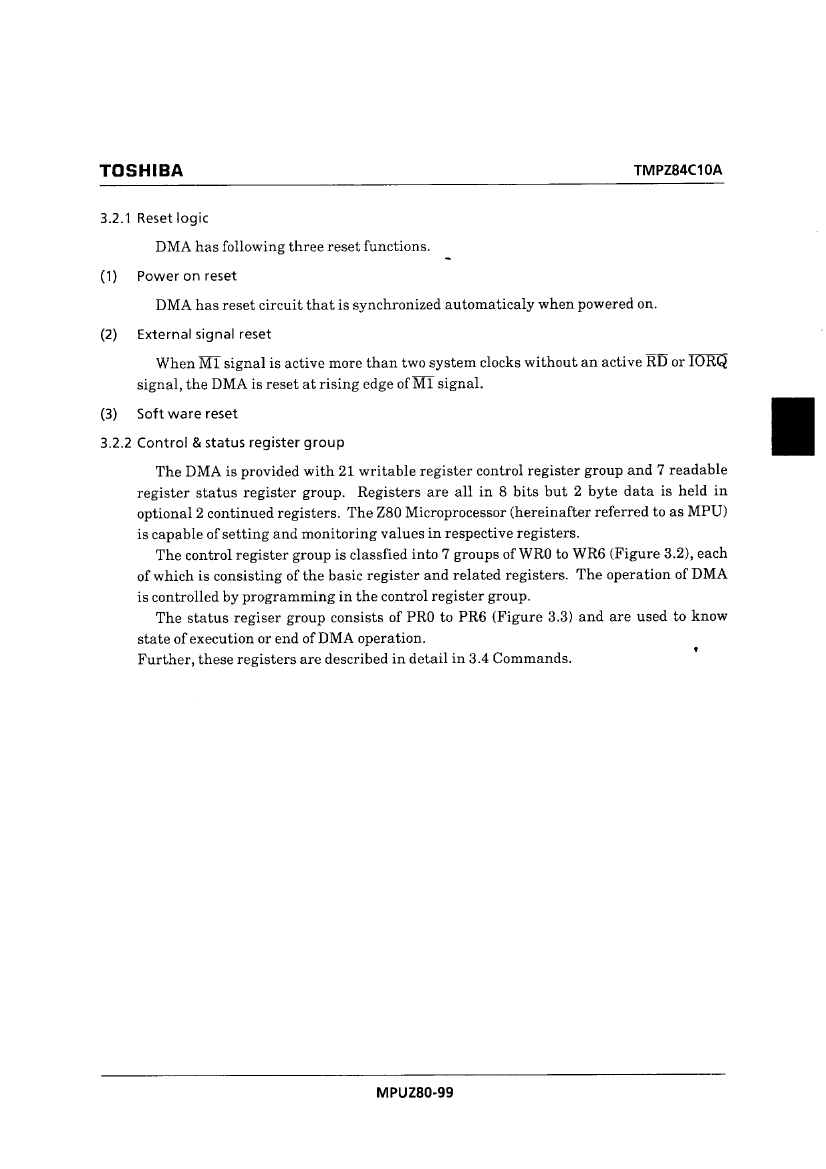

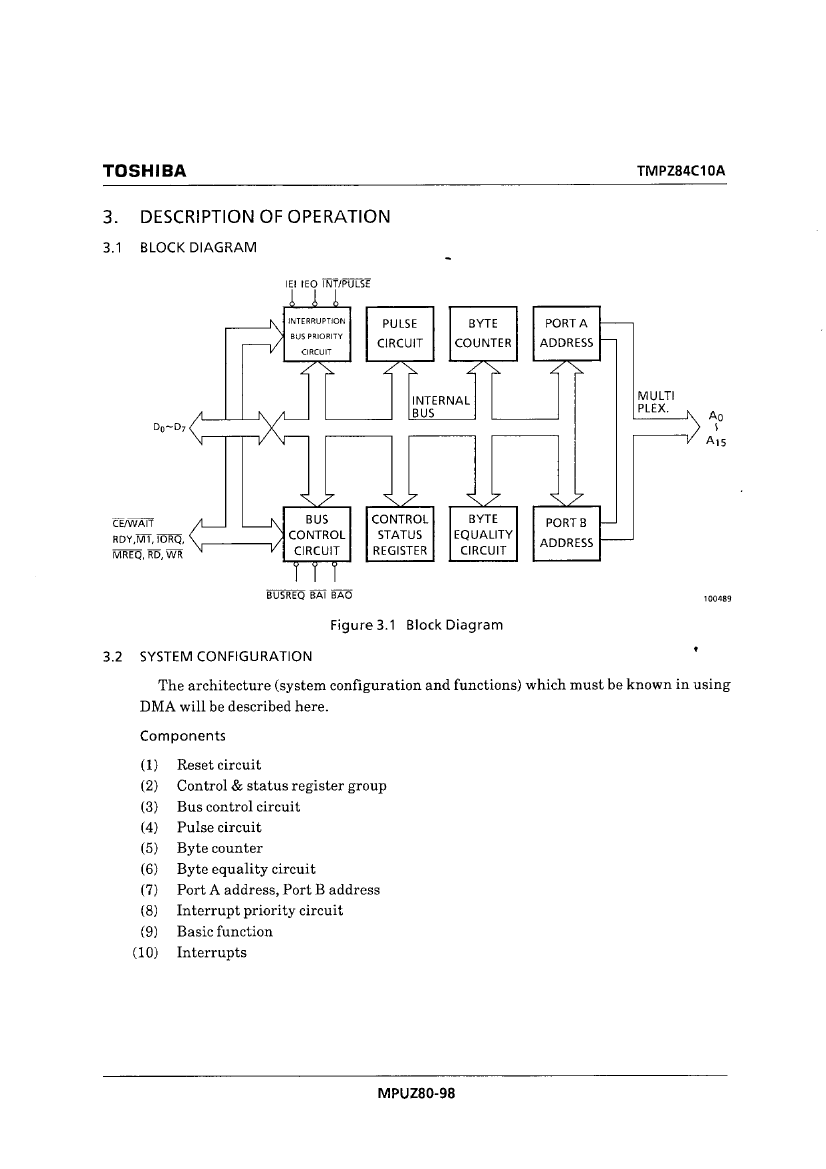

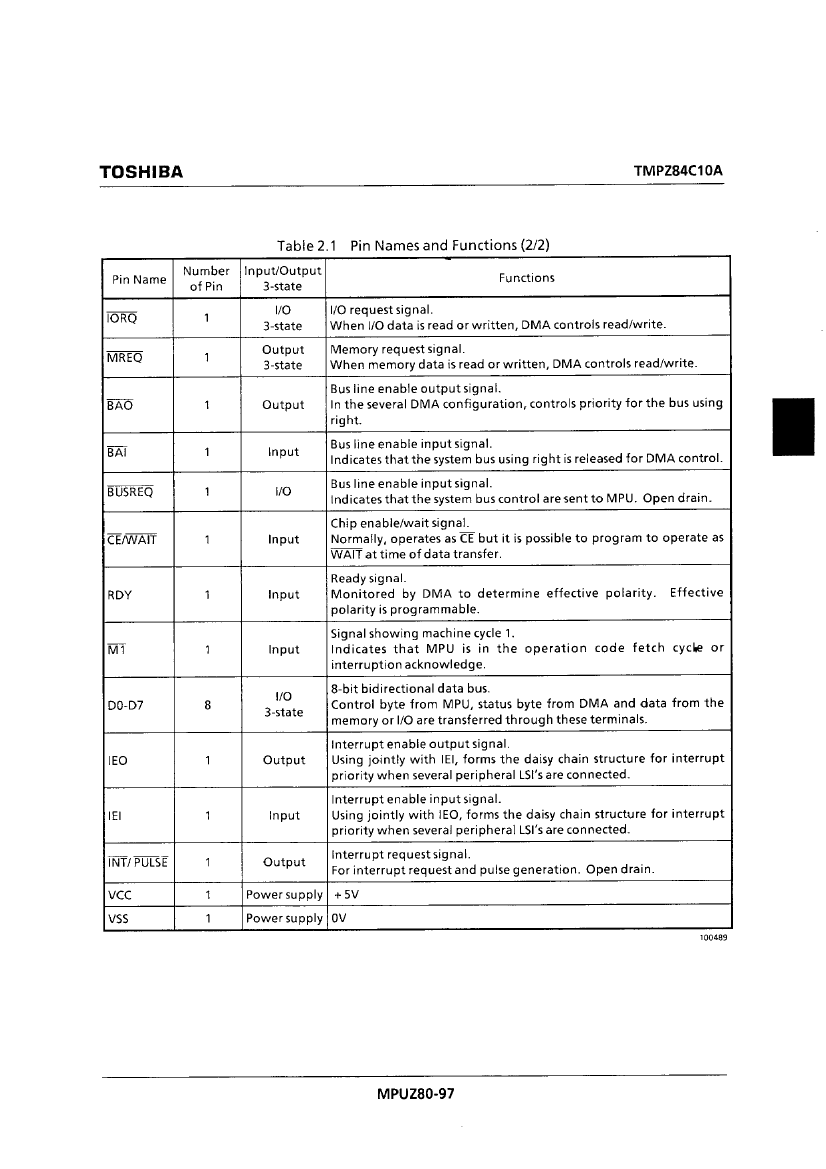

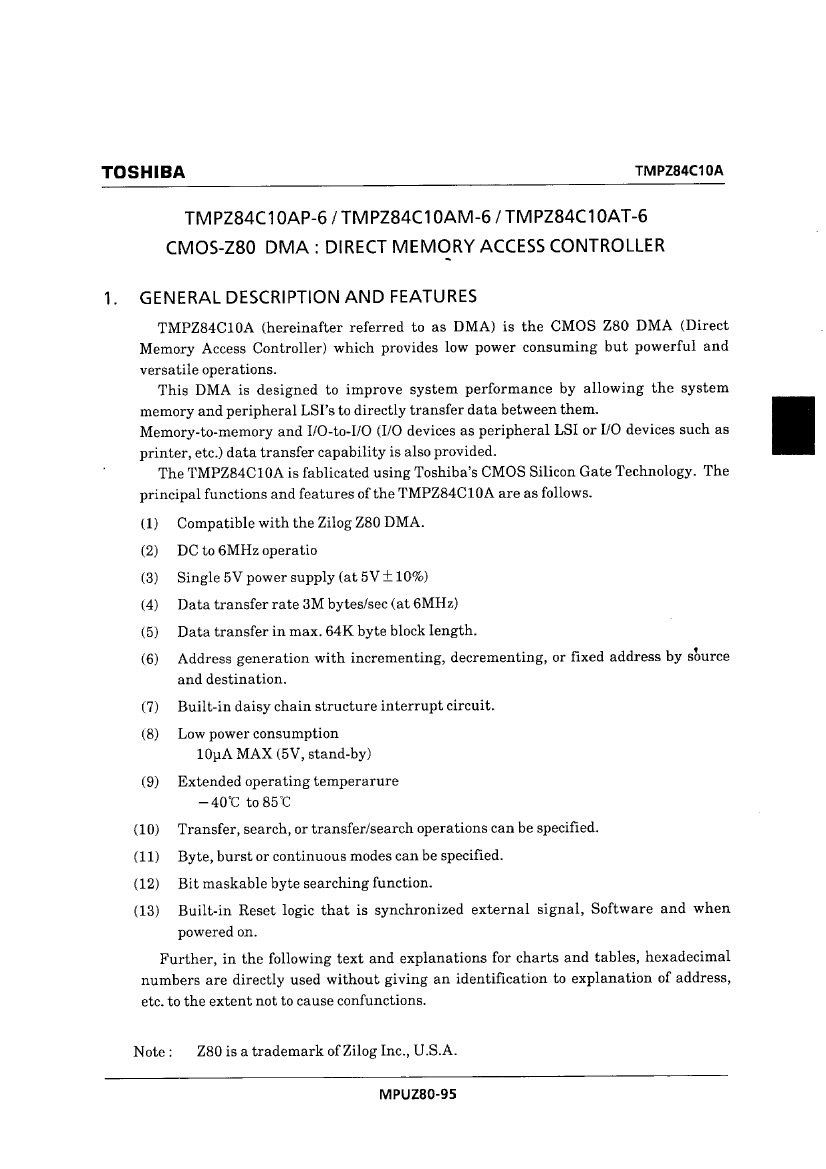

CMOS-Z80 DMA : DIRECT MEMORY ACCESS CONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknow
Other features	BYTE/BURST/CONT TRANSFER MODES; SUPPORTS EXT DAISY CHAINING; DATA TRANSFER RATE [MBYTES/SEC.] = 3
Address bus width	16
Bus compatibility	Z80
maximum clock frequency	6 MHz
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	50.7 mm
Number of DMA channels	1
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.8 mm
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER

	TMPZ84C10AP-6	TMPZ84C10AM-6
Description	CMOS-Z80 DMA : DIRECT MEMORY ACCESS CONTROLLER	CMOS-Z80 DMA : DIRECT MEMORY ACCESS CONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	SSOP
package instruction	DIP,	SSOP, SOP40,.5,30
Contacts	40	40
Reach Compliance Code	unknow	unknow
Other features	BYTE/BURST/CONT TRANSFER MODES; SUPPORTS EXT DAISY CHAINING; DATA TRANSFER RATE [MBYTES/SEC.] = 3	BYTE/BURST/CONT TRANSFER MODES; SUPPORTS EXT DAISY CHAINING; DATA TRANSFER RATE [MBYTES/SEC.] = 3
Address bus width	16	16
Bus compatibility	Z80	Z80
maximum clock frequency	6 MHz	6 MHz
External data bus width	8	8
JESD-30 code	R-PDIP-T40	R-PDSO-G40
JESD-609 code	e0	e0
length	50.7 mm	17.5 mm
Number of DMA channels	1	1
Number of terminals	40	40
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.8 mm	2.8 mm
Maximum slew rate	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	0.8 mm
Terminal location	DUAL	DUAL
width	15.24 mm	8.8 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER
