DBC23.96PH10T: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size171KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Compare View All

DBC23.96PH10T Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

Preview

Download Datasheet

View All

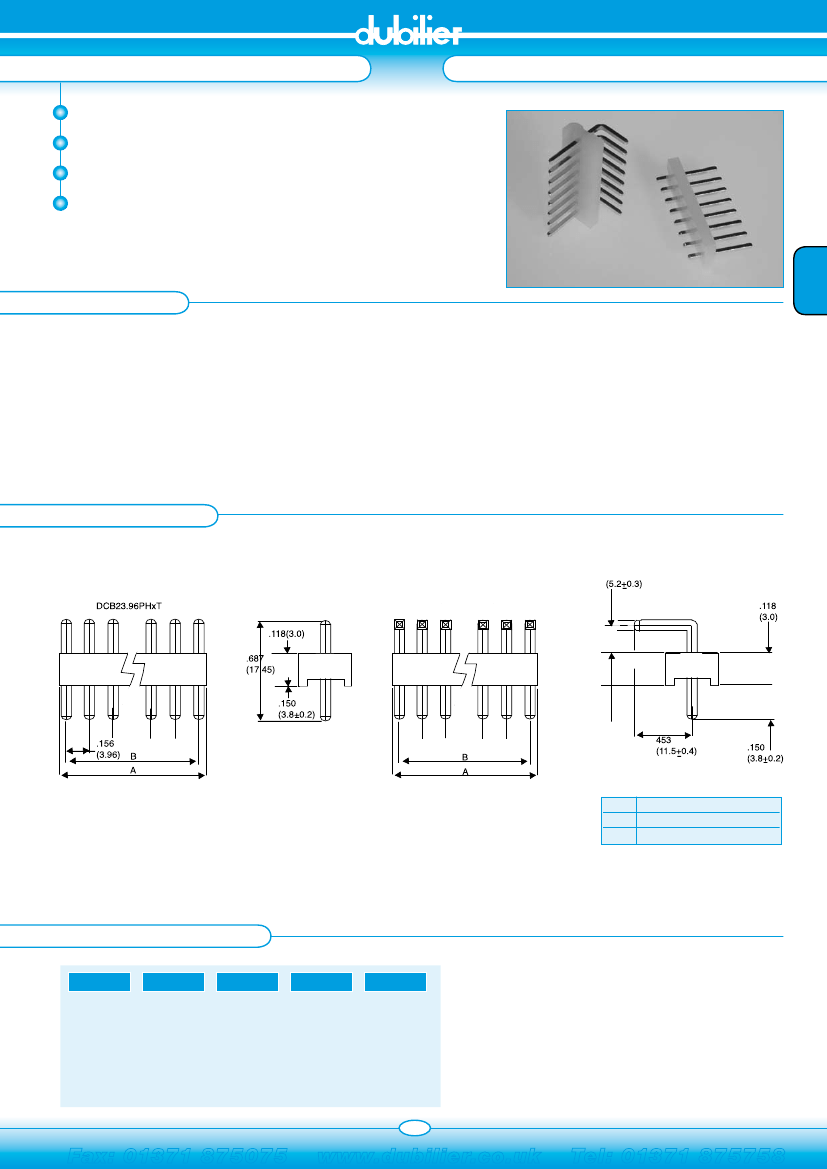

BOARD TO WIRE CONNECTORS

2 - 20 ways

PCB thickness 1.6mm

Current rating 7A AC, DC

Voltage rating 250v AC, DC

STRAIGHT AND RIGHT ANGLE

SECTION 8

SPECIFICATION

General

Withstand Voltage:

Insulation Resistance:

Temperature Range:

Contact Resistance:

Post:

Base:

1500v AC/min

1000MΩ min

+25˚C to +85˚C

Initial Value/10mΩ max.

After Environmental

Testing/20mΩ max.

Brass Tin/Plated

Nylon 66, UL 94V-2

Material

OUTLINE DRAWING

DBC2396PHxS

Dim

A

B

mm

No ways x 3.96

(No ways x 3.96) - 3.96

ORDERING INFORMATION

DBC

Dubilier

Connectors

2

Series

3.96 PH

Pitch

3.96 PH =

3.96mm pitch

2

Nº of Ways

2 = 2ways

10 = 10ways

etc

T

Style

T = Top Entry

S = Side Entry

90˚

227

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
