TMP87PS71AF datasheet, PDF - EEWORLD Datasheet

TMP87PS71AF: DescriptionCMOS 8-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，86 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

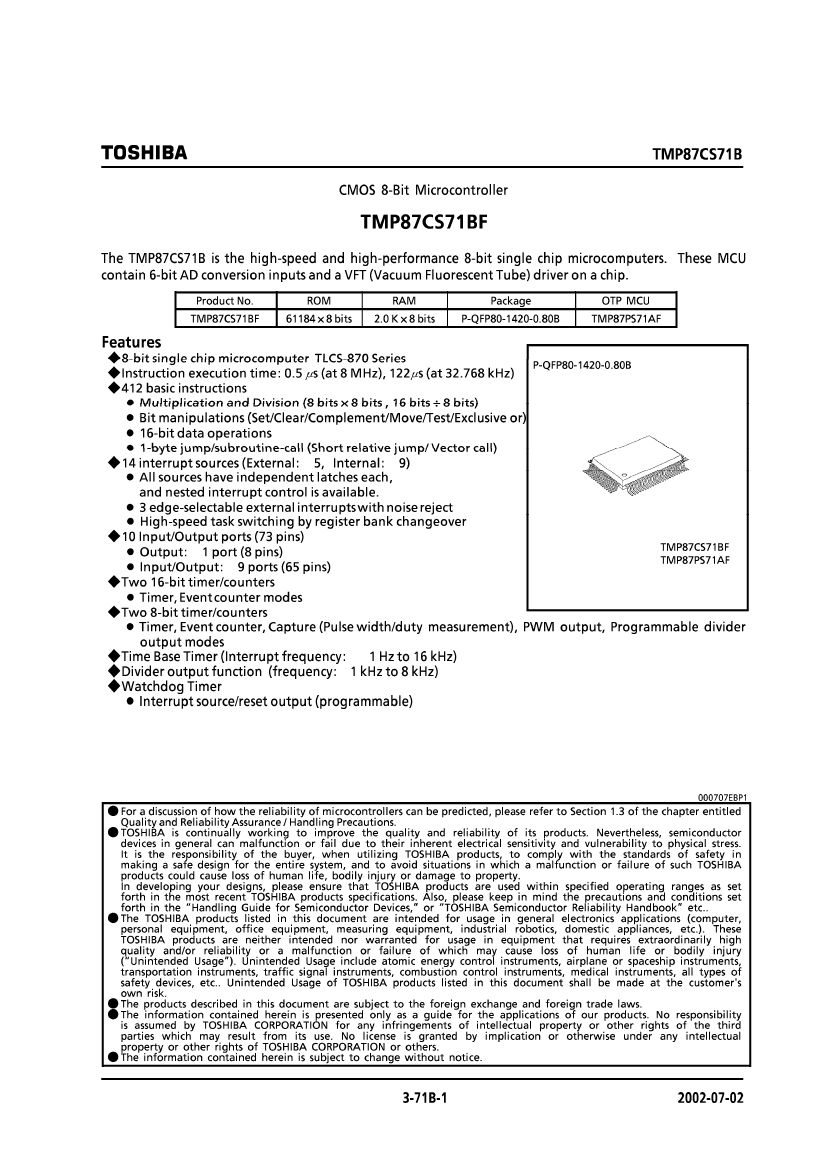

TMP87PS71AF Overview

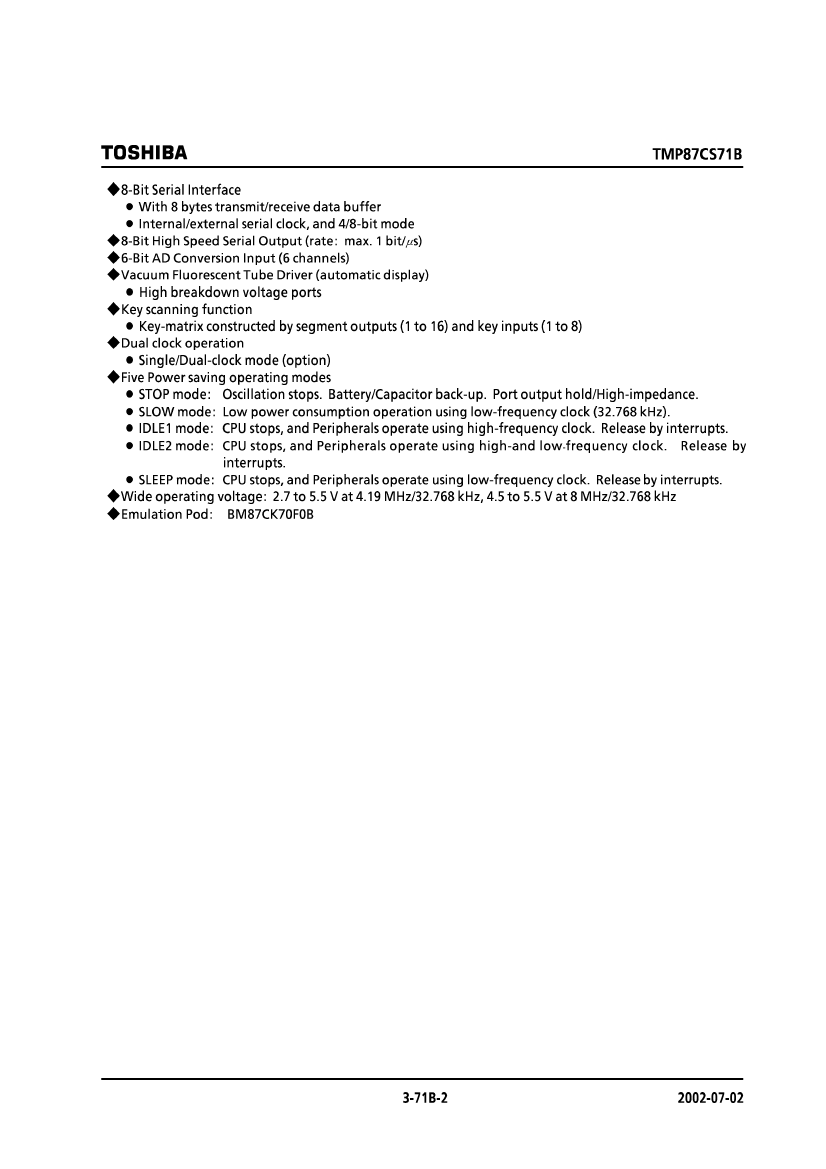

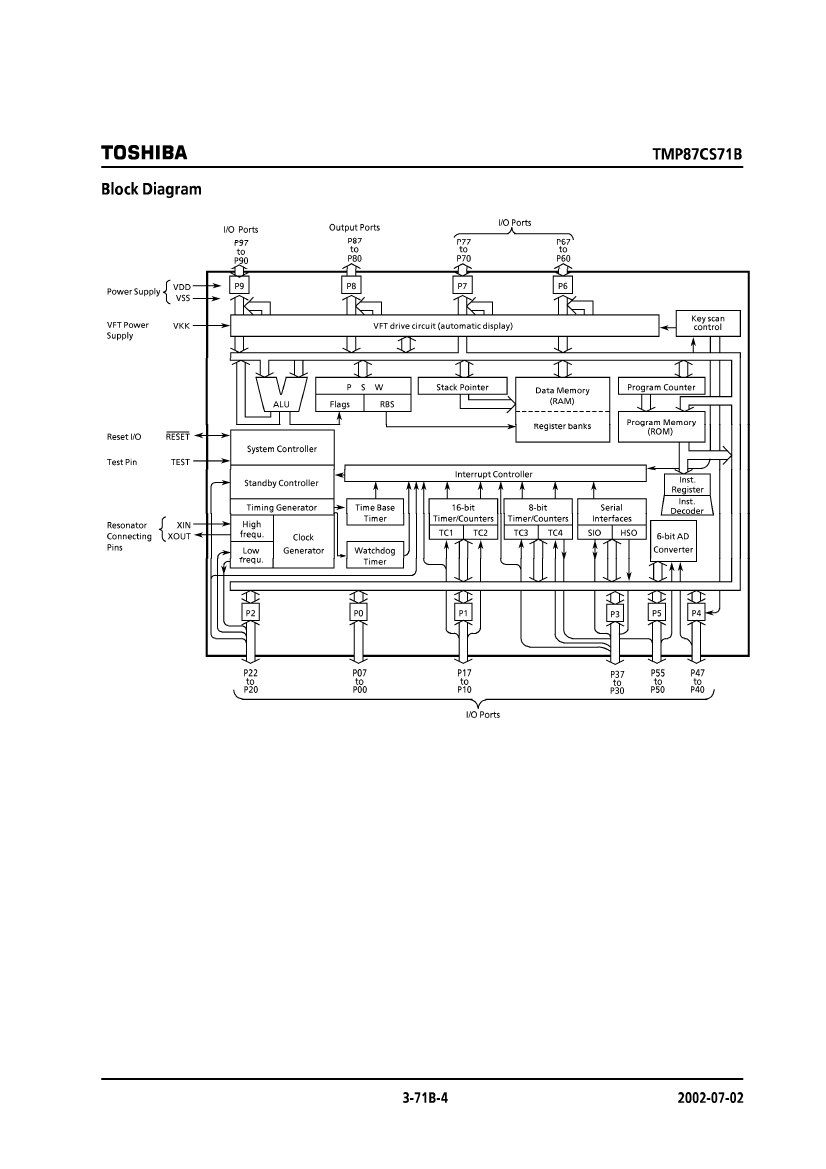

CMOS 8-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP80,.7X.9,32
Contacts	80
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MINIMUM SUPPLY
Address bus width
bit size	8
CPU series	TLCS-870
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
length	20 mm

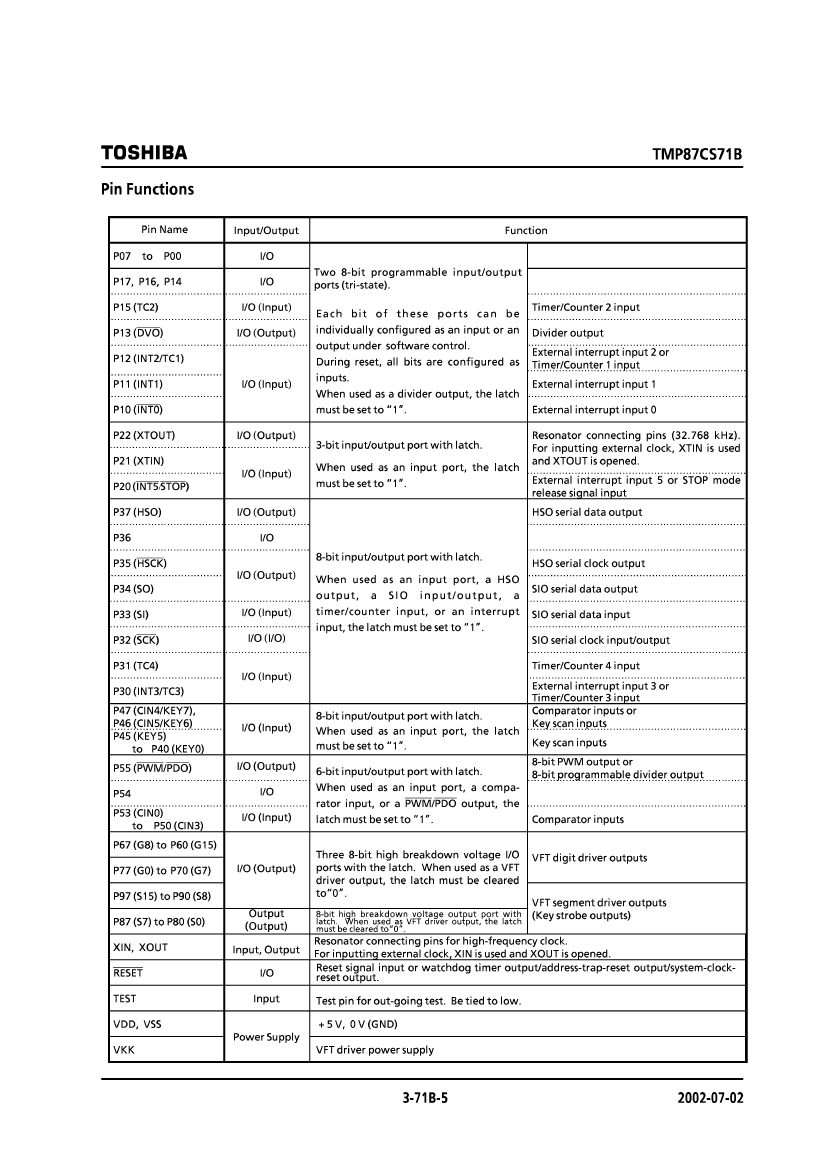

Number of I/O lines	73

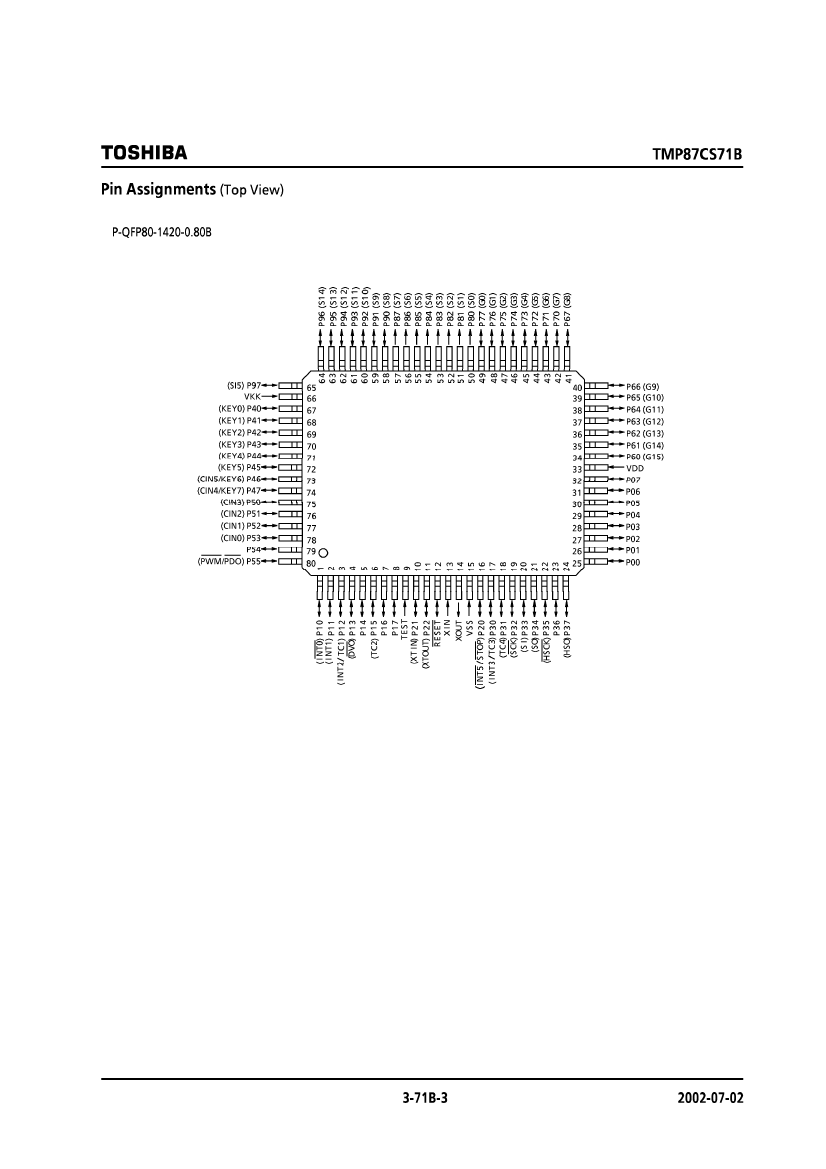

Number of terminals	80
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	2048
rom(word)	61440
ROM programmability	OTPROM
Maximum seat height	3.05 mm
speed	8 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TMP87PS71AF	TMP87CS71BF
Description	CMOS 8-BIT MICROCONTROLLER	CMOS 8-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP
package instruction	QFP, QFP80,.7X.9,32	QFP, QFP80,.7X.9,32
Contacts	80	80
Reach Compliance Code	unknow	unknow
Has ADC	YES	YES
Other features	ALSO OPERATES AT 2.7V MINIMUM SUPPLY	OPERATES AT 2.7 V MINIMUM SUPPLY @ 4.2 MHZ
bit size	8	8
CPU series	TLCS-870	TLCS-870
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PQFP-G80	R-PQFP-G80
Number of I/O lines	73	73
Number of terminals	80	80
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP80,.7X.9,32	QFP80,.7X.9,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	2048	2048
rom(word)	61440	61184
ROM programmability	OTPROM	MROM
speed	8 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
