DBCA33C08BT1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCA33C08BT1

DBCA33C08BT1: DescriptionBOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

DBCA33C08BT1 Overview

BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1

DBCA33C08BT1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DUBILIER
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.197 inch
subject depth	0.327 inch
body length	0.549 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	DBCA33C
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

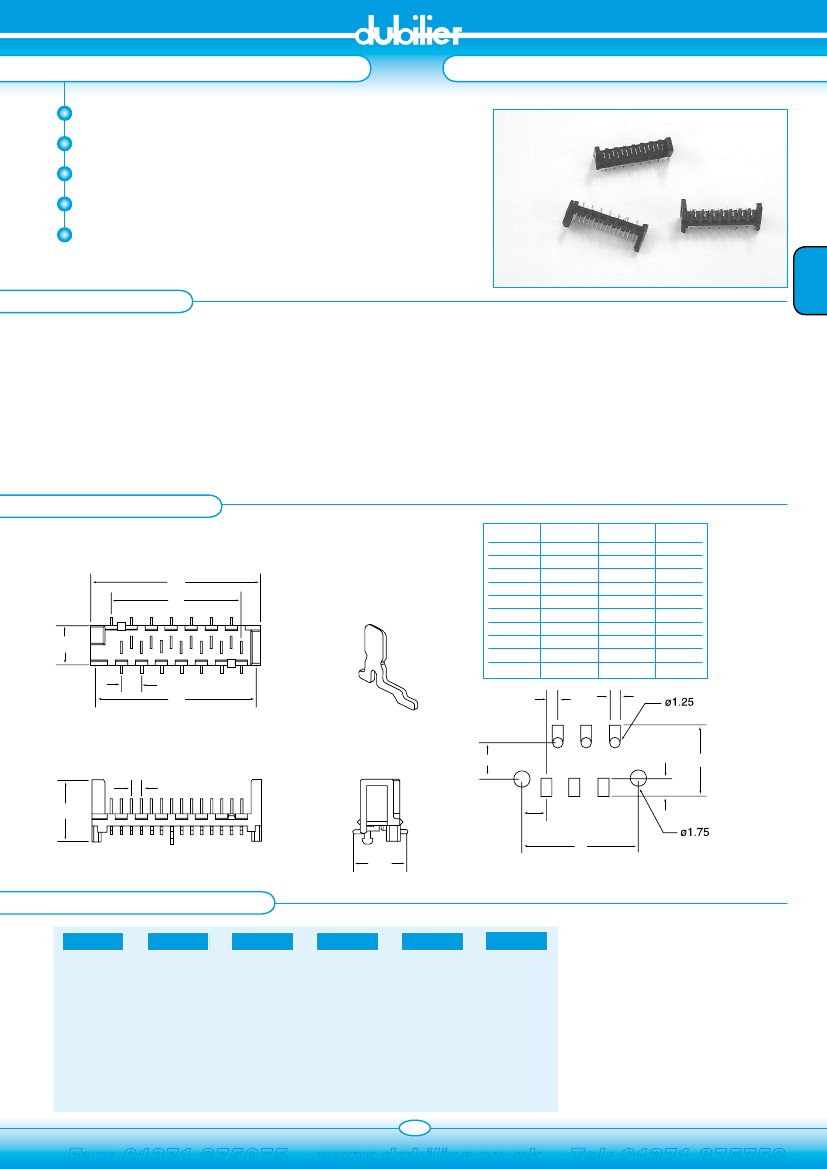

BOARD TO BOARD/WIRE

Compatible with other leading manufacturers

Competitively priced

Tin plated contacts

2.54mm pitch

04-26 contacts

MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT

SECTION 8

SPECIFICATION

Material & Finish

Insulator:

Contact:

Nylon 6T, glass reinforced , rated UL 9V-0

Phosphor Bronze

Electrical Characteristics

Rating Current:

Contact Resistance:

Insulation Resistance:

Dielectric Voltage:

1 Amp DC

30 mΩ max.

3000 MΩ min.

500v AC for 1 minute

Operating Temperature:

-40°C to +105°C

*Mating suggestion: A33 series.

OUTLINE DRAWING

Position

8.86

11.40

13.94

16.48

19.02

21.56

24.10

26.64

29.18

36.80

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

31.75

7.66

10.20

12.74

15.28

17.82

20.36

22.90

25.44

27.98

35.60

5.0

2.54

1.27

1.2

3.5

1.27

8.3

1.93

RECOMMENDED PCB LAYOUT

2.0

8.0

6.9

ORDERING INFORMATION

DBC

Dubilier

Connectors

A33C

Series

No. of Contacts

04 = 04 way

06 = 06 way

08 = 08 way

10 = 10 way

12 = 12 way

14 = 14 way

16 = 16 way

18 = 18 way

20 = 20 way

26 = 26 way

Contact Material

B = Phosphor

Bronze

Contact Plating

T = Tin Plating

Colour

1 = Black

219

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758

DBCA33C08BT1 Related Products

	DBCA33C08BT1	DBCA33C10BT1	DBCA33C12BT1	DBCA33C14BT1	DBCA33C16BT1	DBCA33C18BT1	DBCA33C20BT1	DBCA33C26BT1
Description	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1	BOARD TO BOARD/WIRE MINIATURE RIBBON CABLE SYSTEM - SMT PCB HEADER STRAIGHT1
