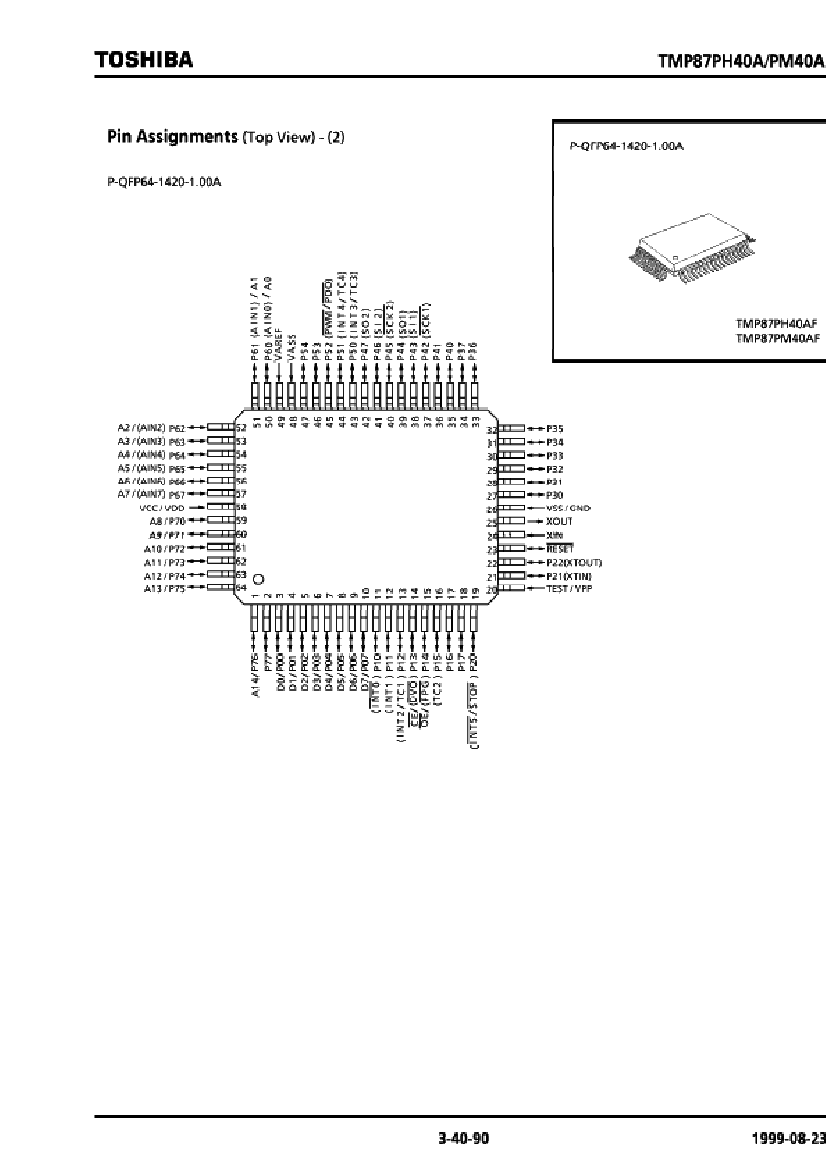

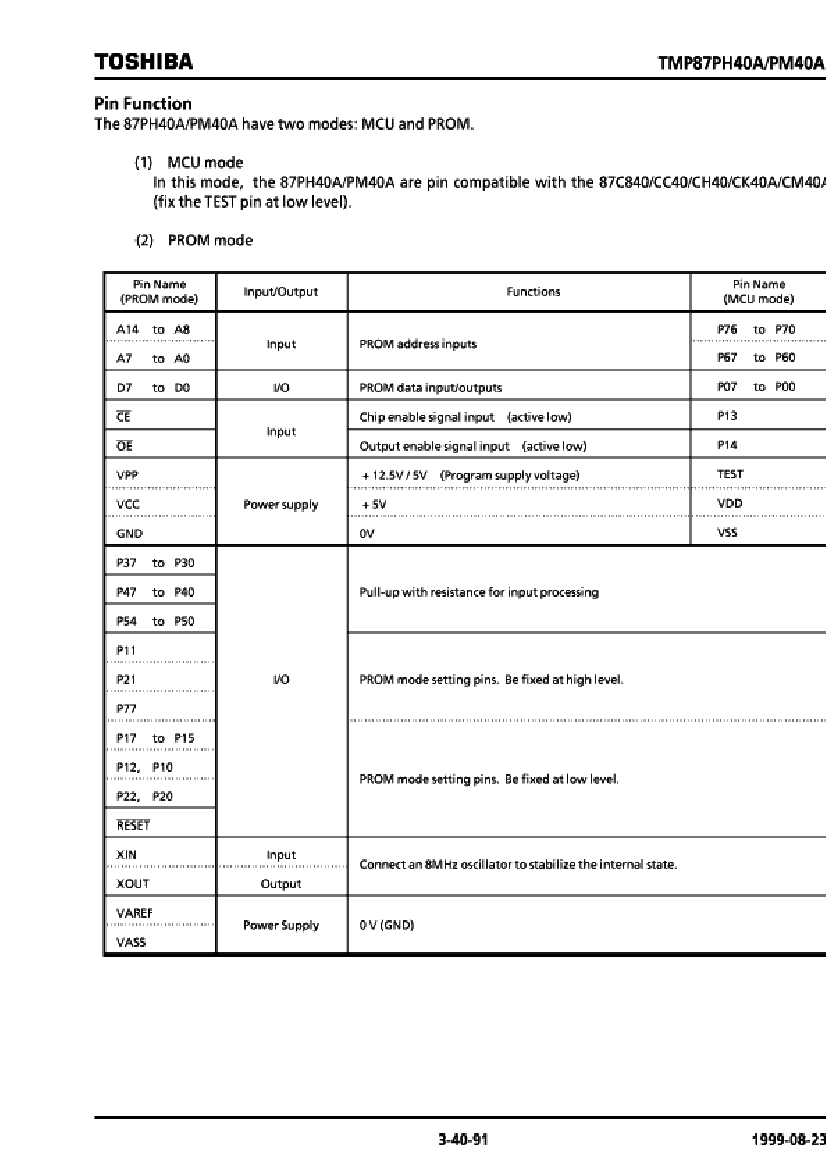

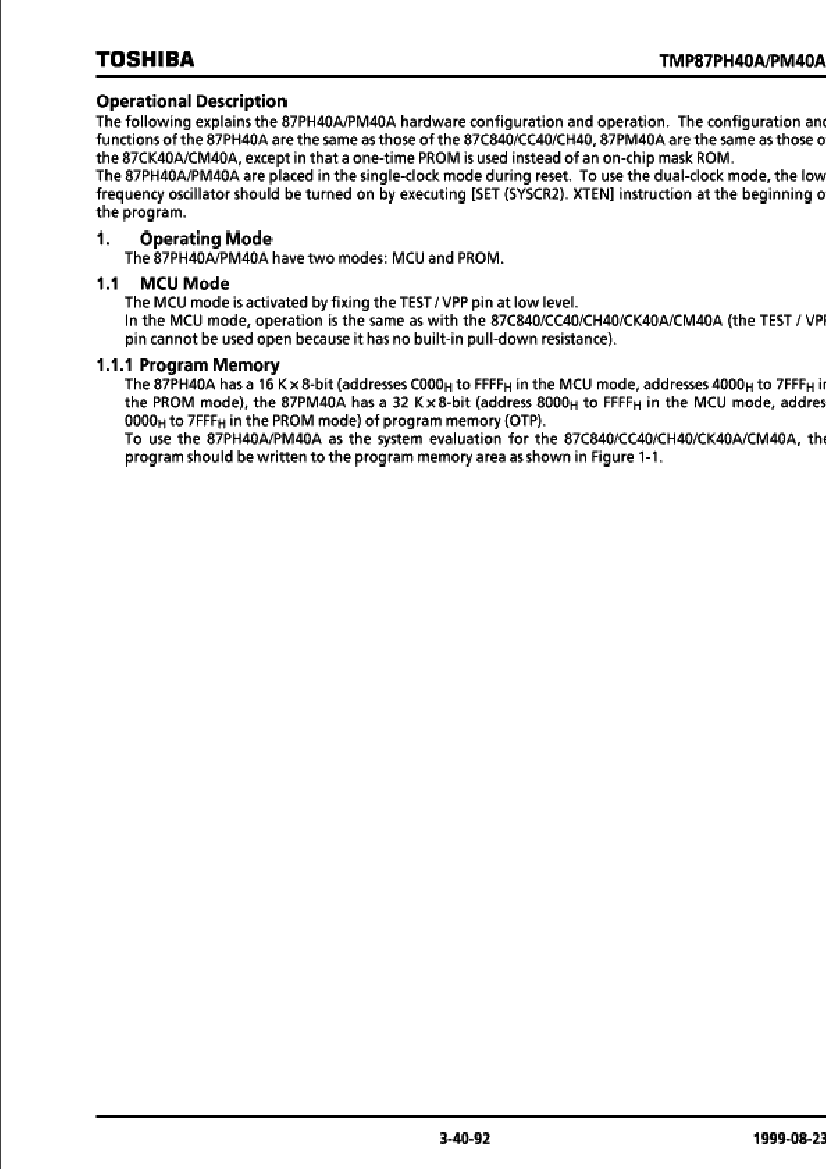

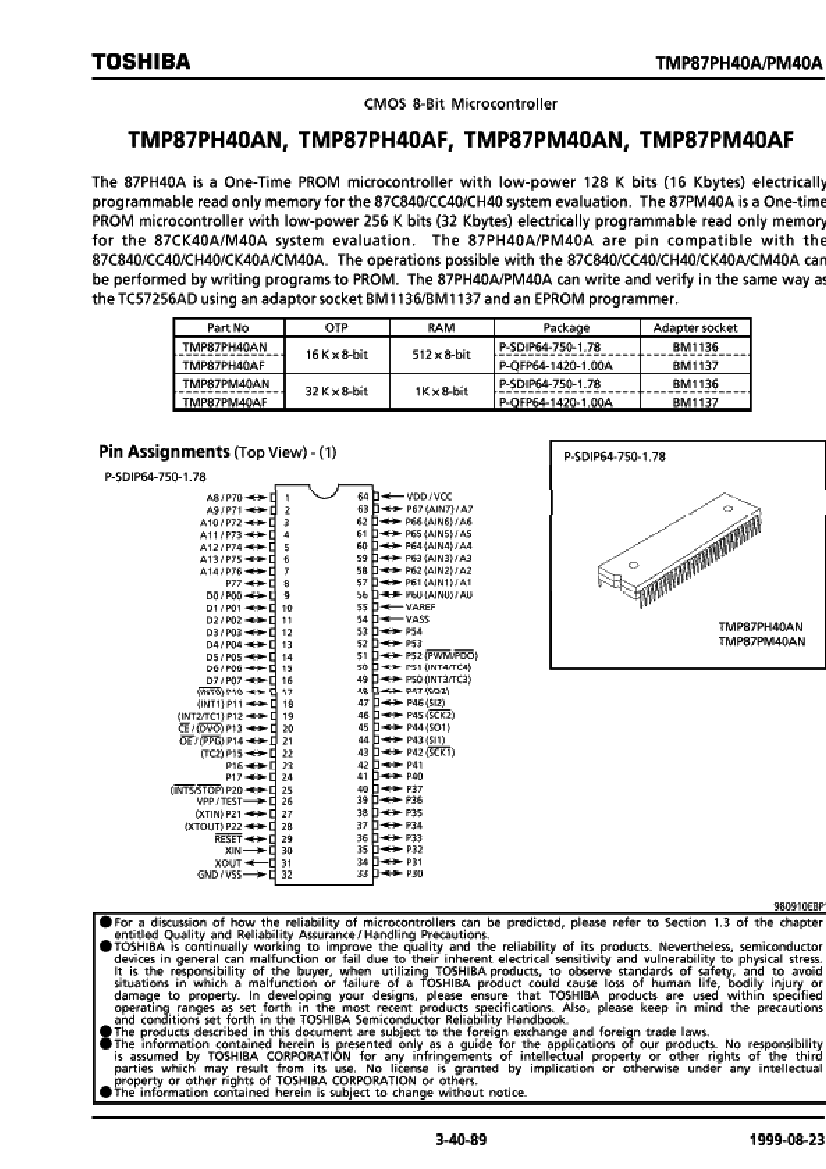

CMOS 8-Bit Microcontroller

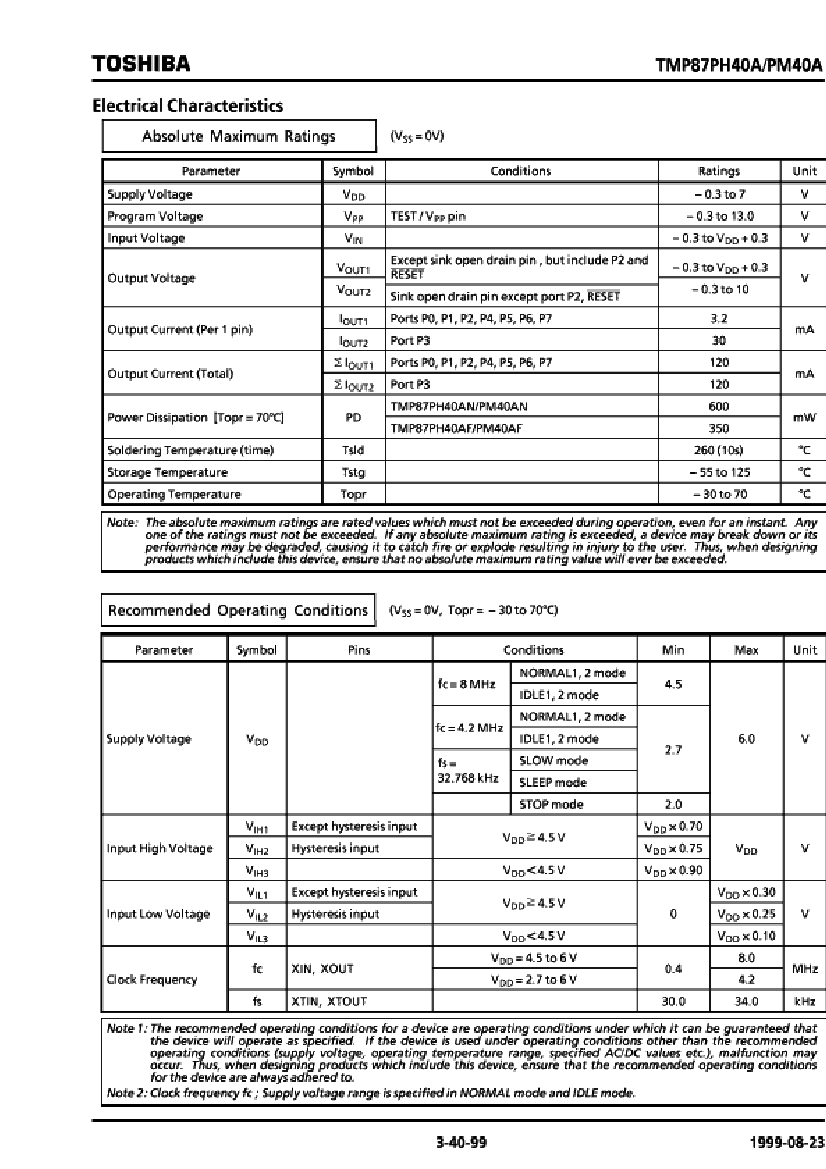

| TMP87PH40A | TMP87PH40AF | TMP87PH40AN | TMP87PM40AF | TMP87PM40AN | TMP87PM40A | |
|---|---|---|---|---|---|---|
| Description | CMOS 8-Bit Microcontroller | CMOS 8-Bit Microcontroller | CMOS 8-Bit Microcontroller | CMOS 8-Bit Microcontroller | CMOS 8-Bit Microcontroller | CMOS 8-Bit Microcontroller |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | incompatible | - |
| Parts packaging code | - | QFP | DIP | QFP | DIP | - |
| package instruction | - | QFP, QFP64,.7X.95,40 | SDIP, SDIP64,.75 | QFP, QFP64,.7X.95,40 | SDIP, SDIP64,.75 | - |
| Contacts | - | 64 | 64 | 64 | 64 | - |
| Reach Compliance Code | - | unknow | unknow | unknow | unknow | - |
| Has ADC | - | YES | YES | YES | YES | - |
| Other features | - | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 4.2 MHZ | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 4.2 MHZ | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 4.2 MHZ | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 4.2 MHZ | - |
| bit size | - | 8 | 8 | 8 | 8 | - |
| CPU series | - | TLCS-870 | TLCS-870 | TLCS-870 | TLCS-870 | - |
| maximum clock frequency | - | 8 MHz | 8 MHz | 8 MHz | 8 MHz | - |
| DAC channel | - | NO | NO | NO | NO | - |
| DMA channel | - | NO | NO | NO | NO | - |
| JESD-30 code | - | R-PQFP-G64 | R-PDIP-T64 | R-PQFP-G64 | R-PDIP-T64 | - |
| length | - | 20 mm | 57.5 mm | 20 mm | 57.5 mm | - |
| Number of I/O lines | - | 56 | 56 | 56 | 56 | - |
| Number of terminals | - | 64 | 64 | 64 | 64 | - |
| Maximum operating temperature | - | 70 °C | 70 °C | 70 °C | 70 °C | - |
| Minimum operating temperature | - | -30 °C | -30 °C | -30 °C | -30 °C | - |
| PWM channel | - | YES | YES | YES | YES | - |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - |
| encapsulated code | - | QFP | SDIP | QFP | SDIP | - |
| Encapsulate equivalent code | - | QFP64,.7X.95,40 | SDIP64,.75 | QFP64,.7X.95,40 | SDIP64,.75 | - |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Package form | - | FLATPACK | IN-LINE, SHRINK PITCH | FLATPACK | IN-LINE, SHRINK PITCH | - |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| power supply | - | 5 V | 5 V | 5 V | 5 V | - |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| RAM (bytes) | - | 512 | 512 | 1024 | 1024 | - |
| rom(word) | - | 16384 | 16384 | 32768 | 32768 | - |
| ROM programmability | - | OTPROM | OTPROM | OTPROM | OTPROM | - |
| Maximum seat height | - | 3.05 mm | 5 mm | 3.05 mm | 5 mm | - |
| speed | - | 8 MHz | 8 MHz | 8 MHz | 8 MHz | - |
| Maximum slew rate | - | 14 mA | 14 mA | 18 mA | 18 mA | - |
| Maximum supply voltage | - | 6 V | 6 V | 6 V | 6 V | - |
| Minimum supply voltage | - | 4.5 V | 4.5 V | 4.5 V | 4.5 V | - |
| Nominal supply voltage | - | 5 V | 5 V | 5 V | 5 V | - |
| surface mount | - | YES | NO | YES | NO | - |
| technology | - | CMOS | CMOS | CMOS | CMOS | - |
| Temperature level | - | OTHER | OTHER | OTHER | OTHER | - |
| Terminal form | - | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | - |
| Terminal pitch | - | 1 mm | 1.778 mm | 1 mm | 1.778 mm | - |
| Terminal location | - | QUAD | DUAL | QUAD | DUAL | - |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| width | - | 14 mm | 19.05 mm | 14 mm | 19.05 mm | - |
| uPs/uCs/peripheral integrated circuit type | - | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | - |
