TMP87CP38N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP87CP38N

TMP87CP38N: DescriptionCMOS 8-Bit Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size498KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP87CP38N Overview

CMOS 8-Bit Microcontroller

TMP87CP38N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	8
CPU series	TLCS-870
maximum clock frequency	8 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	38 mm
Number of I/O lines	33
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	2048
rom(word)	49152
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	8 MHz
Maximum slew rate	17 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

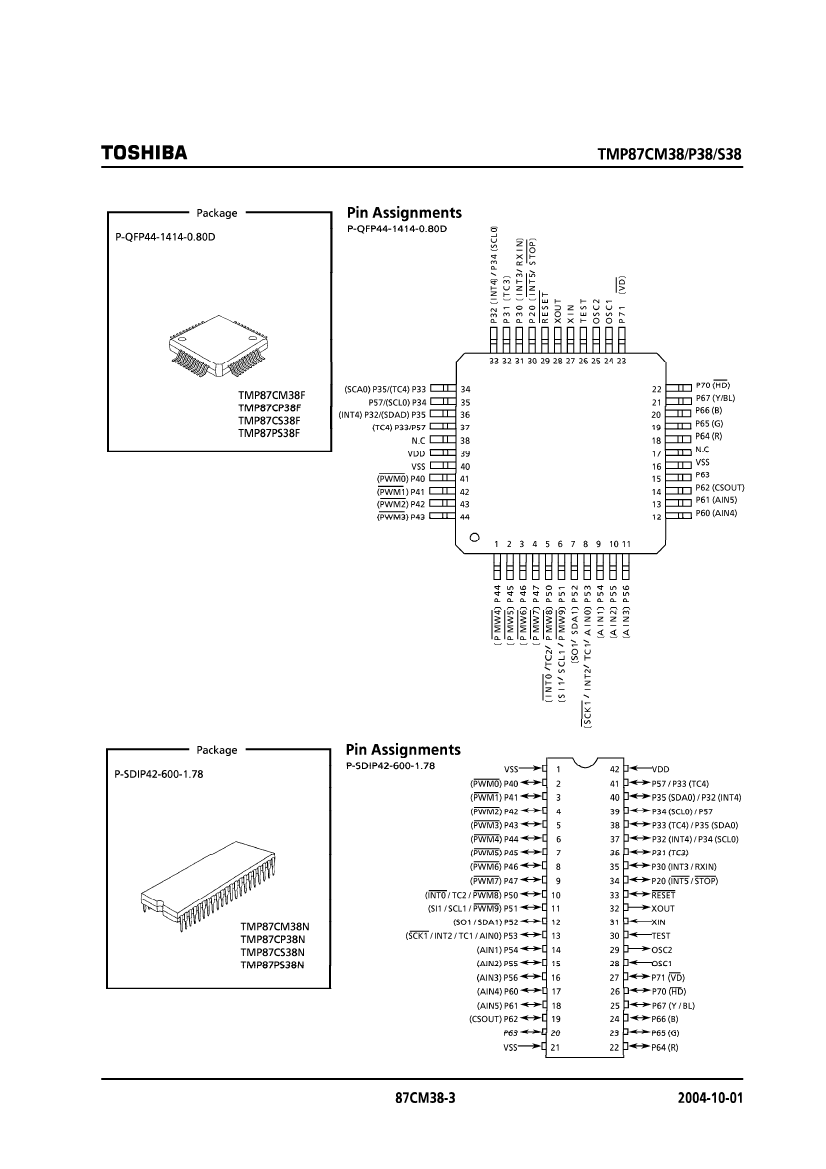

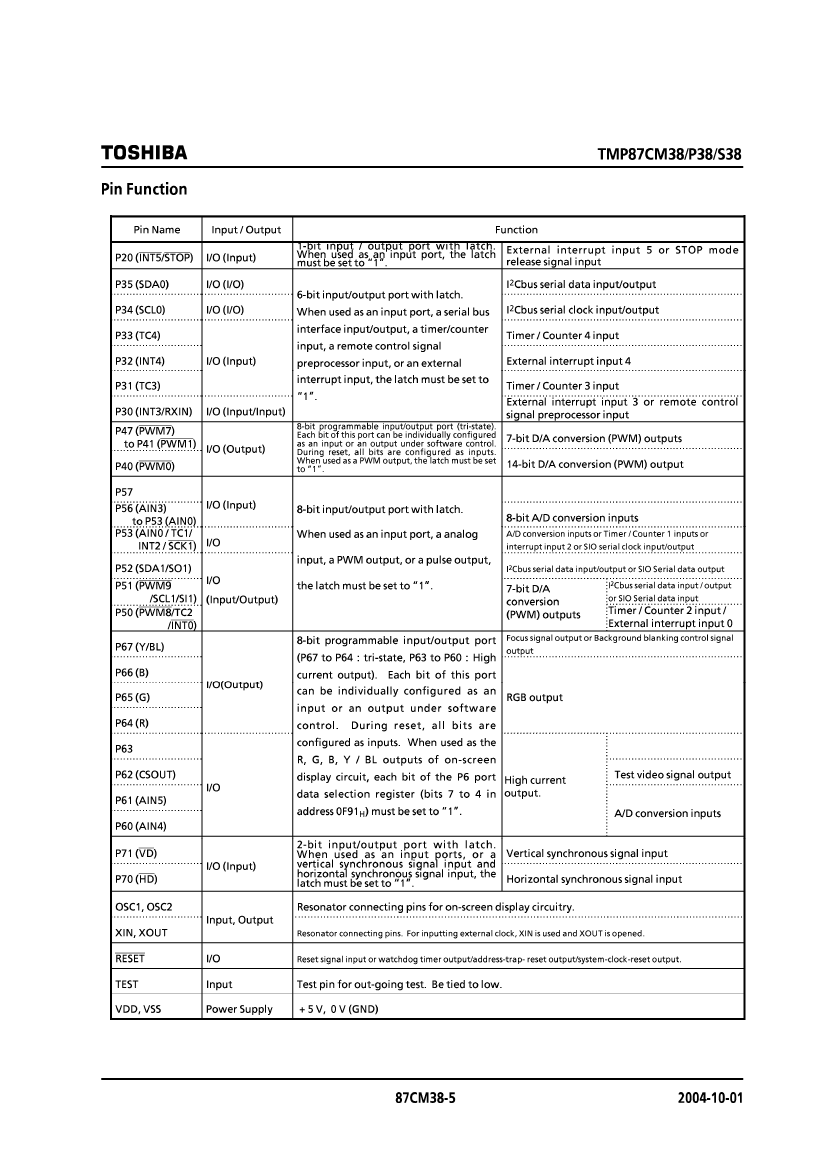

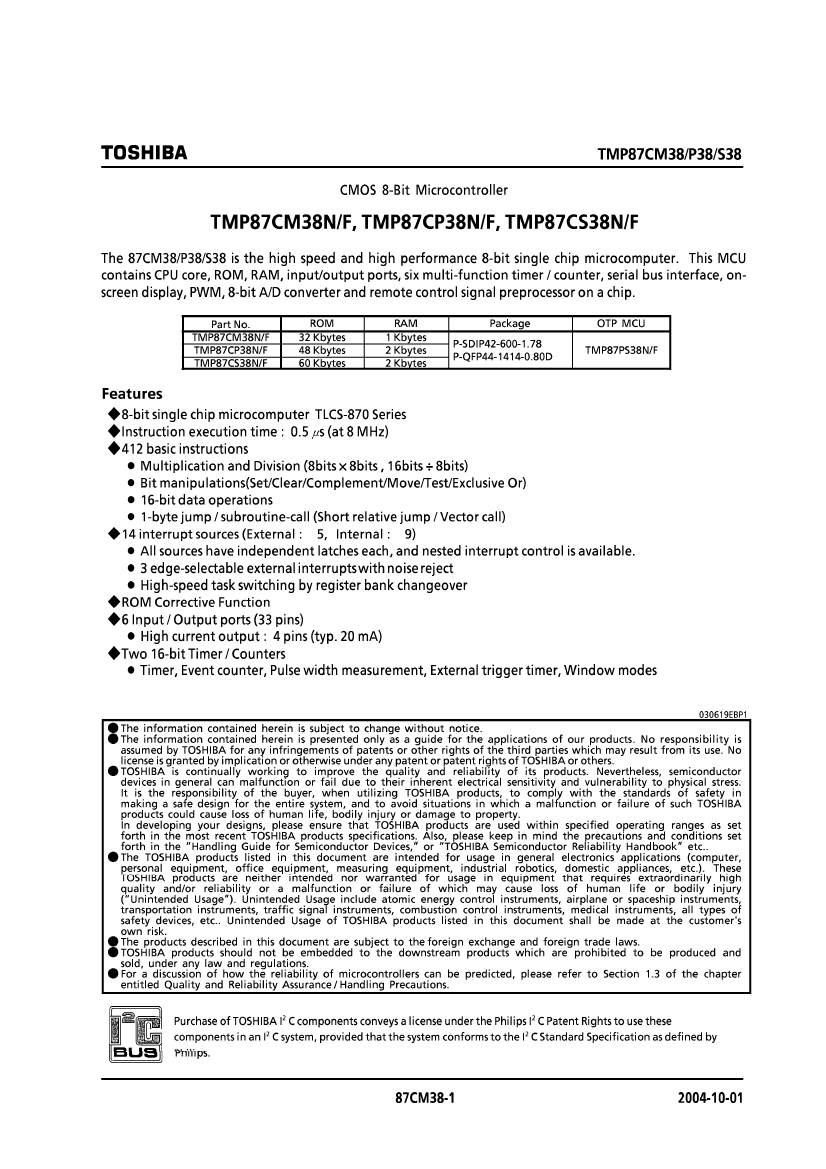

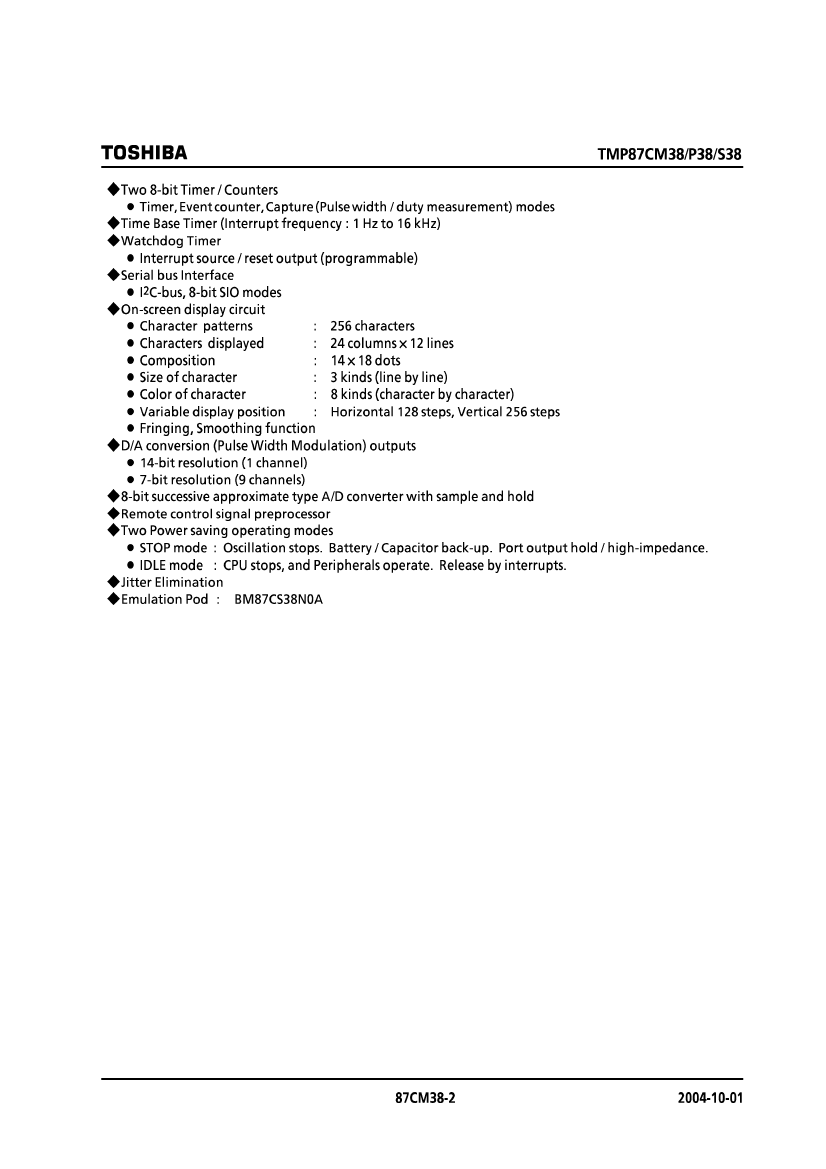

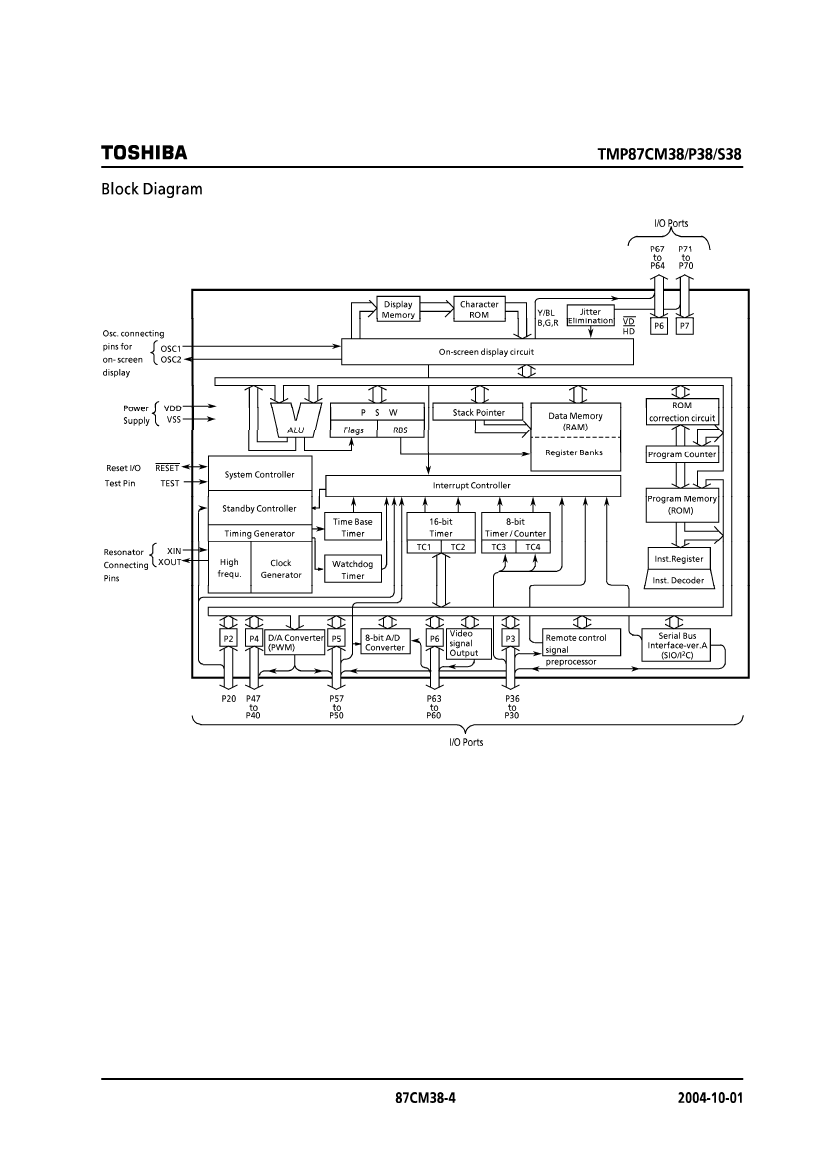

Preview

Download Datasheet

View All

TMP87CP38N Related Products

	TMP87CP38N	TMP87CM38F	TMP87CM38N	TMP87CM38	TMP87PS38N	TMP87PS38F	TMP87CS38N	TMP87CS38F	TMP87CP38F
Description	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	QFP	DIP	-	DIP	QFP	DIP	QFP	QFP
package instruction	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32	SDIP, SDIP42,.6	-	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32	QFP, QFP44,.7SQ,32
Contacts	42	44	42	-	42	44	42	44	44
Reach Compliance Code	unknow	unknow	unknow	-	unknow	unknow	unknow	unknow	unknow
Has ADC	YES	YES	YES	-	YES	YES	YES	YES	YES
bit size	8	8	8	-	8	8	8	8	8
CPU series	TLCS-870	TLCS-870	TLCS-870	-	TLCS-870	TLCS-870	TLCS-870	TLCS-870	TLCS-870
maximum clock frequency	8 MHz	8 MHz	8 MHz	-	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	YES	YES	YES	-	YES	YES	YES	YES	YES
DMA channel	NO	NO	NO	-	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T42	S-PQFP-G44	R-PDIP-T42	-	R-PDIP-T42	S-PQFP-G44	R-PDIP-T42	S-PQFP-G44	S-PQFP-G44
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
length	38 mm	14 mm	38 mm	-	38 mm	14 mm	38 mm	14 mm	14 mm
Number of I/O lines	33	33	33	-	33	33	33	33	33
Number of terminals	42	44	42	-	42	44	42	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	YES	YES	YES	-	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	QFP	SDIP	-	SDIP	QFP	SDIP	QFP	QFP
Encapsulate equivalent code	SDIP42,.6	QFP44,.7SQ,32	SDIP42,.6	-	SDIP42,.6	QFP44,.7SQ,32	SDIP42,.6	QFP44,.7SQ,32	QFP44,.7SQ,32
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	-	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	-	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	2048	1024	1024	-	2048	512	2048	2048	2048
rom(word)	49152	32768	32768	-	61440	24576	61440	61440	49152
ROM programmability	MROM	MROM	MROM	-	OTPROM	OTPROM	MROM	MROM	MROM
Maximum seat height	4.5 mm	3.05 mm	4.5 mm	-	4.5 mm	3.05 mm	4.5 mm	3.05 mm	3.05 mm
speed	8 MHz	8 MHz	8 MHz	-	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	17 mA	17 mA	17 mA	-	17 mA	17 mA	17 mA	17 mA	17 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	-	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	-	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.778 mm	0.8 mm	1.778 mm	-	1.778 mm	0.8 mm	1.778 mm	0.8 mm	0.8 mm
Terminal location	DUAL	QUAD	DUAL	-	DUAL	QUAD	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	14 mm	15.24 mm	-	15.24 mm	14 mm	15.24 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	-	-	1	1	-	-
