D TYPE CONNECTORS LOW COST
Variations of numbered contacts per port
Stamped & Formed Contacts
Gold Plated Contacts
Tin Plated Metal Housing
Low cost
DUAL PORT RIGHT ANGLE
SPECIFICATION
Mechanical:
Insulator:
Pin contacts:
Shell:
PBT +30% Glass Fibre
UL94V-0
Phosphor Bronze
Gold Plated
Steel, SPCC
Nickel and Tin Plated
Electrical Data:
Rated Voltage:
Rated Current:
With stand Voltage:
Insulation Resistance:
Contact Resistance:
Temperature:
350V AC
5A
500V AC(rms)
Over 1000 MΩ
5 MΩ at 1A
-20˚C to 100˚C

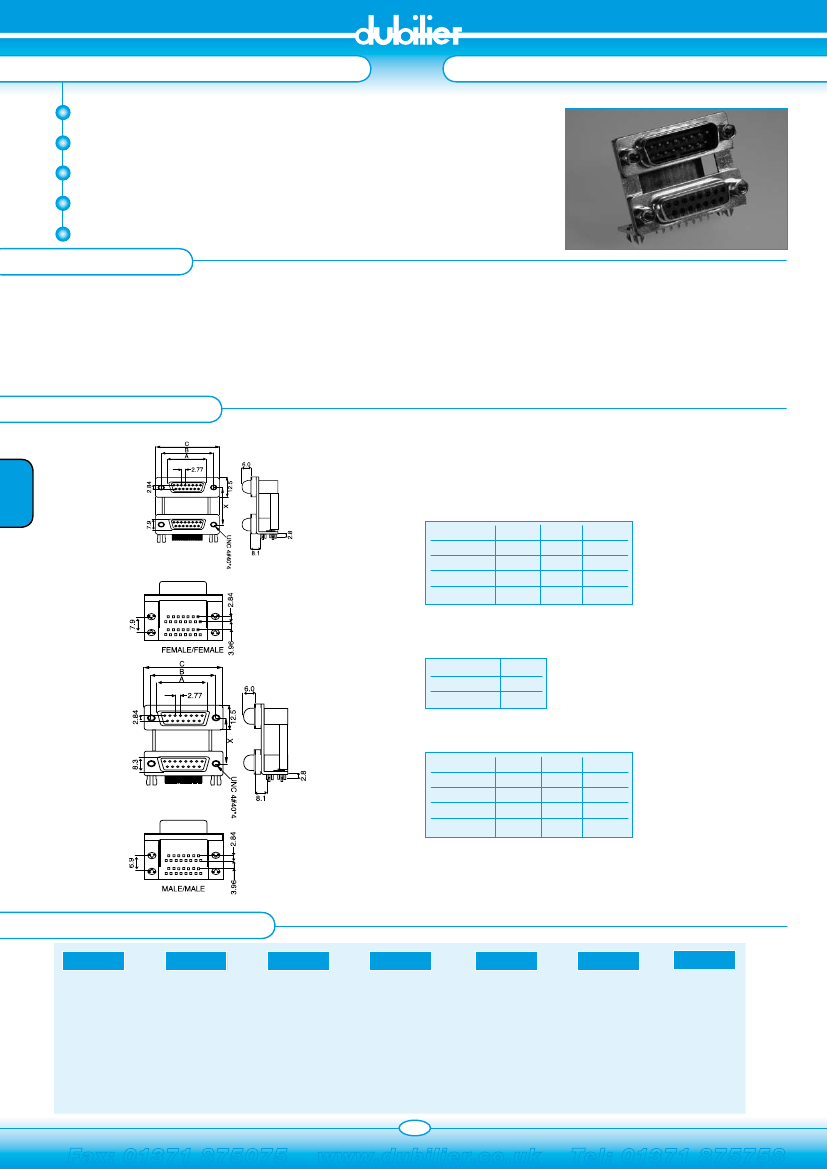

OUTLINE DRAWING
SECTION 11
POSITION
9 F
15 F
25 F
37 F
A
16.30
24.60
38.30
54.80
B
25.00
33.30
47.10
63.50
C
30.8
39.2
53.1
69.4
DIMENSION OF “X”(PORT SPACING)
A
C
15.88
19.05
22.86
POSITION
9 M
15 M
25 M
37 M
A
16.92
25.25
38.96
55.42
B
25.00
33.30
47.10
63.50
C
30.8
39.2
53.1
69.4
ORDERING INFORMATION
DBC
Dubilier
Series
DG= Dual Port
DG
Contact Type
MM= Male&Male
MF= Male&Female
FM= Female&Male
FF= Female&Female
MM
Contact Style
SR= Solder Right
Angled PCB
SR
No of Ways
02=25/09
03=09/25
04=15/25
09=09/09
15=15/15
25=25/25
37=37/37
Other combinations
available
15
Contact Plating
G=Gold Flash
G
Options
Port Spacing
Blank=19.05 mm
A=15.875 mm
C=22.86 mm
Connectors
262
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
