DIN 41612
16 and 32 Contacts
2 Rows
Class 2 and 3
2.54mm(0.1”), 5.08mm(0.2” Half loaded) Pitch
High Reliability
UL Approved

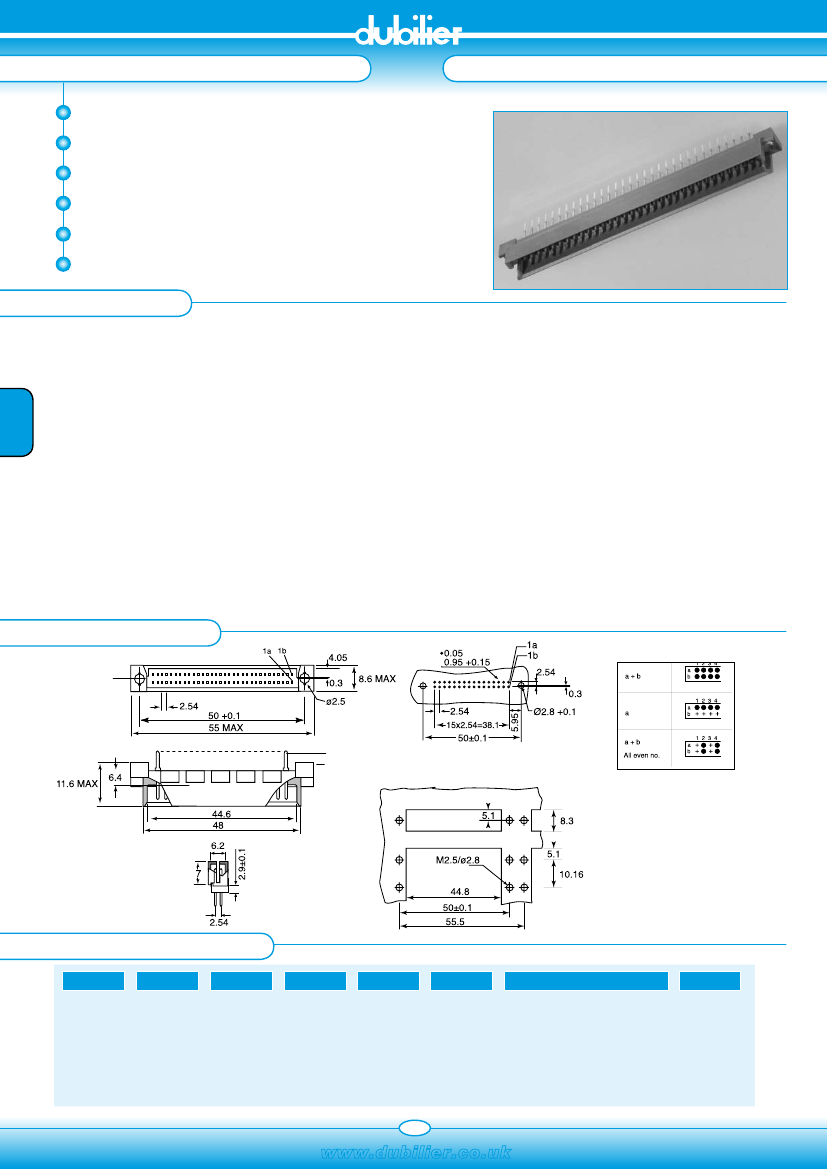

TYPE HALF Q (REVERSED) – MALE
SPECIFICATION
Material
Insulator:
Contacts:
Contact finish:
Glass filled polyester
(PBT, UL flammability 94V-0)
Female copper alloy, male brass
Contact area: Gold over nickel (per requirements
of performance class 3, class 2)
Termination area: Tin - plated or Gold-plated for
long wrap post
32 contacts max. 30N
16 contacts max. 15N
Withdrawal force per contact: min 0.15N
-55°C to +125°C
Air and creepage distance 1.2mm min.
20°C
70°C
2A
1A
Contact resistance:
100°C 0.5A
≤20mΩ (testing current 100mA)
≤40mΩ after 400 mating cycles
Mechanical
Insertion force:
Capacitance between
adjacent contacts:
Appr. 2pF
Insulation resistance:
≥10
12
Ω
(between adjacent contacts at 100 VDC)
Test voltage:
1,000Vrms between contacts (2.54mm spacing)
1,550Vrms between contacts (5.08mm spacing)
1,550Vrms between contacts and body
Operating voltage:
250V AC
SECTION 10
Agency approval
U/L Electric rating:
Mating Cycles:
250V, 2A
Class 2 = 400
Class 3 = 50
Temperature range:
Electrical
Current rating:
OUTLINE DRAWING
PCB LAYOUT
4
ORDERING INFORMATION
DBC
Dubilier
Connectors
DIN
Series
DIN 41612
M
Connector Type
M = Male
16
Nº of Ways
16 = 16 ways
32 = 32 ways
HQ
Housing Style
HQ = Half Q
A
Position of
Contacts
A = A row
AB = A+B rows
AB1=AB even n°.
S
Termination Style
S = Straight Solder
Tail length options available on request
3
Quality Class
3 = class 3
2 = class 2
246
www.dubilier.co.uk
DIN 41612
16 and 32 Contacts
2 Rows
Class 2 and 3
2.54mm(0.1”), 5.08mm(0.2” Half loaded) Pitch
High Reliability
UL Approved

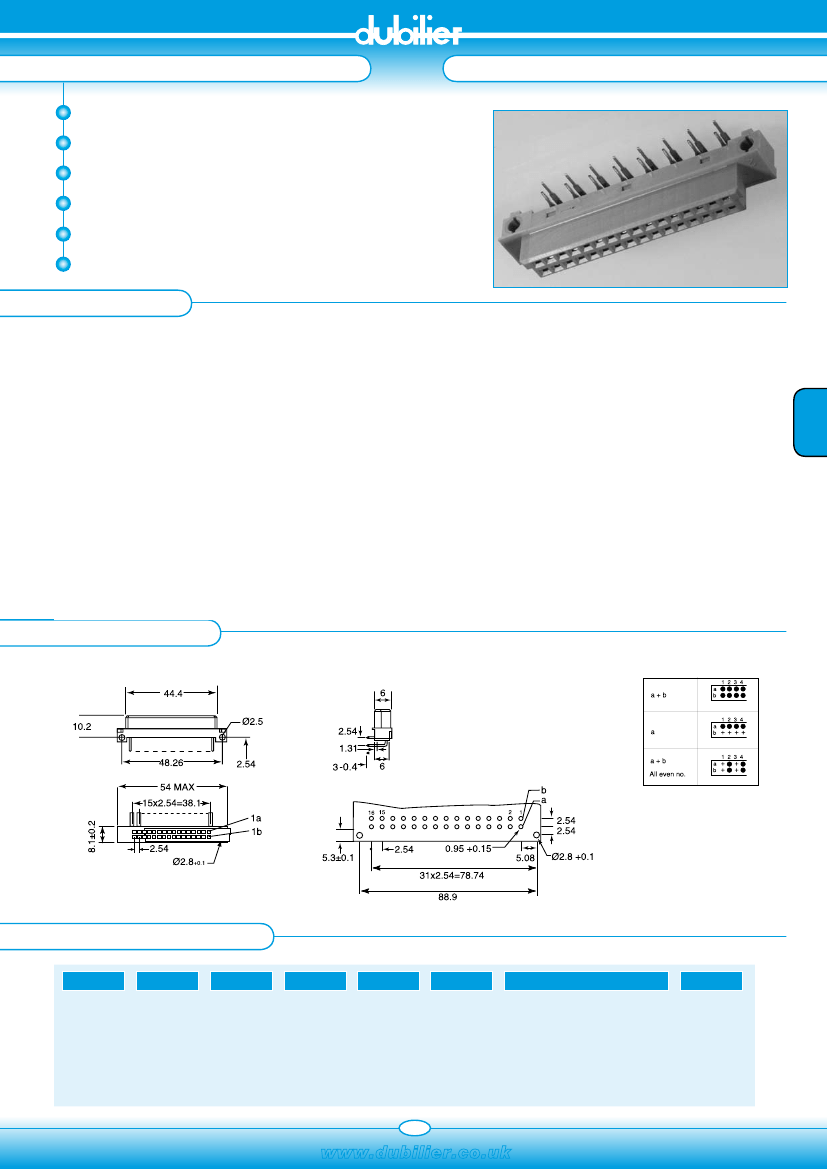

TYPE HALF Q (REVERSED) – FEMALE
SPECIFICATION
Material
Insulator:
Contacts:
Contact finish:
Glass filled polyester
(PBT, UL flammability 94V-0)
Female copper alloy, male brass
Contact area: Gold over nickel (per requirements
of performance class 3, class 2)
Termination area: Tin - plated or Gold-plated for
long wrap post
32 contacts max. 30N
16 contacts max. 15N
Withdrawal force per contact: min 0.15N
-55°C to +125°C
Air and creepage distance 1.2mm min.
Electrical
Current rating:
20°C 2A
70°C 1A
100°C 0.5A
≤20mΩ (testing current 100mA)
≤40mΩ after 400 mating cycles
Contact resistance:
SECTION 10
Mechanical
Insertion force:
Temperature range:
Capacitance between
adjacent contacts:
Appr. 2pF
Insulation resistance:
≥10
12
Ω
(between adjacent contacts at 100 VDC)
Test voltage:
1,000Vrms between contacts (2.54mm spacing)
1,550Vrms between contacts (5.08mm
spacing)
1,550Vrms between contacts and body
Operating voltage:
250V AC
Agency approval
U/L Electric rating:
Mating Cycles:
250V, 2A
Class 2 = 400
Class 3 = 50
OUTLINE DRAWING
PCB LAYOUT
ORDERING INFORMATION
DBC
Dubilier
Connectors
DIN
Series
DIN 41612
F
Connector Type
F = Female
16
Nº of Ways
16 = 16 ways
32 = 32 ways
HQ
Housing Style
HQ = Half HQ
A
Position of
Contacts
A = A row
AB = A+B rows
AB1=AB even n°.
RA
Termination Style
RA = Right Angled Solder
3
Quality Class
3 = class 3
2 = class 2
247
www.dubilier.co.uk
