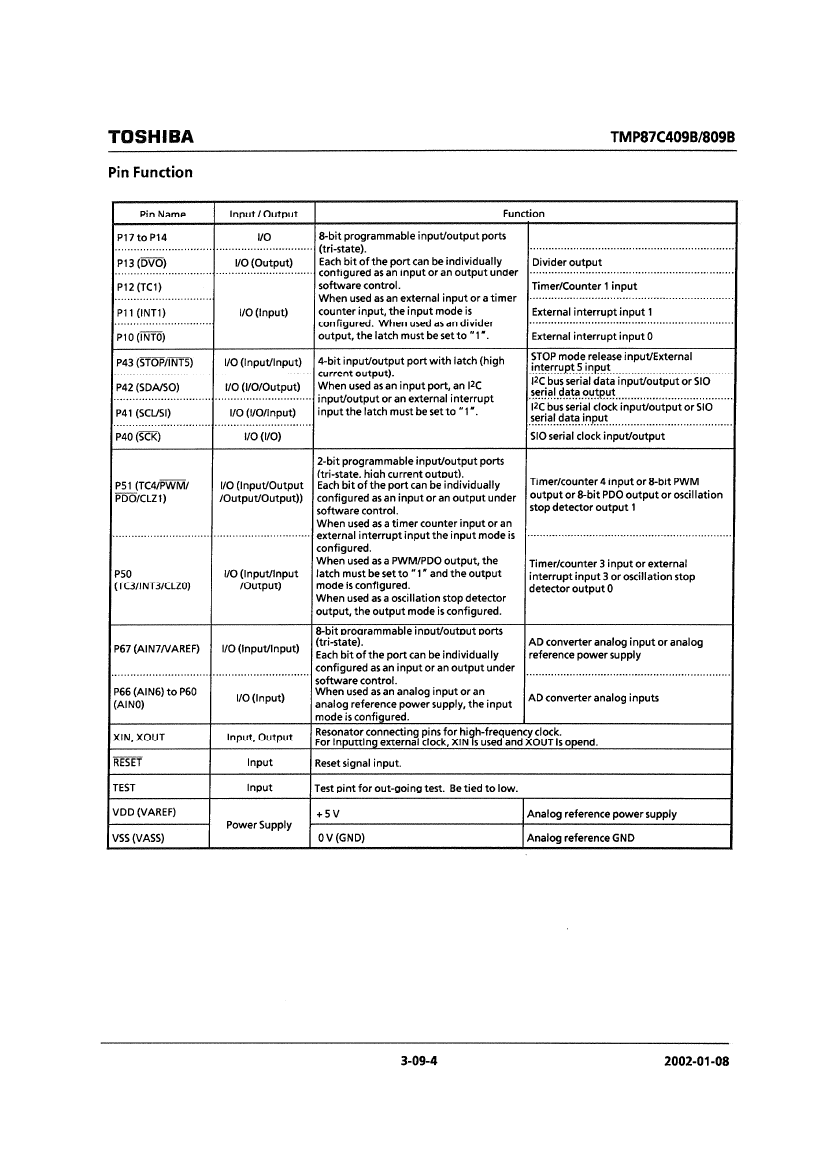

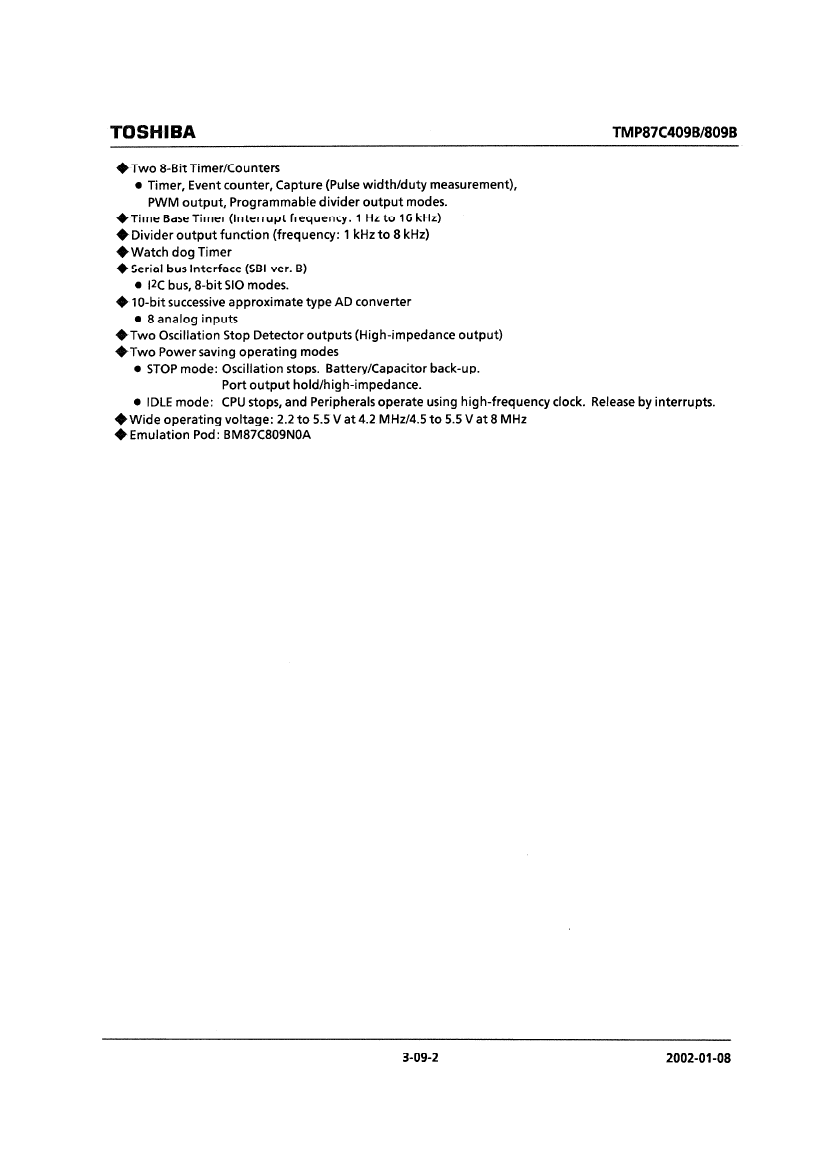

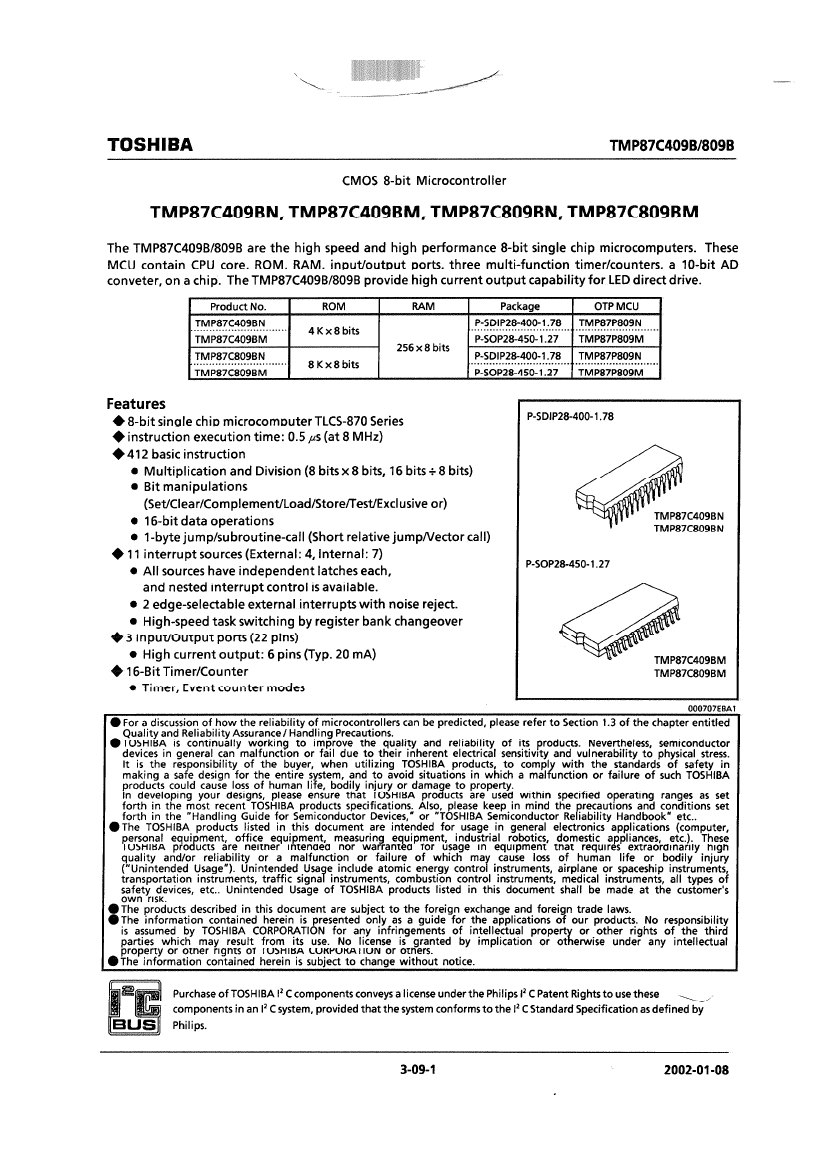

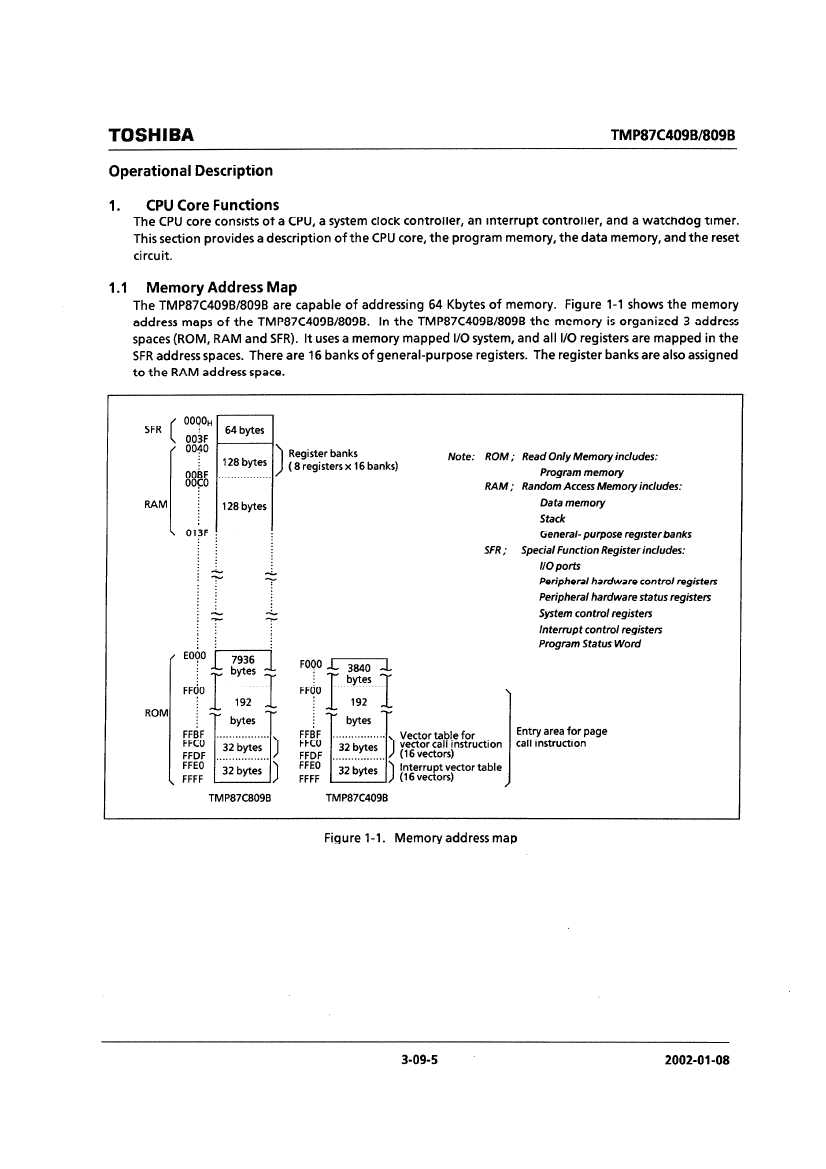

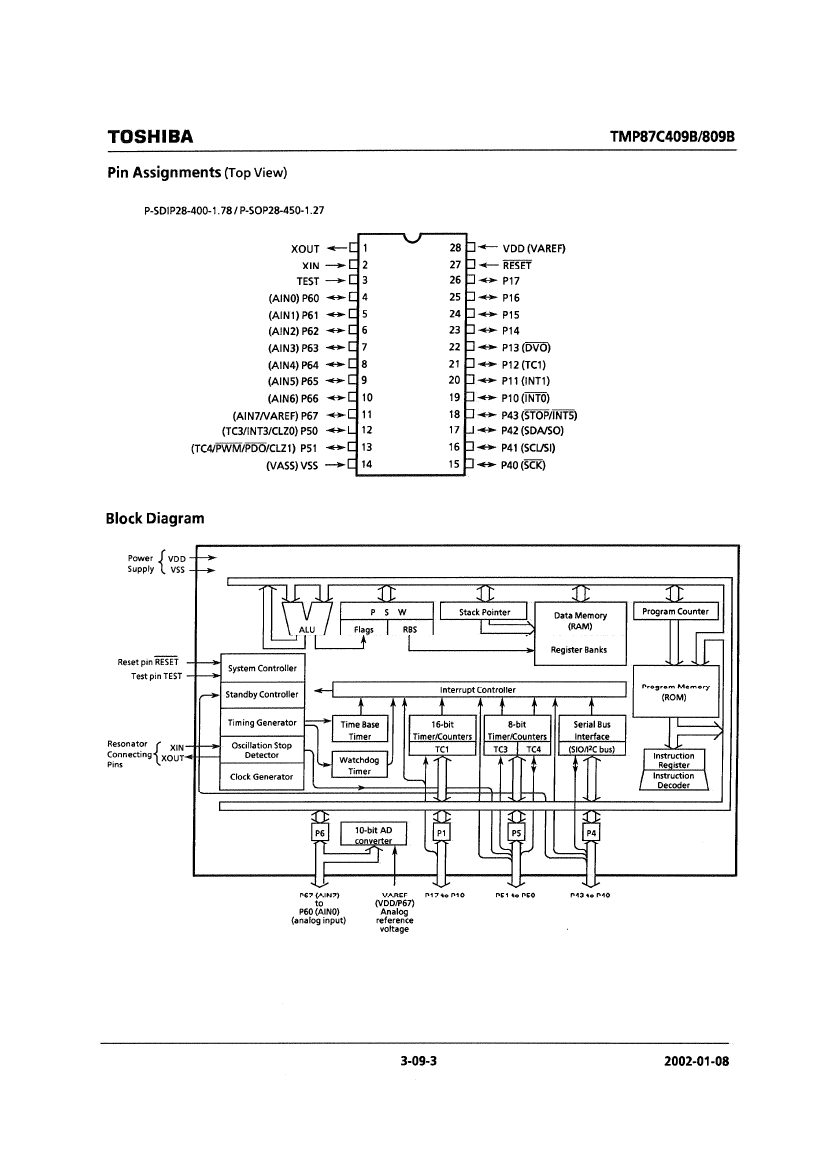

Preview

TMP87C809N: DescriptionCMOS 8-bit Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size6MB，102 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP87C809N Overview

CMOS 8-bit Microcontroller

TMP87C809N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP28,.4
Contacts	28
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPERATES AT 2.2 TO 5.5V SUPPLY @ 4.2MHZ
Address bus width
bit size	8
CPU series	TLCS-870
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	25.6 mm
Number of I/O lines	22
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP28,.4
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.5/5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	4.1 mm
speed	8 MHz
Maximum slew rate	14 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

TMP87C809N Related Products

	TMP87C809N	TMP87C809BM	87C809	TMP87C809BN	TMP87C809M
Description	CMOS 8-bit Microcontroller	CMOS 8-bit Microcontroller	CMOS 8-bit Microcontroller	CMOS 8-bit Microcontroller	CMOS 8-bit Microcontroller
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	SOIC	-	DIP	SOIC
package instruction	SDIP, SDIP28,.4	SOP, SOP28,.45	-	SDIP, SDIP28,.4	SOP, SOP28,.45
Contacts	28	28	-	28	28
Reach Compliance Code	unknown	unknown	-	unknown	unknown
Has ADC	NO	YES	-	YES	NO
Other features	OPERATES AT 2.2 TO 5.5V SUPPLY @ 4.2MHZ	OPERATES AT 2.2V MINIMUM SUPPLY AT 4.2 MHZ	-	OPERATES AT 2.2V MINIMUM SUPPLY AT 4.2 MHZ	OPERATES AT 2.2 TO 5.5V SUPPLY @ 4.2MHZ
bit size	8	8	-	8	8
CPU series	TLCS-870	TLCS-870	-	TLCS-870	TLCS-870
maximum clock frequency	8 MHz	8 MHz	-	8 MHz	8 MHz
DAC channel	NO	NO	-	NO	NO
DMA channel	NO	NO	-	NO	NO
JESD-30 code	R-PDIP-T28	R-PDSO-G28	-	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	-	e0	e0
length	25.6 mm	18.5 mm	-	25.6 mm	18.5 mm
Number of I/O lines	22	22	-	22	22
Number of terminals	28	28	-	28	28
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-	-30 °C	-30 °C
PWM channel	YES	YES	-	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SOP	-	SDIP	SOP
Encapsulate equivalent code	SDIP28,.4	SOP28,.45	-	SDIP28,.4	SOP28,.45
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	SMALL OUTLINE	-	IN-LINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	2.5/5 V	2.5/5 V	-	2.5/5 V	2.5/5 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
RAM (bytes)	256	256	-	256	256
rom(word)	8192	8192	-	8192	8192
ROM programmability	MROM	MROM	-	MROM	MROM
Maximum seat height	4.1 mm	2.7 mm	-	4.1 mm	2.7 mm
speed	8 MHz	8 MHz	-	8 MHz	8 MHz
Maximum slew rate	14 mA	14 mA	-	14 mA	14 mA
Maximum supply voltage	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	-	5 V	5 V
surface mount	NO	YES	-	NO	YES
technology	CMOS	CMOS	-	CMOS	CMOS
Temperature level	OTHER	OTHER	-	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	-	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	1.27 mm	-	1.778 mm	1.27 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	8.8 mm	-	10.16 mm	8.8 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	-	1	1
