TMP86PM29U datasheet, PDF - EEWORLD Datasheet

TMP86PM29U: DescriptionCMOS 8-Bit Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size174KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

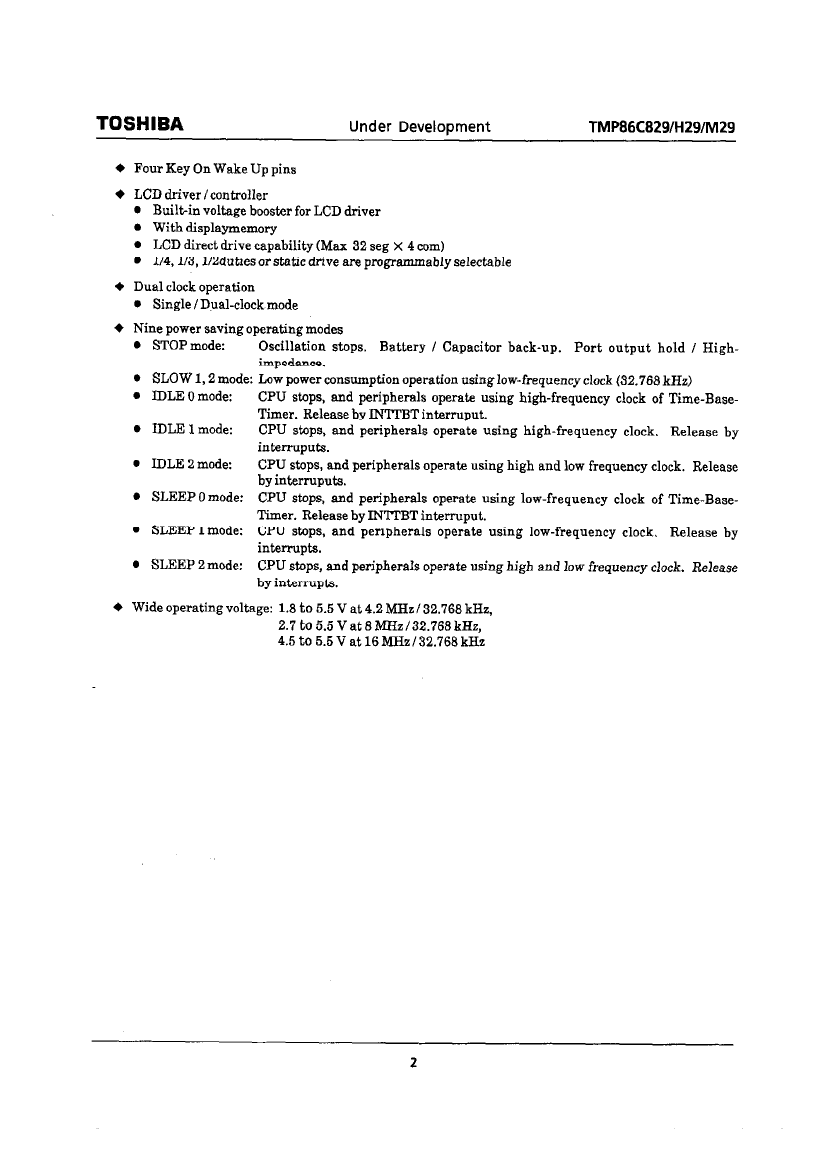

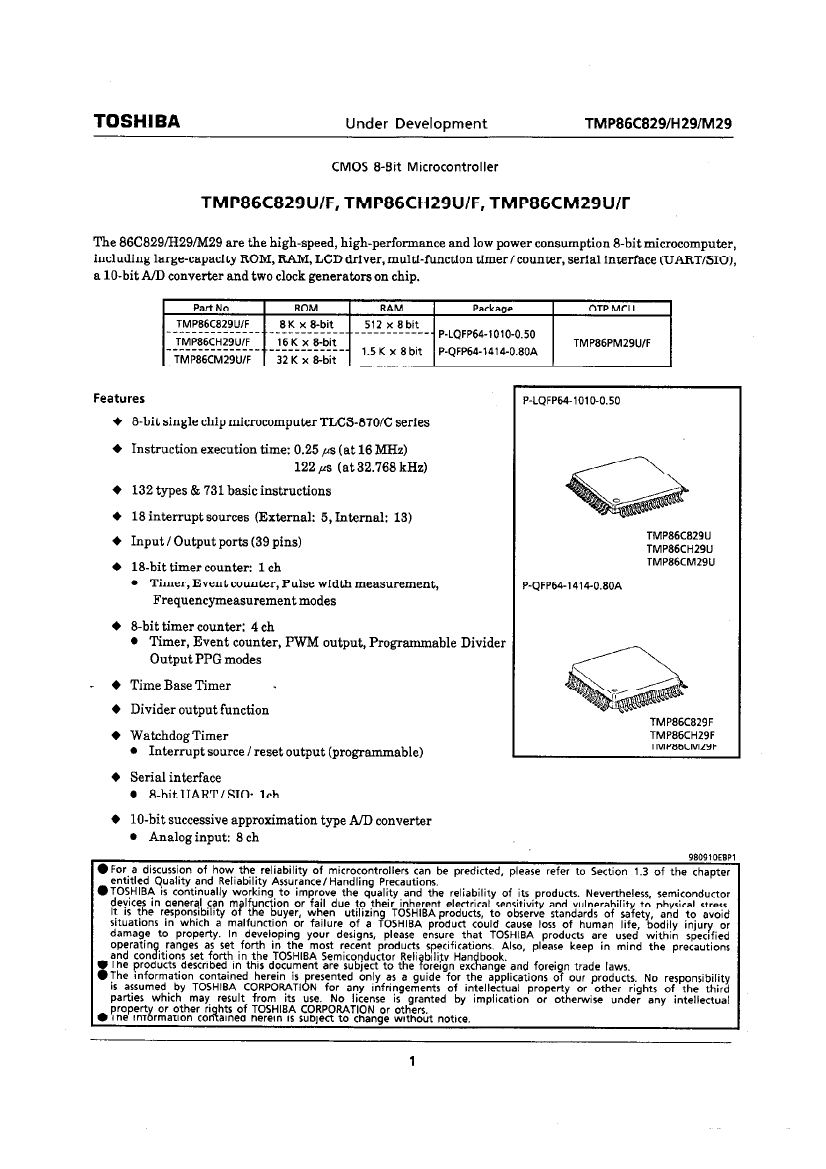

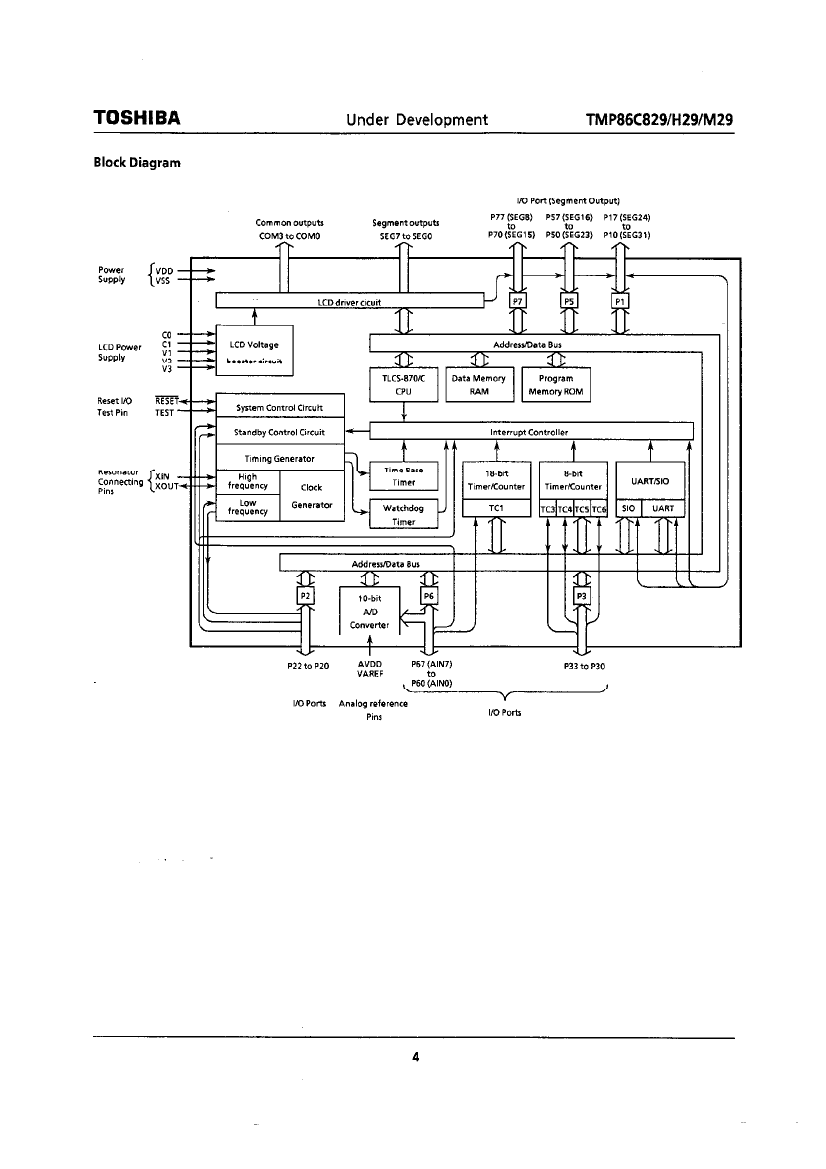

TMP86PM29U Overview

CMOS 8-Bit Microcontroller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP64,.47SQ,20
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V MINIMUN AT 4.2 MHZ
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	10 mm
Number of I/O lines	39

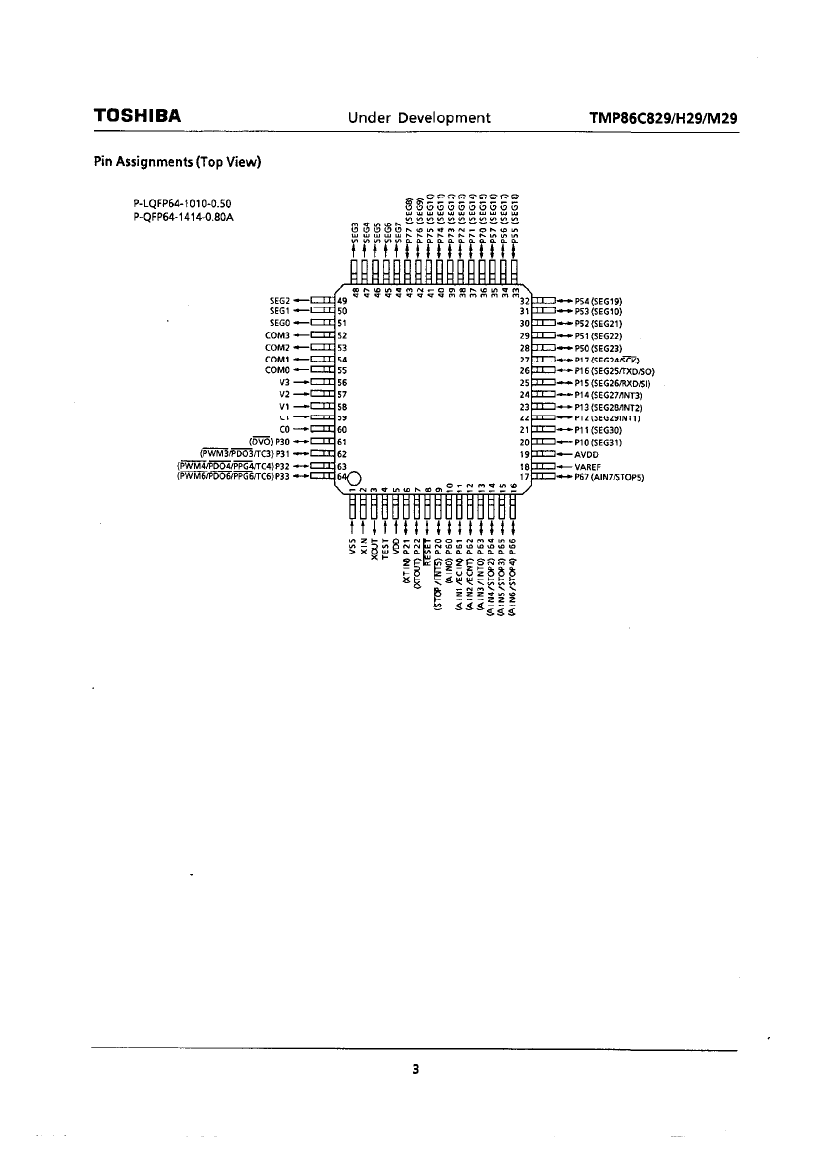

Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.47SQ,20
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	240
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	1536
rom(word)	32768
ROM programmability	OTPROM
Maximum seat height	1.85 mm
speed	16 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
