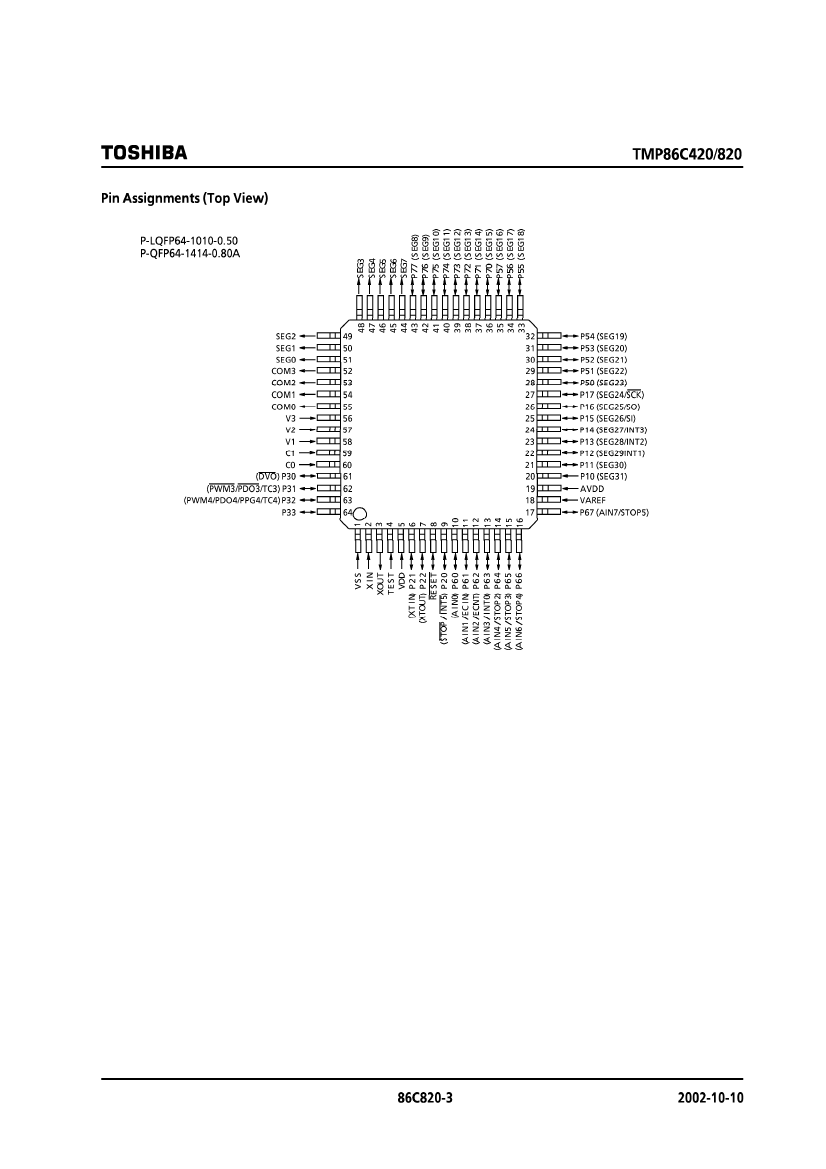

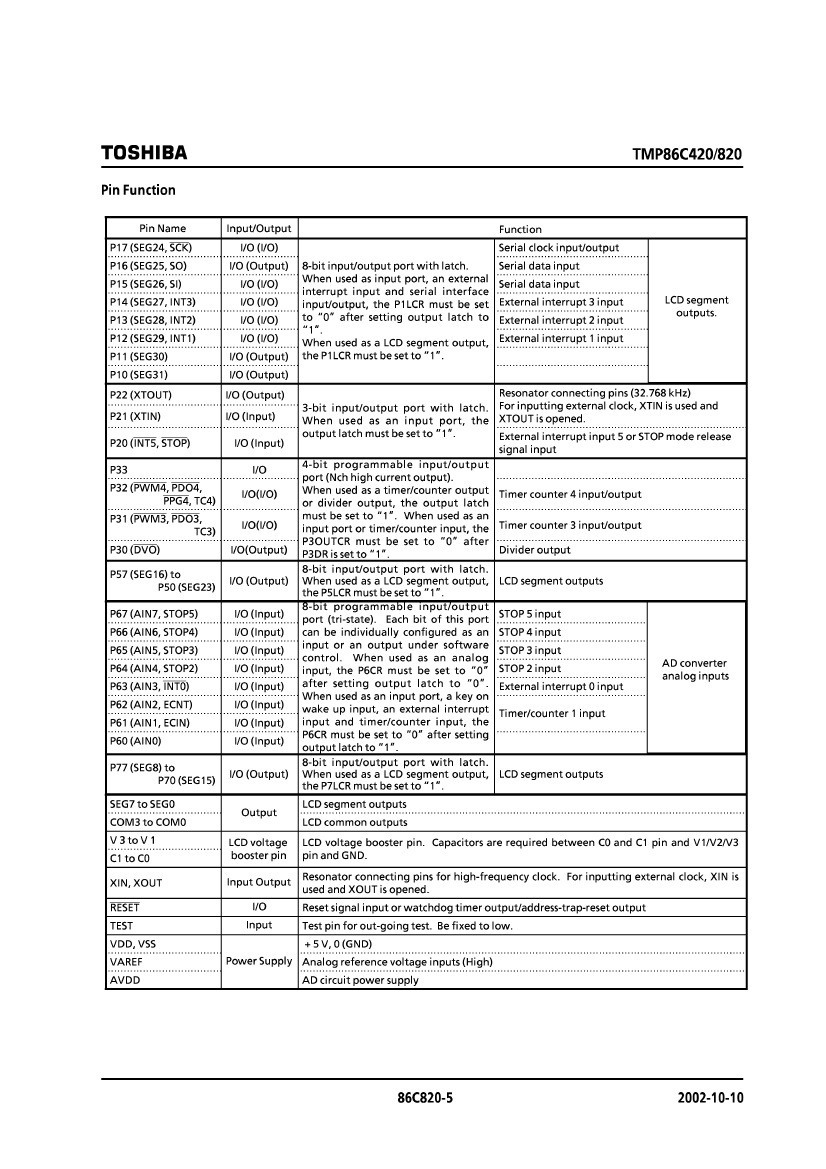

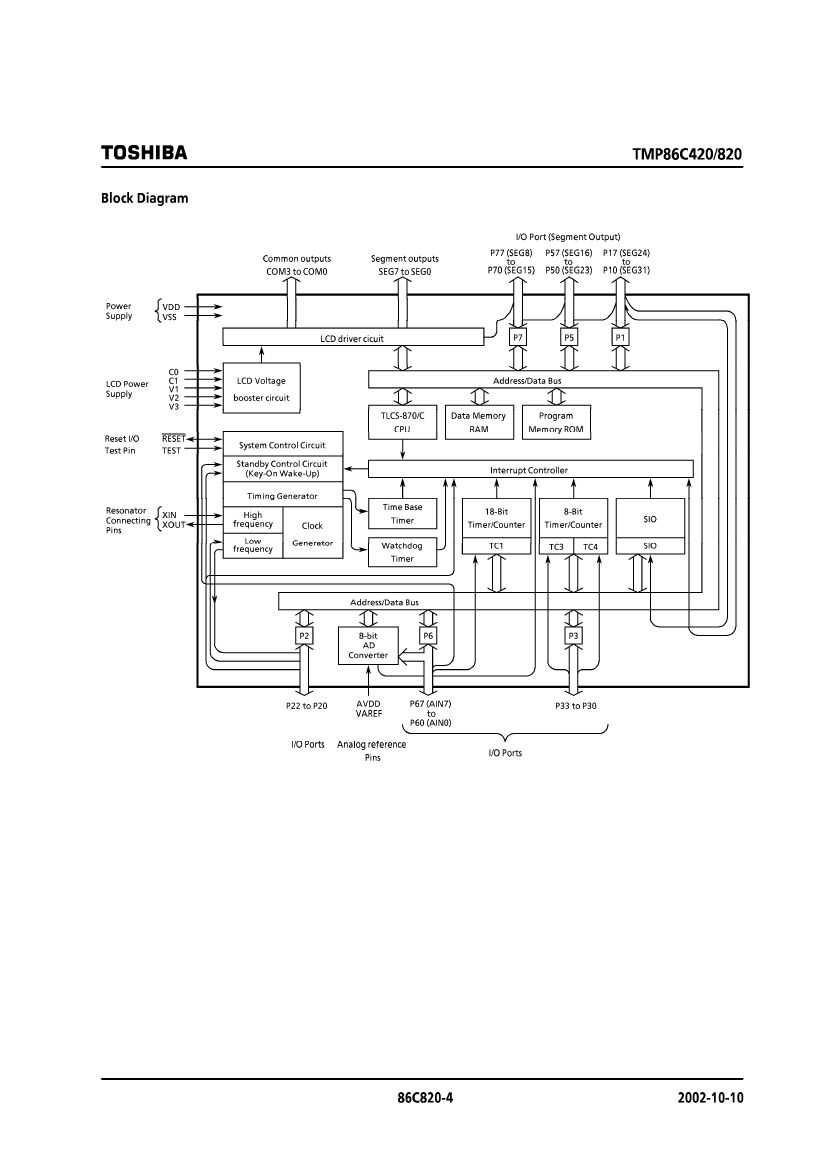

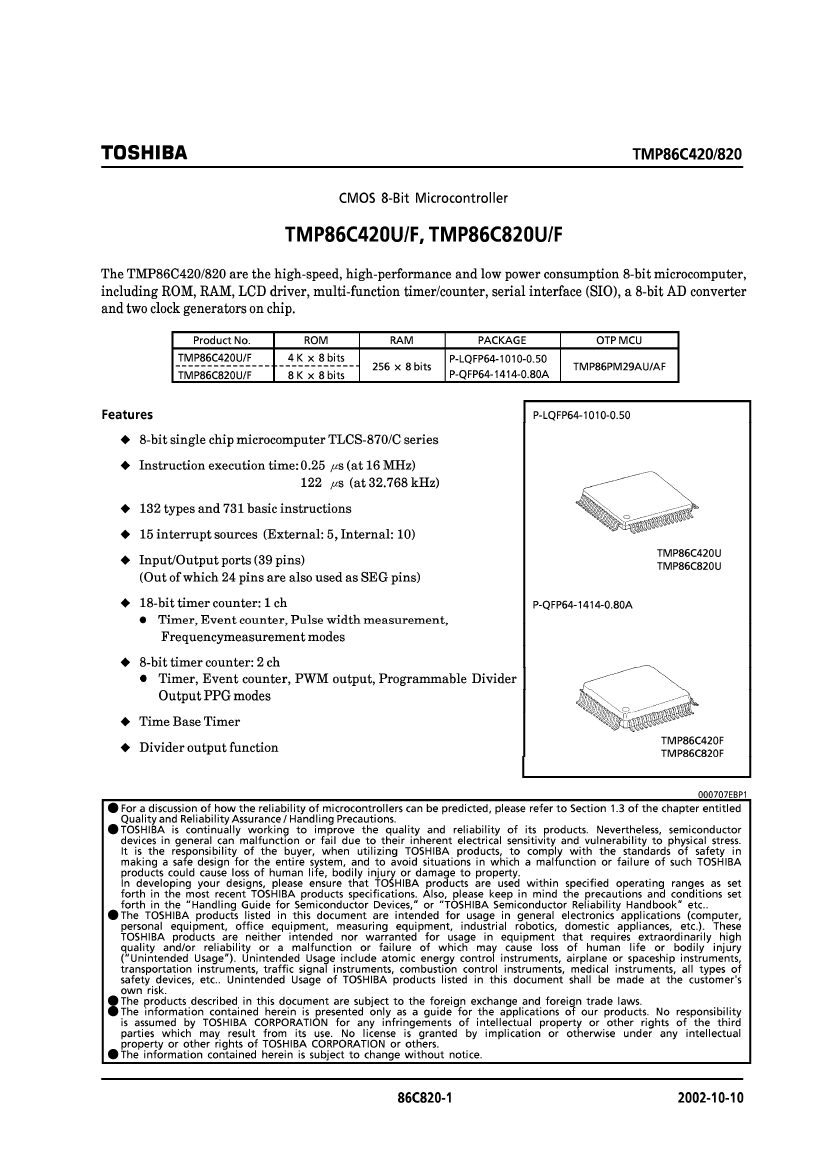

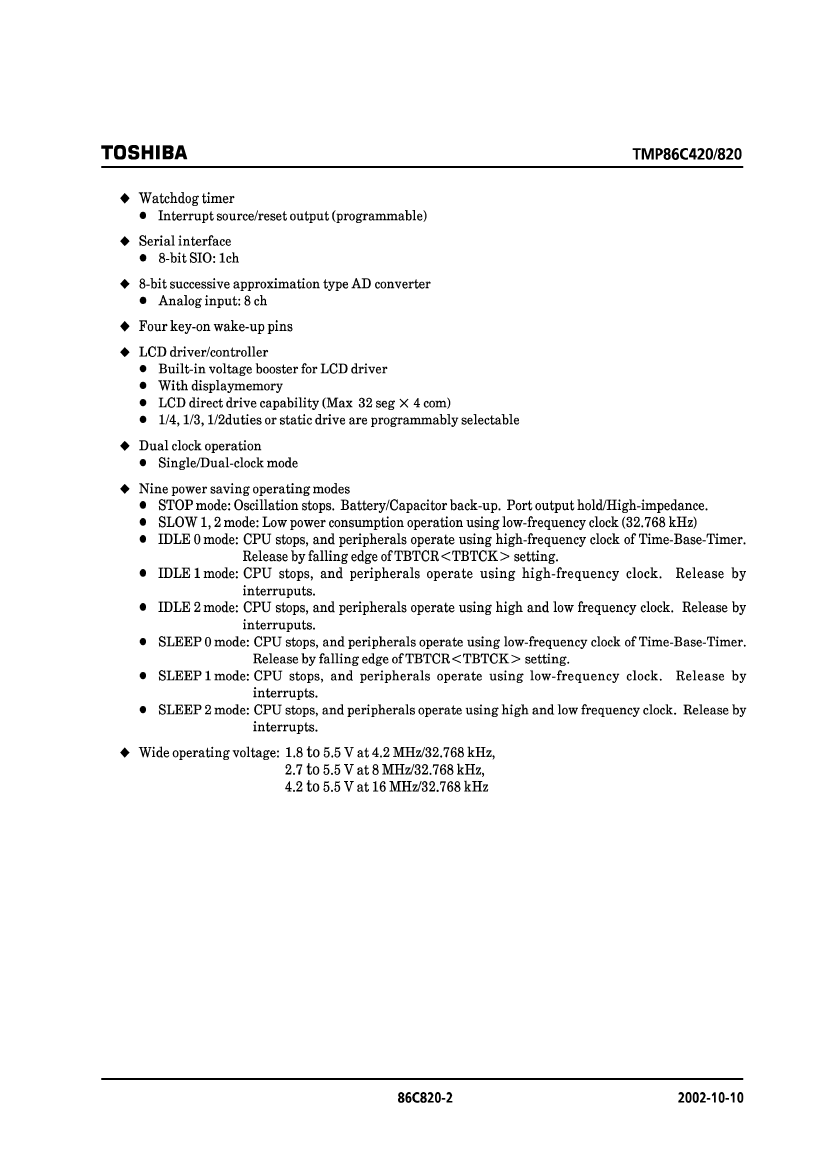

High-speed, High-performance and low power consumption 8-bit microcomuter including ROM,RAM,LCD driver, multi function timer
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Parts packaging code | QFP |
| package instruction | QFP, QFP64,.47SQ,20 |
| Contacts | 64 |
| Reach Compliance Code | unknow |
| Has ADC | YES |
| Other features | OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ |
| Address bus width | |
| bit size | 8 |
| CPU series | TLCS-870/C |
| maximum clock frequency | 16 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | S-PQFP-G64 |
| JESD-609 code | e0 |
| Number of I/O lines | 39 |
| Number of terminals | 64 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Encapsulate equivalent code | QFP64,.47SQ,20 |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 2/5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 256 |
| rom(word) | 8192 |
| ROM programmability | MROM |
| speed | 16 MHz |
| Maximum slew rate | 9 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.5 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| TMP86C820U | TMP86C420F | TMP86C420U | |
|---|---|---|---|
| Description | High-speed, High-performance and low power consumption 8-bit microcomuter including ROM,RAM,LCD driver, multi function timer | High-speed, High-performance and low power consumption 8-bit microcomuter including ROM,RAM,LCD driver, multi function timer | High-speed, High-performance and low power consumption 8-bit microcomuter including ROM,RAM,LCD driver, multi function timer |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Parts packaging code | QFP | QFP | QFP |
| package instruction | QFP, QFP64,.47SQ,20 | QFP, QFP64,.66SQ,32 | QFP, QFP64,.47SQ,20 |
| Contacts | 64 | 64 | 64 |
| Reach Compliance Code | unknow | unknow | unknow |
| Has ADC | YES | YES | YES |
| Other features | OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ | OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ | OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ |
| bit size | 8 | 8 | 8 |
| CPU series | TLCS-870/C | TLCS-870/C | TLCS-870/C |
| maximum clock frequency | 16 MHz | 16 MHz | 16 MHz |
| DAC channel | NO | NO | NO |
| DMA channel | NO | NO | NO |
| JESD-30 code | S-PQFP-G64 | S-PQFP-G64 | S-PQFP-G64 |
| JESD-609 code | e0 | e0 | e0 |
| Number of I/O lines | 39 | 39 | 39 |
| Number of terminals | 64 | 64 | 64 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| PWM channel | YES | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QFP | QFP | QFP |
| Encapsulate equivalent code | QFP64,.47SQ,20 | QFP64,.66SQ,32 | QFP64,.47SQ,20 |
| Package shape | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | FLATPACK | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 2/5 V | 2/5 V | 2/5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 256 | 256 | 256 |
| rom(word) | 8192 | 4096 | 4096 |
| ROM programmability | MROM | MROM | MROM |
| speed | 16 MHz | 16 MHz | 16 MHz |
| Maximum slew rate | 9 mA | 9 mA | 9 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.5 mm | 0.8 mm | 0.5 mm |
| Terminal location | QUAD | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| length | - | 14 mm | 10 mm |
| Maximum seat height | - | 3.15 mm | 1.85 mm |
| width | - | 14 mm | 10 mm |
