TMP82C59AM-2 datasheet, PDF - EEWORLD Datasheet

TMP82C59AM-2: DescriptionPROGRAMMABLE INTERRUPT CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size676KB，26 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP82C59AM-2 Overview

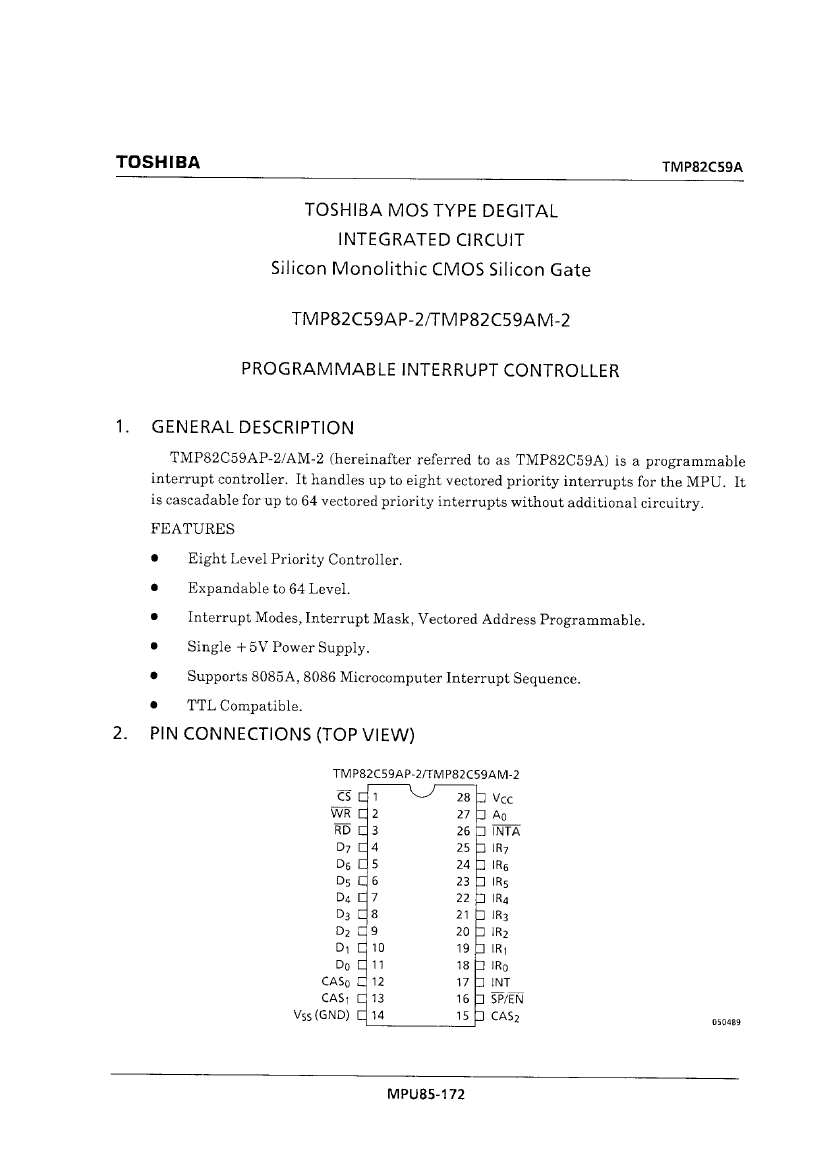

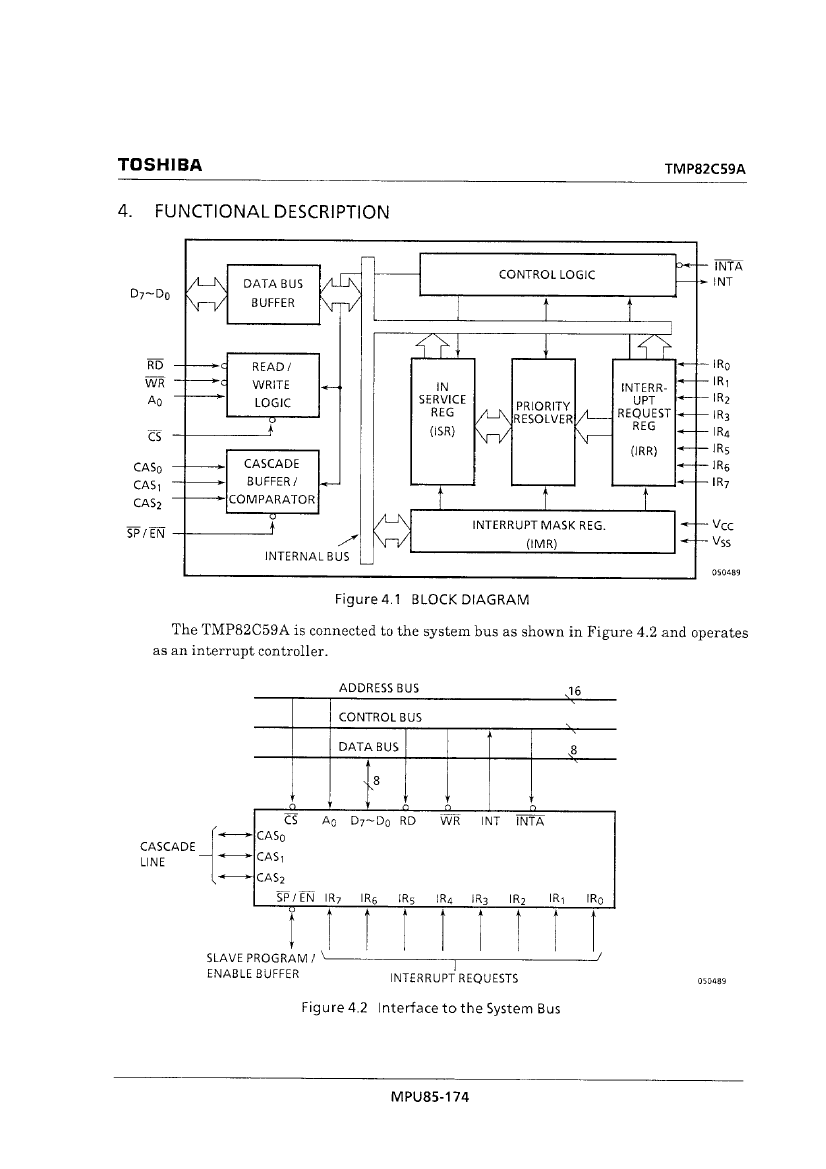

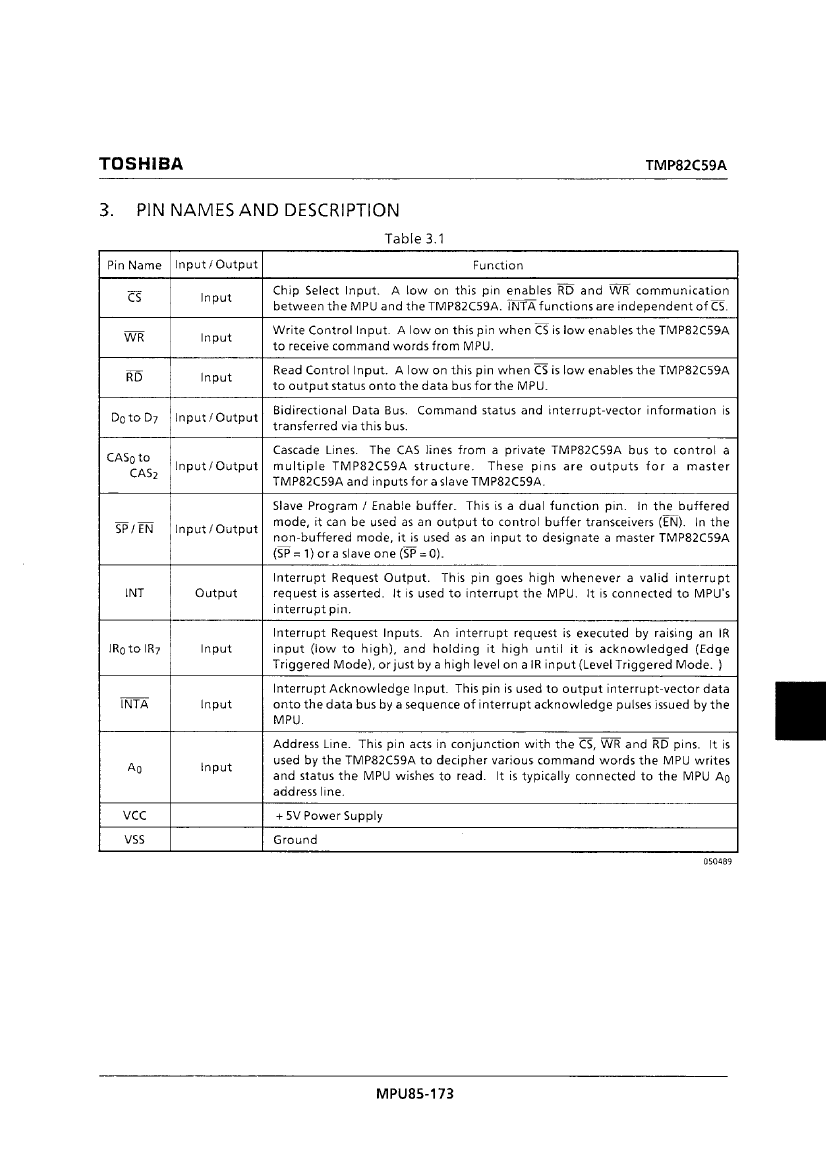

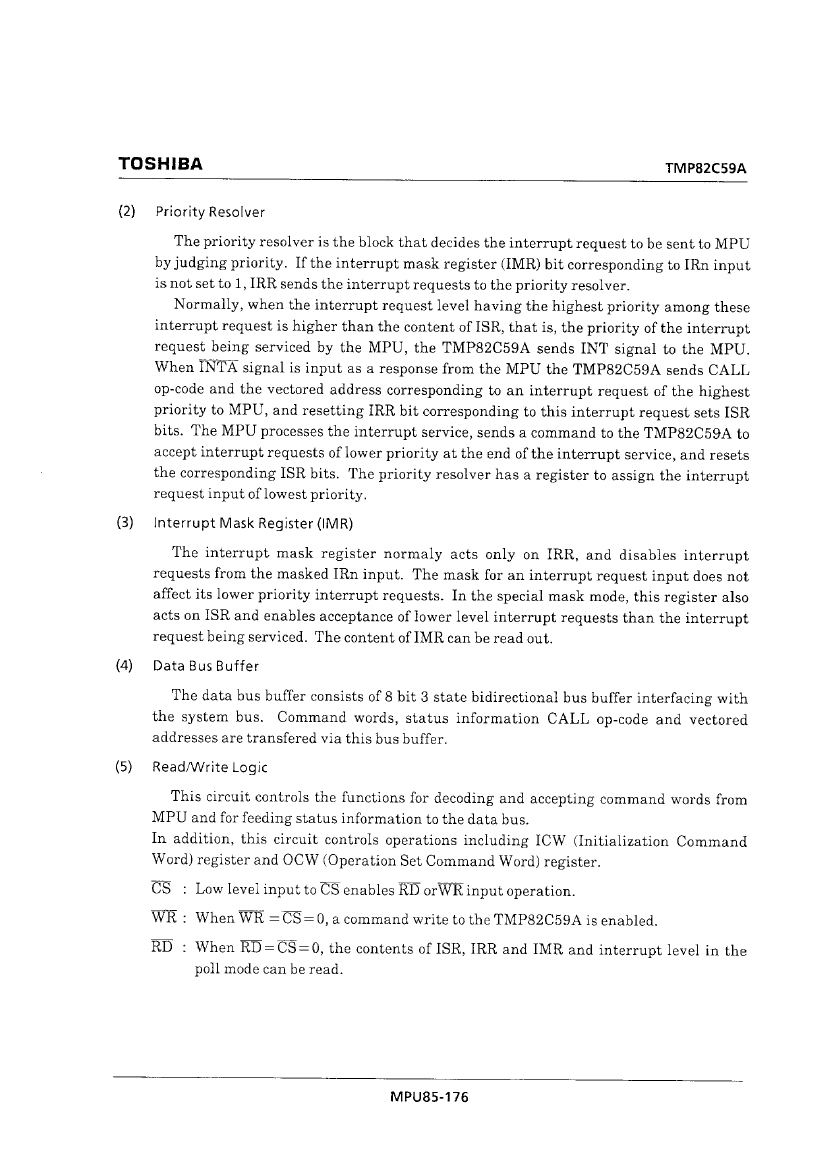

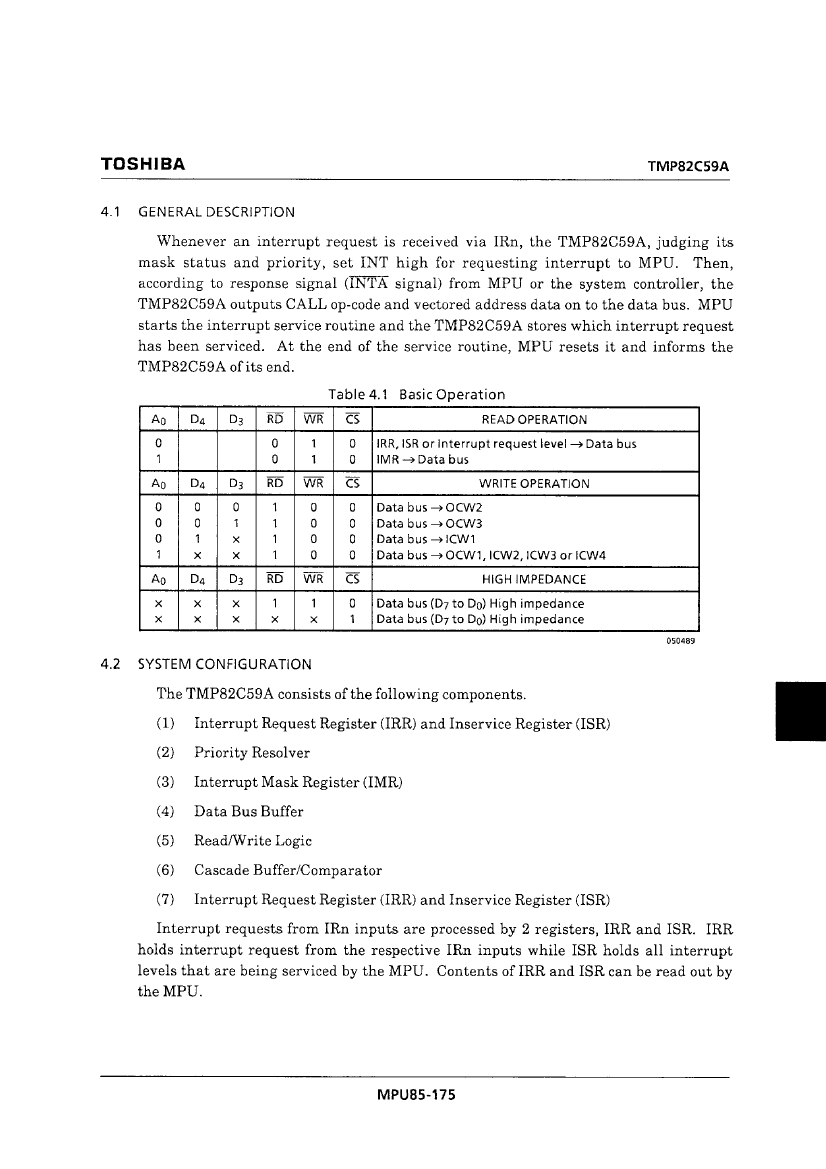

PROGRAMMABLE INTERRUPT CONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknow
Bus compatibility	8085A; 8086
External data bus width	8
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.5 mm
Number of external interrupt devices	8
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum slew rate	5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.8 mm
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER
Base Number Matches	1

	TMP82C59AM-2	TMP82C59AP-2	TMP82C59A
Description	PROGRAMMABLE INTERRUPT CONTROLLER	PROGRAMMABLE INTERRUPT CONTROLLER	PROGRAMMABLE INTERRUPT CONTROLLER
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	SOIC	DIP	-
package instruction	SOP,	DIP,	-
Contacts	28	28	-
Reach Compliance Code	unknow	unknow	-
