TMP8255AP-5 datasheet, PDF - EEWORLD Datasheet

TMP8255AP-5: DescriptionPROGRAMMABLE PERIPHERAL INTERFACE; CategoryThe embedded processor and controller Microcontrollers and processors; File Size690KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP8255AP-5 Overview

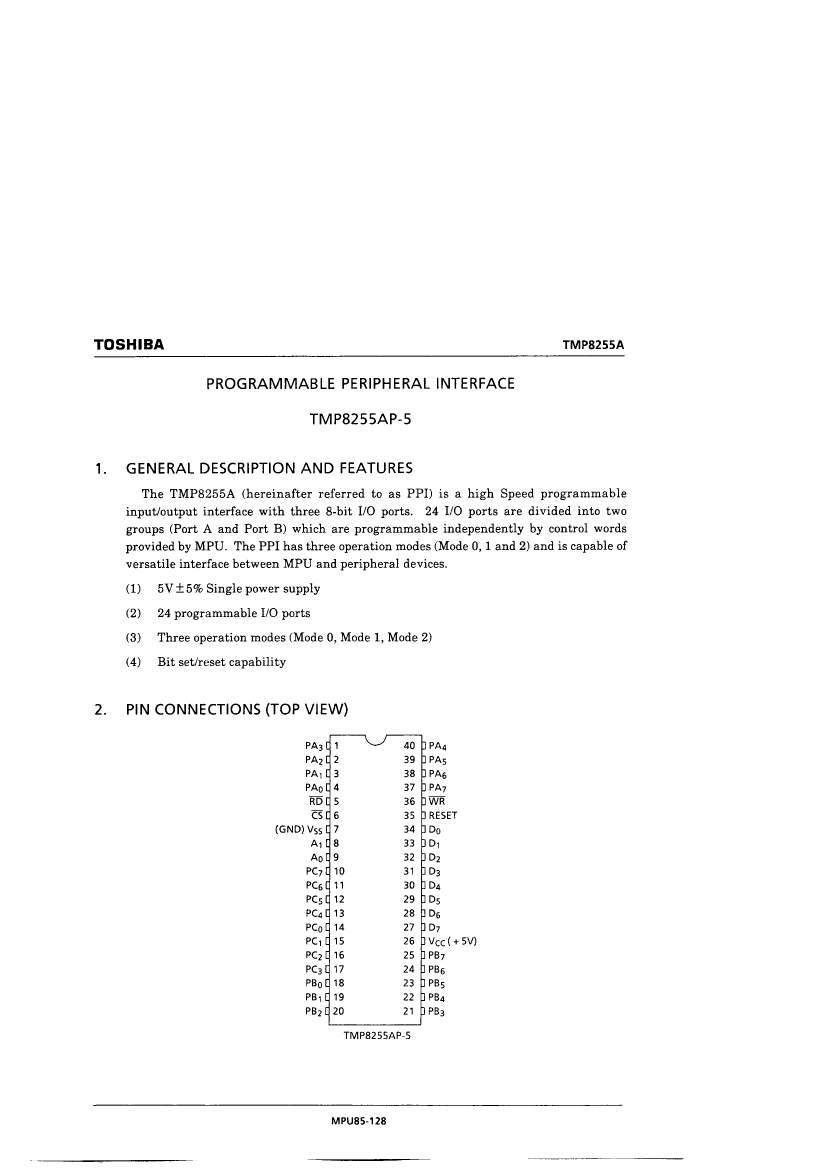

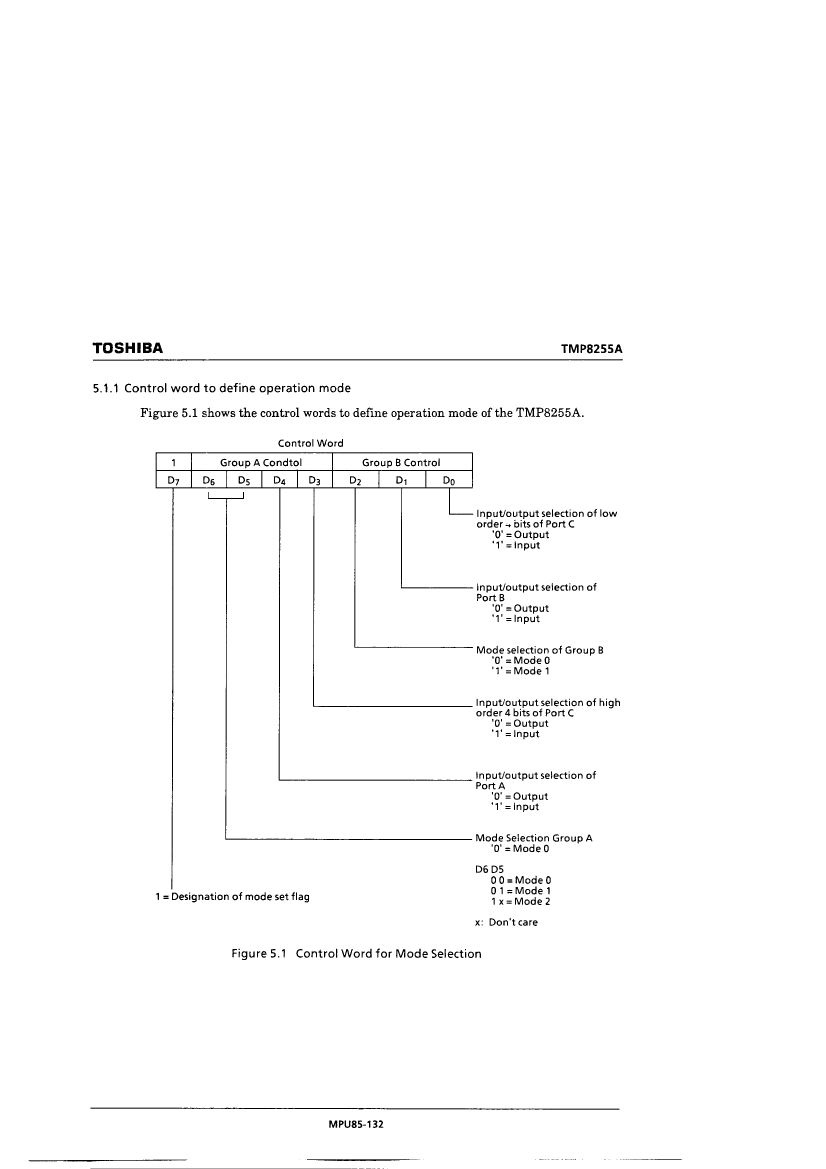

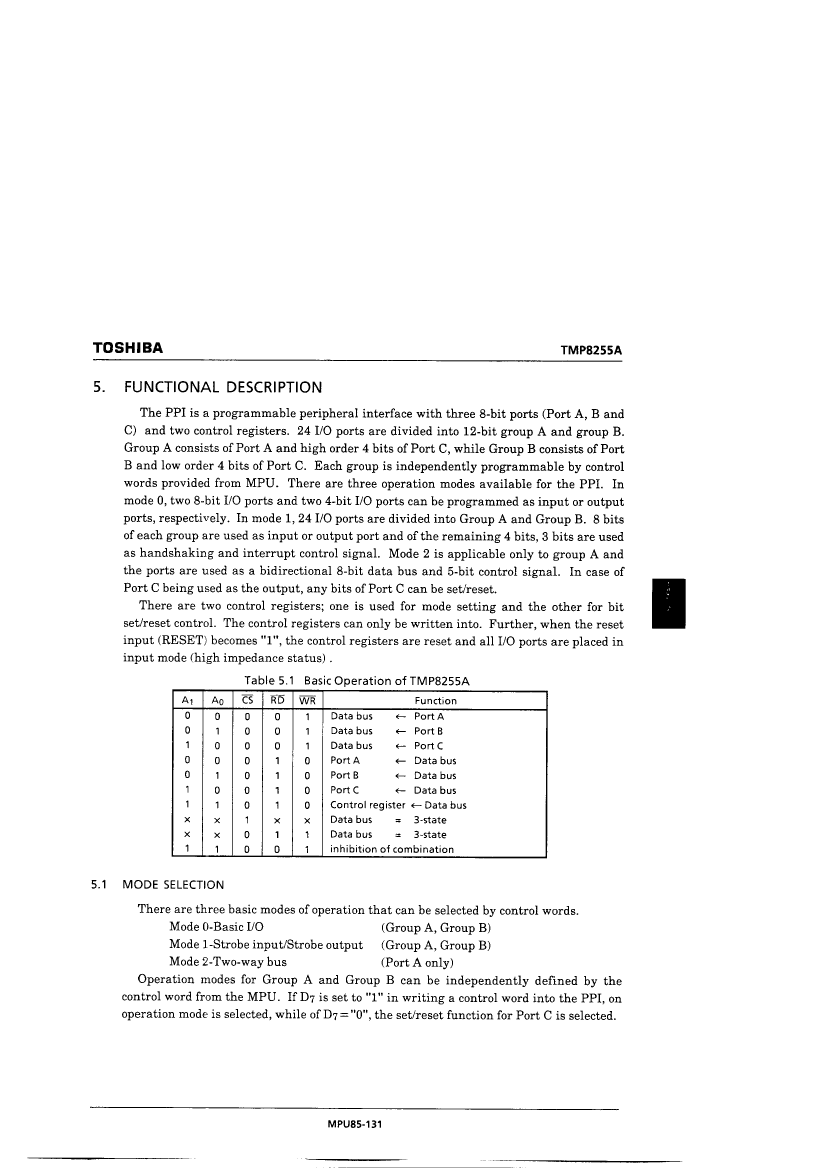

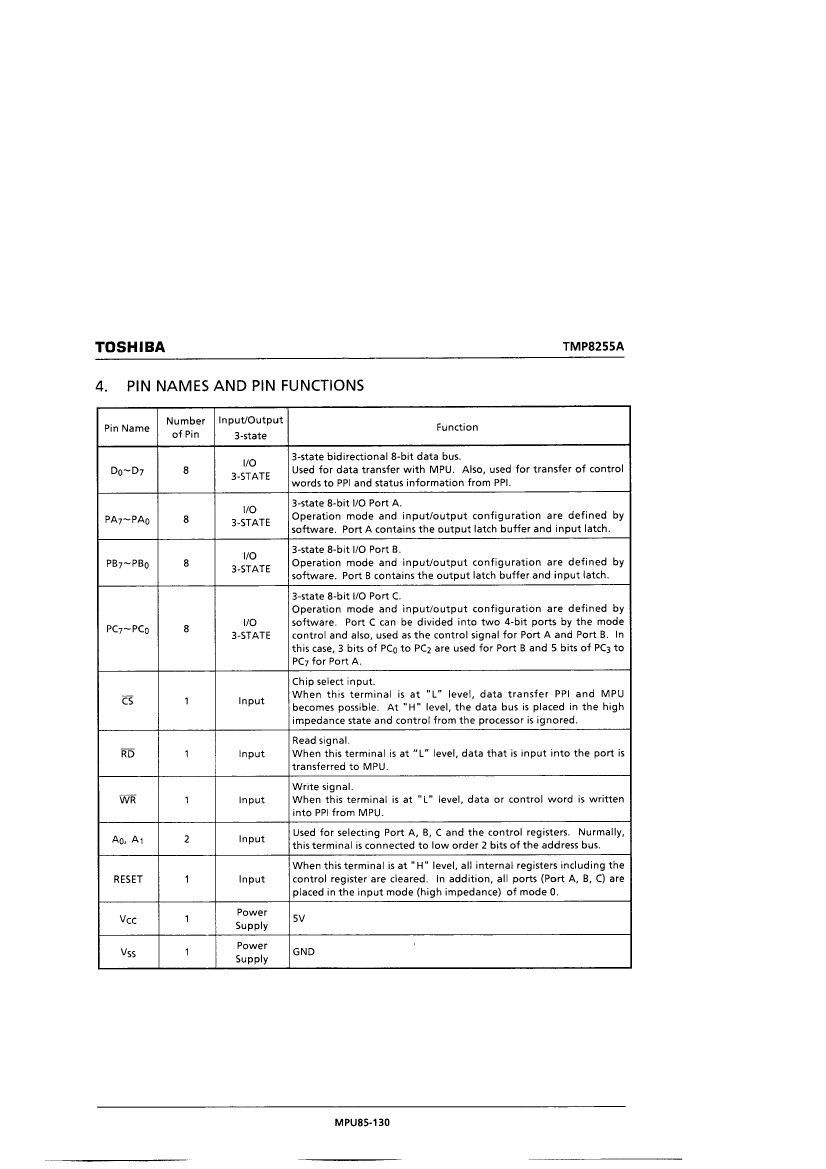

PROGRAMMABLE PERIPHERAL INTERFACE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	50.7 mm
Number of I/O lines	24
Number of ports	3
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.8 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

	TMP8255AP-5	TMP8255A
Description	PROGRAMMABLE PERIPHERAL INTERFACE	PROGRAMMABLE PERIPHERAL INTERFACE
