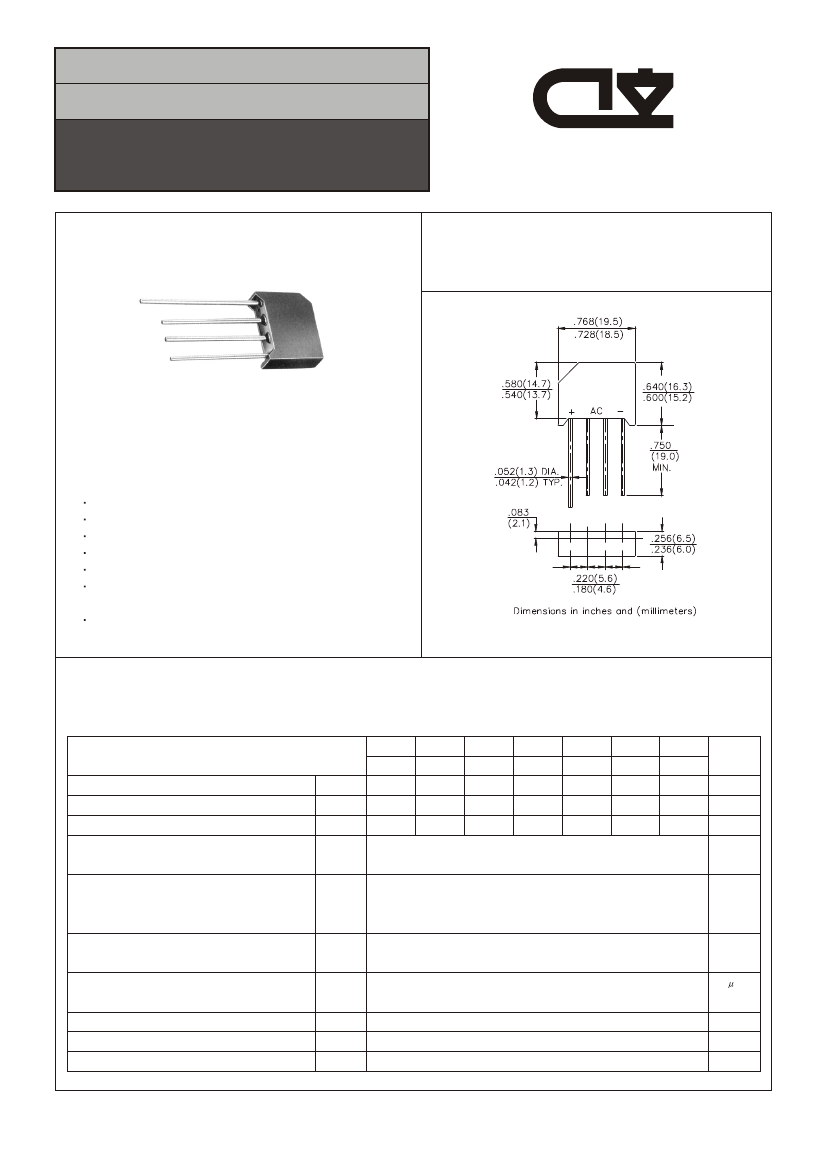

RS4005 thru RS410
KBL005 thru KBL10
SINGLE-PHASE SILICON BRIDGE
CHENG- YI
ELECTRONIC
VOLTAGE RANGE
50 TO 1000 VOLTS
CURRENT
4.0 Amperes
FEATURES
UL recognized file # E149311
Ideal for printed circuit board
Surge overload rating-150 amperes peak
Mounting position: Any
Leads:siliver-plated copper
Plastic material has underwriters !laboratory
Flammability classification 94V-O
Electrically isolated base-1800Volts
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
0
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RS4005
KBL005
RS401
KBL01
100
70
100
RS402
KBL02
200
140
200
RS404
KBL04
400
280
400
4.0
RS406
KBL06
600
420
600
RS408
KBL08
800
560
800
RS410
KBL10
1000
700
1000
UNITS
V
V
V
A
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Output Current @
TA=25 C
0
V
RRM
V
RMS
V
DC
V
(AV)
50
35
60
Peak Forward Surge Current
8.3 ms single half sine-wave
superimposed on rated load
Maximum DC Forward Voltage
drop per element at 1.0A DC
Maximum DC Reverse Current at rated
@ TA=25 C
DC Blocking Voltage Per Element
@ TA=100 C
0
0
I
FSM
200
A
V
F
I
R
I
2
t
T
J
T
STG
1.1
10
1
166
-55 to +125
-55 to +150
V
A
mA
A
2
S
0
I t Rating for fusing(t<8.3ms)
Operating Temperature Range
Storage Temperature Range
2
C
C
0
RS4005 thru RS410
KBL005 thru KBL10
SINGLE-PHASE SILICON BRIDGE
CHENG- YI
ELECTRONIC
RATING AND CHARACTERISTICS CURVES
KBL005 THRU KBL10
Fig.2
-
DERATING CURVE
Fig.1
-
MAXIMUM FORWARD SURGE CURRENT
5.0
200
OUTPUT RECTIFIED CURRENT
PEAK FORWARD SURGE CURRENT
AMPERES
BRIDGE OUTPUT
FULL WAVE RECTIFIED CURRENT
AVERAGE AMPERES
160
4.0
120
3.0
60
2.0
TJ=25
0
C
40
1.0
0
MOUNTED ON 4x4 INCH
COPER PC BOARD
1
10
100
0
NUMBER OF CYCLES AT 60 Hz
0
50
100
150
AMBIENT TEMPERATURE,
0
C
Fig.3 - TYPICAL FORWARD
CHARACTERISTICS
Fig.4
-
TYPICAL REVERSE
INSTANTANEOUS FORWARD CURRENT. AMPERES
10
7
5
3
2
1.0
.7
.5
.3
.2
0.1
.07
.05
.03
.02
.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
CHARACTERISTICS(25
0
C)
10
6
4
2
1.0
.6
.4
.2
0.1
.06
.04
.02
.01
0
20
40
60
80
100
120
140
TJ=25
0
C
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
PERCENT OF RATED PEAK
REVERSE VOLTAGE
INSTANTANEOUS FORWARD VOLT
AGE, VOLTS
