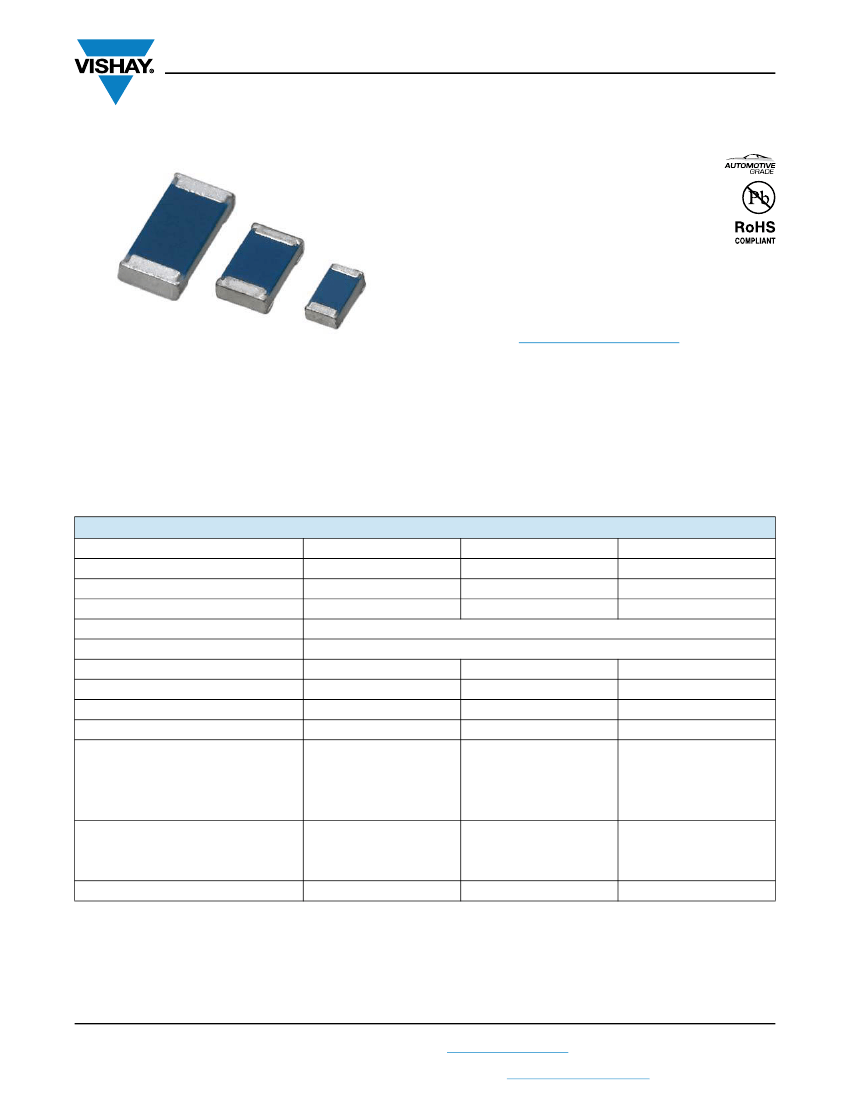

TNPU e3
www.vishay.com
Vishay Draloric
Ultra Precision Thin Film Chip Resistors
FEATURES
• Low temperature coefficient and
tolerances (± 2 ppm/K; ± 0.02 %)
tight
• Sulfur resistance verified according to ASTM
B 809
• Superior moisture resistivity (85 °C; 85 % RH)
• Excellent overall stability at different environmental
conditions
0.05 % (1000 h rated power at 70 °C)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
TNPU e3 ultra precision thin film flat chip resistors combine
the proven reliability of TNPW e3 products with a most
advanced level of precision and stability. This unique
combination makes the product perfectly suited for all
applications with outstanding requirements towards size,
reliable precision and stability.
• Industrial equipment
• Telecommunication
• Medical equipment
• Instrumentation
• Test and measuring equipment
• Automotive
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (2)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
F max. (2)
Operating temperature range
Max. resistance change at
P
70
; |R/R|
1000 h
8000 h
225 000 h
Insulation voltage:
1 min;
U
ins
Continuous
FIT
observed
100 V
75 V
0.1 x 10
-9
/h
200 V
75 V
0.1 x 10
-9
/h
300 V
75 V
0.1 x 10
-9
/h
0.05 %
0.10 %
0.30 %
0.05 %
0.10 %
0.30 %
0.05 %
0.10 %
0.30 %
0.1 W
75 V
125 °C
-55 °C to 125 °C
TNPU0603 e3
0603
RR1608M
100
to 100 k
TNPU0805 e3
0805
RR2012M
100
to 332 k
± 0.1 %; ± 0.05 %; ± 0.02 %
± 10 ppm/K; ± 5 ppm/K; ± 2 ppm/K
(1)
0.125 W
150 V
125 °C
-55 °C to 125 °C
0.25 W
200 V
125 °C
-55 °C to 125 °C
TNPU1206 e3
1206
RR3216M
100
to 511 k
Notes
(1)
Temperature coefficient ± 2 ppm/K (-10 °C / 85 °C) is available on request between 500
and 20 k.
(2)
Please refer to APPLICATION INFORMATION, see next page.
Revision: 28-Jan-15
Document Number: 28779
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPU e3
www.vishay.com
APPLICATION INFORMATION
The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow
support of the printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature is
not exceeded. Furthermore, a high level of ambient temperature or of power dissipation may raise the temperature of the solder
joint, hence special solder alloys or board materials may be required to maintain the reliability of the assembly.
These resistors do not feature a lifetime limitation when operated within the limits of rated dissipation, permissible operating
voltage and permissible film temperature. However, the resistance typically increases due to the resistor's film temperature over
operating time, generally known as drift. The drift may exceed the stability requirements of an individual application circuit and
thereby limits the functional lifetime. The designer may estimate the performance of the particular resistor application or set
certain load and temperature limits in order to maintain a desired stability.
Vishay Draloric
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 10 ppm/K
TNPU0603 e3
TOLERANCE
± 0.05 %
± 0.1 %
± 5 ppm/K
± 0.05 %
± 0.02 %
± 10 ppm/K
TNPU0805 e3
± 0.05 %
± 0.1 %
± 5 ppm/K
± 0.05 %
± 0.02 %
± 10 ppm/K
TNPU1206 e3
± 0.05 %
± 0.1 %
± 5 ppm/K
± 0.05 %
± 0.02 %
100
to 200 k
100
to 511 k
100
to 200 k
100
to 332 k
E24; E192
100
to 100 k
RESISTANCE
E-SERIES
PACKAGING
TYPE / SIZE
TNPU0603 e3
TNPU0805 e3
TNPU1206 e3
CODE
E52 = EN
ET1 = EA
QUANTITY
1000
5000
PACKAGING STYLE
Tape and reel
cardboard tape
acc. IEC 60286-3
Type 1a
WIDTH
PITCH
REEL DIAMETER
8 mm
4 mm
180 mm / 7"
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: TNPU12061K32AZEA00
T
N
P
U
1
2
0
6
1
K
3
2
A
Z
E
A
0
0
TYPE / SIZE
TNPU0603
TNPU0805
TNPU1206
RESISTANCE
R
= Decimal
K
= Thousand
M
= Million
(4 digits)
TOLERANCE
B
= ± 0.1 %
A
= ± 0.05 %
H
= ± 0.02 %
TCR
Y
= ± 10 ppm/K
Z
= ± 5 ppm/K
W
= ± 2 ppm/K
PACKAGING
EA
EN
Product Description: TNPU1206 1K32 0.05 % T-16 ET1 e3
TNPU1206
TYPE / SIZE
TNPU0603
TNPU0805
TNPU1206
1K32
RESISTANCE
Examples:
1K32
= 1320
0.05 %
TOLERANCE
± 0.1 %
± 0.02 %
± 0.05 %
T-16
TCR
T-13
= ± 10 ppm/K
T-16
= ± 5 ppm/K
T-20
= ± 2 ppm/K
ET1
PACKAGING
ET1
E52
e3
LEAD (Pb)-FREE
e3
= Pure tin
termination finish
Note
• Products can be ordered using either the PRODUCT DESCRIPTION or the PART NUMBER.
Revision: 28-Jan-15
Document Number: 28779
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPU e3
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade AI
2
O
3
ceramic substrate and conditioned to achieve
the desired temperature coefficient. Specially designed
inner contacts are deposited on both sides. A special laser
is used to achieve the target value by smoothly fine trimming
the resistive layer without damaging the ceramics. A further
conditioning is applied in order to stabilize the trimming
result. The resistor elements are covered by a protective
coating designed for electrical, mechanical and climatic
protection. The terminations receive a final pure tin on nickel
plating. The result of the determined production is verified
by an extensive testing procedure on 100 % of the individual
chip resistors. Only accepted products are laid directly into
the tape in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay Draloric
ASSEMBLY
The resistors are suitable for processing on automatic
SMD assembly systems. They are suitable for automatic
soldering using wave, reflow or vapour phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
All products comply with the
IEC 62474,
Material
Declaration for Products of and for the Electrotechnical
Industry.
The dedicated database
(2)
, that list declarable substances,
ensures full compliance with the following directives:
• 2000/53/EC End of Vehicle life Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the use of Hazardous
Substances directive (RoHS)
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Solderability is specified for 2 years after production or
re-qualification. The permitted storage time is 20 years.
RELATED PRODUCTS
For products with precision specification see the datasheet:
• TNPW e3 - High Stability Thin Film Flat Chip Resistors
(www.vishay.com/doc?28758)
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents
(2)
IEC 62474 database can be found at
http://std.iec.ch/iec62474.
Revision: 28-Jan-15
Document Number: 28779
3
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPU e3
www.vishay.com
FUNCTIONAL PERFORMANCE
Rated Power in %
120
100
Vishay Draloric
80
60
40
20
0
-55
-25
0
25
50
75
70
100
125
150
175
Derating
Ambient Temperature in °C
Non-Linearity A
3
in dB
110
100
90
80
70
60
40
100
TNPU1206 e3
TNPU0805 e3
TNPU0603 e3
1K
10K
100K
Non-Linearity
1M
Resistance Value in
Ω
Current Noise in
µV/V
1
TNPU0805
e3
TNPU0603
e3
0.1
TNPU1206
e3
0.01
100
1K
10K
100K
Current Noise
1M
Resistance Value in
Ω
Revision: 28-Jan-15
Document Number: 28779
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TNPU e3
www.vishay.com
TEST AND REQUIREMENTS
All tests are carried out in accordance with the following
specifications:
EN 60115-1, generic specification
EN 60115-8 (successor of EN 140400),
sectional specification
EN 140401-801, detail specification
IEC 60068-2-xx, test methods
The parameters stated in the Test Procedures and
Requirements table are based on the required tests and
permitted limits of EN 140401-801. The table presents only
the most important tests, for the full test schedule refer to
the documents listed above. However, some additional
tests and a number of improvements against those
minimum requirements have been included.
The testing also covers most of the requirements specified
by EIA / ECA-703 and JIS-C-5201-1.
The tests are carried out under standard atmospheric
conditions in accordance with IEC 60068-1, 4.3, whereupon
the following values are applied:
Temperature: 15 °C to 35 °C
Relative humidity: 45 % to 75 %
Air pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar).
A climatic category LCT / UCT / 56 is applied, defined by the
lower category temperature (LCT), the upper category
temperature (UCT), and the duration of exposure in the
damp heat, steady state test (56 days).
The components are mounted for testing on printed circuit
boards in accordance with EN 60115-8, 2.4.2, unless
otherwise specified.
Vishay Draloric
TEST PROCEDURES AND REQUIREMENTS
EN 60115-1
CLAUSE
IEC 60068-2
(1)
TEST METHOD
TEST
PROCEDURE
Stability for product types:
TNPU0603 e3
TNPU0805 e3
TNPU1206 e3
4.5
-
Resistance
Temperature
coefficient
At (20 / -55 / 20) °C
and (20 / 125 / 20) °C
At (20 / -10 / 20) °C
and (20 / 85 / 20) °C
U
=
P
70
x
R
or
U
=
U
max.
;
whichever is the less severe;
4.25.1
-
Endurance at 70 °C
1.5 h on; 0.5 h off;
70 °C; 1000 h
70 °C; 8000 h
4.25.3
4.24
4.23
4.23.2
4.23.3
4.23.4
4.23.5
4.23.6
2 (Ba)
30 (Db)
1 (Aa)
13 (M)
30 (Db)
-
78 (Cab)
Endurance at upper
category temperature
Damp heat,
steady state
Climatic sequence:
Dry heat
Damp heat, cyclic
Cold
Low air pressure
Damp heat, cyclic
U
=
4.23.7
-
D.c. load
UCT; 16 h
55 °C; 24 h;
> 90 % RH;
5 cycle
LCT; 2 h
8.5 kPa; 2 h; (25 ± 10) °C
55 °C; 24 h;
> 90 % RH;
5 cycles
P
70
x
R
U
max.
; 1 min
LCT = -55 °C
UCT = 125 °C
± (0.1 %
R
+ 0.02
)
125 °C; 1000 h
125 °C; 8000 h
(40 ± 2) °C; 56 days;
(93 ± 3) % RH
± (0.05 %
R
+ 0.01
)
± (0.1 %
R
+ 0.02
)
± (0.05 %
R
+ 0.01
)
± (0.1 %
R
+ 0.02
)
± (0.1 %
R
+ 0.01
)
± 0.1 %; ± 0.05 %; ± 0.02 %
± 10 ppm/K; ± 5 ppm/K
± 2 ppm/K
REQUIREMENTS
PERMISSIBLE CHANGE (R)
4.8.4.2
-
Revision: 28-Jan-15
Document Number: 28779
5
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
