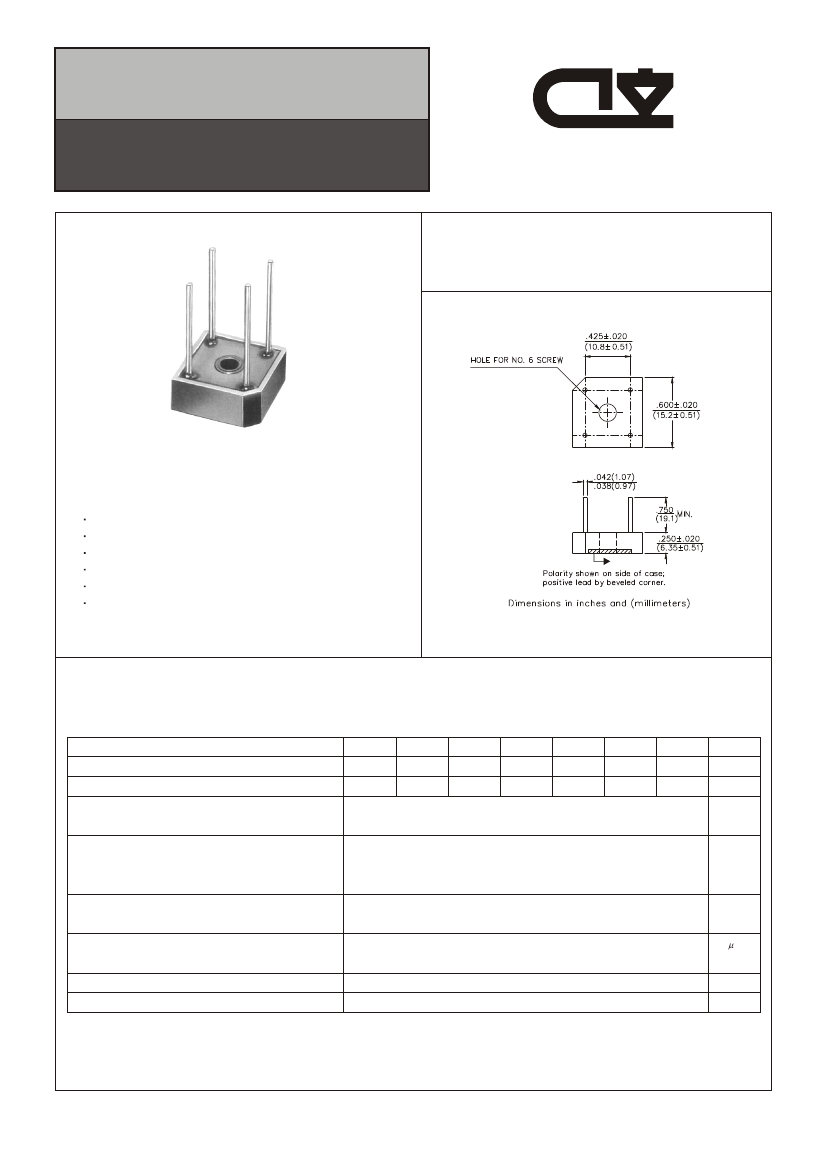

MP8 SERIES
SINGLE-PHASE SILICON BRIDGE
CHENG- YI
ELECTRONIC
REVERSE VOLTAGE -50 to 1000 Volts
FORWARD CURRENT -8.0 Amperes
FEATURES
Surge overload rating - 125 amperes peak
Low forward voltage drop
Small size: simple installation
Silver Plated Copper Leads
Mounting Position: Any
Case: Molded plastic with Heatsink interally
mounted in the bridge encapsulation
Metal Heat Sink
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
0
C ambient temperature unless otherwise specified.
For capacitive load, derate current by 20%.
MP8005
MP801
100
70
MP802
200
140
MP804
400
280
8.0
3.0
MP806
600
420
MP808
800
560
MP810
1000
700
UNITS
V
V
A
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum Average Forward
Rectified Outptu Current at
Peak Forward Surge Current
8.3 ms single half sine-wave
super imposed on rated load
Maximum Forward Voltage Drop
per Bridge Element at 3.0A Peak
Maximum Reverse Current at Rated
DC Blocking Voltage per Element
Operating Temperature Range
Storage Temperature Range
TC
TA
TA=25
0
C
TA=100
0
C
TC=100
0
C(Note1)
TA=40
0
C(Note2)
50
35
125
A
1.1
10.0
1.0
-55 to +125
-55 to +150
V
A
mA
0
C
C
0
NOTES: 1. Unit mounted on metal chassis
2. Unit mounted on P Board
.C.
MP8 SERIES
SINGLE-PHASE SILICON BRIDGE
CHENG- YI
ELECTRONIC
RATING AND CHARACTERISTICS CURVES
MP8 SERIES
FIG. 1
-
MAXIMUM FORWARD SURGE CURRENT
170
FIG. 2
-
DERATING CURVE
OUTPUT RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT CURRENT
AMPERES
10
PEAK FORWARD SURGE CURRENT
AMPERES
8
HEAT-SINK
MOUNTING TC
6
PC MOUNTING TA
4
2
0
1
10
100
0
50
100
150
NUMBER OF CYCLES AT 60Hz
TEMPERATURE,
0
C
FIG. 3 - TYPICAL FORWARD
CHARACTERISTICS
100
FIG. 4- TYPICAL REVERSE
CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
1.0
1.0
0.1
0.1
0.01
0.01
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
INSTANTANEOUS FORWARD VOLTA
GE, VOLTS
