TMP47P800N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP47P800N

TMP47P800N: DescriptionCMOS 4-BIT MICROCONTROLEER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size197KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47P800N Overview

CMOS 4-BIT MICROCONTROLEER

TMP47P800N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	NO
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	4
CPU series	TLCS-470
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	38 mm
Number of I/O lines	35
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	OTPROM
Maximum seat height	4.5 mm
speed	6 MHz
Maximum slew rate	10 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

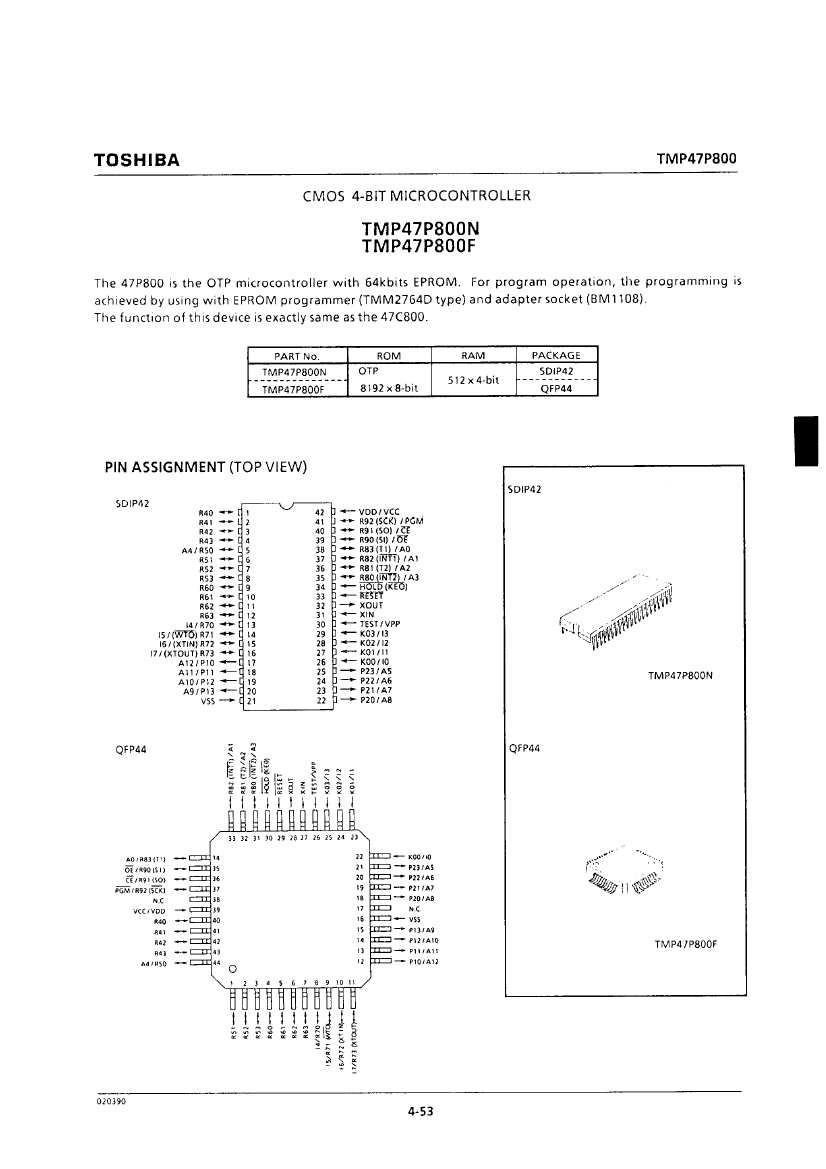

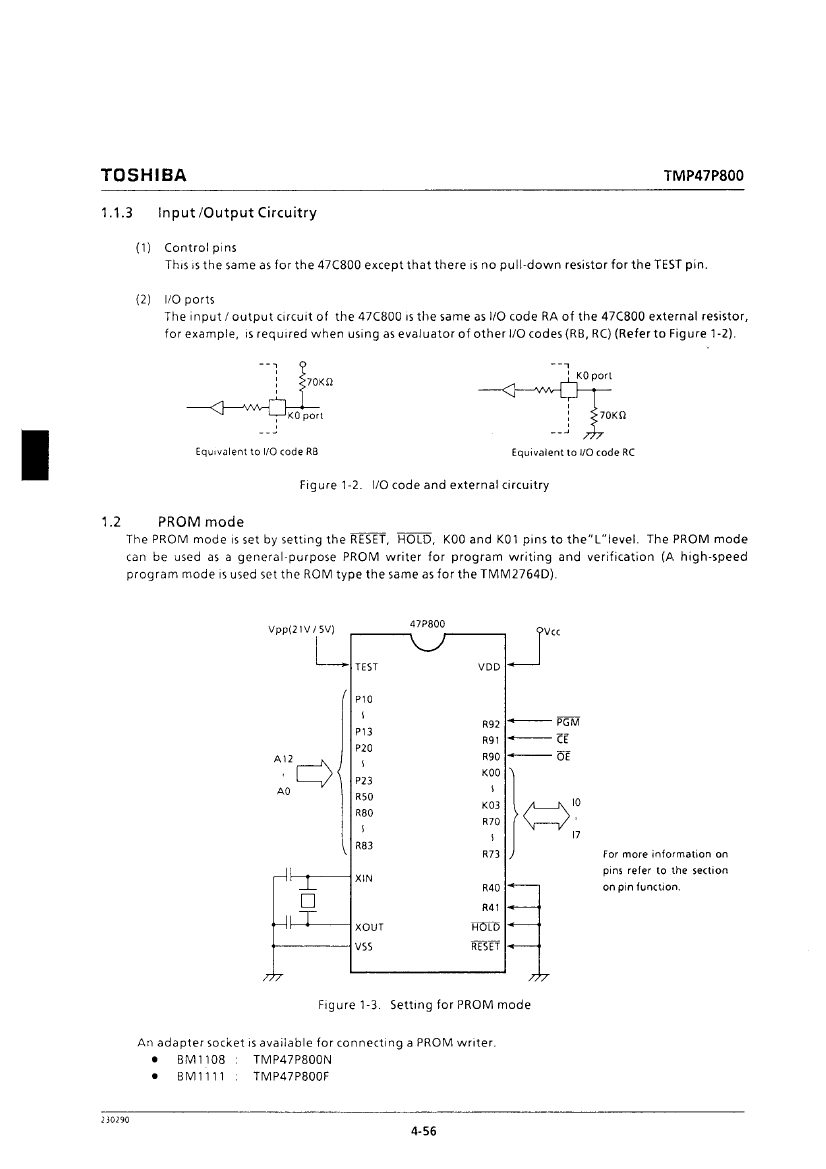

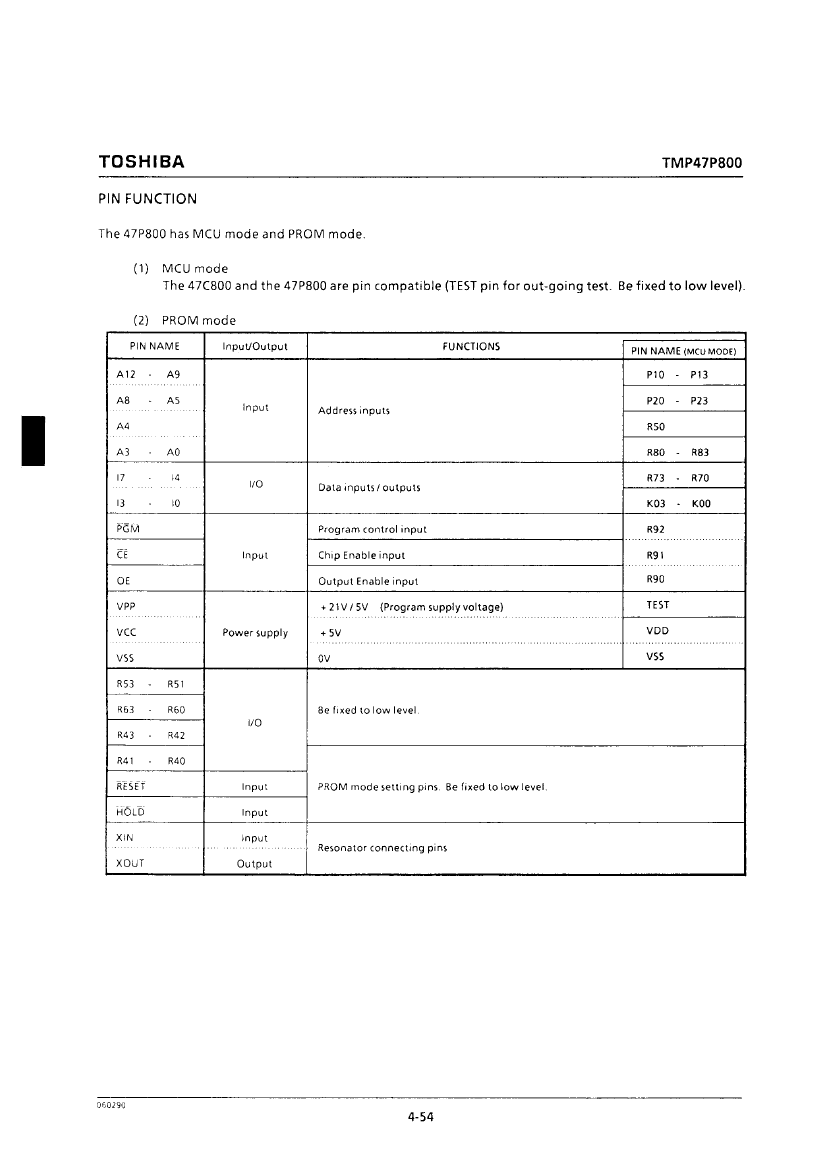

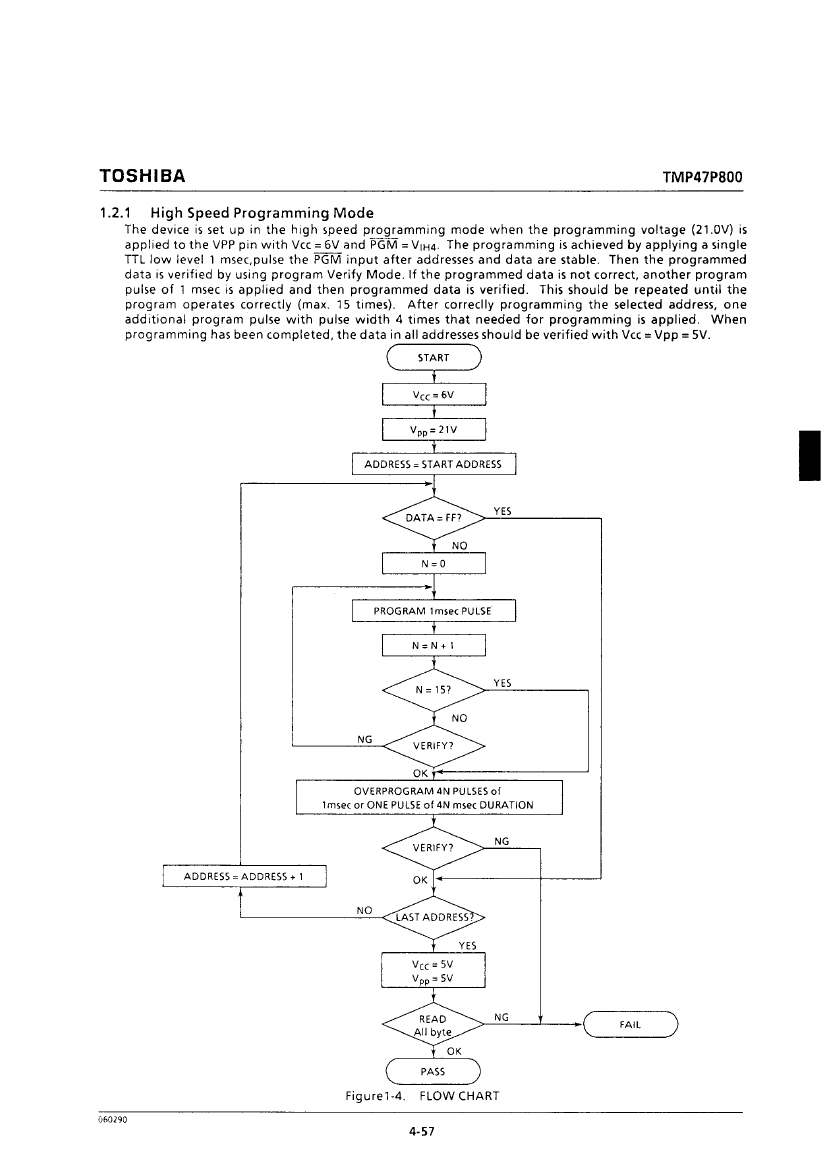

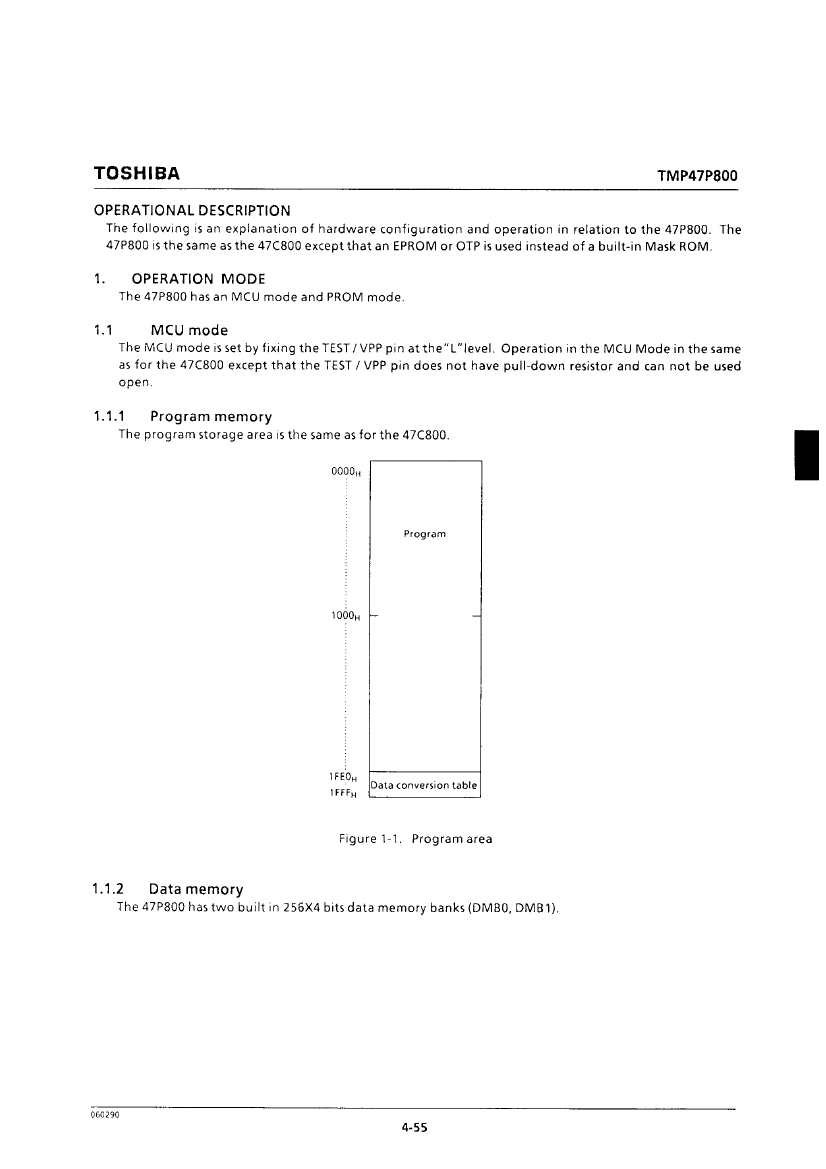

Preview

Download Datasheet

View All

TMP47P800N Related Products

	TMP47P800N	TMP47P800F	TMP47P800
Description	CMOS 4-BIT MICROCONTROLEER	CMOS 4-BIT MICROCONTROLEER	CMOS 4-BIT MICROCONTROLEER
Is it Rohs certified?	incompatible	incompatible	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-
Parts packaging code	DIP	QFP	-
package instruction	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32	-
Contacts	42	44	-
Reach Compliance Code	unknow	unknow	-
Has ADC	NO	NO	-
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY	ALSO OPERATES AT 2.7V MIN SUPPLY	-
bit size	4	4	-
CPU series	TLCS-470	TLCS-470	-
maximum clock frequency	6 MHz	6 MHz	-
DAC channel	NO	NO	-
DMA channel	NO	NO	-
JESD-30 code	R-PDIP-T42	S-PQFP-G44	-
length	38 mm	14 mm	-
Number of I/O lines	35	35	-
Number of terminals	42	44	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-40 °C	-40 °C	-
PWM channel	NO	NO	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SDIP	QFP	-
Encapsulate equivalent code	SDIP42,.6	QFP44,.7SQ,32	-
Package shape	RECTANGULAR	SQUARE	-
Package form	IN-LINE, SHRINK PITCH	FLATPACK	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
power supply	3/5 V	3/5 V	-
Certification status	Not Qualified	Not Qualified	-
RAM (bytes)	256	256	-
rom(word)	8192	8192	-
ROM programmability	OTPROM	OTPROM	-
Maximum seat height	4.5 mm	3.05 mm	-
speed	6 MHz	6 MHz	-
Maximum slew rate	10 mA	10 mA	-
Maximum supply voltage	6 V	6 V	-
Minimum supply voltage	4.5 V	4.5 V	-
Nominal supply voltage	5 V	5 V	-
surface mount	NO	YES	-
technology	CMOS	CMOS	-
Temperature level	OTHER	OTHER	-
Terminal form	THROUGH-HOLE	GULL WING	-
Terminal pitch	1.778 mm	0.8 mm	-
Terminal location	DUAL	QUAD	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
width	15.24 mm	14 mm	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	-
