TMP47C850N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size485KB，18 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C850N Overview

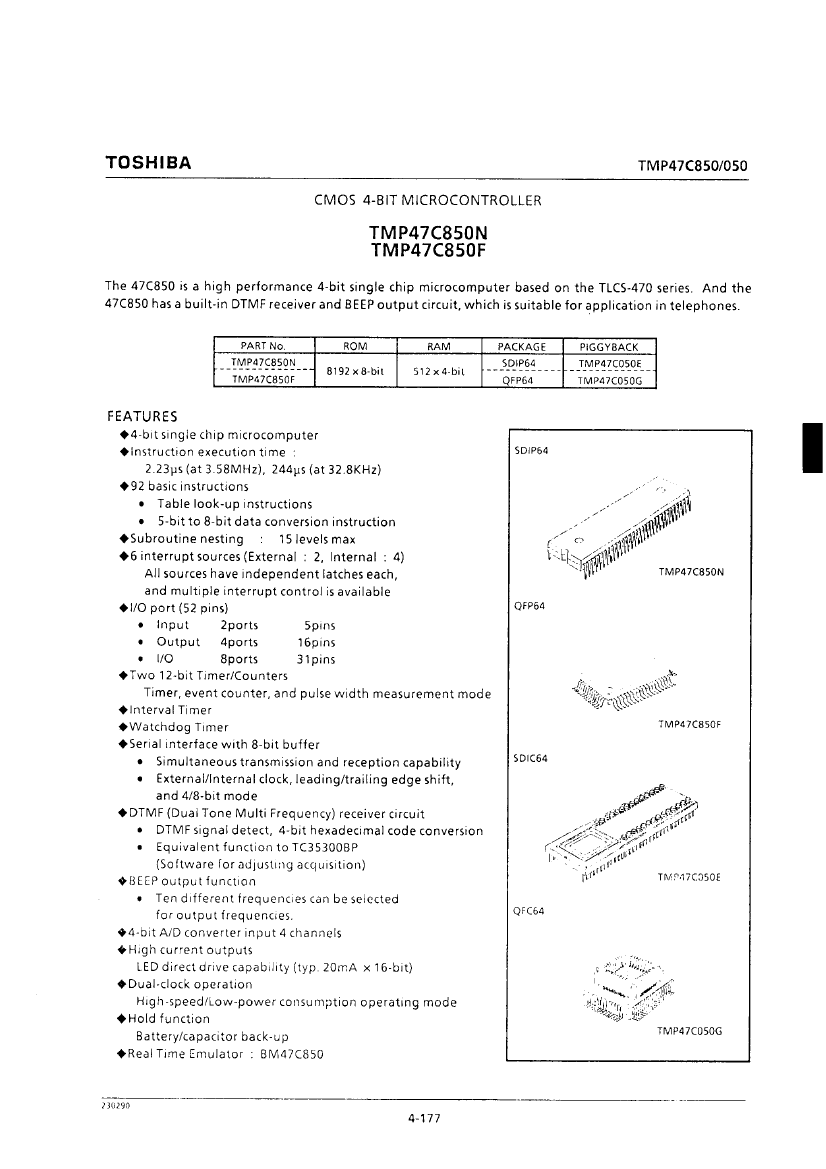

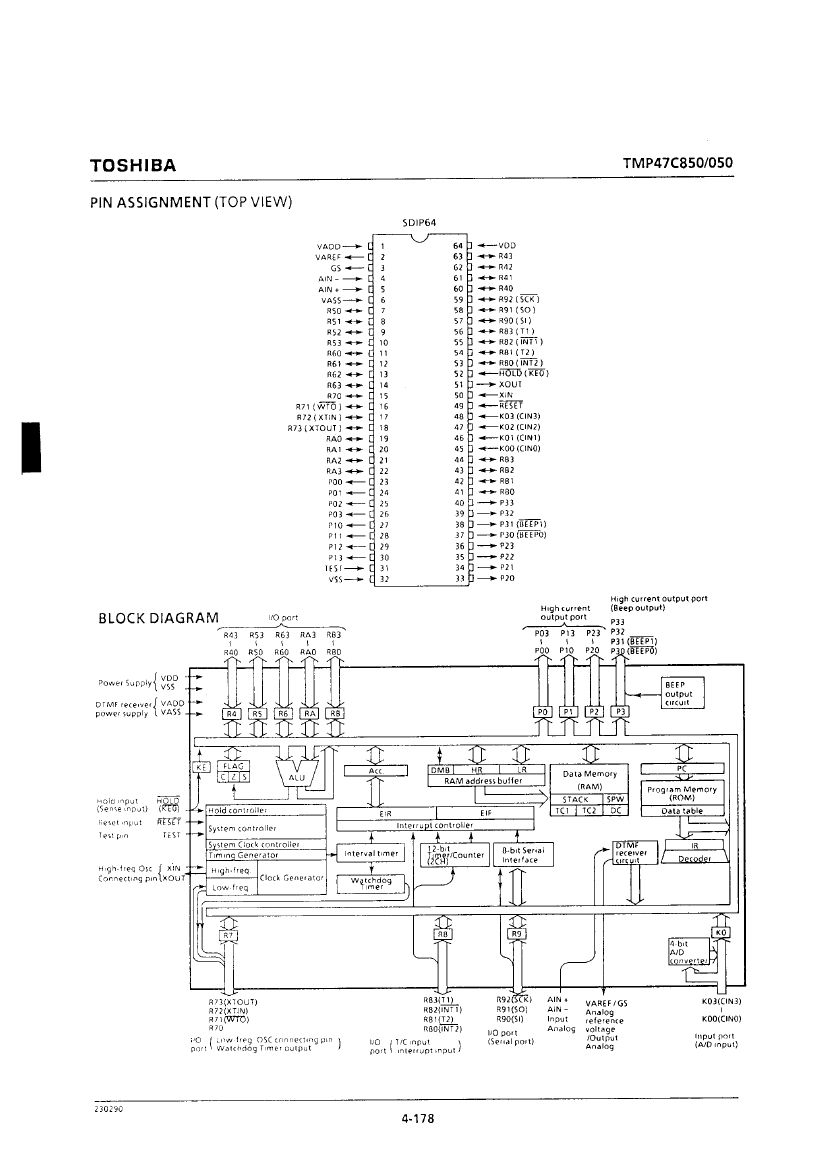

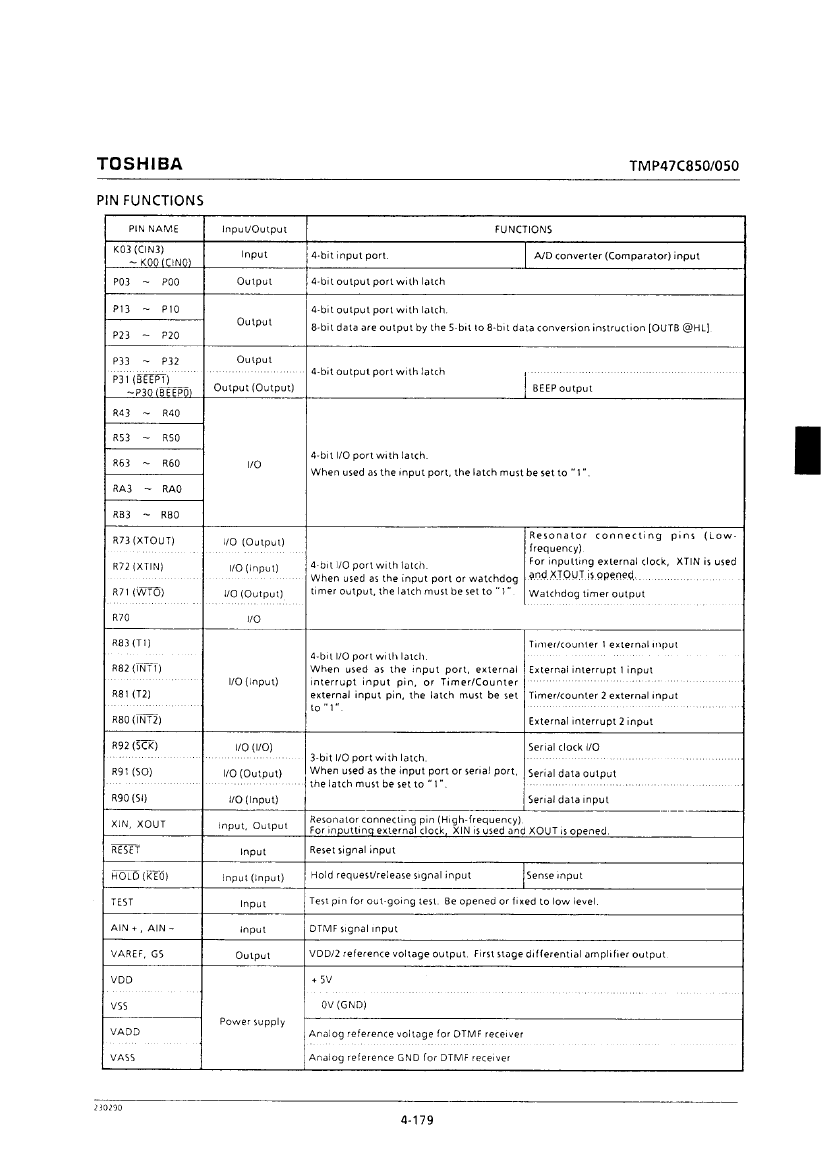

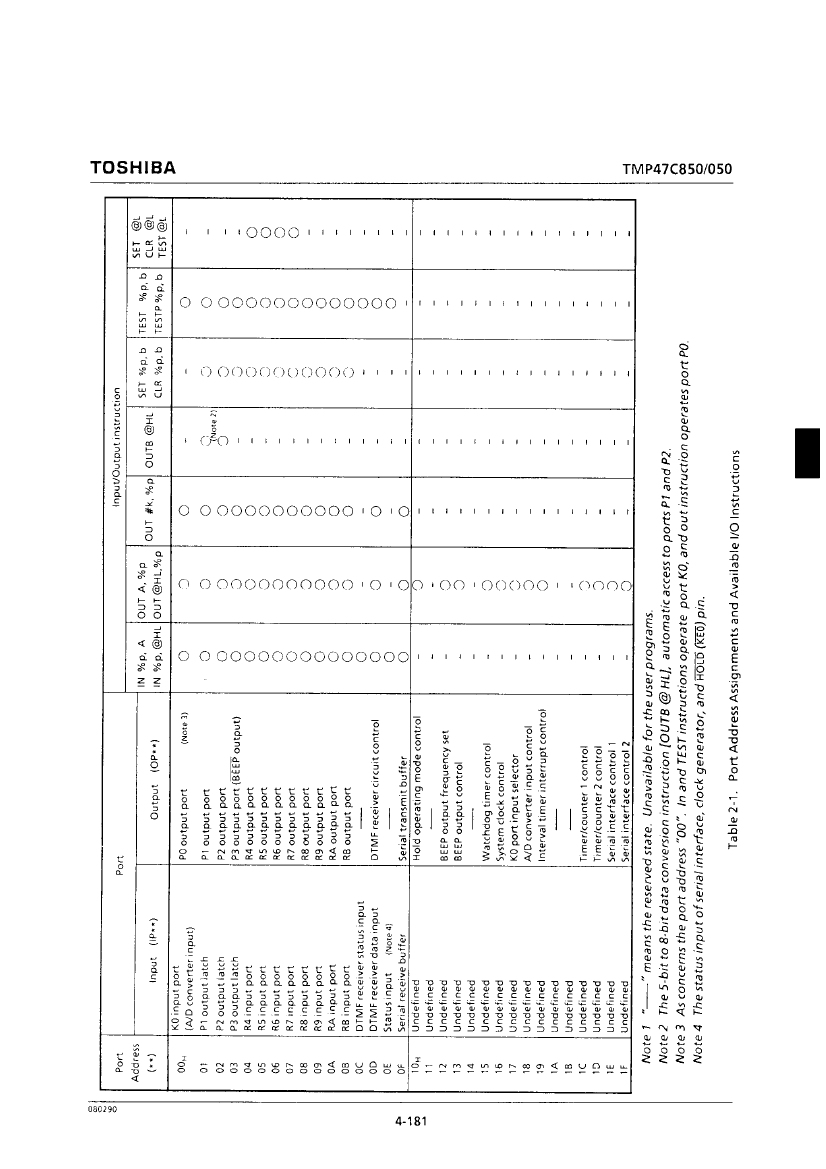

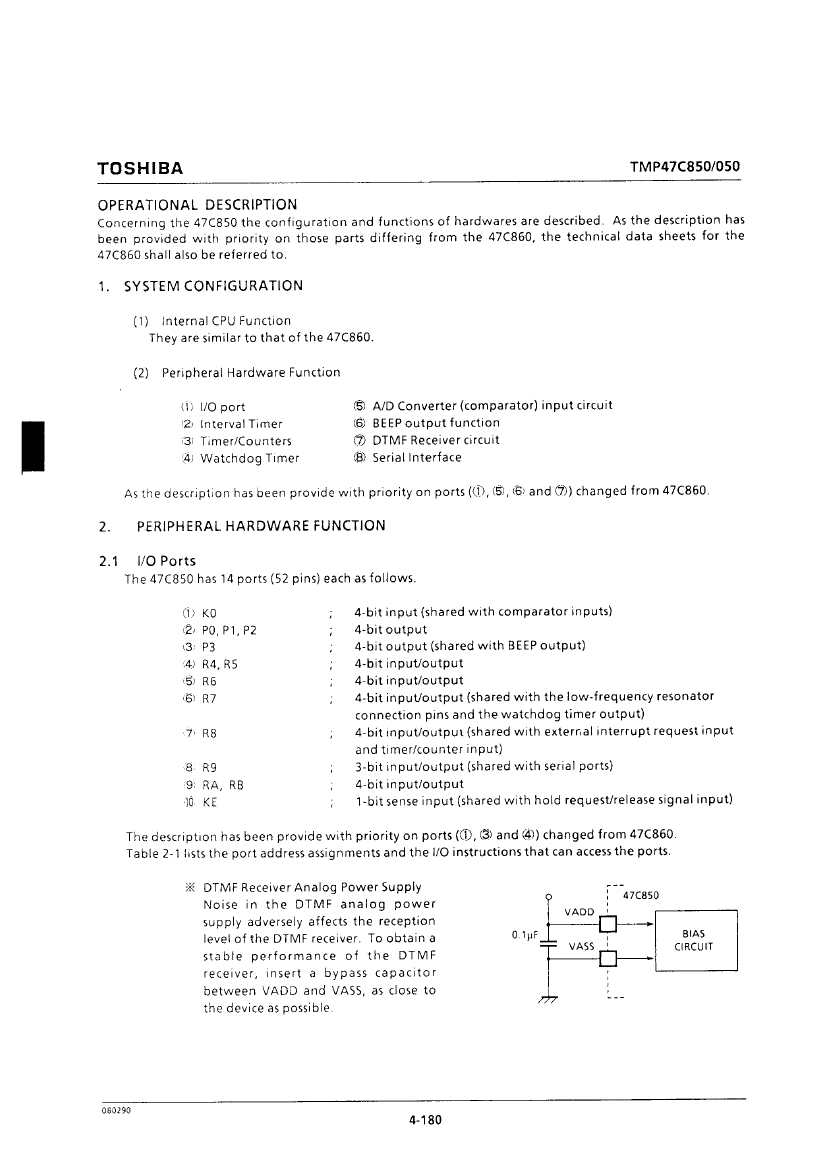

CMOS 4-BIT MICROCONTROLLER

TMP47C850N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MINIMUM SUPPLY
Address bus width
bit size	4
CPU series	TLCS-470
maximum clock frequency	3.5831 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
length	57.5 mm
Number of I/O lines	51
Number of terminals	64
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	5 mm
speed	3.5831 MHz
Maximum slew rate	14 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

TMP47C850N Related Products

	TMP47C850N	TMP47C850	TMP47C850F
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	DIP	-	QFP
package instruction	SDIP, SDIP64,.75	-	QFP, QFP64,.7X.95,40
Contacts	64	-	64
Reach Compliance Code	unknow	-	unknow
Has ADC	YES	-	YES
Other features	ALSO OPERATES AT 2.7V MINIMUM SUPPLY	-	ALSO OPERATES AT 2.7V MINIMUM SUPPLY
bit size	4	-	4
CPU series	TLCS-470	-	TLCS-470
maximum clock frequency	3.5831 MHz	-	3.5831 MHz
DAC channel	NO	-	NO
DMA channel	NO	-	NO
JESD-30 code	R-PDIP-T64	-	R-PQFP-G64
length	57.5 mm	-	20 mm
Number of I/O lines	51	-	51
Number of terminals	64	-	64
Maximum operating temperature	60 °C	-	60 °C
Minimum operating temperature	-30 °C	-	-30 °C
PWM channel	NO	-	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SDIP	-	QFP
Encapsulate equivalent code	SDIP64,.75	-	QFP64,.7X.95,40
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	-	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	3/5 V	-	3/5 V
Certification status	Not Qualified	-	Not Qualified
RAM (bytes)	256	-	256
rom(word)	8192	-	8192
ROM programmability	MROM	-	MROM
Maximum seat height	5 mm	-	3.05 mm
speed	3.5831 MHz	-	3.5831 MHz
Maximum slew rate	14 mA	-	14 mA
Maximum supply voltage	5.5 V	-	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	NO	-	YES
technology	CMOS	-	CMOS
Temperature level	OTHER	-	OTHER
Terminal form	THROUGH-HOLE	-	GULL WING
Terminal pitch	1.778 mm	-	1 mm
Terminal location	DUAL	-	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	19.05 mm	-	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER
