TMP47C820F datasheet, PDF - EEWORLD Datasheet

TMP47C820F: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size603KB，24 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C820F Overview

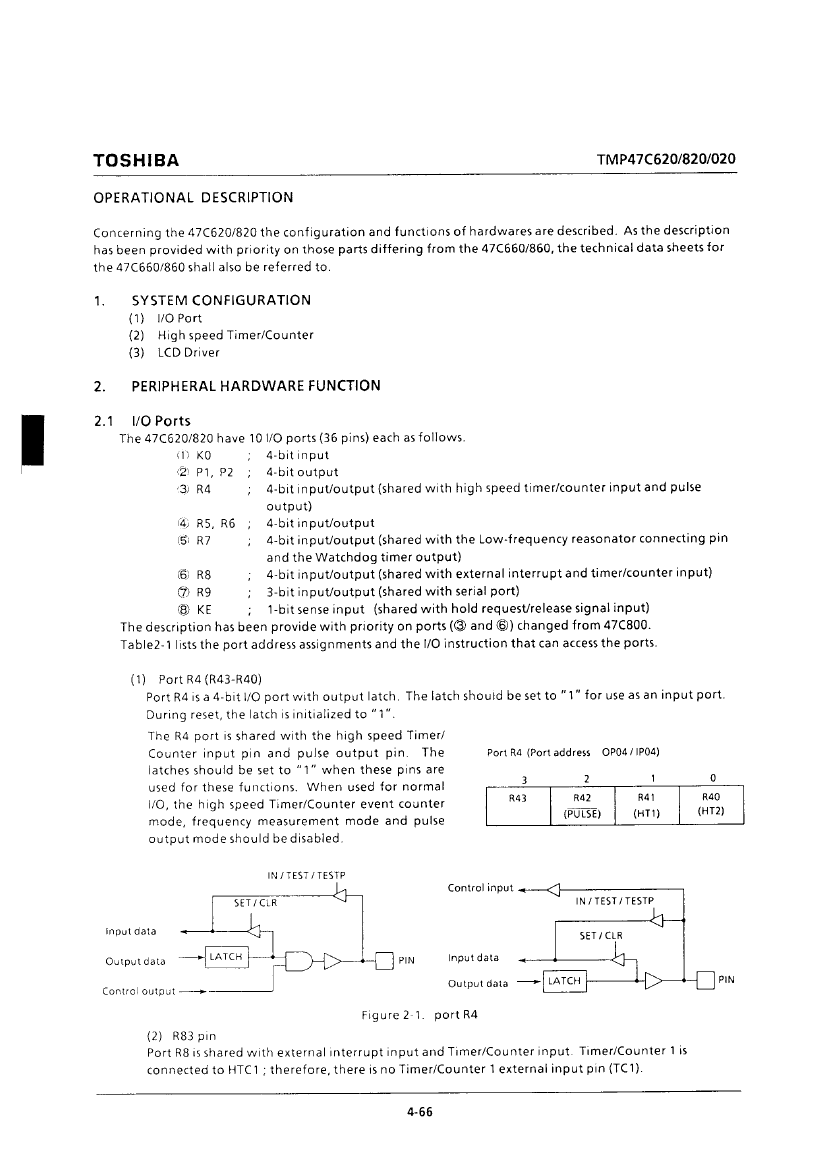

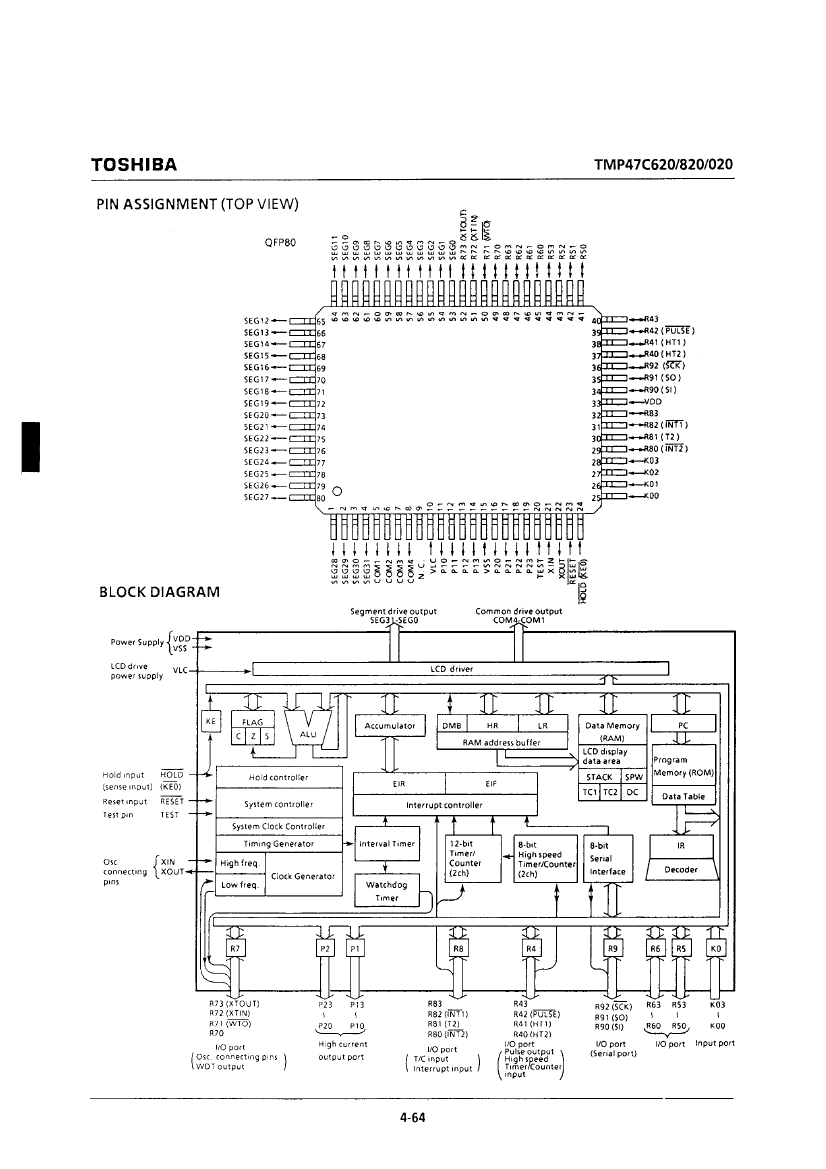

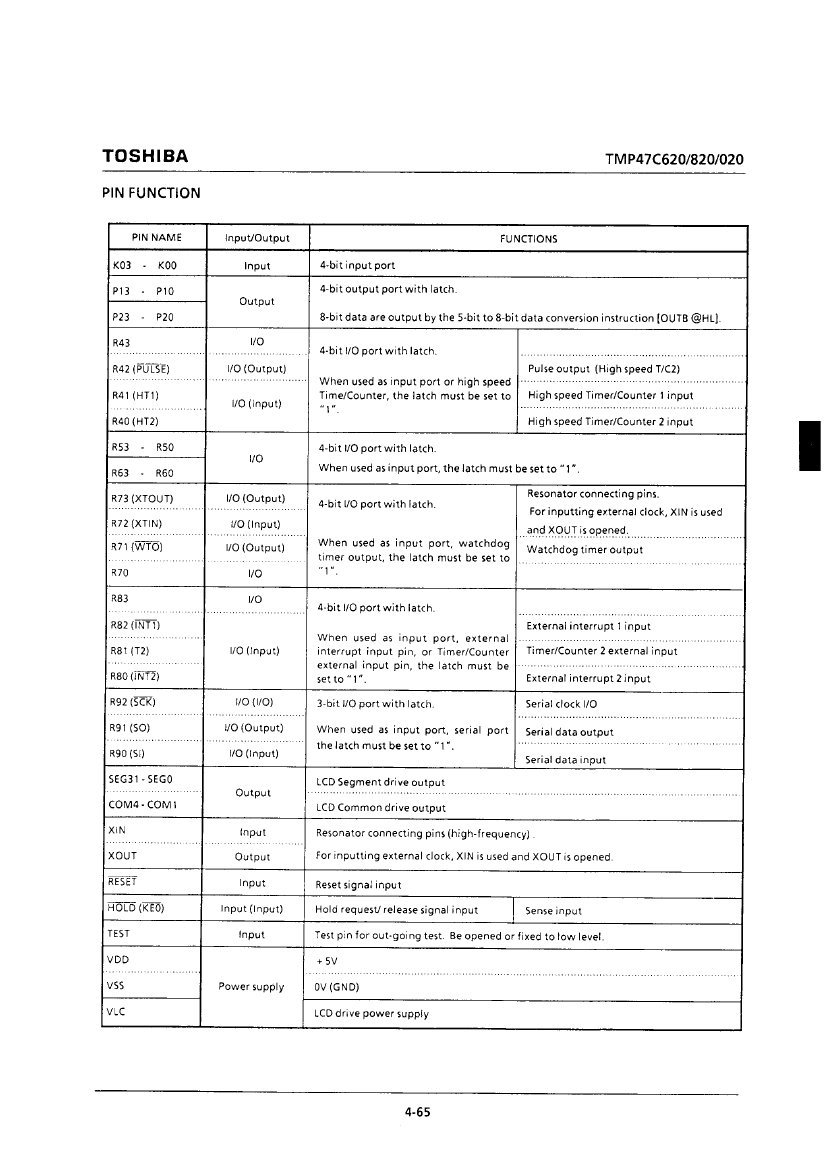

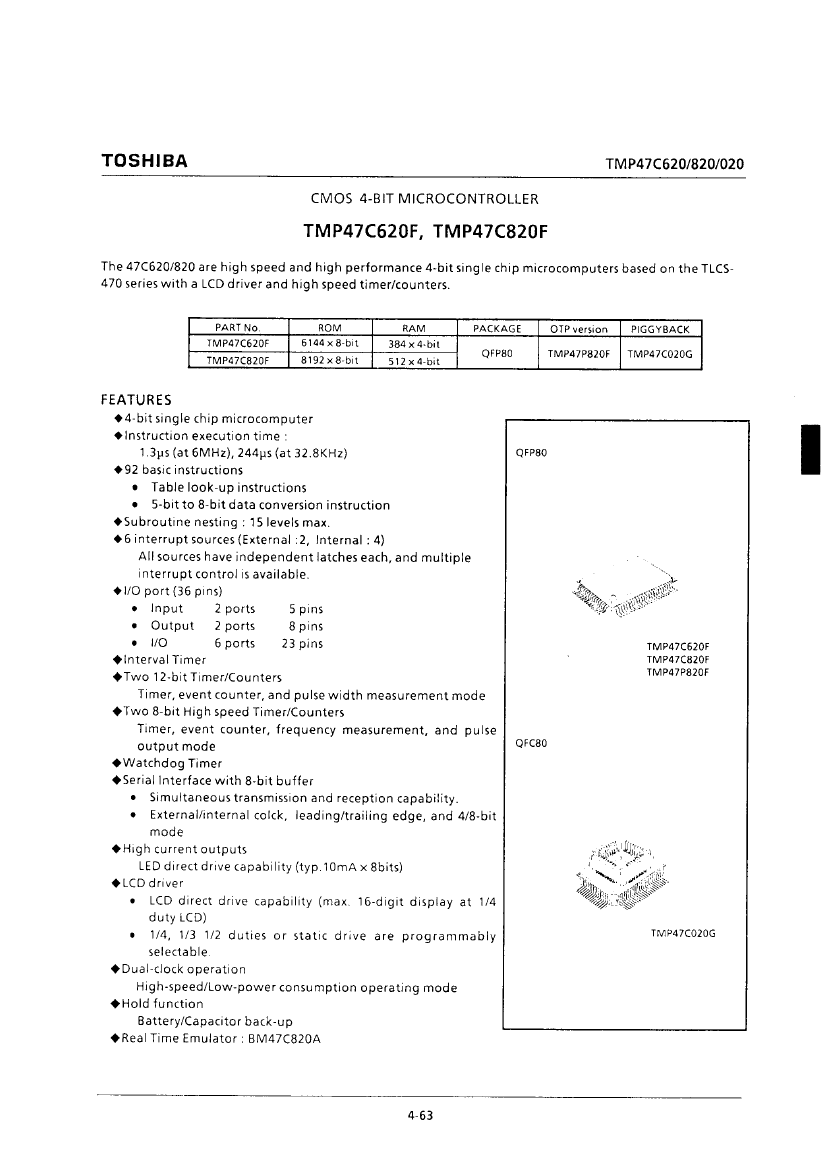

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFP,
Contacts	80
Reach Compliance Code	unknow
JESD-30 code	S-PQFP-G80
JESD-609 code	e0
length	14 mm
Number of terminals	80
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3.15 mm
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TMP47C820F	TMP47C620F	TMP47C620
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	QFP	QFP	-
package instruction	QFP,	QFP,	-
Contacts	80	80	-
Reach Compliance Code	unknow	unknow	-
JESD-30 code	S-PQFP-G80	S-PQFP-G80	-
JESD-609 code	e0	e0	-
length	14 mm	14 mm	-
Number of terminals	80	80	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-40 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	QFP	QFP	-
Package shape	SQUARE	SQUARE	-
Package form	FLATPACK	FLATPACK	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	-
ROM programmability	MROM	MROM	-
Maximum seat height	3.15 mm	3.15 mm	-
Maximum supply voltage	6 V	6 V	-
Minimum supply voltage	4.5 V	4.5 V	-
Nominal supply voltage	5 V	5 V	-
surface mount	YES	YES	-
technology	CMOS	CMOS	-
Temperature level	OTHER	OTHER	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	-
Terminal pitch	0.65 mm	0.65 mm	-
Terminal location	QUAD	QUAD	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
width	14 mm	14 mm	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	-
