TMP47C800N datasheet, PDF - EEWORLD Datasheet

TMP47C800N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，52 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

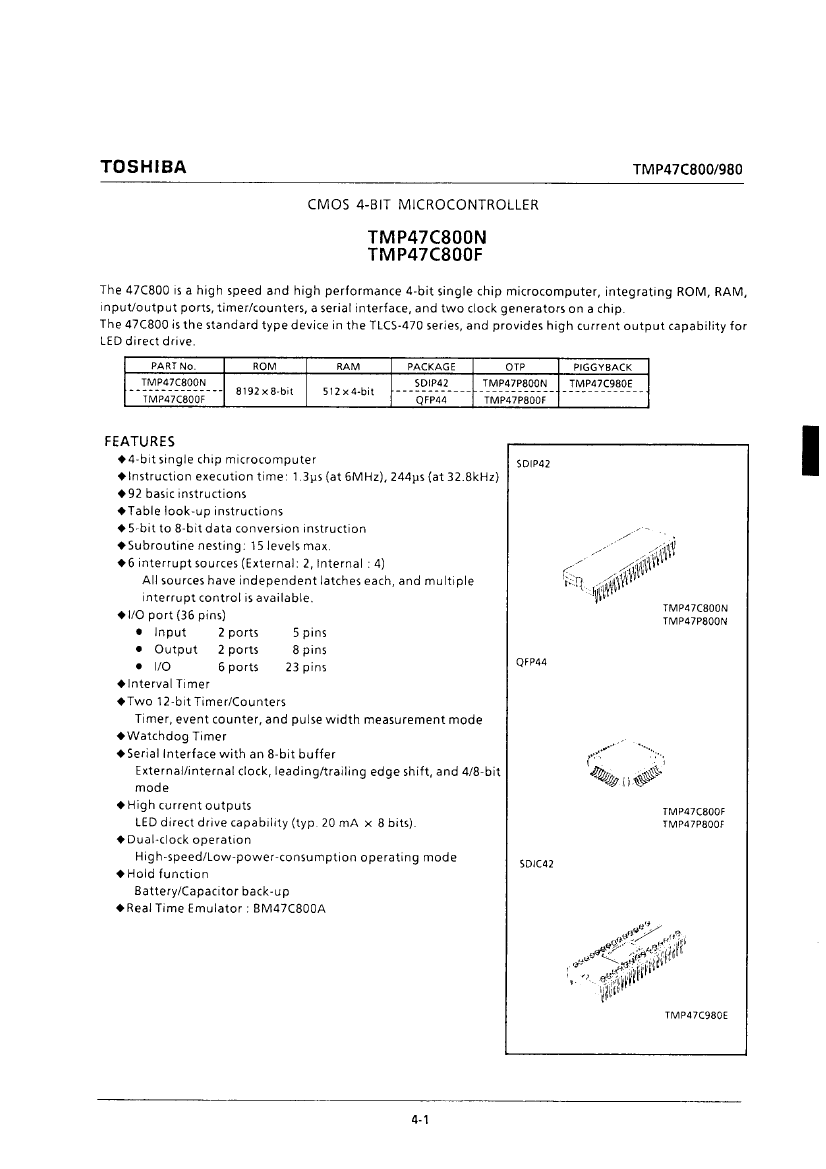

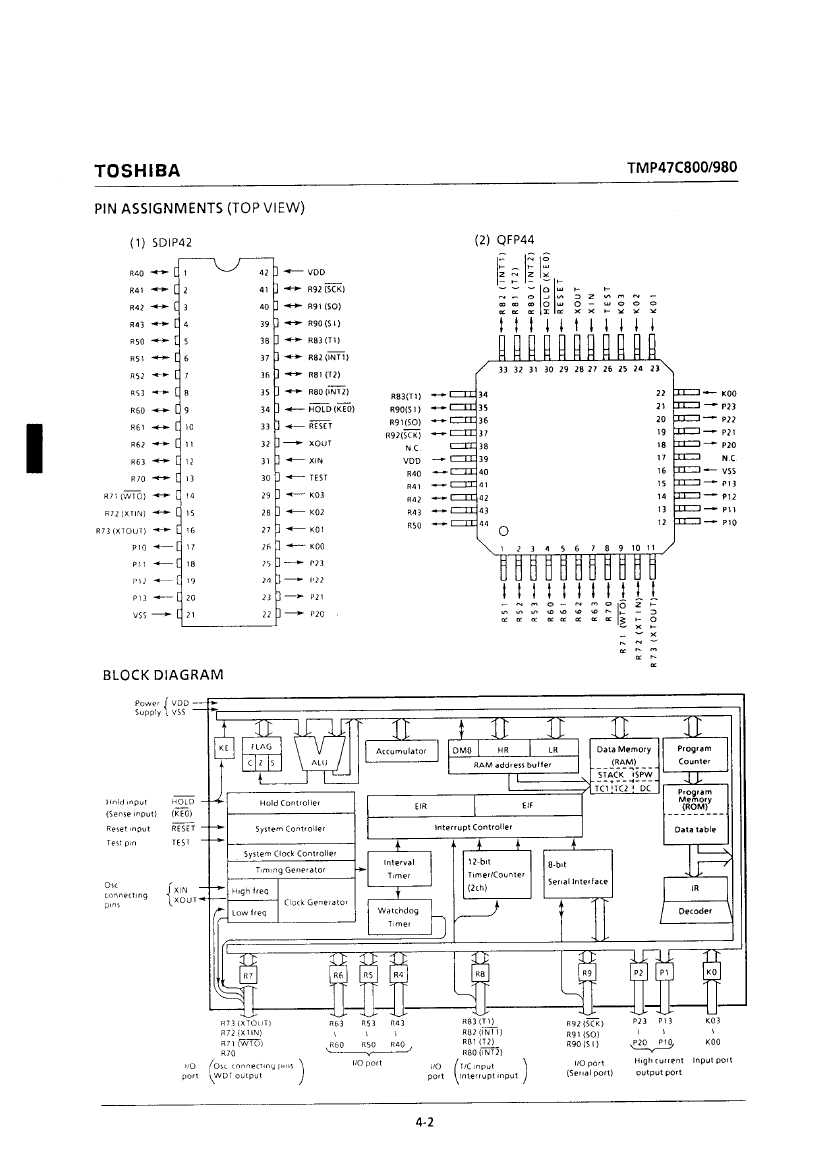

TMP47C800N Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	NO
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	4
CPU series	TLCS-470
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
length	38 mm
Number of I/O lines	35
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	6 MHz
Maximum slew rate	6 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
