TMP47C670N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP47C670N

Preview

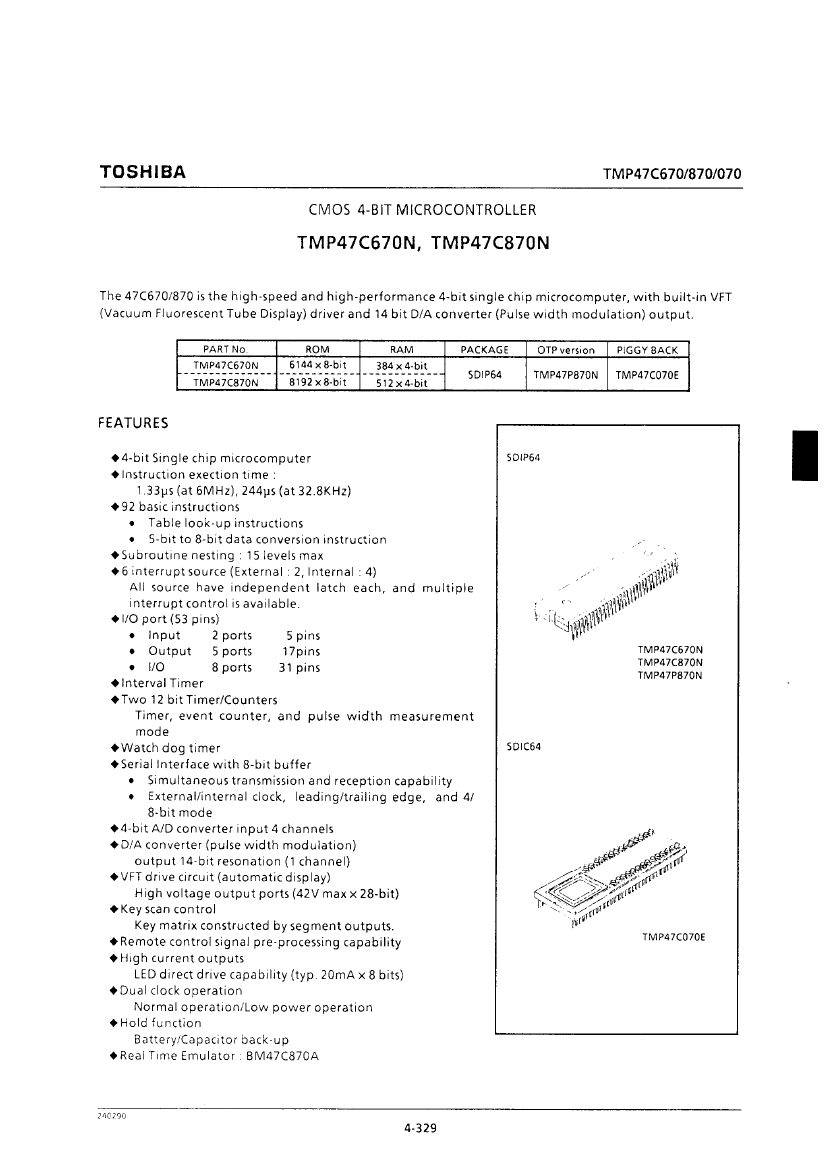

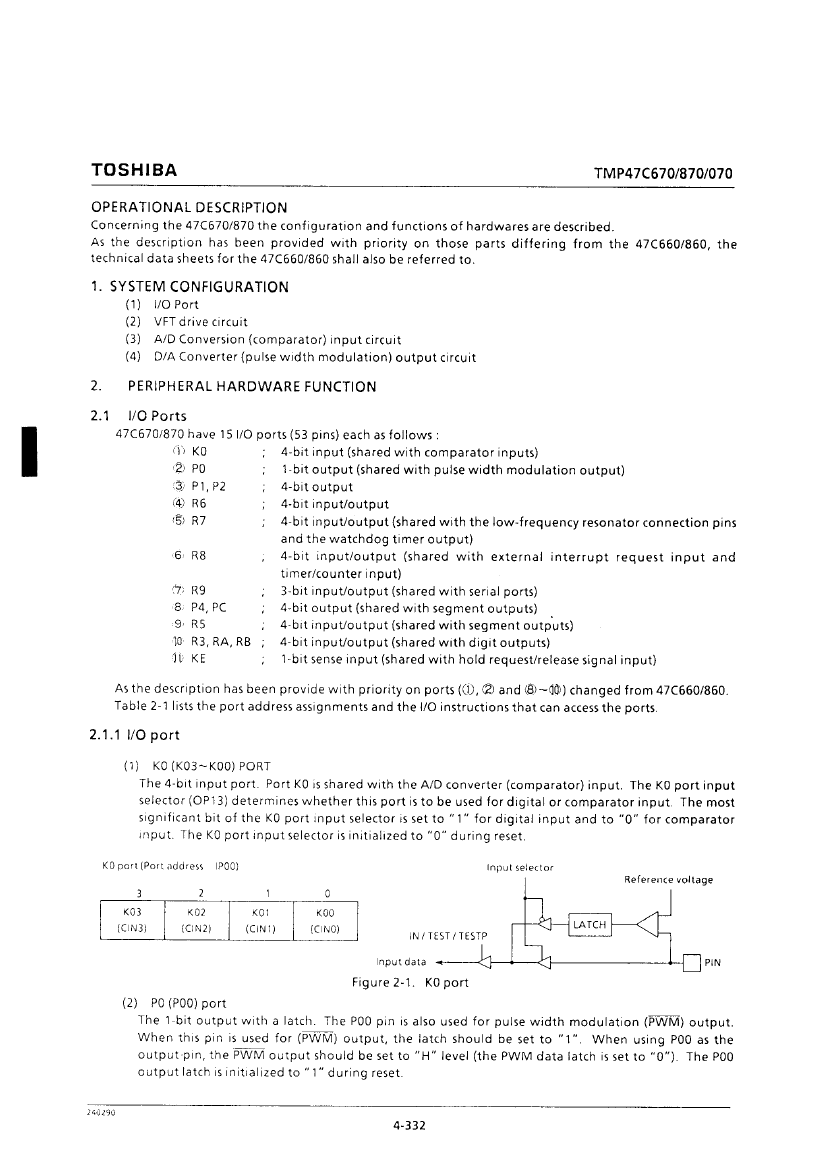

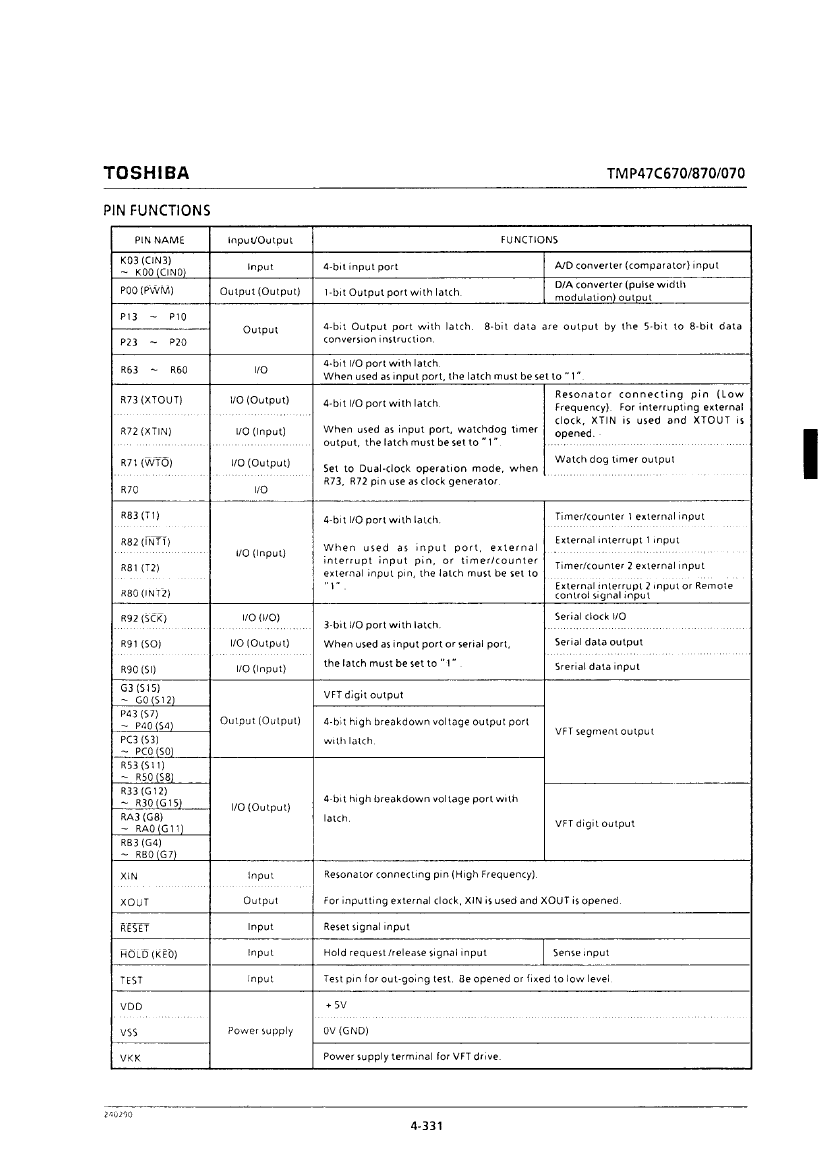

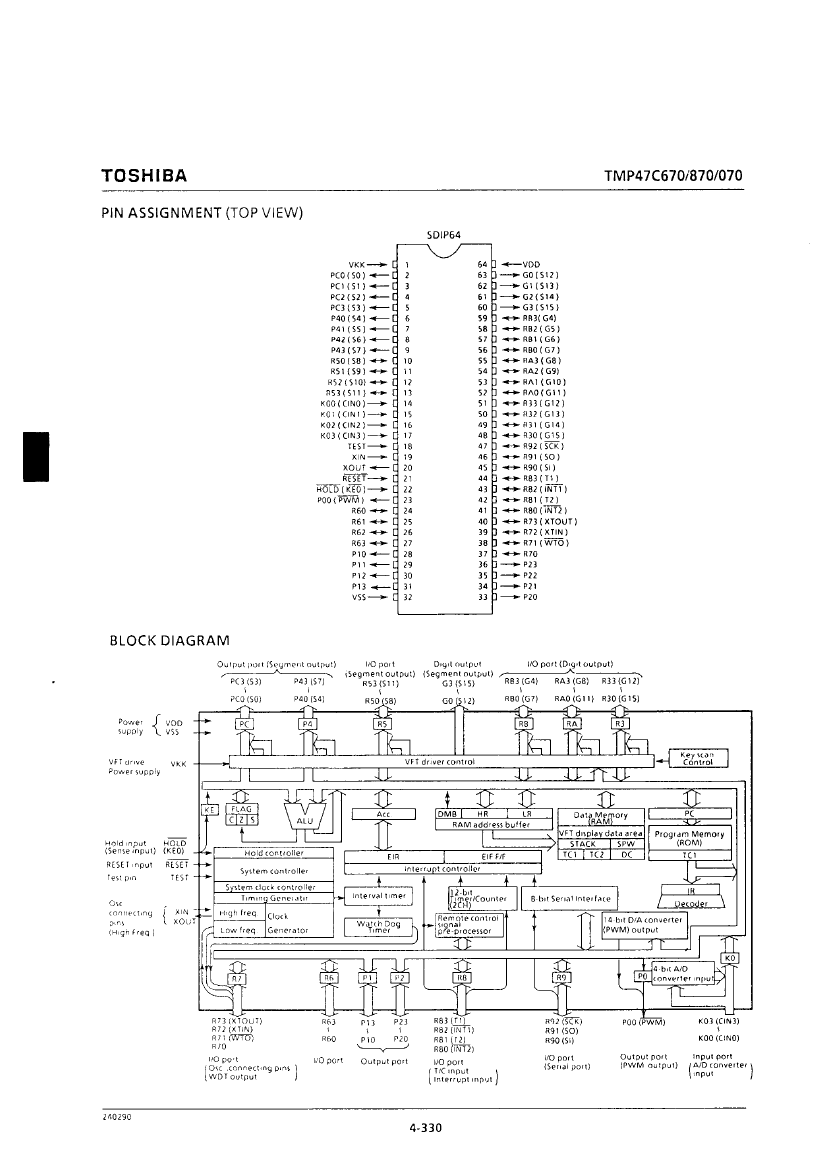

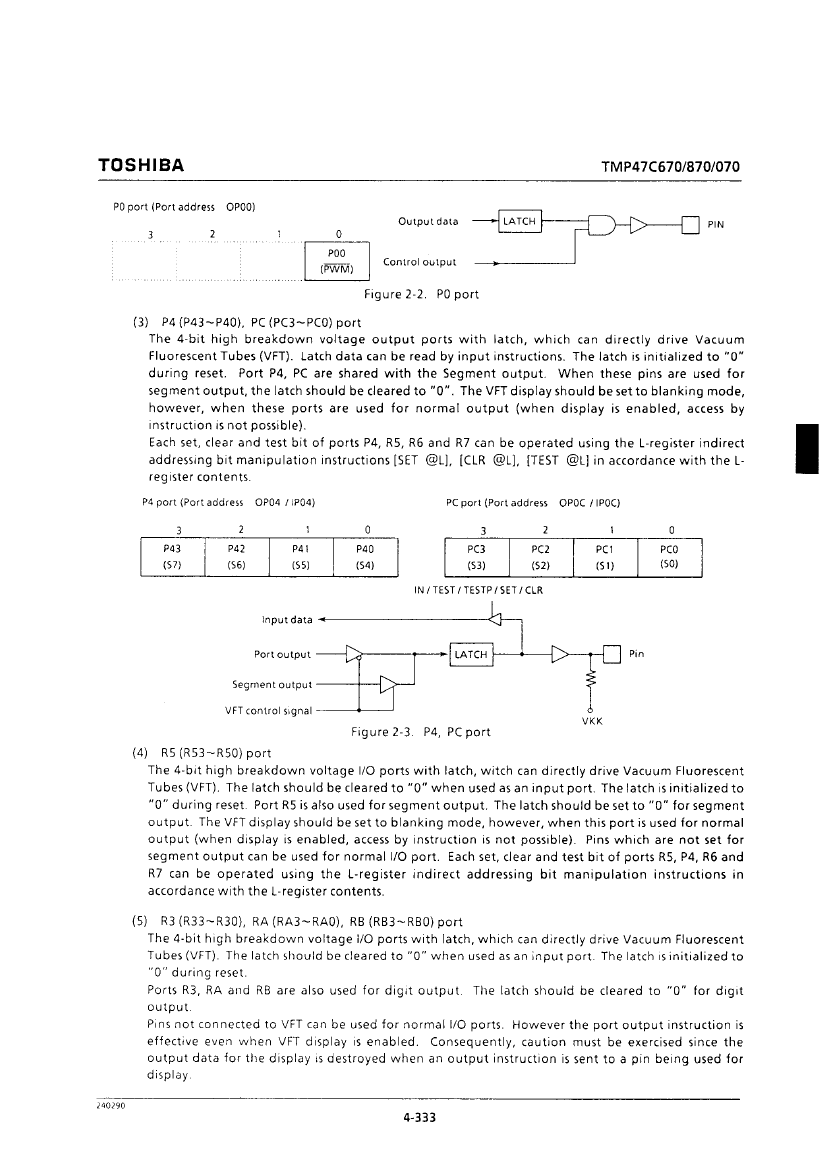

TMP47C670N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size670KB，24 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C670N Overview

CMOS 4-BIT MICROCONTROLLER

TMP47C670N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	4
CPU series	TLCS-470
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
JESD-609 code	e0
length	57.5 mm
Number of I/O lines	52
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	6144
ROM programmability	MROM
Maximum seat height	5 mm
speed	6 MHz
Maximum slew rate	6 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

TMP47C670N Related Products

	TMP47C670N	TMP47C870N	TMP47C670
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-
Parts packaging code	DIP	DIP	-
package instruction	SDIP, SDIP64,.75	SDIP, SDIP64,.75	-
Contacts	64	64	-
Reach Compliance Code	unknow	unknow	-
Has ADC	YES	YES	-
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY	ALSO OPERATES AT 2.7V MIN SUPPLY	-
bit size	4	4	-
CPU series	TLCS-470	TLCS-470	-
maximum clock frequency	6 MHz	6 MHz	-
DAC channel	NO	NO	-
DMA channel	NO	NO	-
JESD-30 code	R-PDIP-T64	R-PDIP-T64	-
length	57.5 mm	57.5 mm	-
Number of I/O lines	52	52	-
Number of terminals	64	64	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-40 °C	-40 °C	-
PWM channel	YES	YES	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SDIP	SDIP	-
Encapsulate equivalent code	SDIP64,.75	SDIP64,.75	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
power supply	3/5 V	3/5 V	-
Certification status	Not Qualified	Not Qualified	-
RAM (bytes)	192	256	-
rom(word)	6144	8192	-
ROM programmability	MROM	MROM	-
Maximum seat height	5 mm	5 mm	-
speed	6 MHz	6 MHz	-
Maximum slew rate	6 mA	6 mA	-
Maximum supply voltage	6 V	6 V	-
Minimum supply voltage	4.5 V	4.5 V	-
Nominal supply voltage	5 V	5 V	-
surface mount	NO	NO	-
technology	CMOS	CMOS	-
Temperature level	OTHER	OTHER	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.778 mm	1.778 mm	-
Terminal location	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
width	19.05 mm	19.05 mm	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	-
