TMP47C453AF datasheet, PDF - EEWORLD Datasheet

TMP47C453AF: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size517KB，22 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

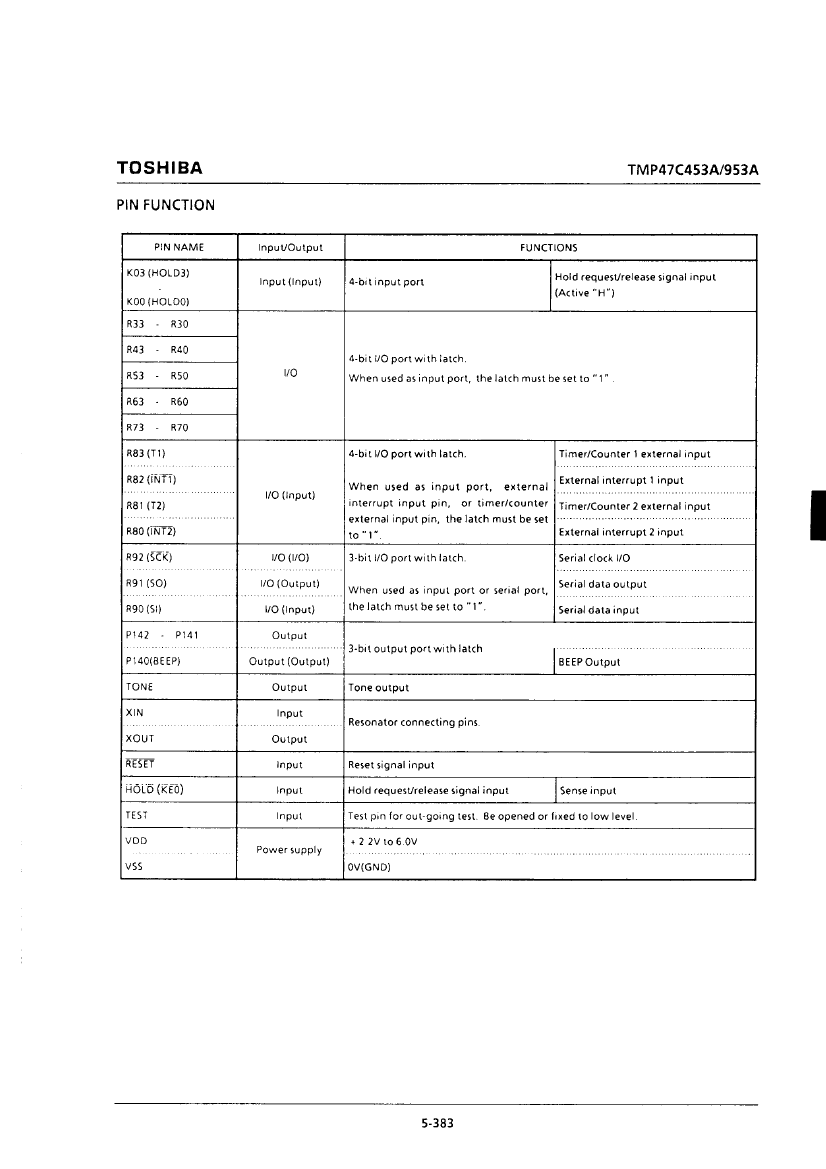

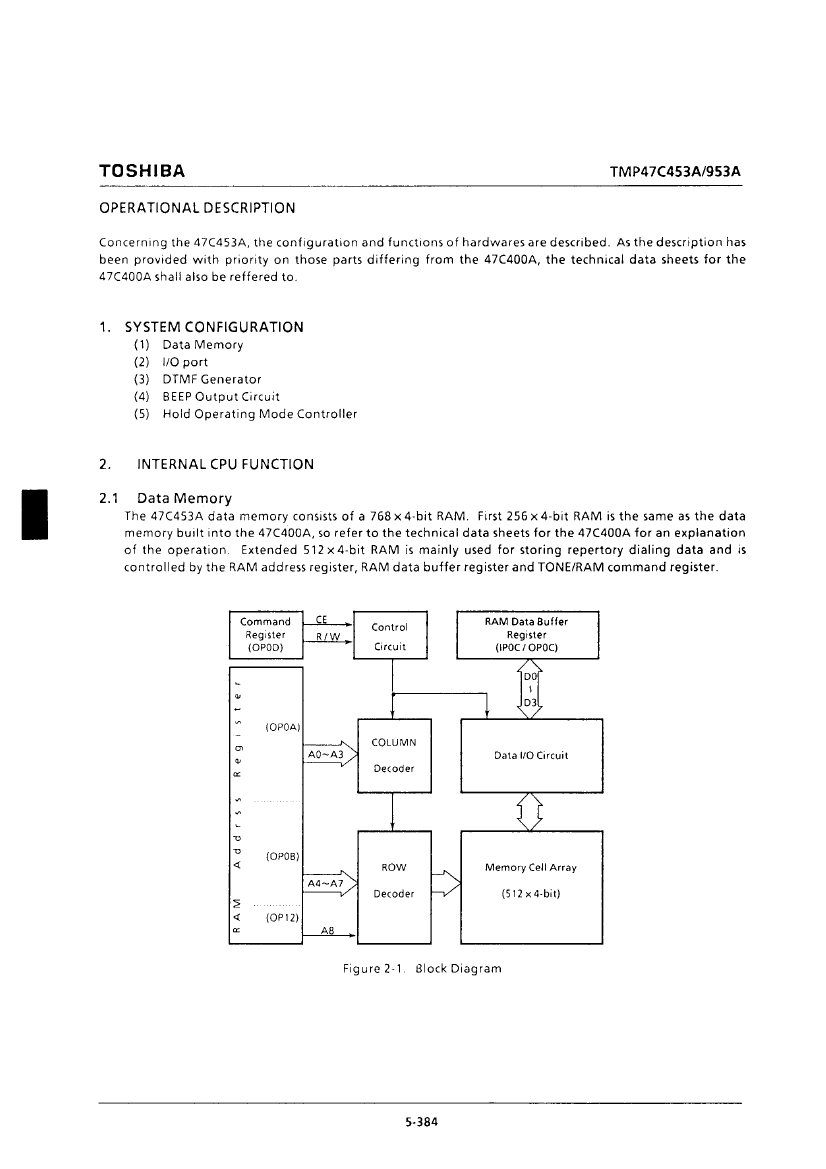

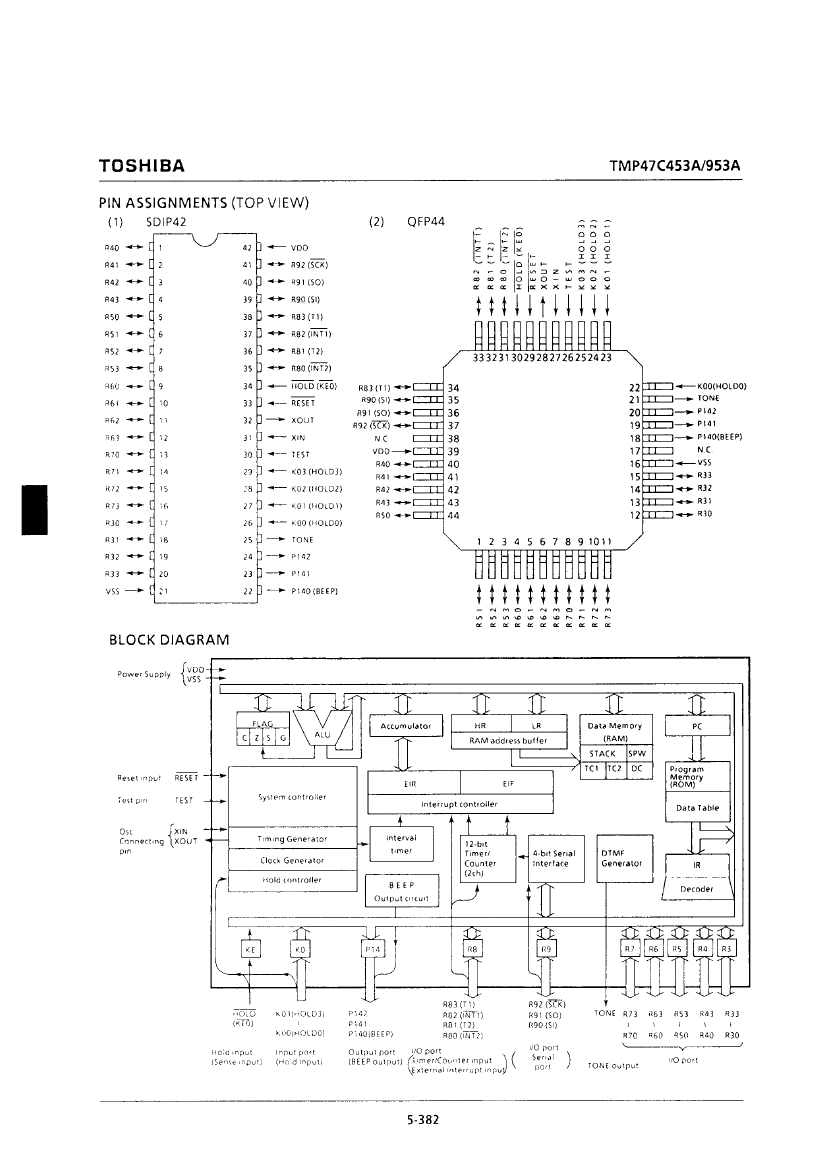

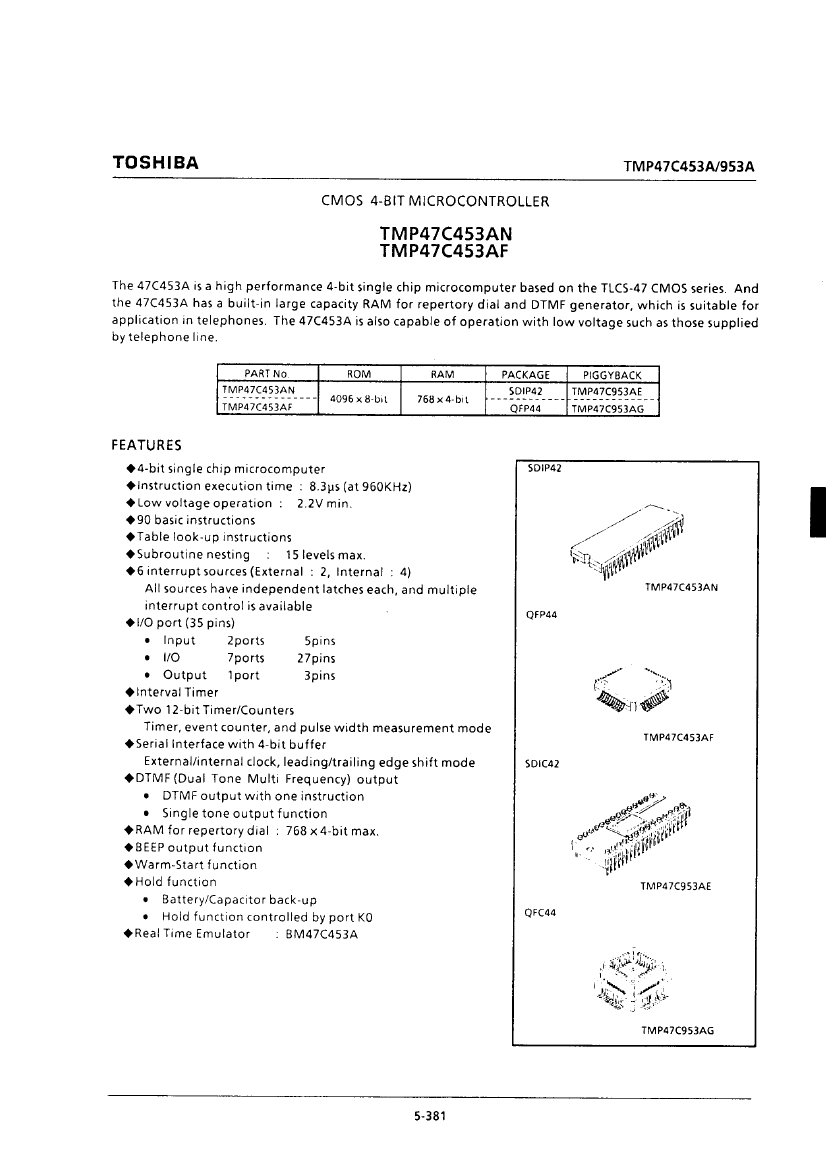

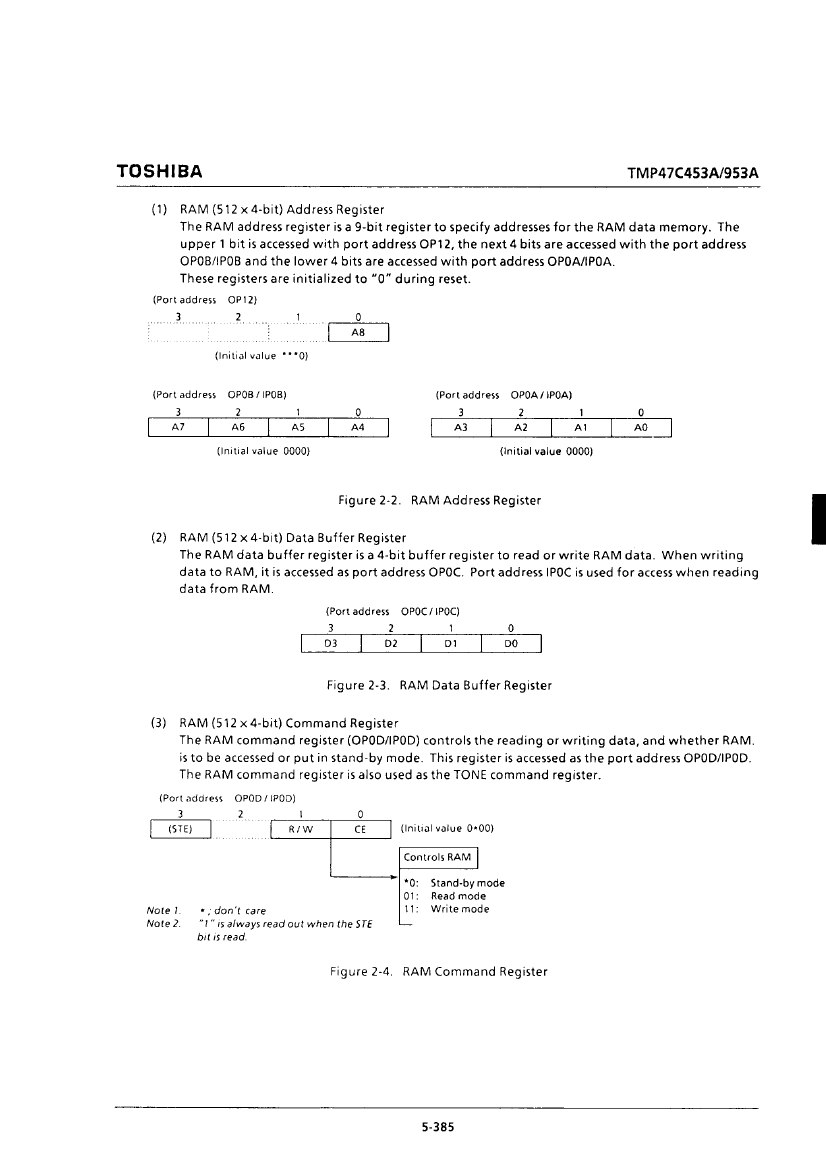

TMP47C453AF Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFP, QFP44,.7SQ,32
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Other features	BUILT IN DTMF GENERATOR
Address bus width
bit size	4
CPU series	TLCS-47
maximum clock frequency	0.96 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
length	14 mm
Number of I/O lines	35
Number of terminals	44
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.2/6 V
Certification status	Not Qualified
RAM (bytes)	384
rom(word)	4096
ROM programmability	MROM
Maximum seat height	3.05 mm
speed	0.96 MHz
Maximum slew rate	1.2 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.2 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TMP47C453AF	TMP47C453AN
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QFP	DIP
package instruction	QFP, QFP44,.7SQ,32	SDIP, SDIP42,.6
Contacts	44	42
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
Other features	BUILT IN DTMF GENERATOR	BUILT IN DTMF GENERATOR
bit size	4	4
CPU series	TLCS-47	TLCS-47
maximum clock frequency	0.96 MHz	0.96 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	S-PQFP-G44	R-PDIP-T42
length	14 mm	38 mm
Number of I/O lines	35	35
Number of terminals	44	42
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	SDIP
Encapsulate equivalent code	QFP44,.7SQ,32	SDIP42,.6
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2.2/6 V	2.2/6 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	384	384
rom(word)	4096	4096
ROM programmability	MROM	MROM
Maximum seat height	3.05 mm	4.5 mm
speed	0.96 MHz	0.96 MHz
Maximum slew rate	1.2 mA	1.2 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	2.2 V	2.2 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	1.778 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
