TMP47C441AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP47C441AN

TMP47C441AN: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size410KB，18 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C441AN Overview

CMOS 4-BIT MICROCONTROLLER

TMP47C441AN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
CPU series	TLCS-47
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
length	38 mm
Number of I/O lines	33
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	4.2 MHz
Maximum slew rate	6.3 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

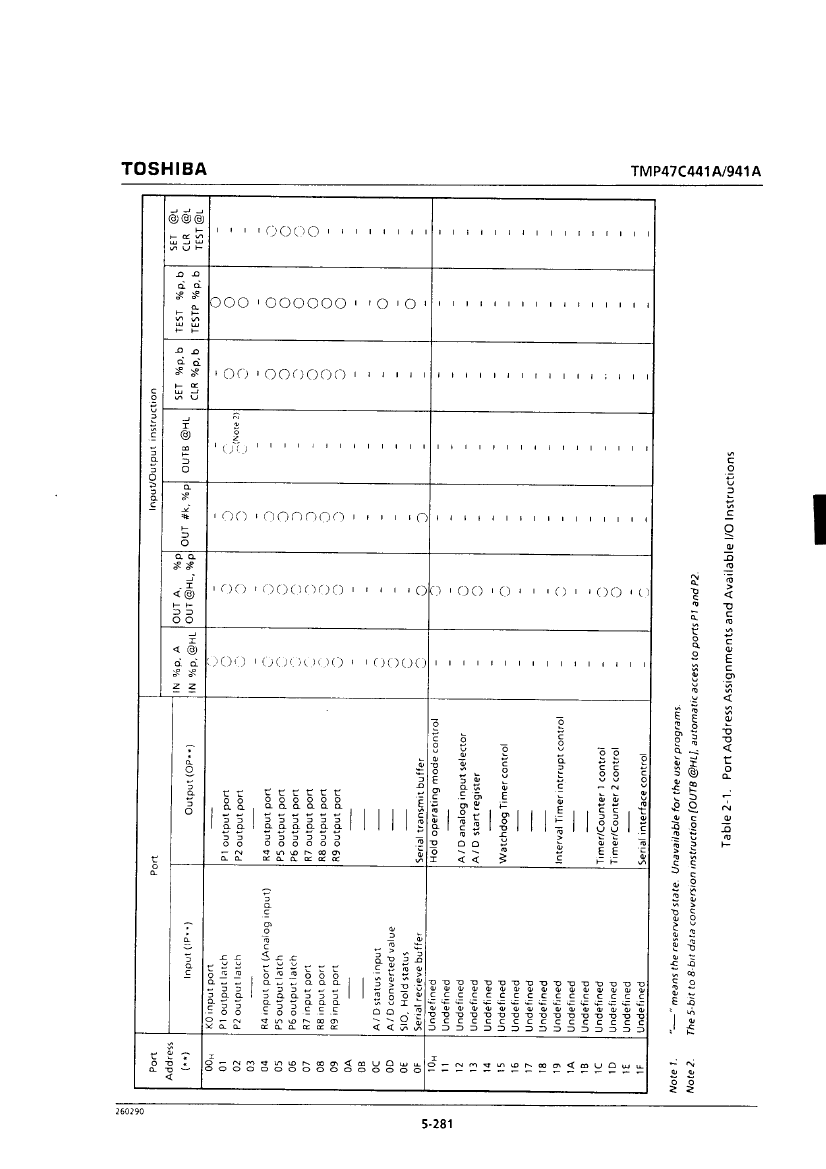

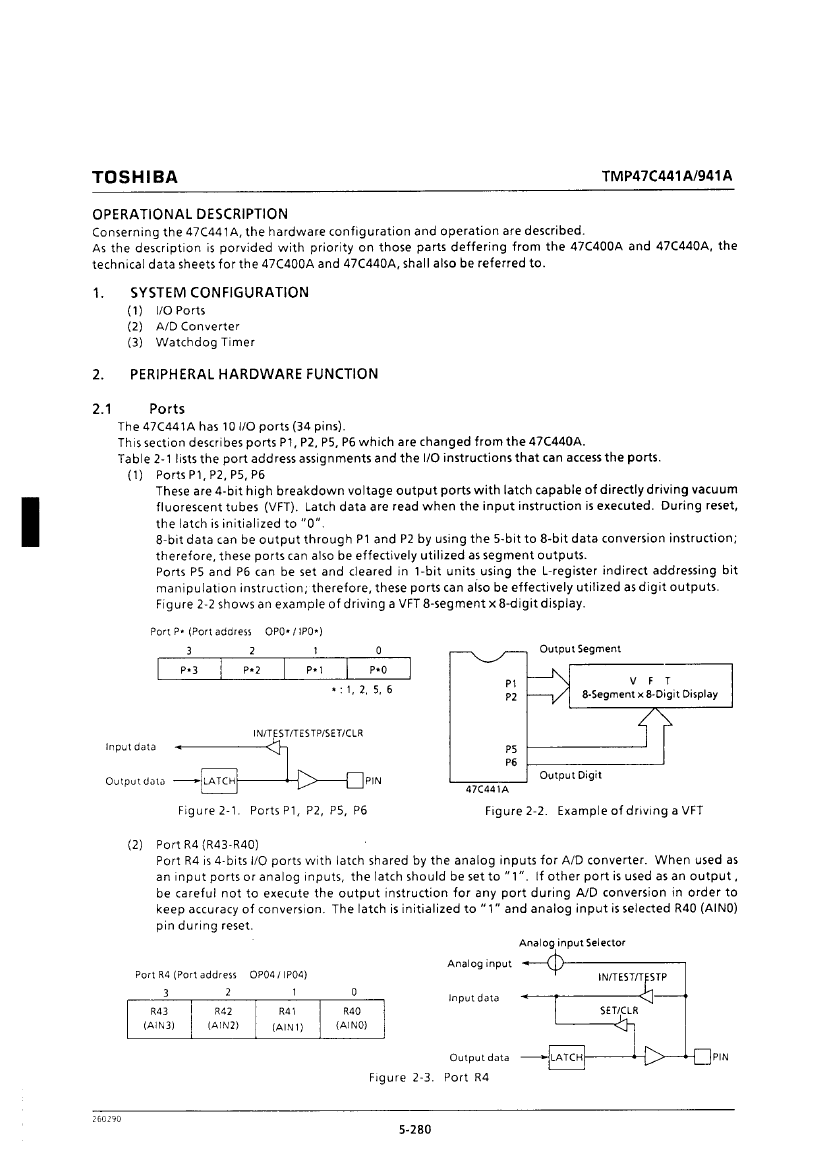

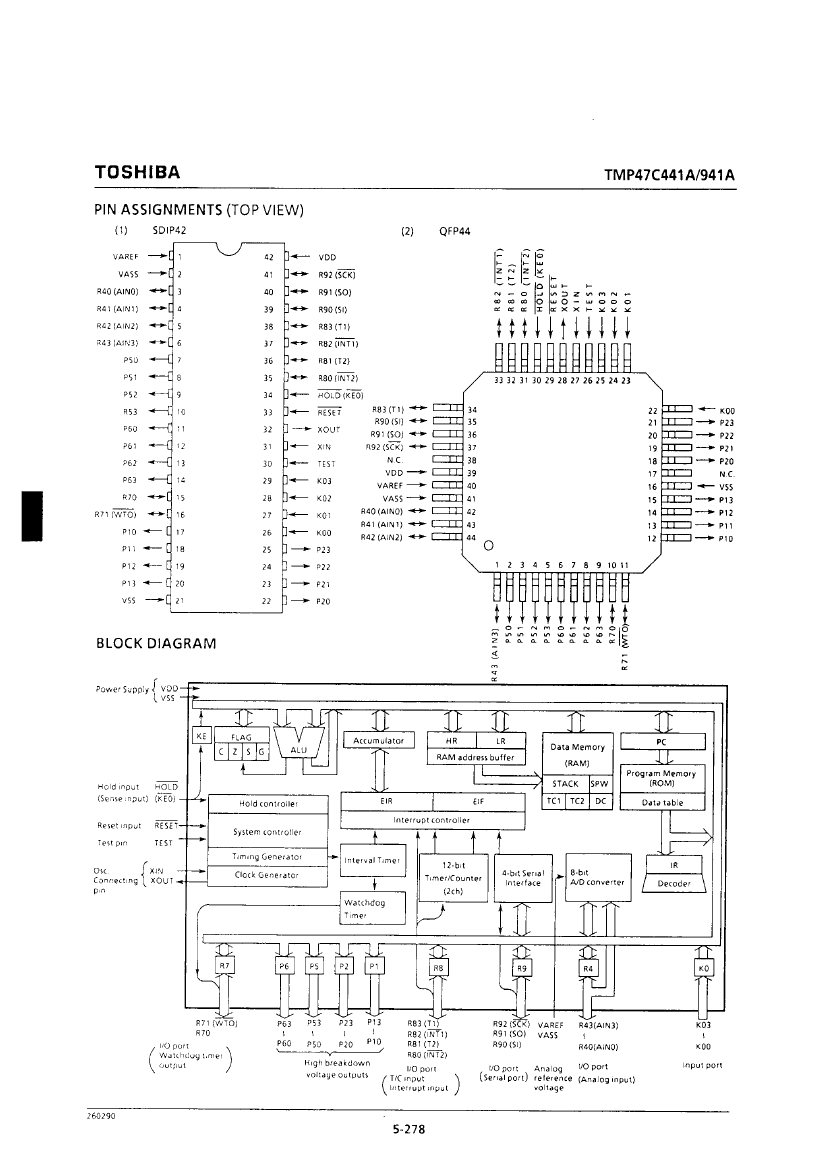

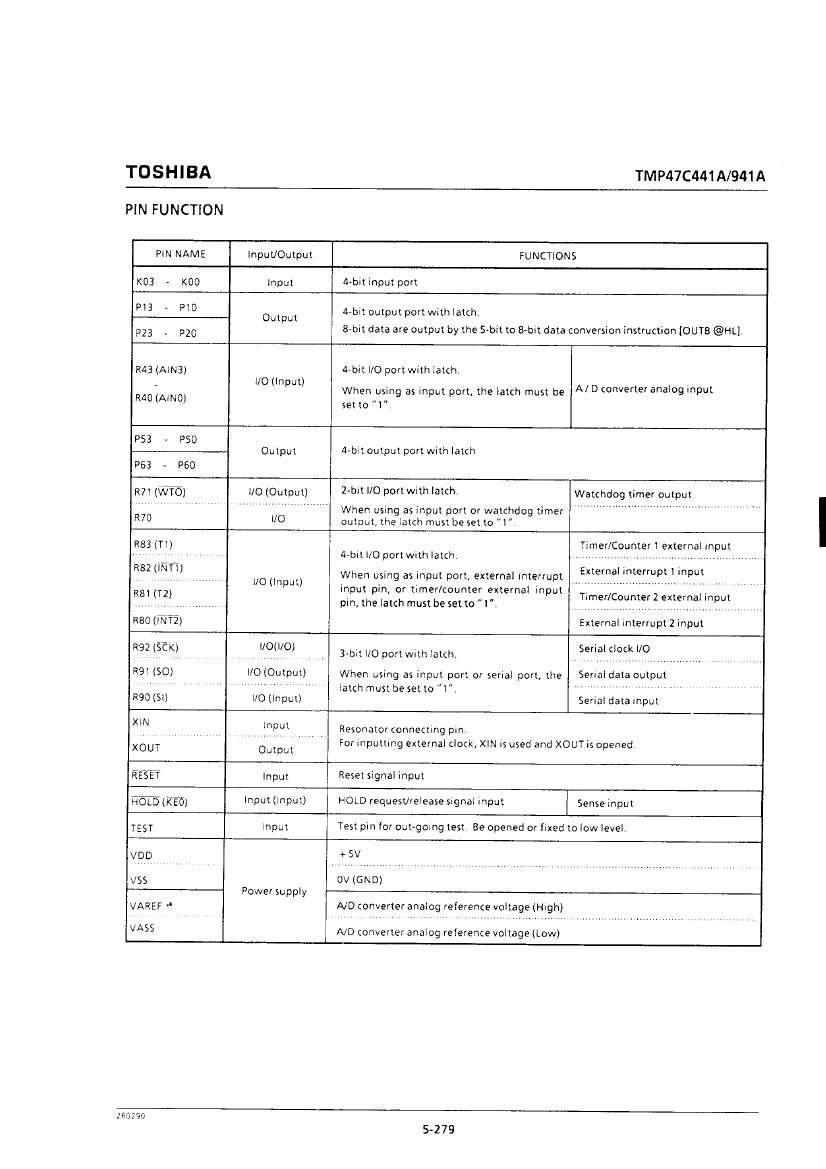

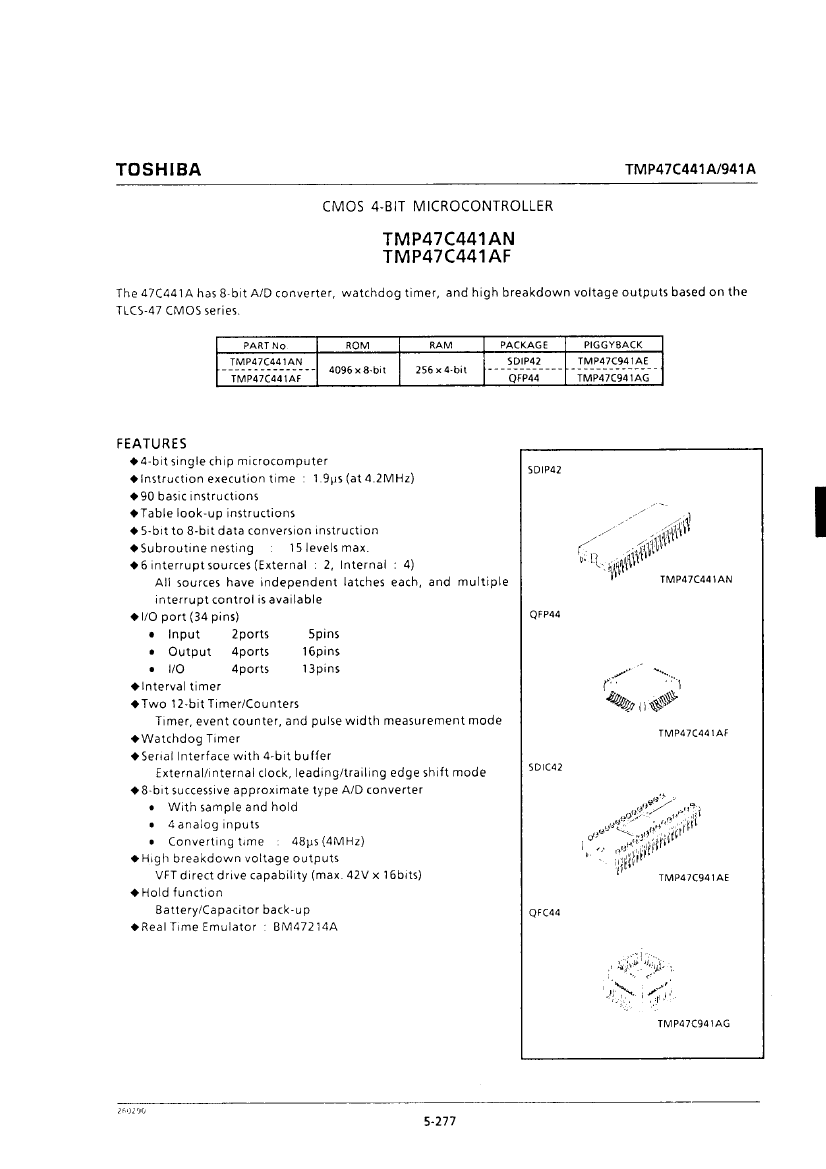

Preview

Download Datasheet

View All

TMP47C441AN Related Products

	TMP47C441AN	TMP47C441	TMP47C441AF
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible
Parts packaging code	DIP	-	QFP
package instruction	SDIP, SDIP42,.6	-	QFP, QFP44,.7SQ,32
Contacts	42	-	44
Reach Compliance Code	unknow	-	unknow
Has ADC	YES	-	YES
bit size	4	-	4
CPU series	TLCS-47	-	TLCS-47
maximum clock frequency	4.2 MHz	-	4.2 MHz
DAC channel	NO	-	NO
DMA channel	NO	-	NO
JESD-30 code	R-PDIP-T42	-	S-PQFP-G44
length	38 mm	-	14 mm
Number of I/O lines	33	-	33
Number of terminals	42	-	44
Maximum operating temperature	70 °C	-	70 °C
Minimum operating temperature	-30 °C	-	-30 °C
PWM channel	NO	-	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SDIP	-	QFP
Encapsulate equivalent code	SDIP42,.6	-	QFP44,.7SQ,32
Package shape	RECTANGULAR	-	SQUARE
Package form	IN-LINE, SHRINK PITCH	-	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
RAM (bytes)	128	-	128
rom(word)	4096	-	4096
ROM programmability	MROM	-	MROM
Maximum seat height	4.5 mm	-	3.05 mm
speed	4.2 MHz	-	4.2 MHz
Maximum slew rate	6.3 mA	-	6.3 mA
Maximum supply voltage	6 V	-	6 V
Minimum supply voltage	4.5 V	-	4.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	NO	-	YES
technology	CMOS	-	CMOS
Temperature level	OTHER	-	OTHER
Terminal form	THROUGH-HOLE	-	GULL WING
Terminal pitch	1.778 mm	-	0.8 mm
Terminal location	DUAL	-	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	15.24 mm	-	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER
Base Number Matches	1	-	1
