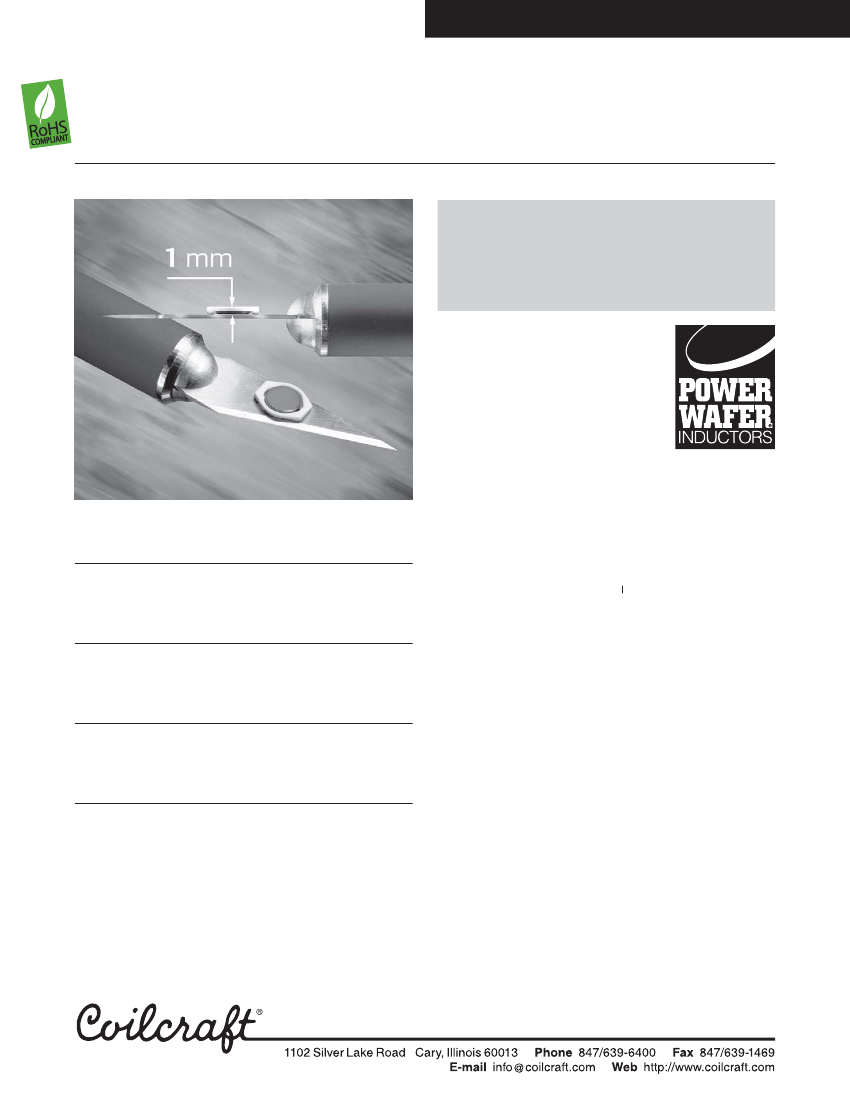

SMT Power Inductors - LPO1704 Series
We now offer an improved version of
this series: LPO6610.
It has identical electrical specifications and footprint,
and comes in a more robust package that features part
identification marking. We will, however, continue to
produce the LPO1704 indefinitely.
Measuring just 1 mm high, the
LPO1704 is the world’s lowest pro-
file power inductor!
This series has been specially de-
signed for applications requiring the
smallest possible footprint and low-
est height: notebook computers,
PDAs, PC Cards, mobile phones and
other handheld products.
The specially designed ceramic case totally protects the
winding while the flat top provides the best possible
surface for pick and place handling.
1
Part number
LPO1704-122ML_
LPO1704-152ML_
LPO1704-222ML_
LPO1704-332ML_
LPO1704-472ML_
LPO1704-682ML_
LPO1704-103ML_
LPO1704-153ML_
LPO1704-223ML_
LPO1704-333ML_
LPO1704-473ML_
LPO1704-683ML_
LPO1704-104ML_
LPO1704-154ML_
LPO1704-224ML_
LPO1704-334ML_
1
1
L
2
DCR
SRF
±20% max
typ
(µH) (Ohms) (MHz)
1.2 0.08
190
1.5 0.10
140
2.2 0.12
115
3.3 0.16
90
4.7 0.20
88
6.8
10
15
22
33
0.32
0.41
0.55
0.85
1.3
1.8
2.5
3.5
5.0
7.0
15.0
66
55
42
38
29
22
18
14
12
10
8
1
2
Isat
3
3
Irms
4
(A)
(A)
2.1
1.7
1.9
1.5
1.6
1.4
1.3
1.2
1.1
1.1
0.90
0.80
0.65
0.50
0.40
0.35
0.30
0.25
0.18
0.16
0.13
0.85
0.75
0.60
0.52
0.42
0.36
0.30
0.26
0.21
0.18
0.13
1. When ordering, please specify
packaging
code:
LPO1704-334MLC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
2. Tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DC current at which the inductance drops 10% (typ) from its value
without current.
4. Average current for a 40°C rise above 25°C ambient.
5. Operating temperature range -40°C to +85°C.
6. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
47
68
100
150
220
330
Specifications subject to change without notice.
Please check our website for latest information. Document 233-1
Revised 01/27/05
© Coilcraft, Inc. 2006
Document 233-2

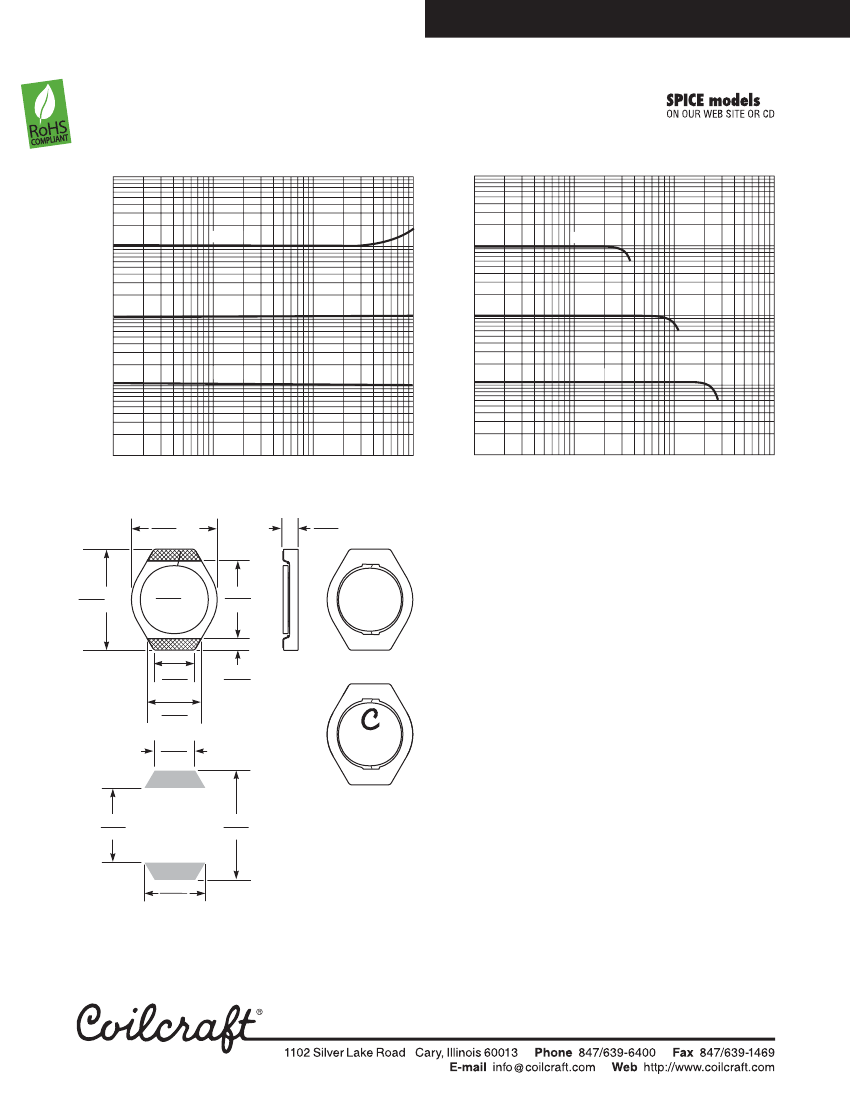

SMT Power Inductors - LPO1704 Series
Typical L vs Frequency
1000
Typical L vs Current
1000
100 µH
100
100
100 µH
Inductance (µH)
10 µH
Inductance (µH)
10
10
10 µH
1.2 µH
1.2 µH
1
1
0.1
0.01
0.1
1
10
0.1
0.01
0.1
1
10
Frequency (MHz)
Current (A)
0.216
max
5,50
0.040
max
1,00
0.260
max
6,60
0.168
Ø
4,30
0.192
4,90
0.100
2,50
0.134
3,40
0.100
2,50
0.029
0,750
XXX
Alternate
marking
0.185
4,70
Recommended
0.270
Land
6,90
Pattern
0.150
3,80
Terminations:
Silver-palladium-platinum-glass frit
Tape and reel:
1000/7″ reel; 3500/13″ reel 12 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Please check our website for latest information. Document 233-2
Revised 01/27/05
© Coilcraft, Inc. 2006
