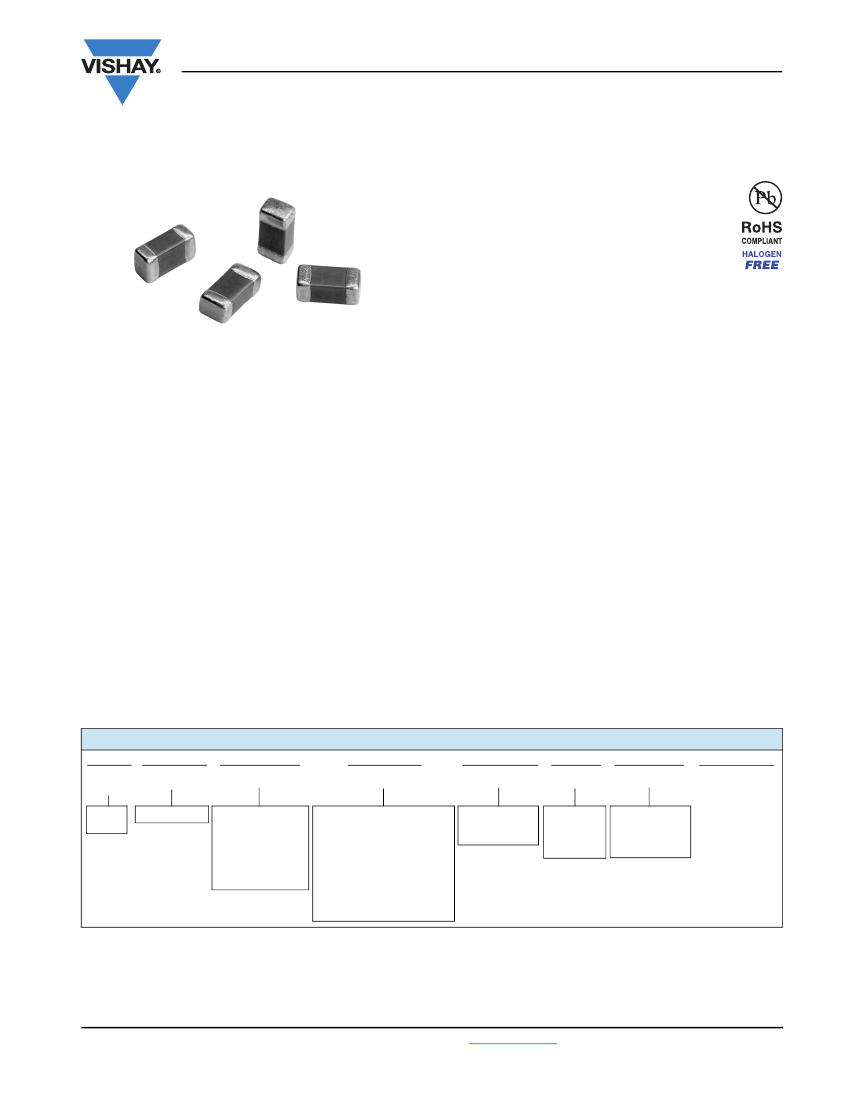

VJ....W1BC High Q Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for High Q Commodity Applications
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Ultra stable class 1 dielectric
High Q and low ESR at high frequency
Four standard sizes
High capacitance per unit volume
Supplied in tape on reel
For high frequency applications
Ni-barrier with 100 % tin terminations
Dry sheet manufacturing technology
Noble Metal Electrode system (NME)
Halogen-free according to IEC 61249-2-21
APPLICATIONS
Mobile telecommunication
WLAN
RF modules
Tuner
ELECTRICAL SPECIFICATIONS
Note:
Electrical characteristics at + 25 °C unless otherwise specified
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
after 120 s at U
R
(DC):
10 GΩ or 500
ΩF
whichever is less
Dielectric Strength Test:
This is the maximum voltage the capacitors are tested for
1 s to 5 s period and the charge/discharge current does not
exceed 50 mA
≤
100 Vdc: DWV at 250 % of rated voltage
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
0.5 pF to 3300 pF
Voltage Range:
16 Vdc to 100 Vdc
Temperature Coefficient of Capacitance (TCC):
± 30 ppm/°C from - 55 °C to + 125 °C
Dissipation Factor:
Cap
<
30 pF: Q 400 + 20 C
Cap
≥
30 pF: Q
≥
1000
Test Conditions:
Cap.
≤
1000 pF 1.0 V
rms
± 0.2 V
rms
, 1 MHz ± 10 %
Cap.
>
1000 pF 1.0 V
rms
± 0.2 V
rms
, 1 kHz ± 10 %
ORDERING INFORMATION
VJ0402
SIZE
CODE
0402
0603
Q
DIELECTRIC
101
CAPACITANCE
F
TOLERANCE
Cap. value
≤
5 pF
B = ± 0.10 pF
C = ± 0.25 pF
5 pF > Cap. value < 10 pF
C = ± 0.25 pF
D = ± 0.50 pF
Cap. value
≥
10 pF
F=±1%
G=±2%
J=±5%
X
TERMINATION
J
VOLTAGE
C
PACKAGING
W1BC
PROCESS CODE
FOR BASIC
COMMODITY
Q = High Q
Expressed in pF
two significant
digits followed by
the number of
zeros:
1R0 = 1.0 pF
101 = 100 pF
X = Ni Barrier
100 % tin
termination
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 7"
reel/paper
P = 13"
reel/paper
Document Number: 28534
Revision: 11-Aug-09
For technical questions, contact:
mlcc@vishay.com
www.vishay.com
1
VJ....W1BC High Q Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for High Q Commodity Applications
SELECTION CHART
DIELECTRIC
EIA CAP.
EIA SIZE
CAP.
CODE
0R5
0.5 pF
1R0
1.0 pF
1R2
1.2 pF
1R5
1.5 pF
1R8
1.8 pF
2R2
2.2 pF
2R7
2.7 pF
3R3
3.3 pF
3R9
3.9 pF
4R7
4.7 pF
5R6
5.6 pF
6R8
6.8 pF
8R2
8.2 pF
100
10 pF
120
12 pF
150
15 pF
180
18 pF
220
22 pF
270
27 pF
330
33 pF
390
39 pF
470
47 pF
560
56 pF
680
68 pF
820
82 pF
101
100 pF
121
120 pF
151
150 pF
181
180 pF
221
220 pF
271
270 pF
331
330 pF
391
390 pF
471
470 pF
561
560 pF
681
680 pF
821
820 pF
102
1000 pF
122
1200 pF
152
1500 pF
182
1800 pF
222
2200 pF
272
2700 pF
332
3300 pF
472
4700 pF
562
5600 pF
682
6800 pF
822
8200 pF
103
10 000 pF
HIGH Q
0402
16 V
25 V
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
50 V
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
100 V
16 V
25 V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
0603
50 V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
100 V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
N
N
N
N
S
S
S
S
S
S
Note
• Letters indicate product thickness, see packaging quantities
www.vishay.com
2
For technical questions, contact:
mlcc@vishay.com
Document Number: 28534
Revision: 11-Aug-09
VJ....W1BC High Q Dielectric
Surface Mount Multilayer Ceramic Chip Capacitors
for High Q Commodity Applications

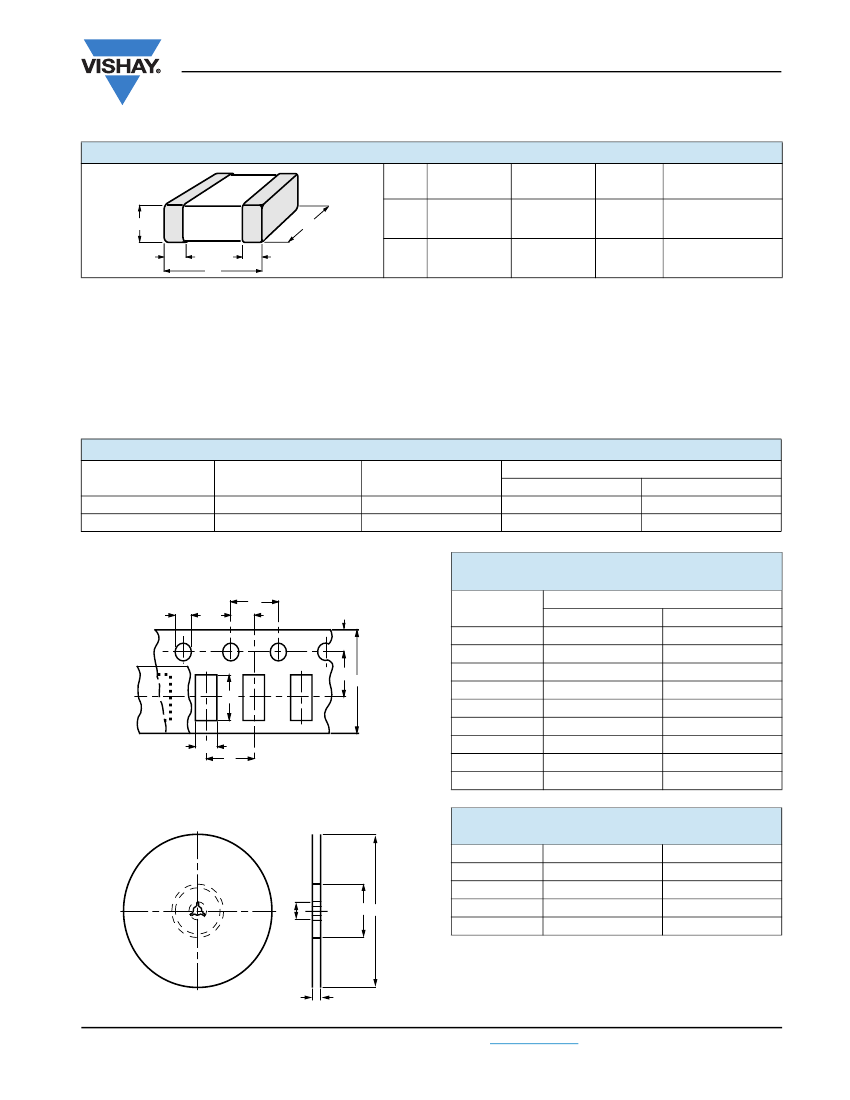

DIMENSIONS
in inches [millimeters]
SIZE
CODE
L
0.040 ± 0.002
[1.00 ± 0.05]
0.063 ± 0.004
[1.60 ± 0.10]
W
0.020 ± 0.002
[0.50 ± 0.05]
0.030 ± 0.004
[0.80 ± 0.10]
T
MAX.
0.022
[0.55]
0.035
[0.87]
MB
0.010 + 0.002/- 0.004
[0.25 + 0.05/- 0.10]
0.015 ± 0.006
[0.40 ± 0.15]
Vishay
T
MB
L
W
MB
0402
(1005)
0603
(1608)
STORAGE AND HANDLING CONDITIONS
(1) To store products at 5 °C to 40 °C ambient temperature and 20 % to 70 % related humdity conditions.
(2) The product is recommended to be used within one year after shipment. Check solderability in case of shelf life extension is
needed.
C
autions:
a. Don’t store products in a corrosive environment such as sulfide, chloride gas, or acid. It may cause oxidization of electrode,
which easily be resulted in poor soldering.
b. To store products on the shelf and avoid exposure to moisture.
c. Don’t expose products to excessive shock, vibration, direct sunlight and so on
.
PACKAGING QUANTITIES
SIZE CODE
(inch/mm)
0402 (1002)
0603 (1608)
THICKNESS (mm)
0.50 ± 0.05
0.80 ± 0.07
THICKNESS
SYMBOL
N
S
PAPER TAPE
7" reel (C)
10K
4K
13" reel (P)
20K
15K
PAPER TAPE SPECIFICATIONS
P
0
D
0
P
2
E
DIMENSIONS OF PAPER TAPE
in millimeters
SYM.
A
0
B
0
F
W
PRODUCT SIZE CODE
0402
0.62 ± 0.05
1.12 ± 0.05
8.00 ± 0.10
1.75 ± 0.05
3.50 ± 0.05
1.55 ± 0.05
4.00 ± 0.10
2.00 ± 0.05
2.00 ± 0.05
0603
1.02 ± 0.05
1.82 ± 0.05
8.00 ± 0.10
1.75 ± 0.05
3.50 ± 0.05
1.55 ± 0.05
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
W
E
F
D
0
B
0
A
0
P
1
P
0
P
1
P
2
REEL SPECIFICATIONS
REEL DIMENSIONS AND TAPE WIDTH
in millimeters
Ø 180 mm; 7"
A
B
A
D C
Ø 330 mm; 13"
13.0 ± 0.5
9.0 ± 1.0
330.0 ± 1.0
100.0 ± 1.0
13.0 ± 0.5
9.0 ± 1.0
178.0 ± 1.0
60.0 ± 1.0
C
D
B
Document Number: 28534
Revision: 11-Aug-09
For technical questions, contact:
mlcc@vishay.com
www.vishay.com
3
VJ....W1BC High Q Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for High Q Commodity Applications

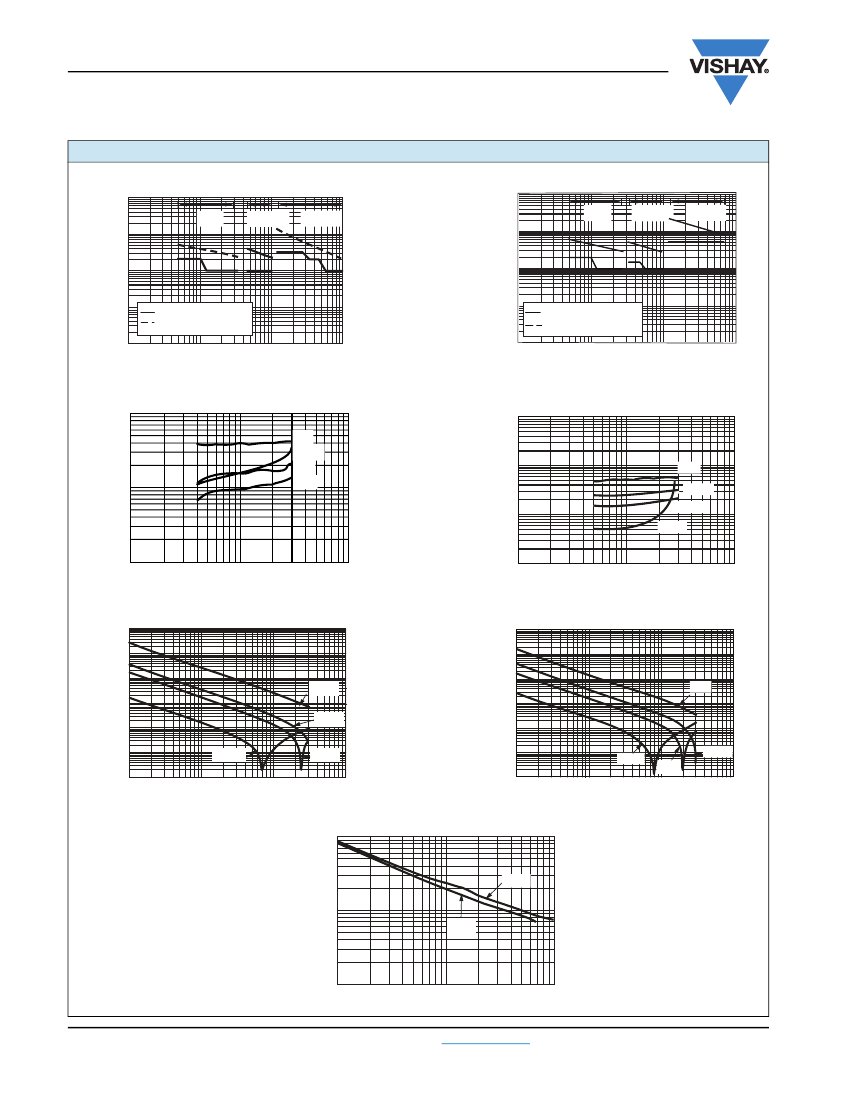

ELECTRICAL CHARACTERISTICS
Q VALUE CRITERIA VS. SPECIFIC FREQUENCY
SIZE 0402
10 000
1GHz
1000
500 MHz
100 MHz
1000
10 000
Q VALUE CRITERIA VS. SPECIFIC FREQUENCY
SIZE 0603
1 GHz
500 MHz
100 MHz
Q
Q
minimum (solid line)
typical (broken line)
10
1
CAPACITANCE (PF)
100
100
100
10
10
minimum (solid line)
typical (broken line)
0.1
1
10
100
1
0.1
1
CAPACITANCE (pF)
TYPICAL ESR VS. FREQUENCY
SIZE 0402
1
1pF
100 pF
5 pF
0.1
10 pF
ESR (Ω)
1
TYPICAL ESR VS. FREQUENCY
SIZE 0603
ESR (Ω)
1
1 pF
4.7 pF
10 pF
0.1
68 pF
0.01
100
1000
FREQUENCY (MHz)
10 000
0.01
100
1000
FREQUENCY (MHz)
10 000
100 000
10 000
IMPEDANCE (Ω)
1000
100
10
1
0.1
TYPICAL IMPEDANCE VS. FREQUENCY
SIZE 0402
100
IMPEDANCE (Ω)
100
100
100
100
1
TYPICAL IMPEDANCE VS. FREQUENCY
SIZE 0603
1 pF
4.7 pF
1 pF
100 pF
10
100
1000
FREQUENCY (MHz)
SERIES RESONANT FREQUENCY (MHz)
10 pF
10 000
68 pF
4.7 pF
10 pF
10 000
0.1
100
100
1000
FREQUENCY (MHz)
SRF VS. CAPACITANCE
10 000
0402
1000
0603
100
1
10
CAPACITANCE (pF)
100
www.vishay.com
4
For technical questions, contact:
mlcc@vishay.com
Document Number: 28534
Revision: 11-Aug-09
