TMP47C26N datasheet, PDF - EEWORLD Datasheet

TMP47C26N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size106KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

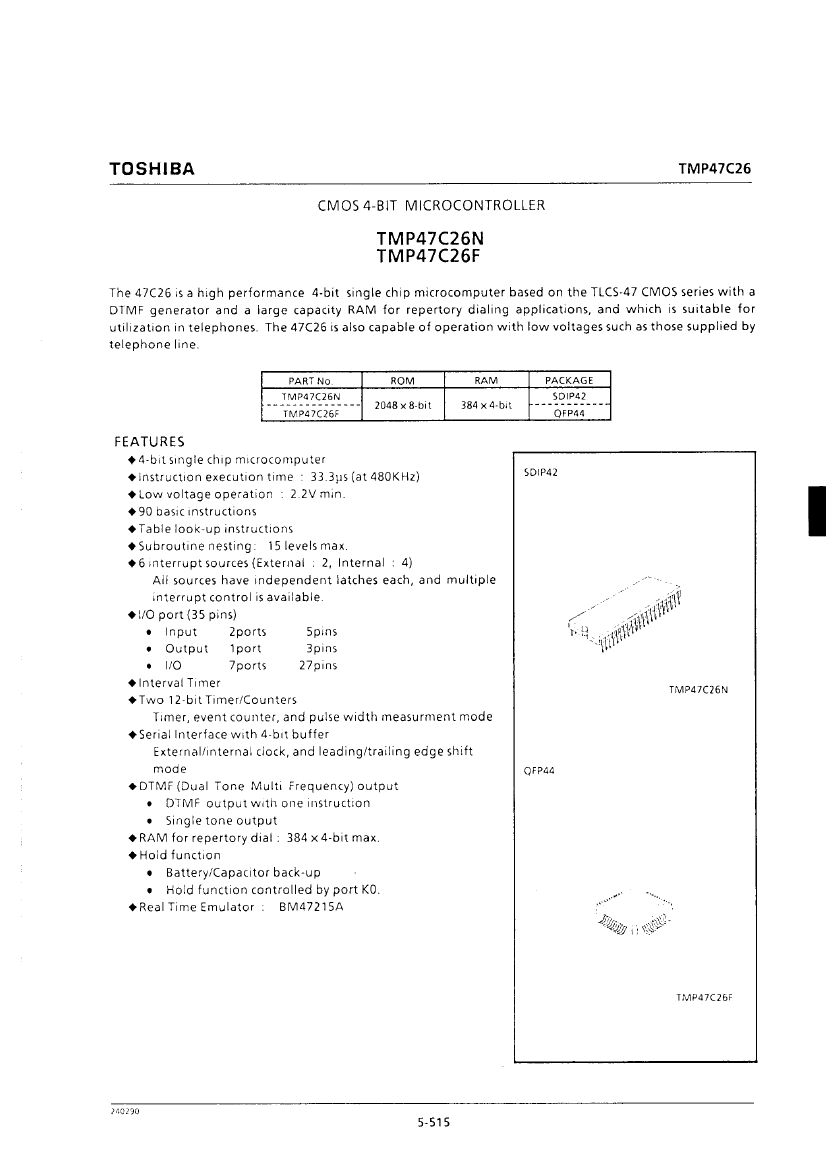

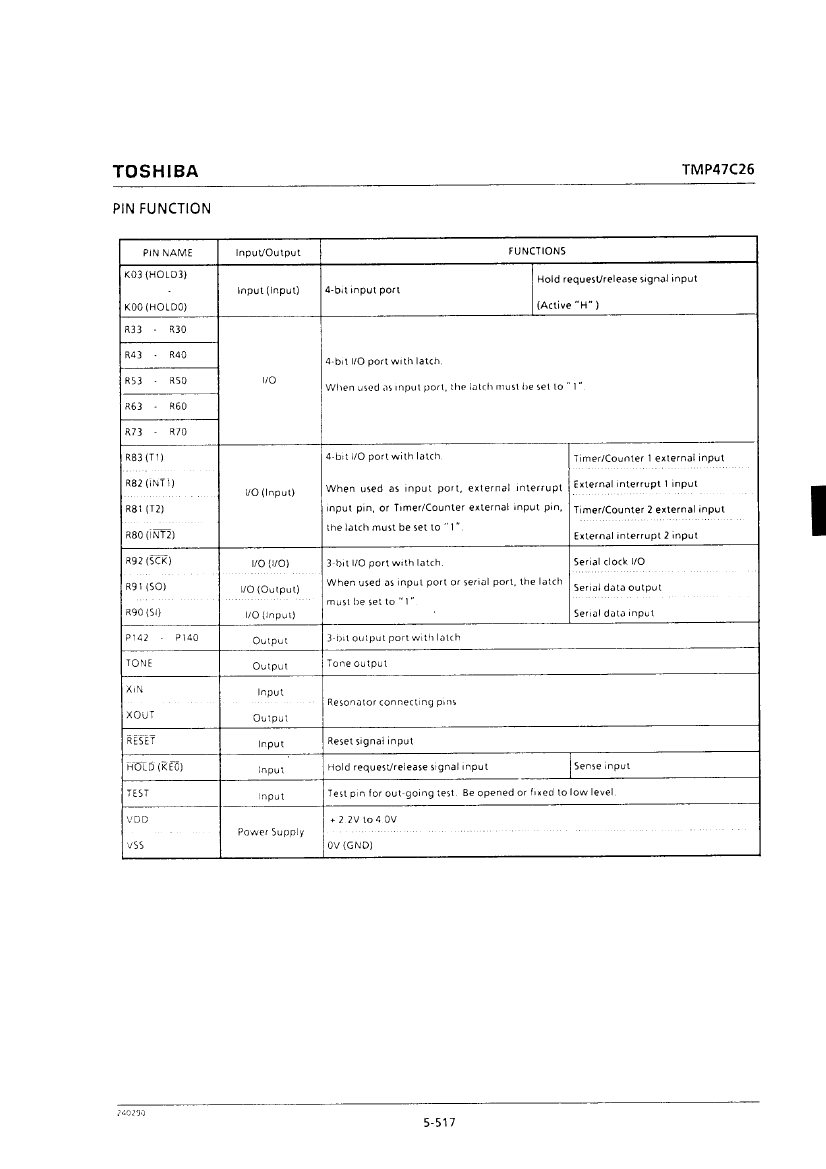

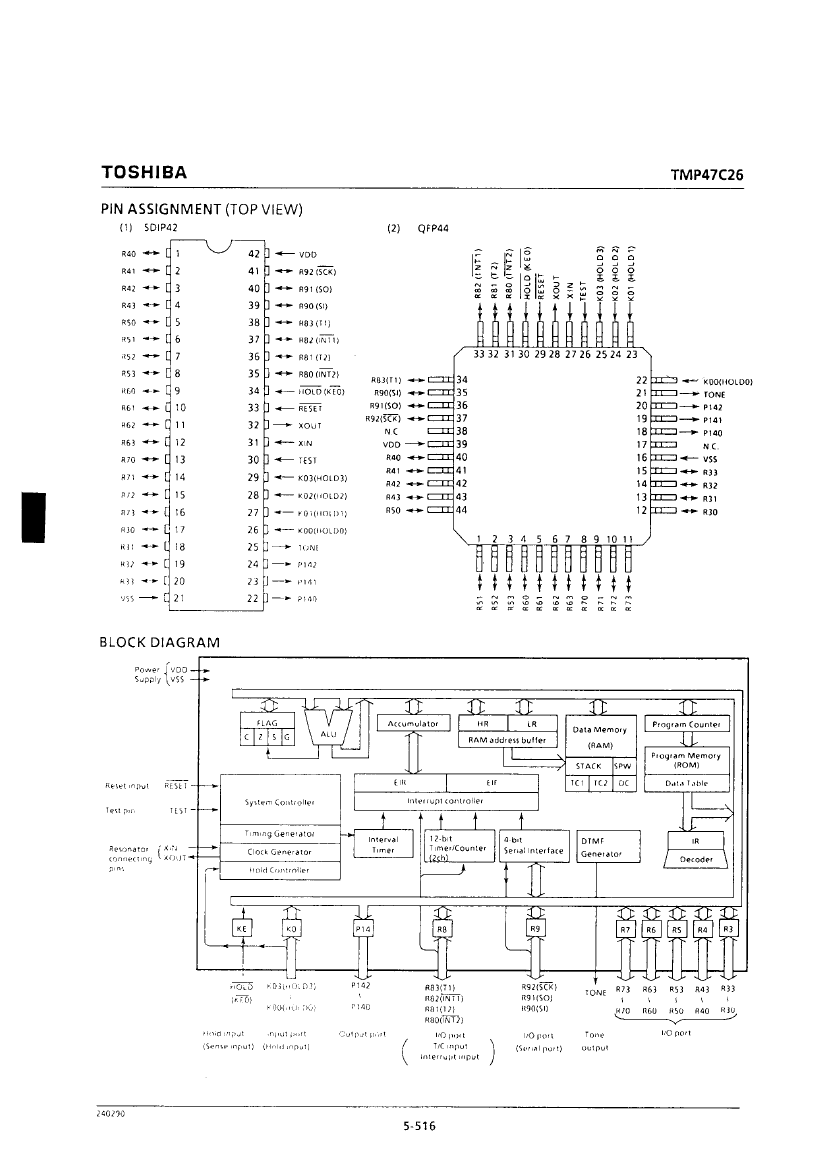

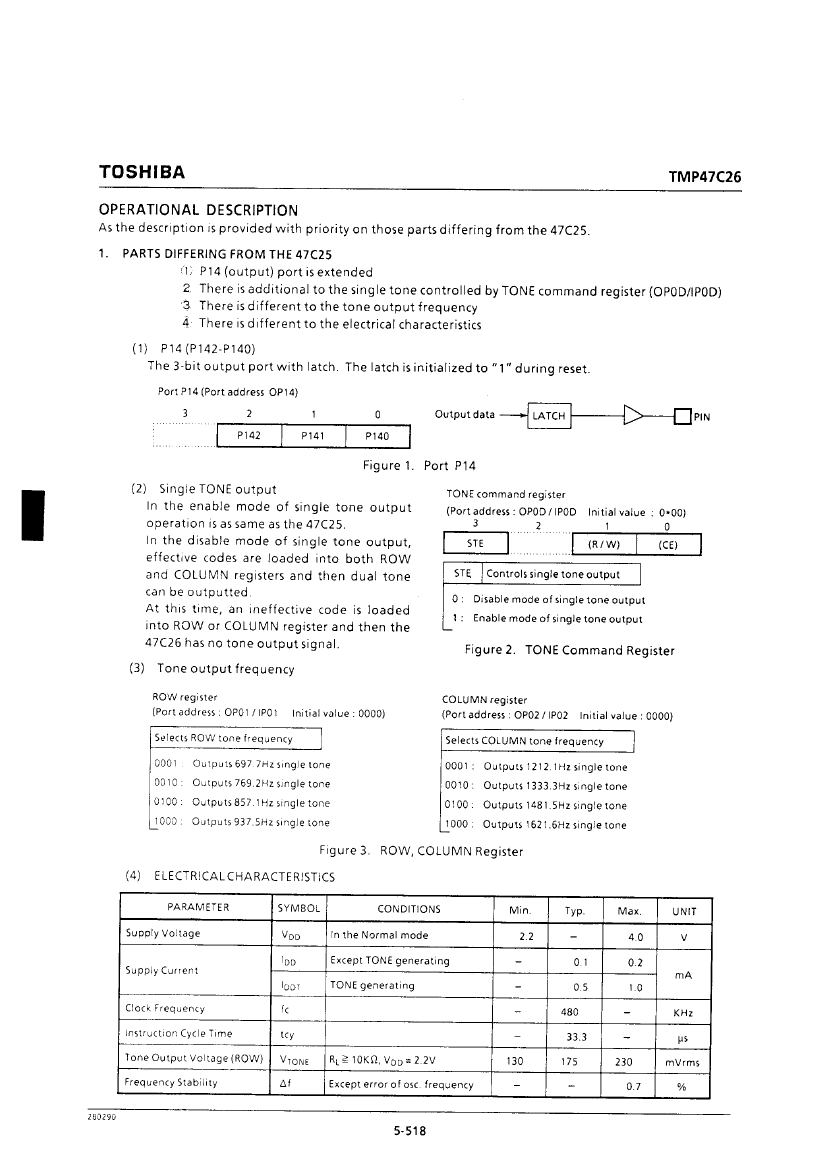

TMP47C26N Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
CPU series	TLCS-47
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
Number of I/O lines	35
Number of terminals	42
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	2.2/4 V
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	2048
ROM programmability	MROM
speed	0.48 MHz
Maximum slew rate	1 mA
Maximum supply voltage	4 V
Minimum supply voltage	2.2 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL

	TMP47C26N	TMP47C26F
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
bit size	4	4
CPU series	TLCS-47	TLCS-47
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T42	S-PQFP-G44
JESD-609 code	e0	e0
Number of I/O lines	35	35
Number of terminals	42	44
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	LQFP
Encapsulate equivalent code	SDIP42,.6	QFP44,.7SQ,32
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK, LOW PROFILE
power supply	2.2/4 V	2.2/4 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	192	192
rom(word)	2048	2048
ROM programmability	MROM	MROM
speed	0.48 MHz	0.48 MHz
Maximum slew rate	1 mA	1 mA
Maximum supply voltage	4 V	4 V
Minimum supply voltage	2.2 V	2.2 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULLWING
Terminal pitch	1.78 mm	0.8 mm
Terminal location	DUAL	QUAD
