Datasheet> All Categories > TMP47C243

Preview

TMP47C243: DescriptionCMOS 4-BIT MICROCONTROLLER; File Size3MB，57 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

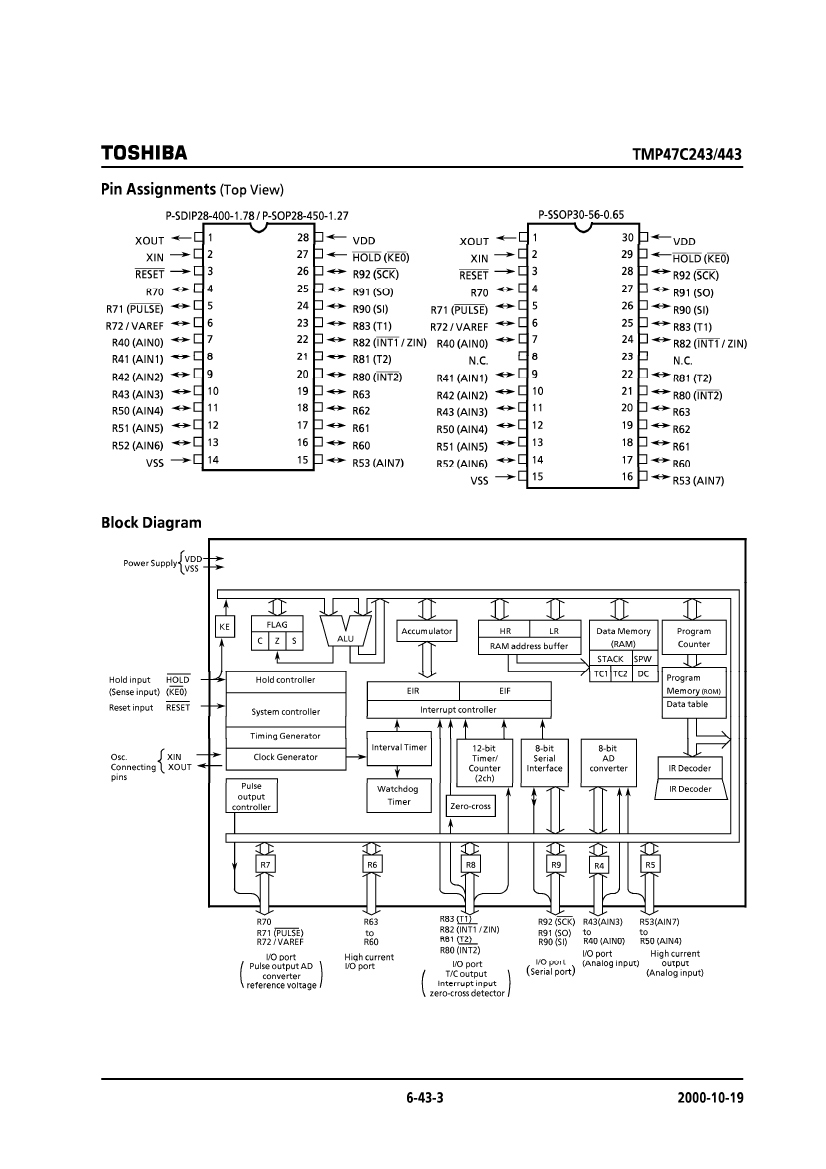

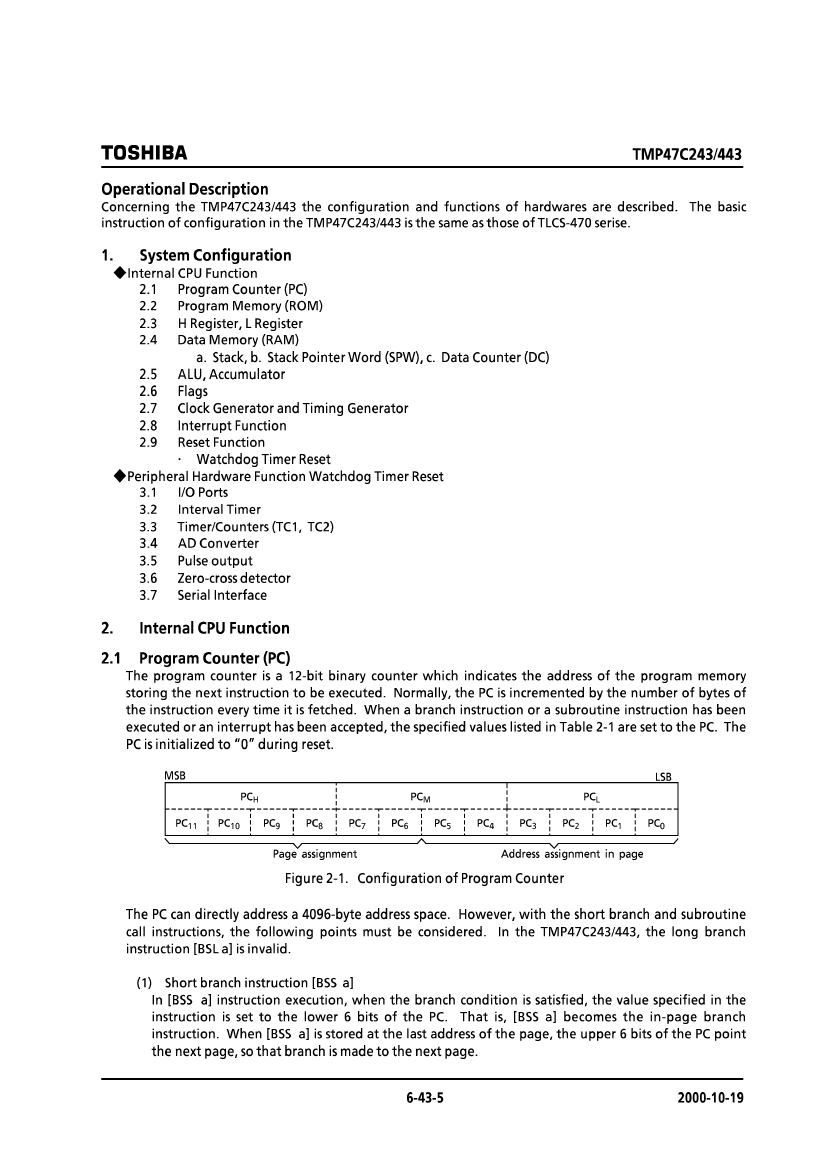

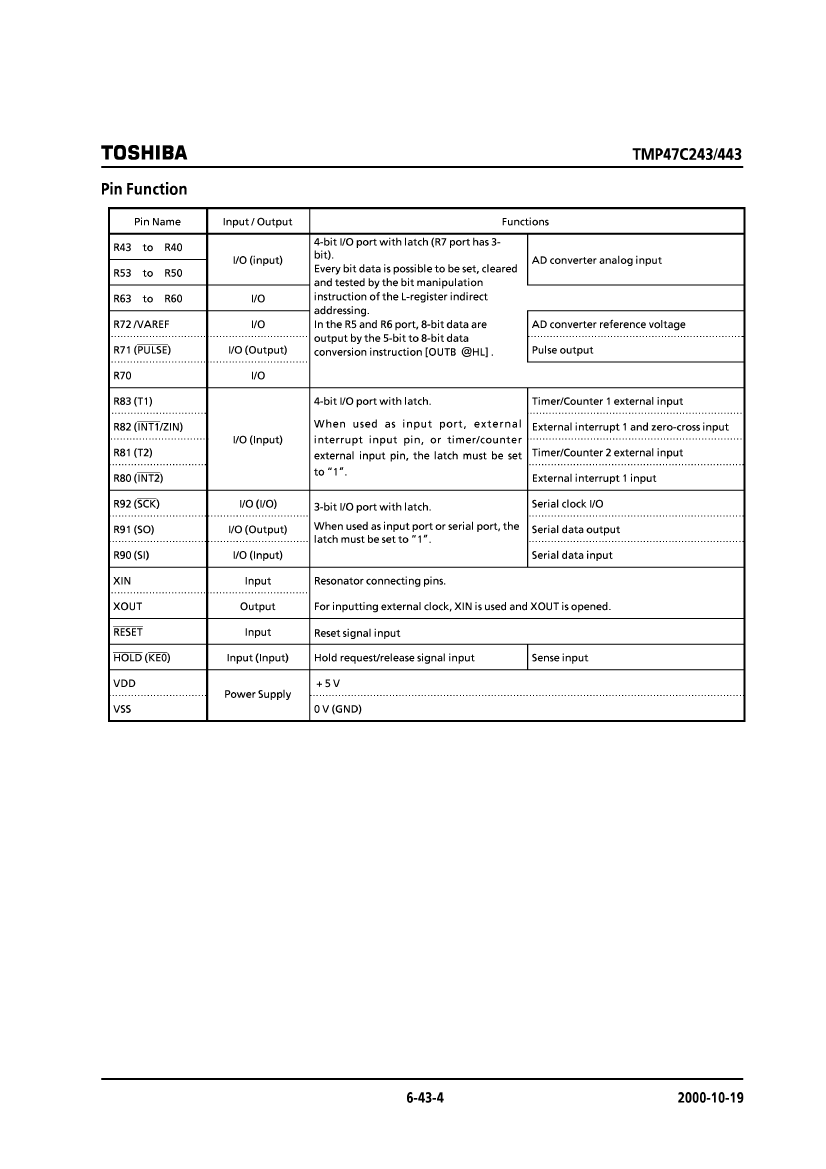

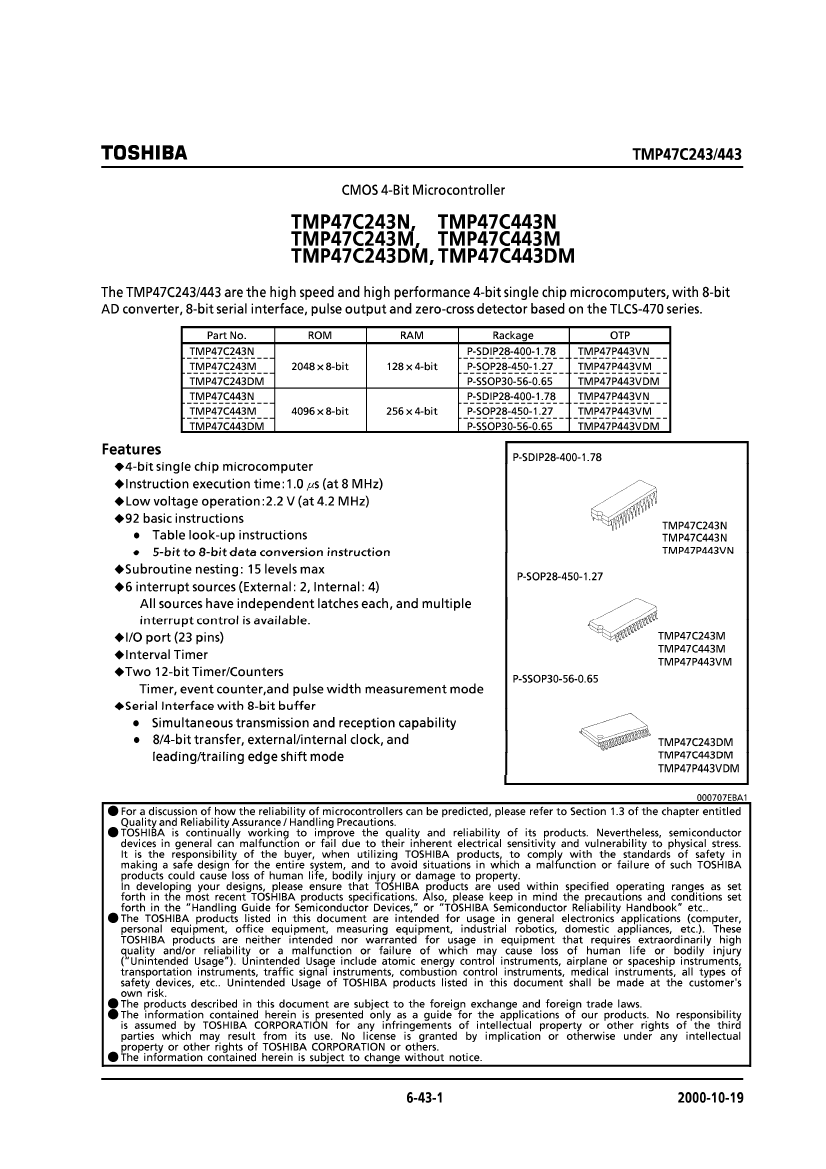

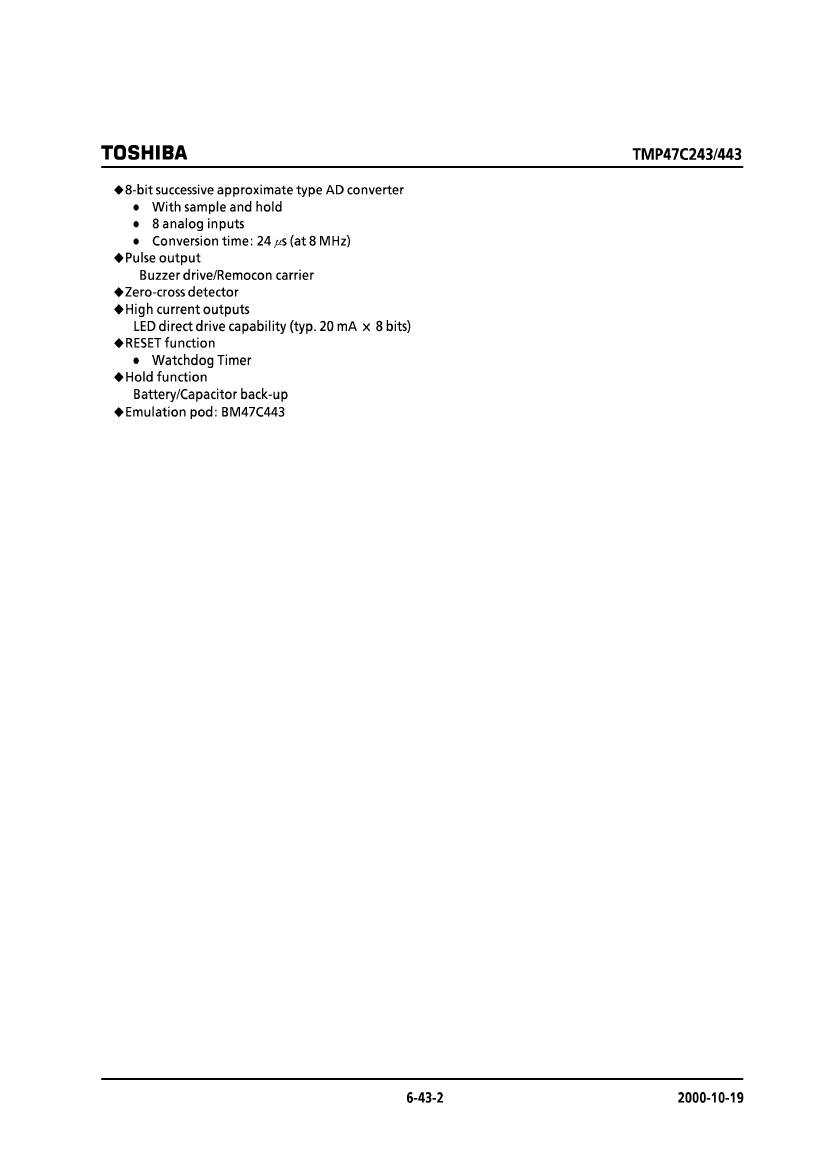

TMP47C243 Overview

CMOS 4-BIT MICROCONTROLLER

Preview

Download Datasheet

View All

TMP47C243 Related Products

	TMP47C243	47C443NHK81	TMP47C443N	TMP47C443DM	TMP47C443M	TMP47C243N	TMP47C243DM	TMP47C243M
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	-	-	DIP	SSOP	SOIC	DIP	SSOP	SOIC
package instruction	-	-	SDIP, SDIP28,.4	LSSOP, SSOP30,.3	SOP, SOP28,.5	SDIP, SDIP28,.4	LSSOP, SSOP30,.3	SOP, SOP28,.5
Contacts	-	-	28	30	28	28	30	28
Reach Compliance Code	-	-	unknow	unknow	unknow	unknow	unknow	unknow
Has ADC	-	-	YES	YES	YES	YES	YES	YES
Other features	-	-	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ
bit size	-	-	4	4	4	4	4	4
CPU series	-	-	TLCS-47E	TLCS-47E	TLCS-47E	TLCS-47E	TLCS-47E	TLCS-47E
maximum clock frequency	-	-	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	-	-	NO	NO	NO	NO	NO	NO
DMA channel	-	-	NO	NO	NO	NO	NO	NO
JESD-30 code	-	-	R-PDIP-T28	R-PDSO-G30	R-PDSO-G28	R-PDIP-T28	R-PDSO-G30	R-PDSO-G28
JESD-609 code	-	-	e0	e0	e0	e0	e0	e0
length	-	-	25.6 mm	9.7 mm	18.5 mm	25.6 mm	9.7 mm	18.5 mm
Number of I/O lines	-	-	23	23	23	23	23	23
Number of terminals	-	-	28	30	28	28	30	28
Maximum operating temperature	-	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-	-	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	-	-	NO	NO	NO	NO	NO	NO
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	-	SDIP	LSSOP	SOP	SDIP	LSSOP	SOP
Encapsulate equivalent code	-	-	SDIP28,.4	SSOP30,.3	SOP28,.5	SDIP28,.4	SSOP30,.3	SOP28,.5
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	IN-LINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	IN-LINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	-	2.2/5.5 V	2.2/5.5 V	2.2/5.5 V	2.2/5.5 V	2.2/5.5 V	2.2/5.5 V
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	-	-	128	128	128	64	64	64
rom(word)	-	-	4096	4096	4096	2048	2048	2048
ROM programmability	-	-	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	-	-	4.1 mm	1.55 mm	2.7 mm	4.1 mm	1.55 mm	2.7 mm
speed	-	-	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	-	-	4 mA	4 mA	4 mA	4 mA	4 mA	4 mA
Maximum supply voltage	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	-	-	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	-	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	-	NO	YES	YES	NO	YES	YES
technology	-	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	-	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	-	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	-	1.778 mm	0.65 mm	1.27 mm	1.778 mm	0.65 mm	1.27 mm
Terminal location	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	-	10.16 mm	5.6 mm	8.8 mm	10.16 mm	5.6 mm	8.8 mm
uPs/uCs/peripheral integrated circuit type	-	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
