TMP47C233AN datasheet, PDF - EEWORLD Datasheet

TMP47C233AN: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size801KB，18 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

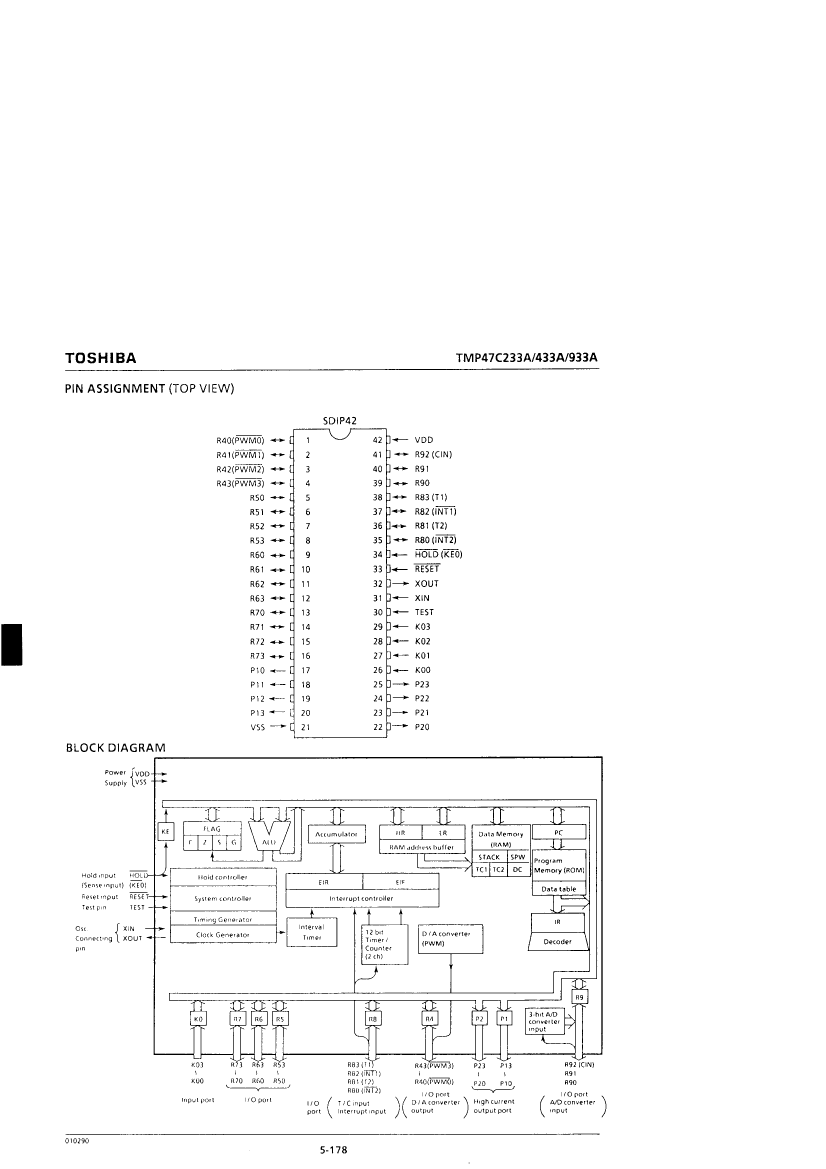

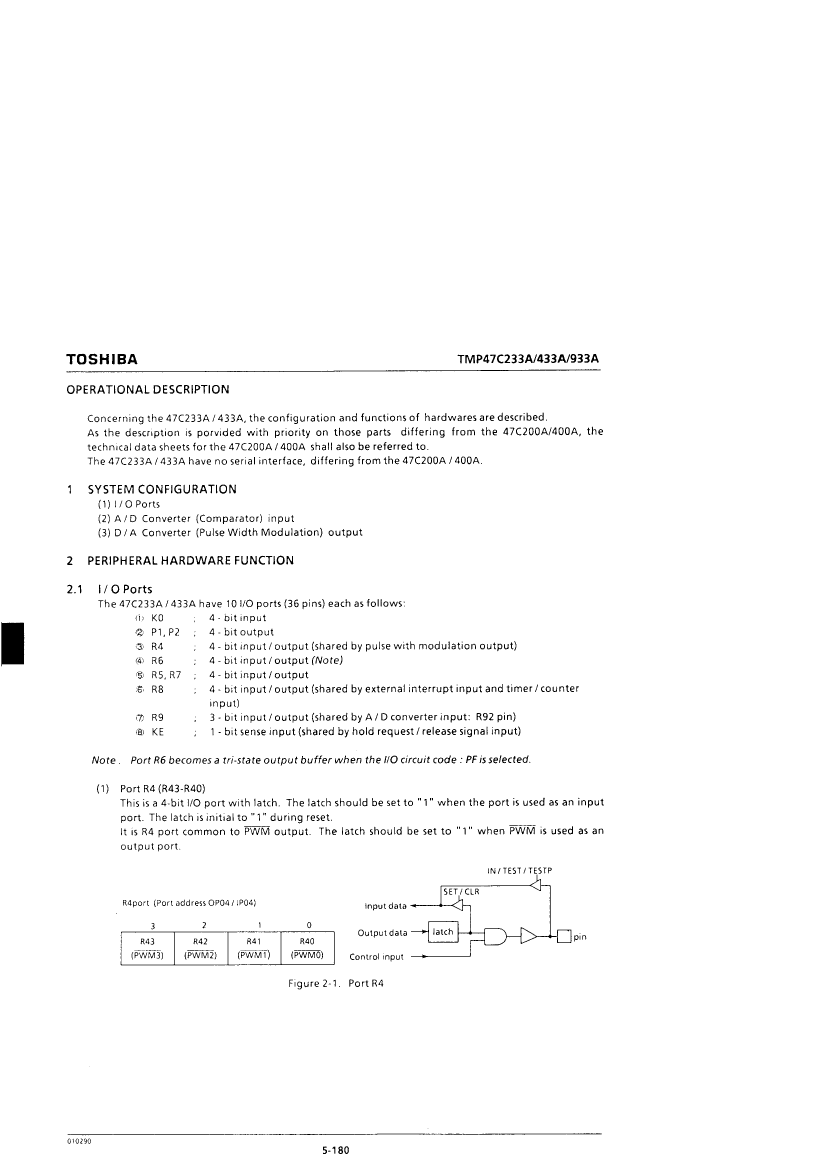

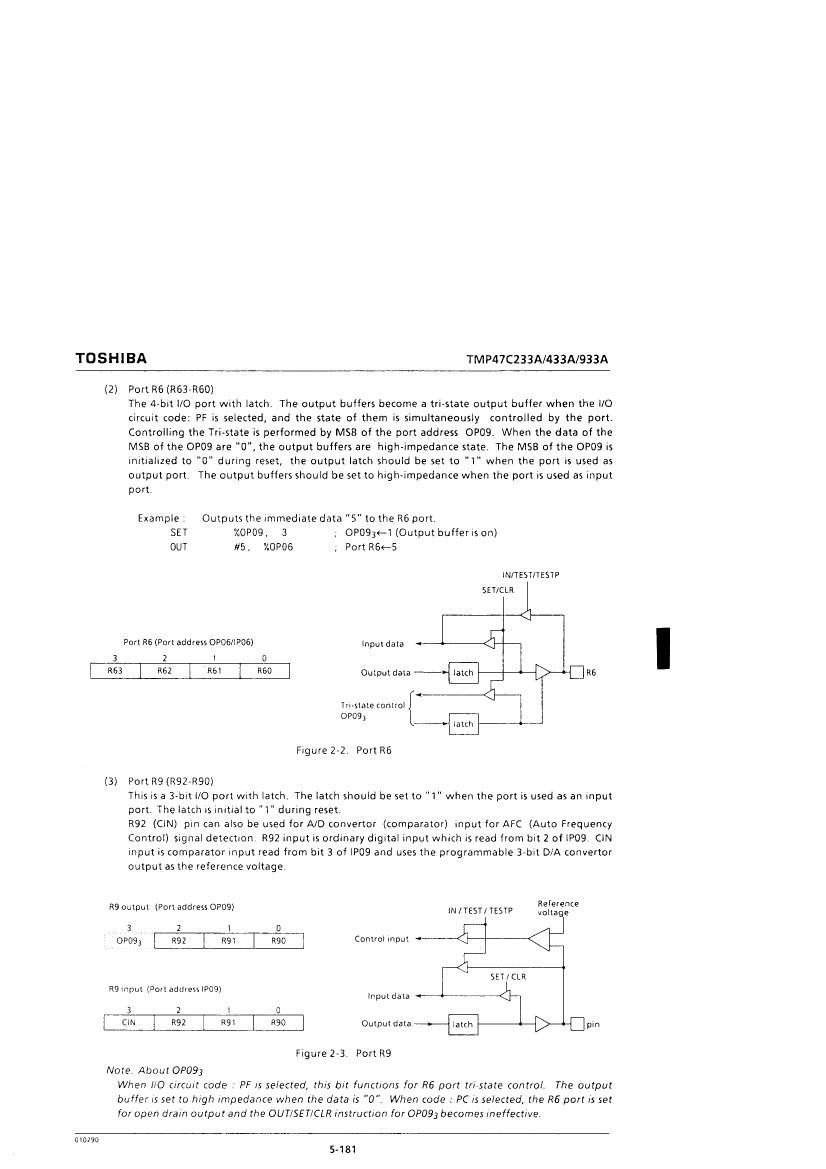

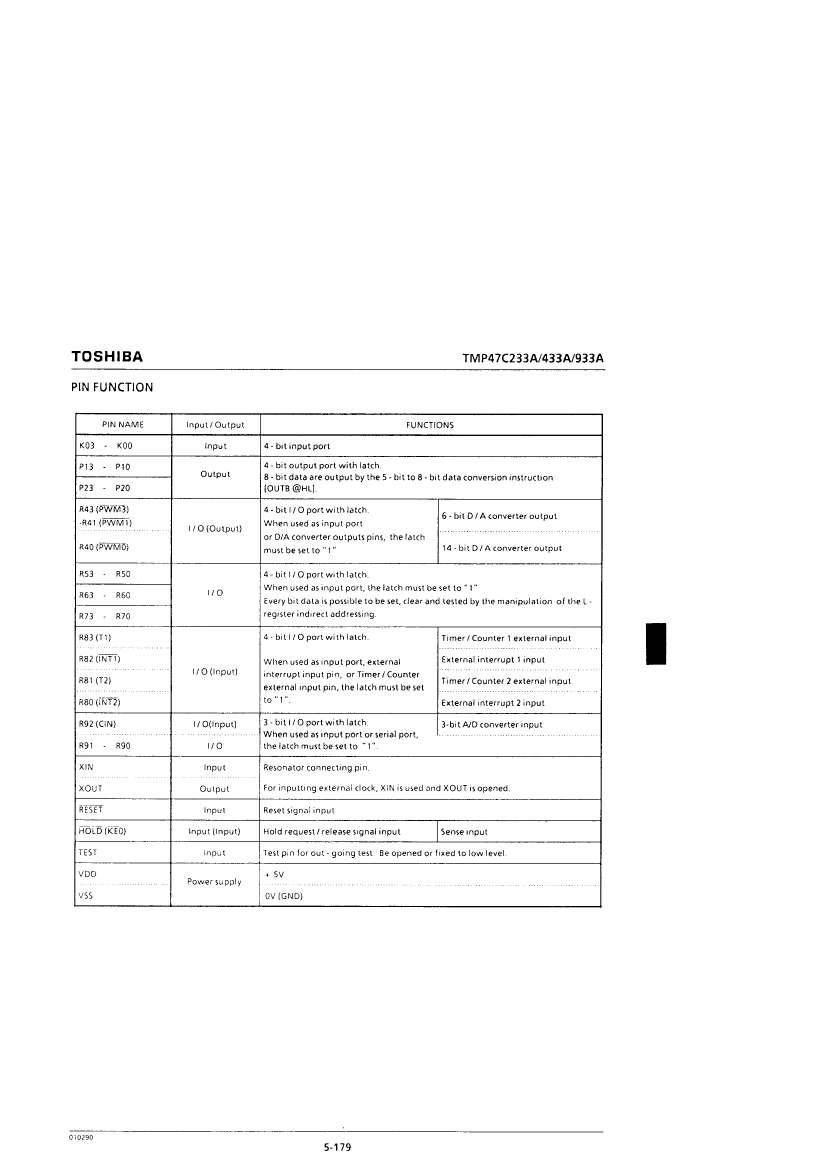

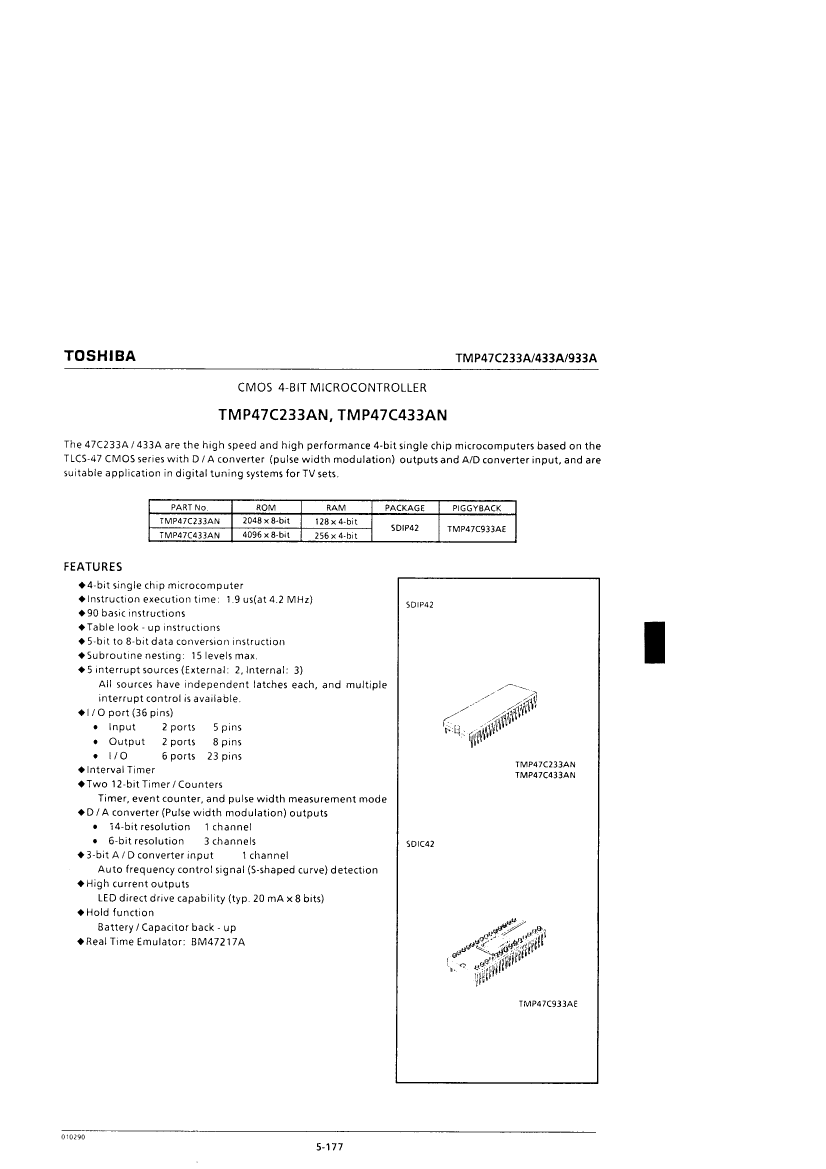

TMP47C233AN Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP,
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	38 mm
Number of I/O lines	35
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	4.5 mm
Maximum slew rate	6 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	TMP47C233AN	TMP47C433AN
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	SDIP,	SDIP,
Contacts	42	42
Reach Compliance Code	unknow	unknow
Has ADC	YES	YES
bit size	4	4
maximum clock frequency	4.2 MHz	4.2 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T42	R-PDIP-T42
JESD-609 code	e0	e0
length	38 mm	38 mm
Number of I/O lines	35	35
Number of terminals	42	42
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	4.5 mm	4.5 mm
Maximum slew rate	6 mA	6 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
