TMP47C220AF datasheet, PDF - EEWORLD Datasheet

TMP47C220AF: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size78KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

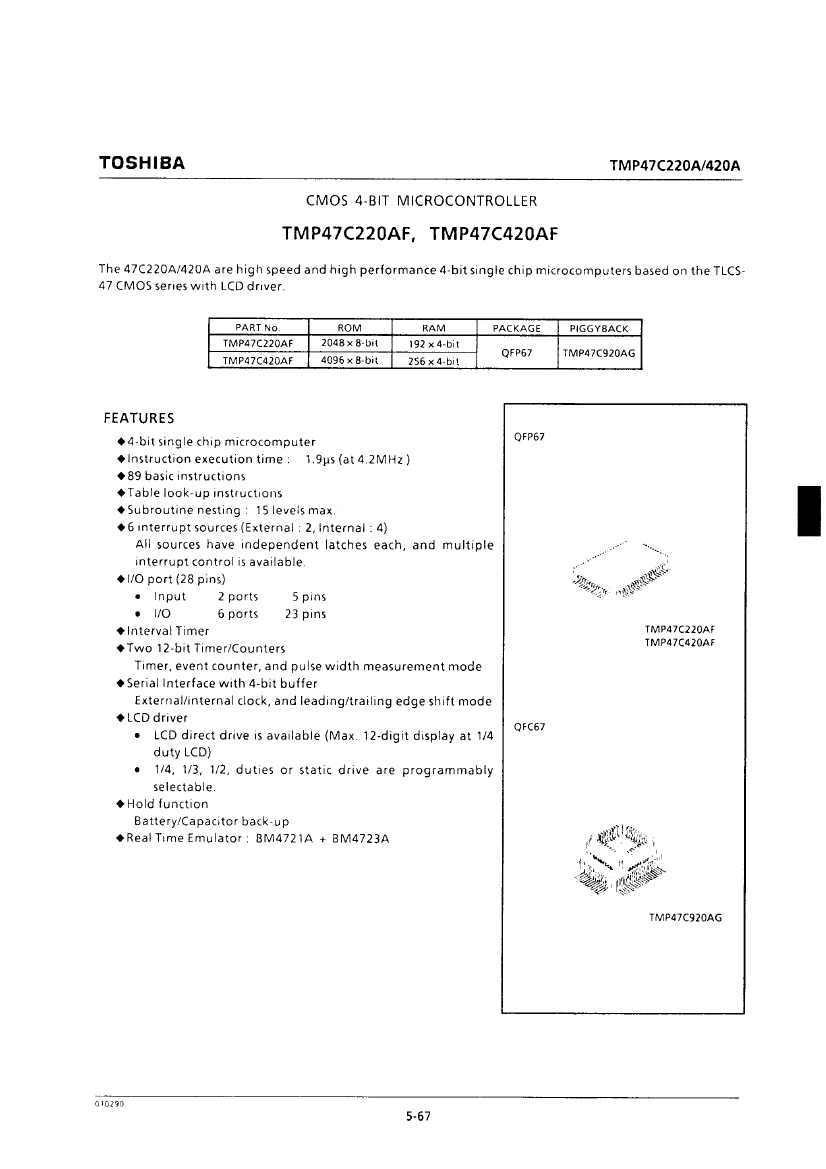

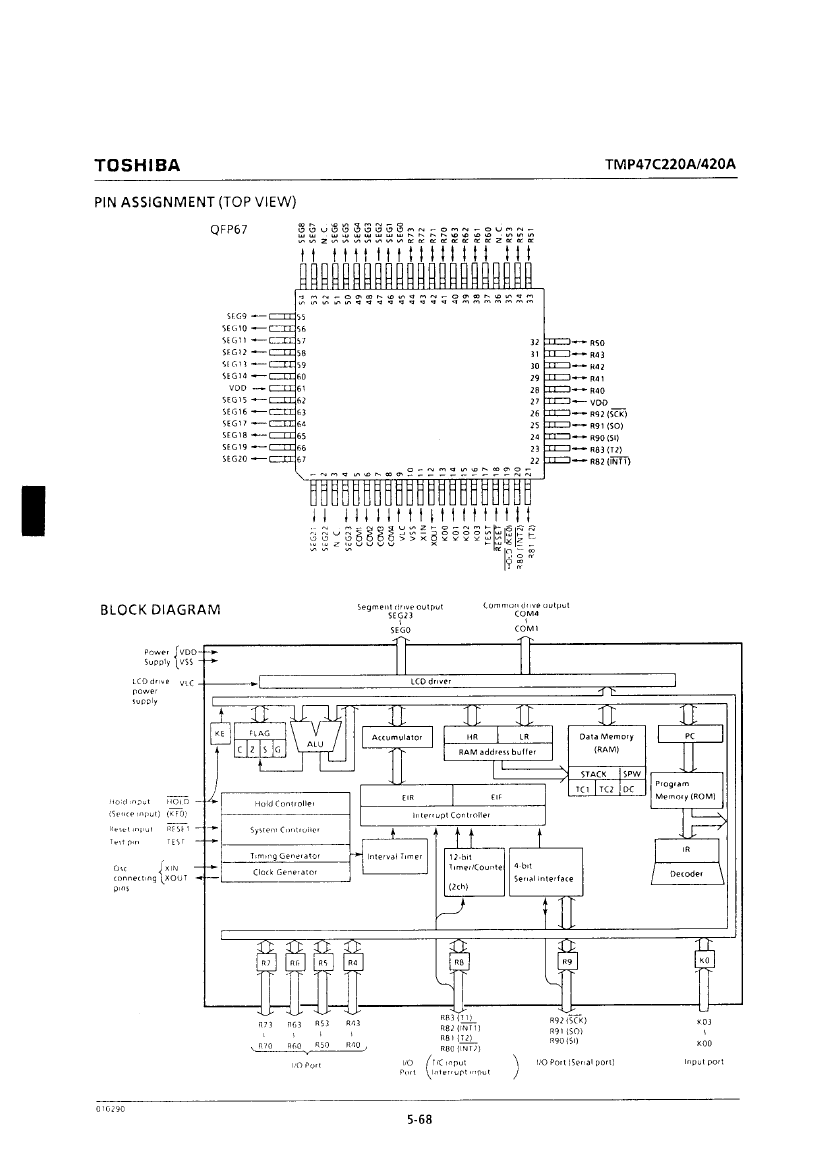

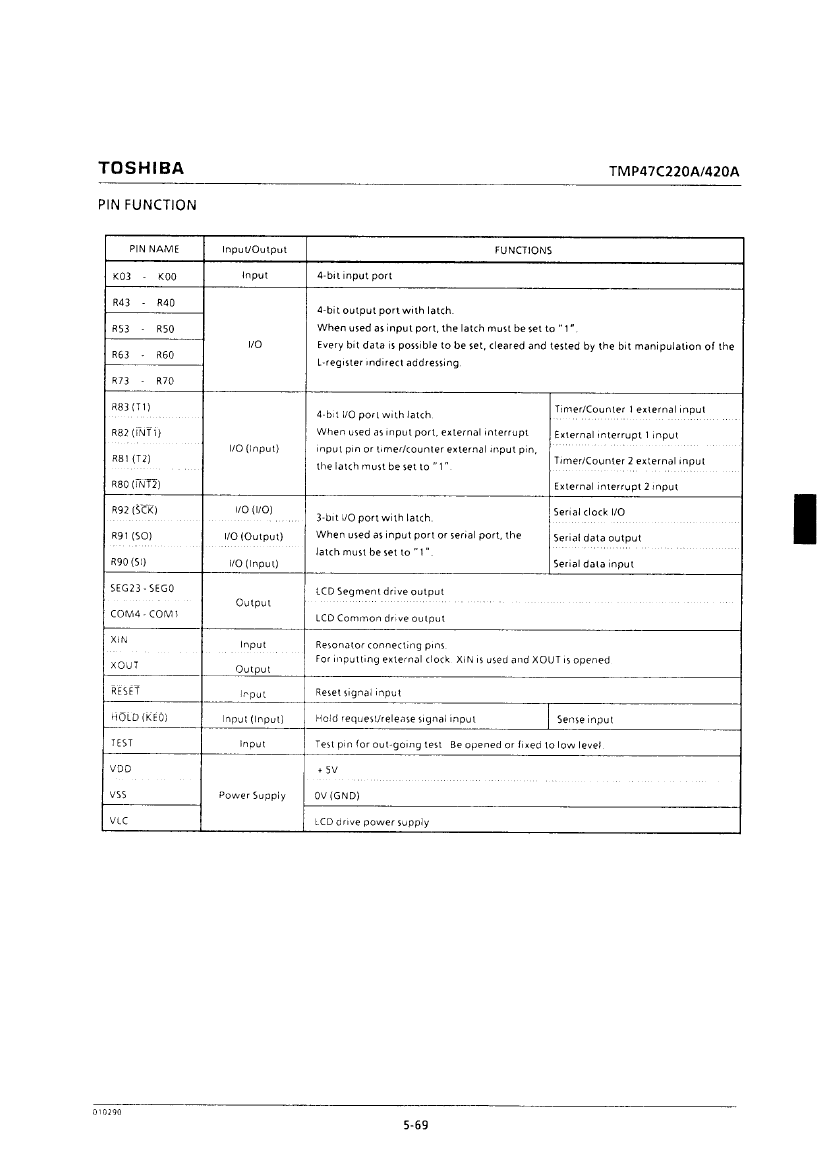

TMP47C220AF Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	QFP, QFP67,.7X.95,32
Reach Compliance Code	unknow
bit size	4
CPU series	TLCS-47
JESD-30 code	R-PQFP-G67
JESD-609 code	e0
Number of terminals	67
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP67,.7X.95,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	96
rom(word)	2048
ROM programmability	MROM
speed	4.2 MHz
Maximum slew rate	6.3 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD

	TMP47C220AF	TMP47C420AF
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
package instruction	QFP, QFP67,.7X.95,32	QFP, QFP67,.7X.95,32
Reach Compliance Code	unknow	unknow
bit size	4	4
CPU series	TLCS-47	TLCS-47
JESD-30 code	R-PQFP-G67	R-PQFP-G67
JESD-609 code	e0	e0
Number of terminals	67	67
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP67,.7X.95,32	QFP67,.7X.95,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	96	128
rom(word)	2048	4096
ROM programmability	MROM	MROM
speed	4.2 MHz	4.2 MHz
Maximum slew rate	6.3 mA	6.3 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
