TMP47C212AN datasheet, PDF - EEWORLD Datasheet

TMP47C212AN: Descriptioncmos 4-bit microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size546KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

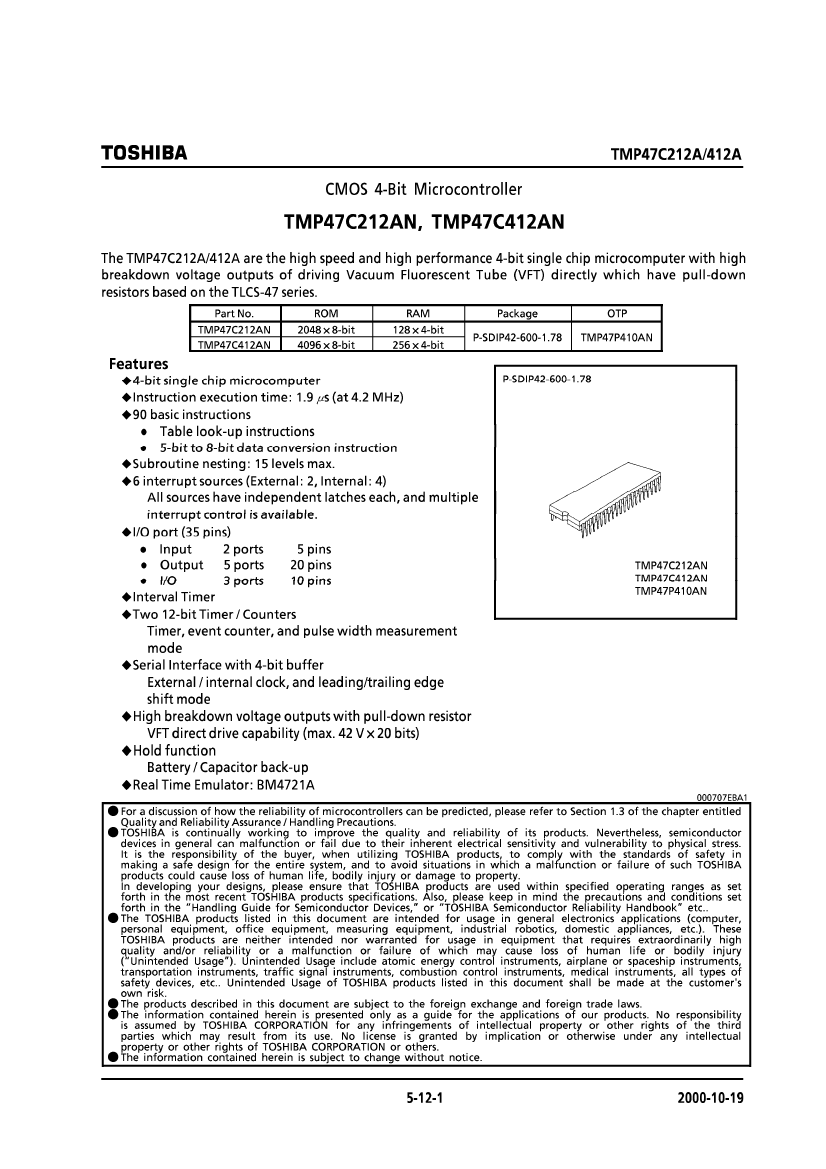

TMP47C212AN Overview

cmos 4-bit microcontroller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6

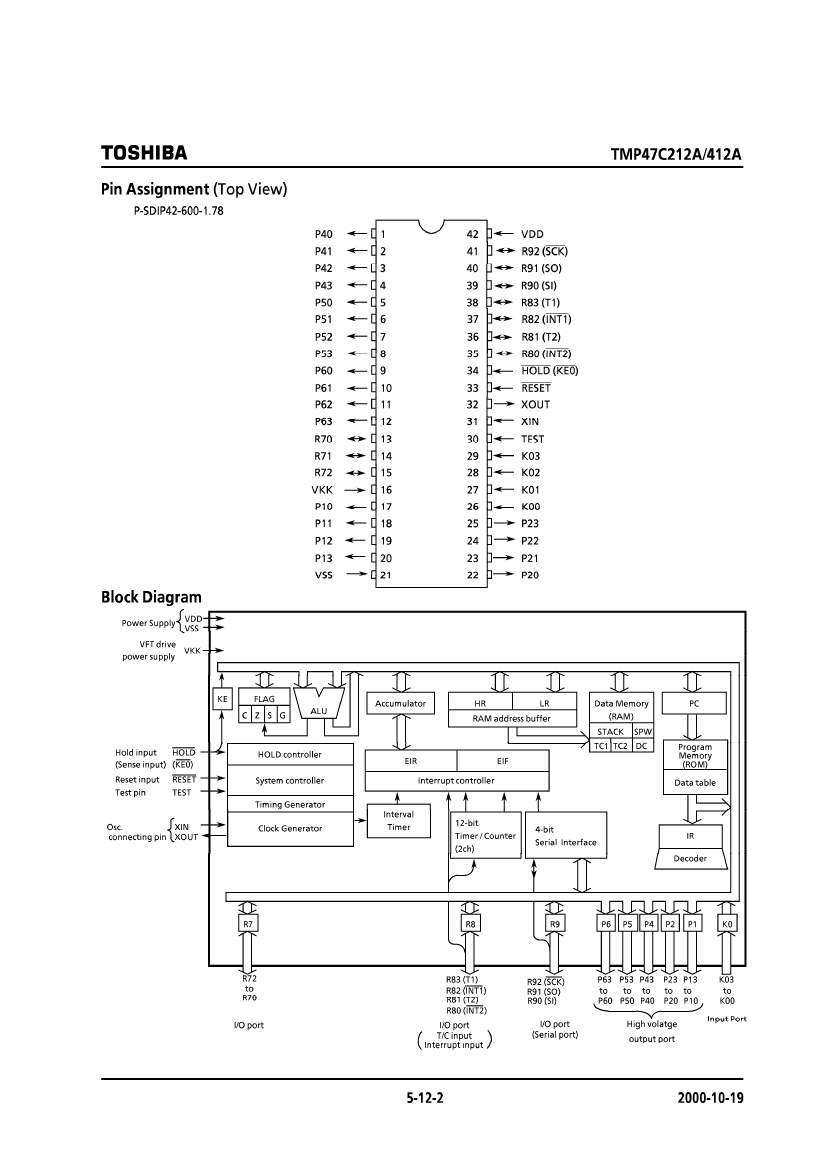

Contacts	42
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
CPU series	TLCS-47
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
length	38 mm

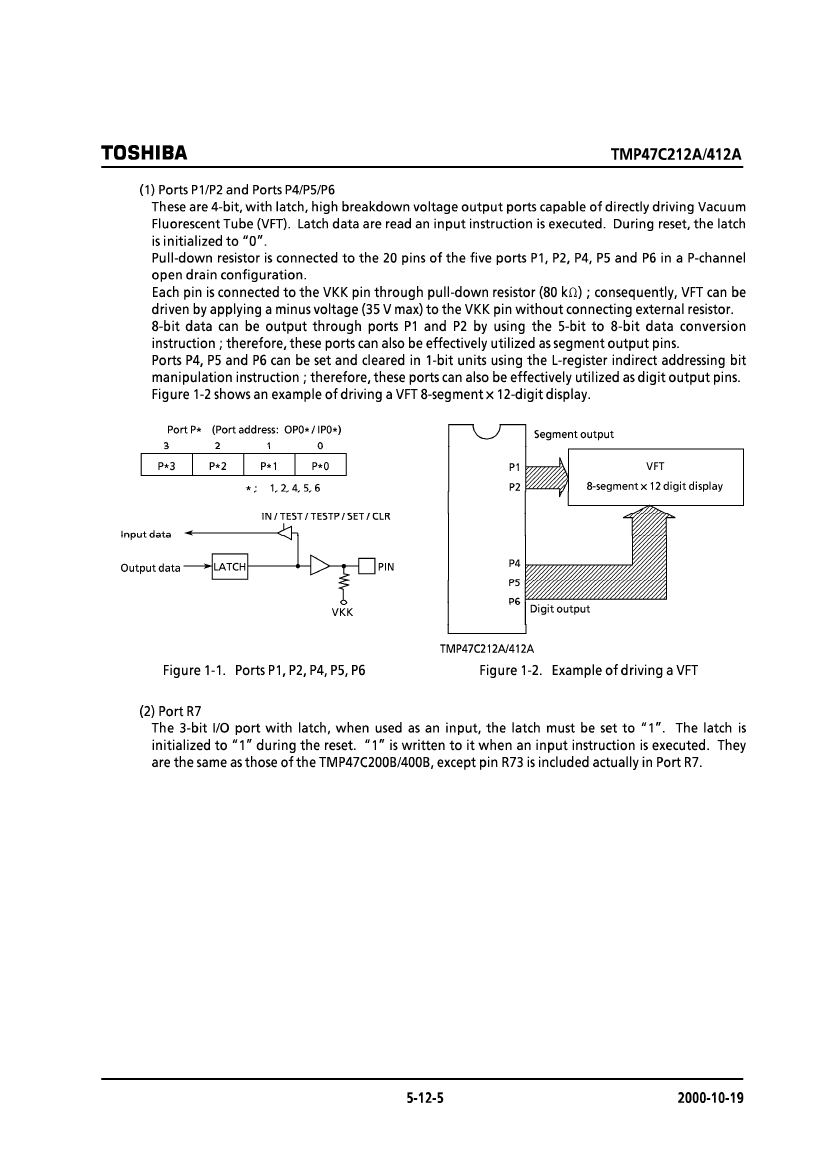

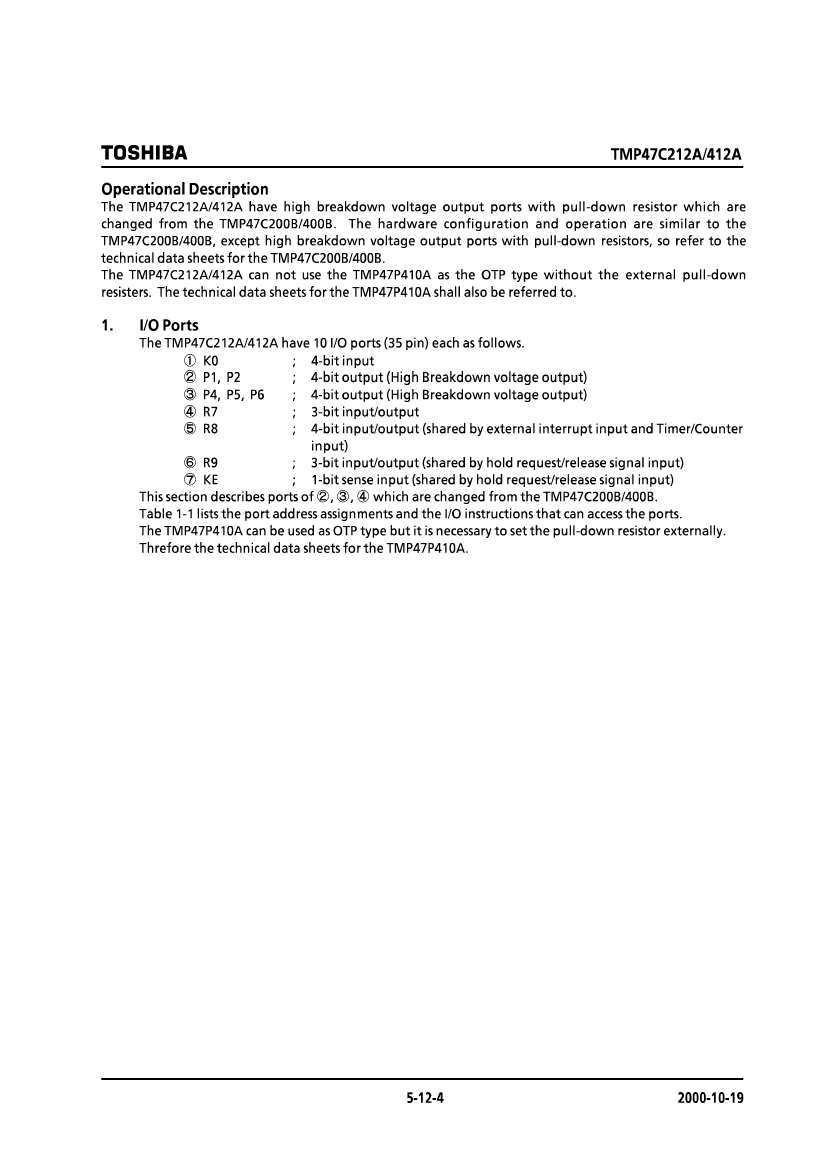

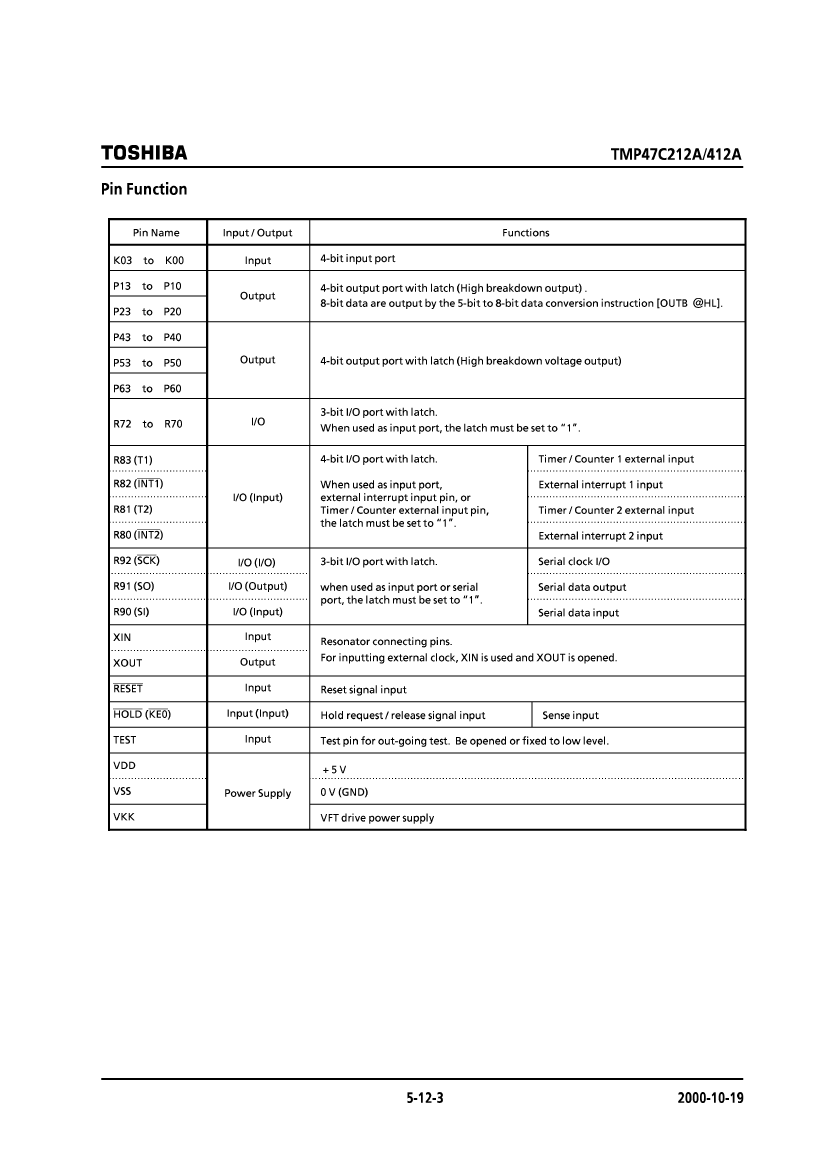

Number of I/O lines	34
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	2048
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	4.2 MHz
Maximum slew rate	6.3 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TMP47C212AN	TMP47C412AN
Description	cmos 4-bit microcontroller	cmos 4-bit microcontroller
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	SDIP, SDIP42,.6	SDIP, SDIP42,.6
Contacts	42	42
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
bit size	4	4
CPU series	TLCS-47	TLCS-47
maximum clock frequency	4.2 MHz	4.2 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T42	R-PDIP-T42
length	38 mm	38 mm
Number of I/O lines	34	34
Number of terminals	42	42
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP
Encapsulate equivalent code	SDIP42,.6	SDIP42,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	64	128
rom(word)	2048	4096
ROM programmability	MROM	MROM
Maximum seat height	4.5 mm	4.5 mm
speed	4.2 MHz	4.2 MHz
Maximum slew rate	6.3 mA	6.3 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
