TMP47C210AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP47C210AF

TMP47C210AF: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size284KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C210AF Overview

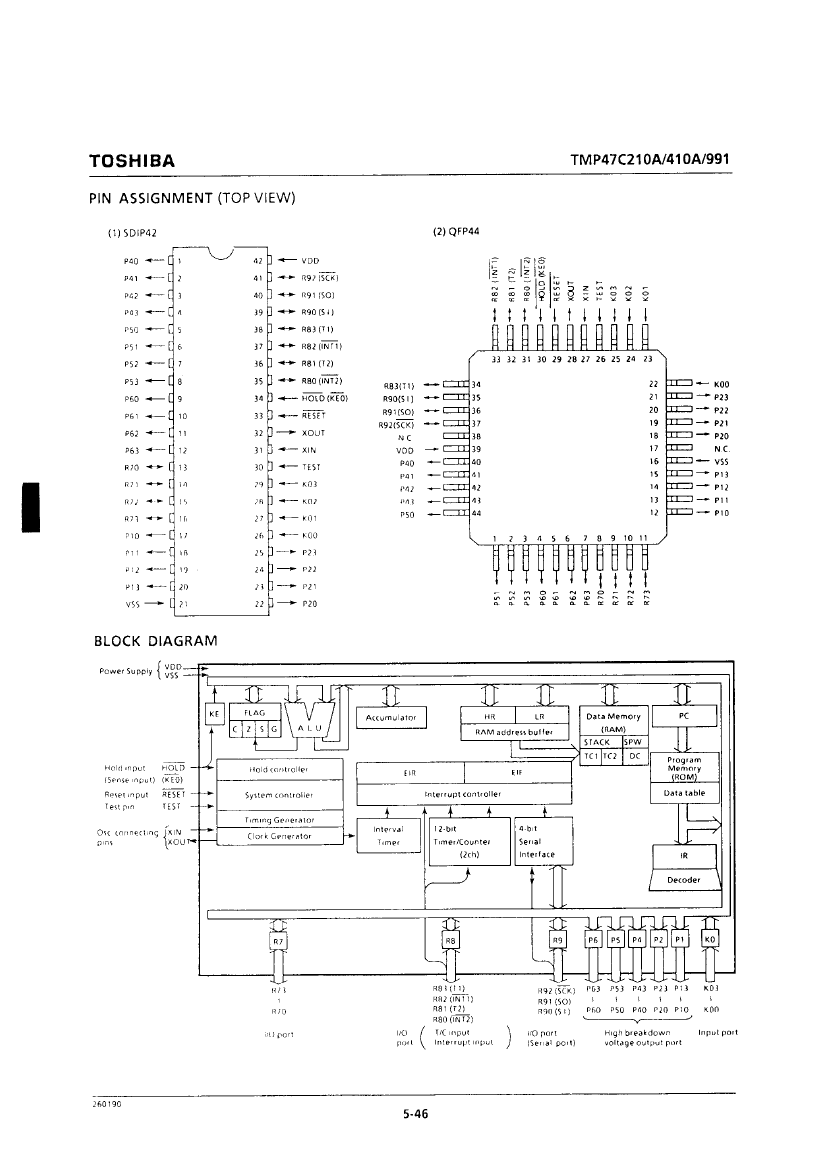

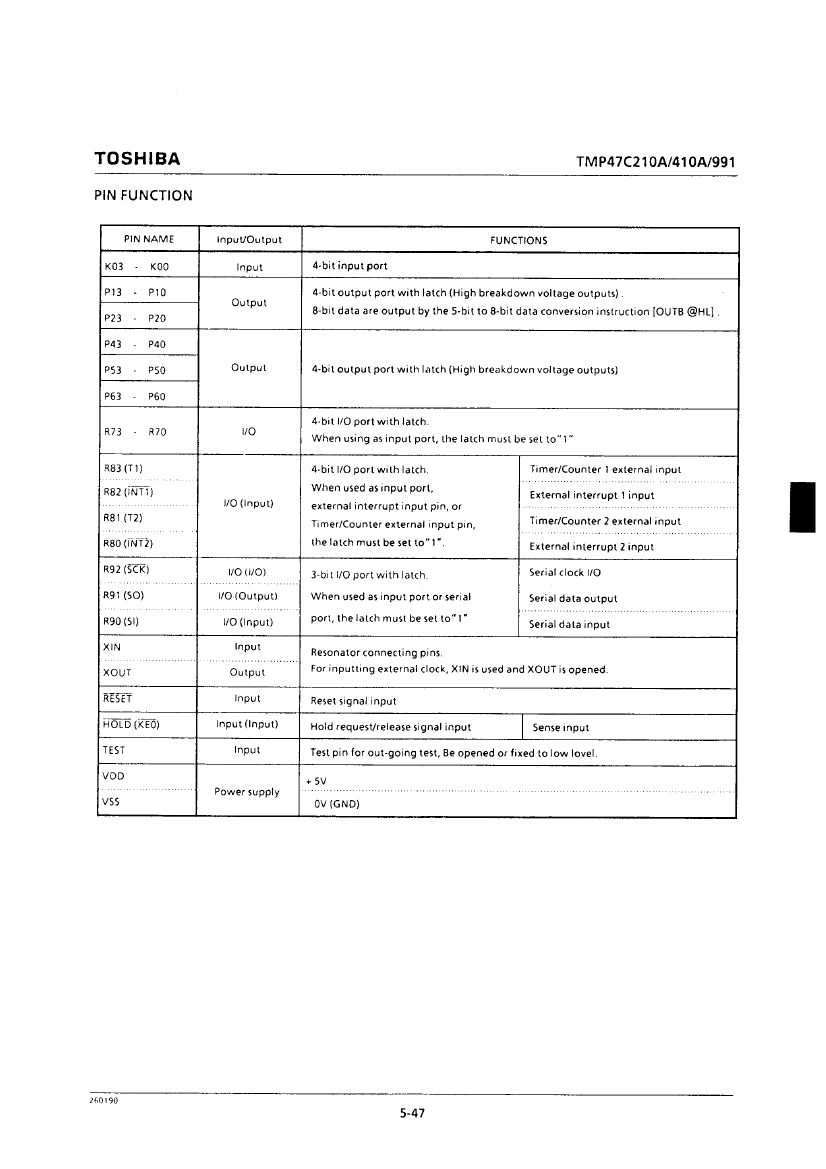

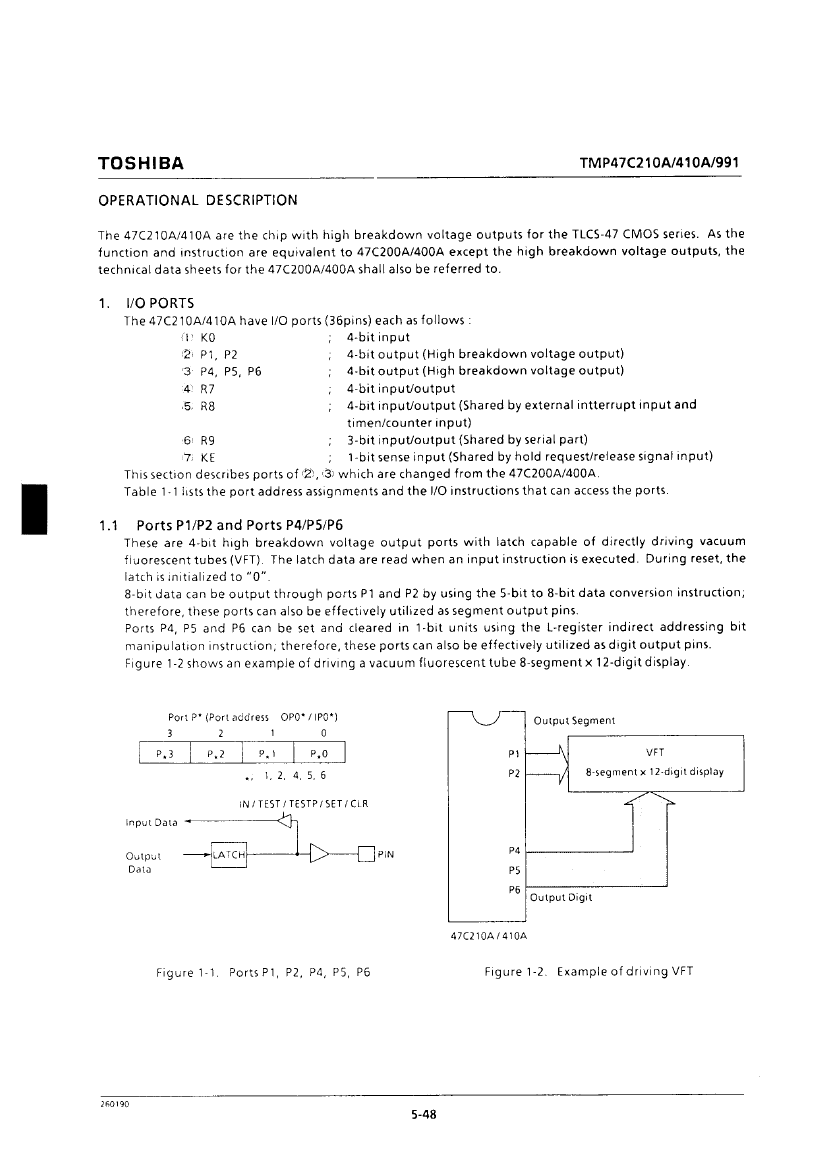

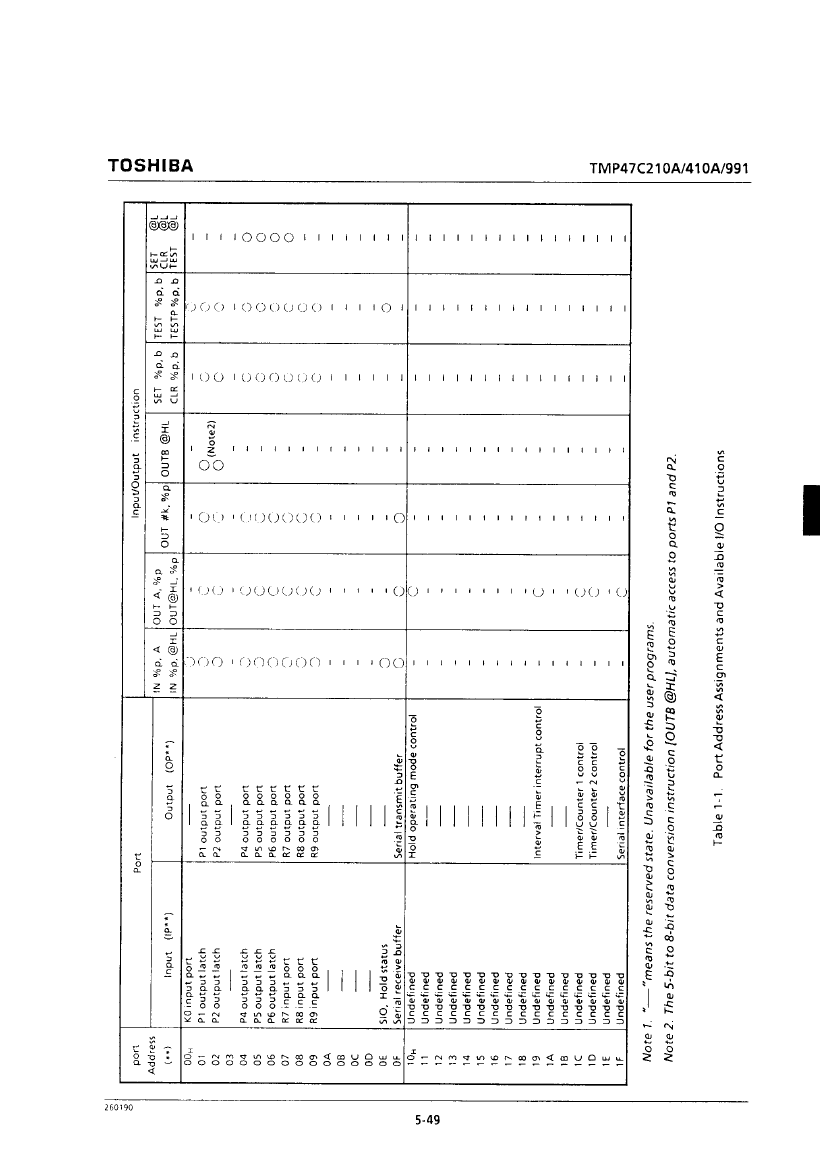

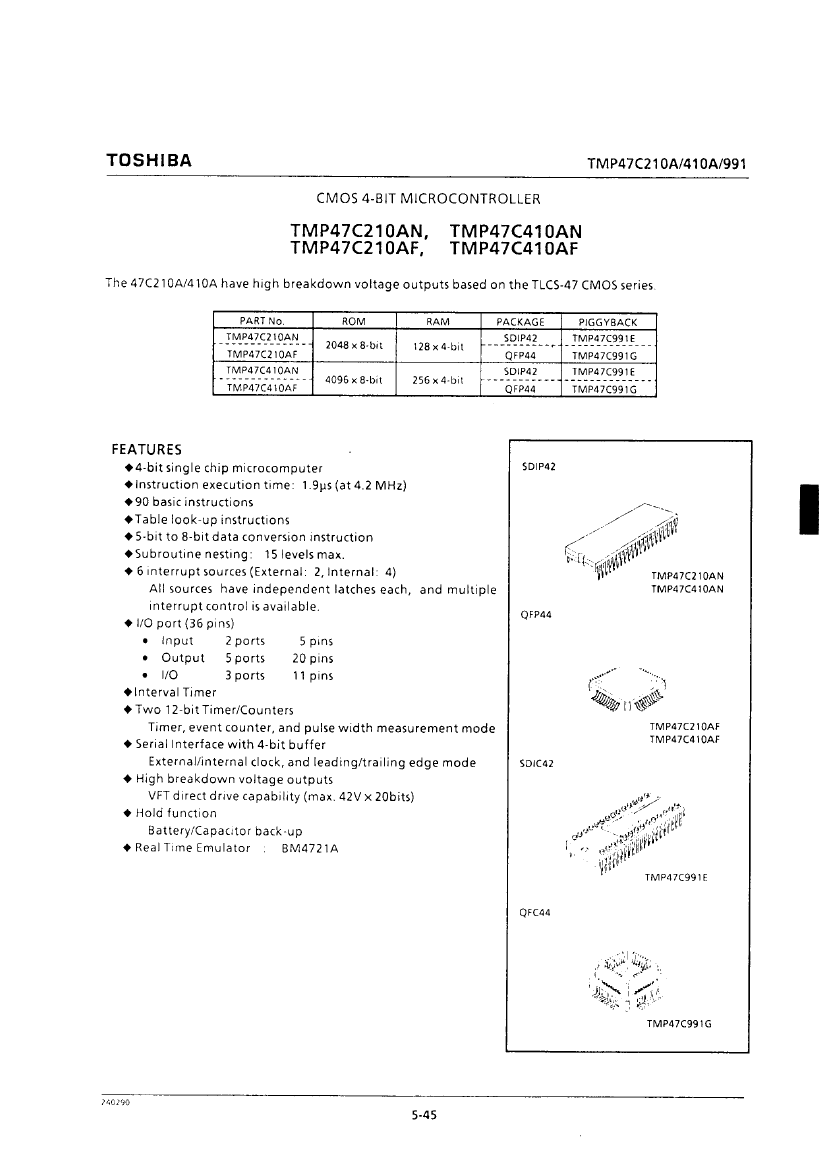

CMOS 4-BIT MICROCONTROLLER

TMP47C210AF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP44,.7SQ,32
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
CPU series	TLCS-47
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
length	14 mm
Number of I/O lines	35
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	2048
ROM programmability	MROM
Maximum seat height	3.05 mm
speed	4.2 MHz
Maximum slew rate	6.3 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

TMP47C210AF Related Products

	TMP47C210AF	TMP47C991G	TMP47C991E	TMP47C410AN	TMP47C410AF	TMP47C210AN
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	-	DIP	DIP	QFP	DIP
package instruction	QFP, QFP44,.7SQ,32	-	ASDIP,	SDIP, SDIP42,.6	QFP, QFP44,.7SQ,32	SDIP, SDIP42,.6
Contacts	44	-	42	42	44	42
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow
Has ADC	NO	-	NO	NO	NO	NO
bit size	4	-	4	4	4	4
CPU series	TLCS-47	-	-	TLCS-47	TLCS-47	TLCS-47
maximum clock frequency	4.2 MHz	-	-	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	-	NO	NO	NO	NO
DMA channel	NO	-	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	-	R-PDIP-T42	R-PDIP-T42	S-PQFP-G44	R-PDIP-T42
length	14 mm	-	38 mm	38 mm	14 mm	38 mm
Number of I/O lines	35	-	35	35	35	35
Number of terminals	44	-	42	42	44	42
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	-	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	-	ASDIP	SDIP	QFP	SDIP
Encapsulate equivalent code	QFP44,.7SQ,32	-	-	SDIP42,.6	QFP44,.7SQ,32	SDIP42,.6
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	-	IN-LINE, PIGGYBACK, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	-	5 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	-	-	128	128	64
rom(word)	2048	-	-	4096	4096	2048
ROM programmability	MROM	-	-	MROM	MROM	MROM
Maximum seat height	3.05 mm	-	6.7 mm	4.5 mm	3.05 mm	4.5 mm
speed	4.2 MHz	-	-	4.2 MHz	4.2 MHz	4.2 MHz
Maximum slew rate	6.3 mA	-	-	6.3 mA	6.3 mA	6.3 mA
Maximum supply voltage	6 V	-	6 V	6 V	6 V	6 V
Minimum supply voltage	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	-	-	5 V	5 V	5 V
surface mount	YES	-	NO	NO	YES	NO
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	-	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	-	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	-	1.778 mm	1.778 mm	0.8 mm	1.778 mm
Terminal location	QUAD	-	DUAL	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	-	15.24 mm	15.24 mm	14 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
