MOS6020-474ML: Description1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size198KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

MOS6020-474ML Overview

1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

MOS6020-474ML Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 Cel
Minimum operating temperature	-40 Cel
Rated inductance	2.2 uH
self resonant frequency	110 MHz
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
isolation	Yes
core material	FERRITE
DC Resistance	0.0350 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
terminal coating	MATTE TIN OVER NICKEL
Terminal layout	DUAL ENDED
Manufacturer Series	MOS6020
Inductor applications	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	20 %
Inductor type	GENERAL PURPOSE INDUCTOR
1Rated value test frequency	0.1000 MHz

Preview

Download Datasheet

View All

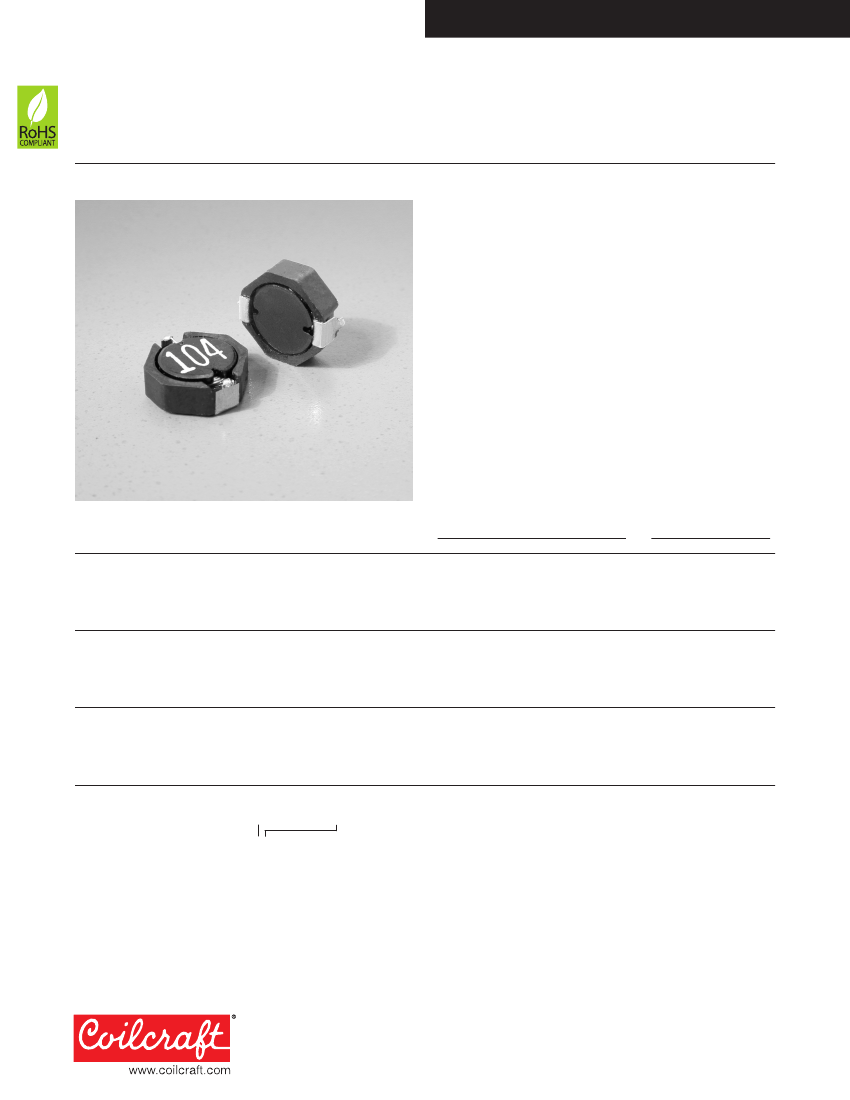

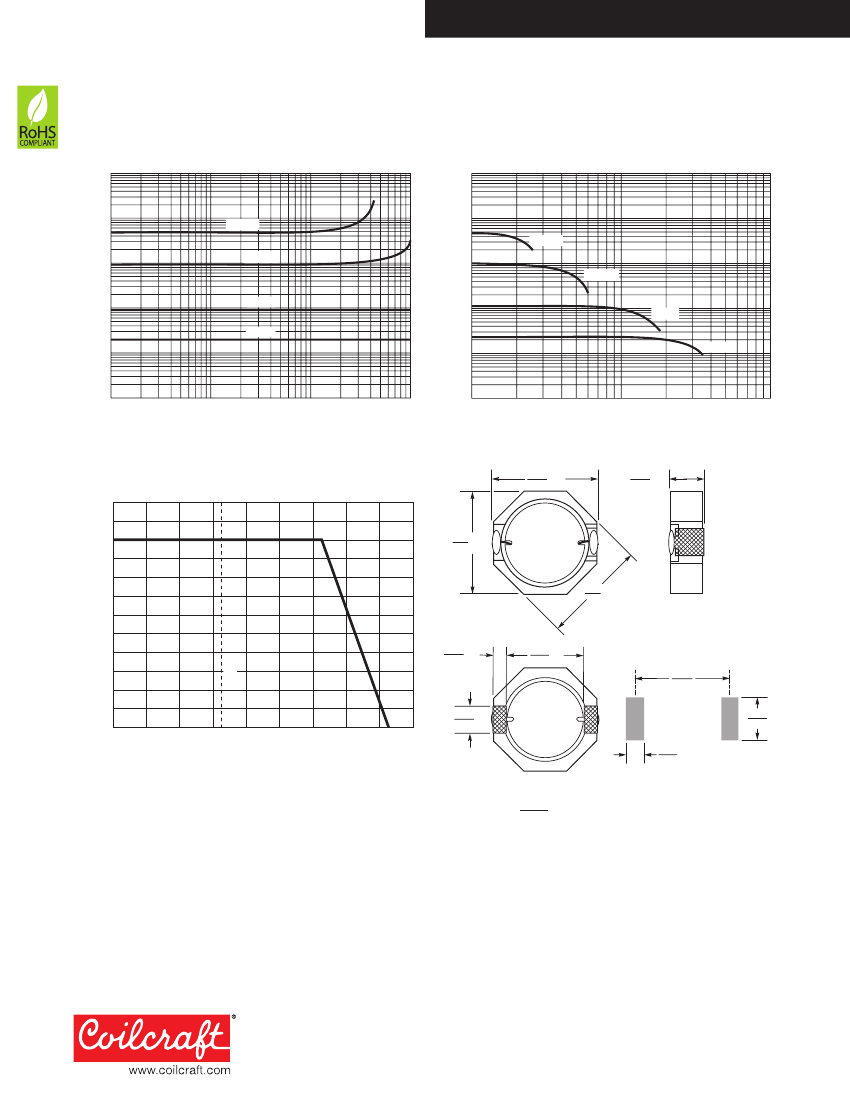

Document 287 -1

Shielded Power Inductors – MOS6020

• 6.0 × 7.1 mm footprint; 2.4 mm high shielded inductors

• Custom versions up to 4.7 mH are available.

Designer’s Kit C359

contains 3 of each value

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant matte tin over nickel over phos bronze.

Other terminations available at additional cost.

Weight

0.21 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

500 per 7″ reel; 2000 per 13″ reel; Plastic tape: 16 mm wide,

0.3 mm thick, 12 mm pocket spacing, 2.5 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

1

MOS6020-222ML_

MOS6020-332ML_

MOS6020-472ML_

MOS6020-682ML_

MOS6020-822ML_

MOS6020-103ML_

MOS6020-153ML_

MOS6020-223ML_

MOS6020-333ML_

MOS6020-473ML_

MOS6020-683ML_

MOS6020-104ML_

MOS6020-154ML_

MOS6020-224ML_

MOS6020-334ML_

MOS6020-474ML_

Inductance

2

±20% (µH)

2.2

3.3

4.7

6.8

8.2

10

15

22

33

47

68

100

150

220

330

470

DCR max

(Ohms)

0.035

0.046

0.050

0.078

0.085

0.092

0.130

0.182

0.290

0.420

0.520

0.800

1.28

2.00

2.84

4.40

SRF typ

3

(MHz)

110

85

60

55

45

36

30

22

20

16

15

13

10

8

7

5

10% drop

2.86

1.90

1.46

1.32

0.94

0.79

0.83

0.79

0.57

0.45

0.37

0.35

0.26

0.22

0.18

0.15

Isat

(A)

4

20% drop

3.26

2.28

1.82

1.56

1.18

0.95

0.92

0.67

0.56

0.45

0.40

0.30

0.26

0.22

0.17

2

30% drop

3.56

2.46

1.94

1.72

1.30

1.06

1.03

0.97

0.74

0.62

0.51

0.44

0.33

0.28

0.24

0.19

Irms

(A)

5

20°C rise 40°C rise

3.0

4.1

2.6

3.6

2.3

3.1

1.9

2.7

1.7

2.3

1.6

2.2

1.3

1.8

1.0

1.4

0.80

1.1

0.50

0.7

0.45

0.63

0.40

0.56

0.35

0.49

0.30

0.42

0.25

0.35

0.22

0.29

1. When ordering, please specify

termination

and

packaging

codes:

Termination: L

=

Packaging:

C

=

B

=

D

=

MOS6020-104MLC

RoHS compliant matte tin over nickel over phos bronze.

Special order:

T

= RoHS tin-silver-copper (95.5/4/0.5)

or

S

= non-RoHS tin-lead (63/37).

7″ machine-ready reel. EIA-481 embossed plastic

tape (500 parts per full reel).

Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked (2000 parts per

full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/

HP 4263B LCR meter or equivalent.

3. SRF measured using Agilent/HP 8753D network analyzer.

4. DC current at which the inductance drops the specified amount from

its value without current.

5. Current that causes the specified temperature rise from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

US

+1-847-639-6400 sales@coilcraft.com

UK

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 287-1

Revised 10/06/08

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
