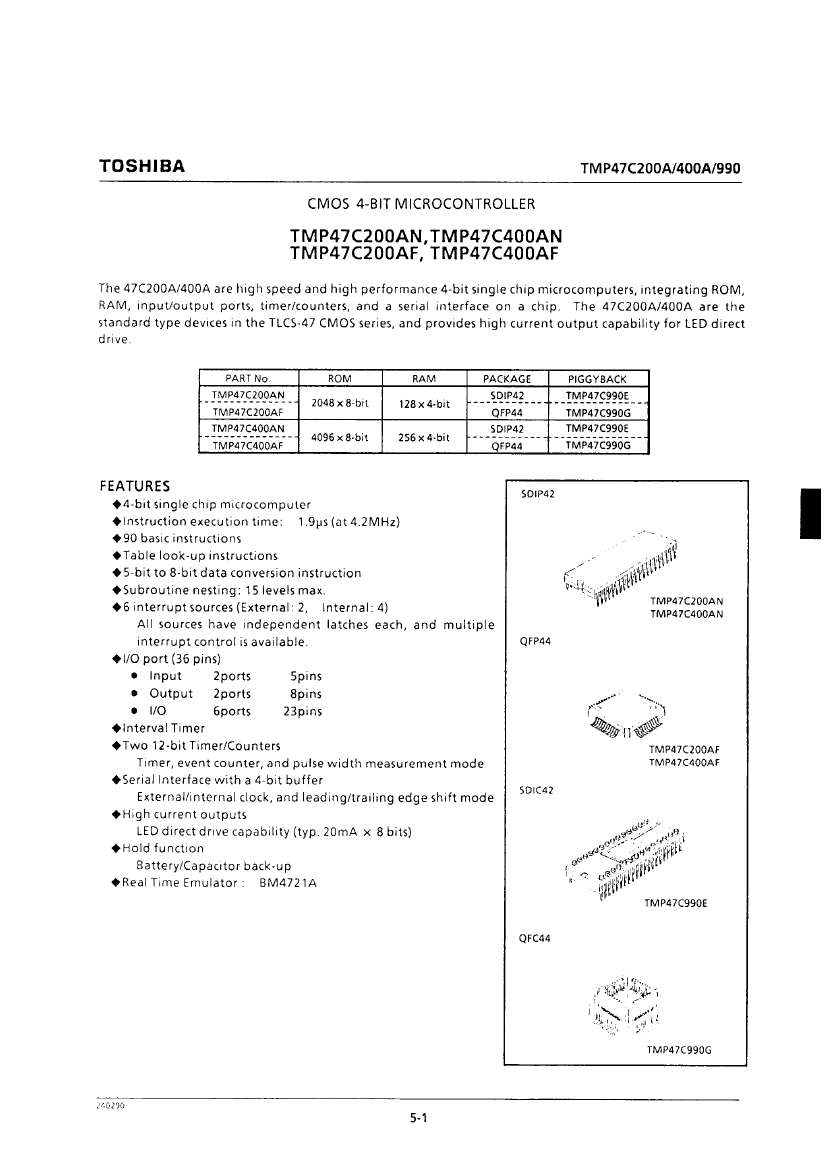

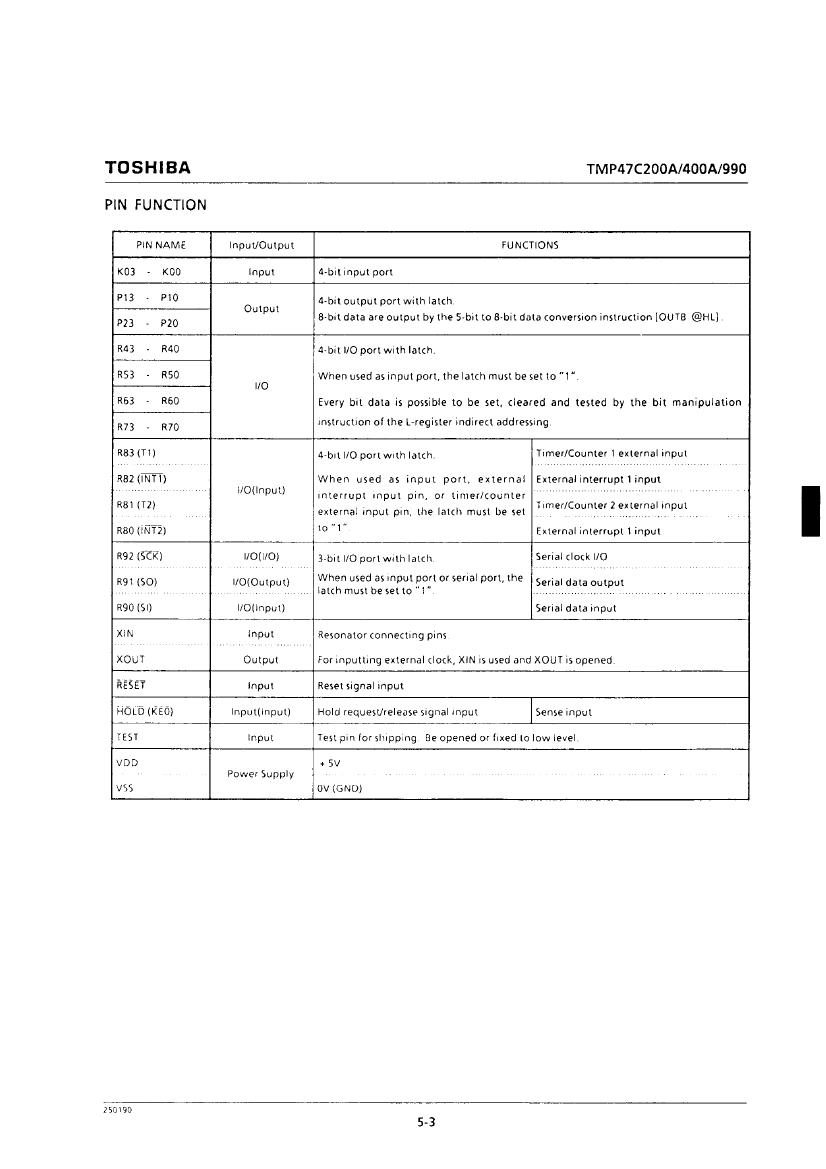

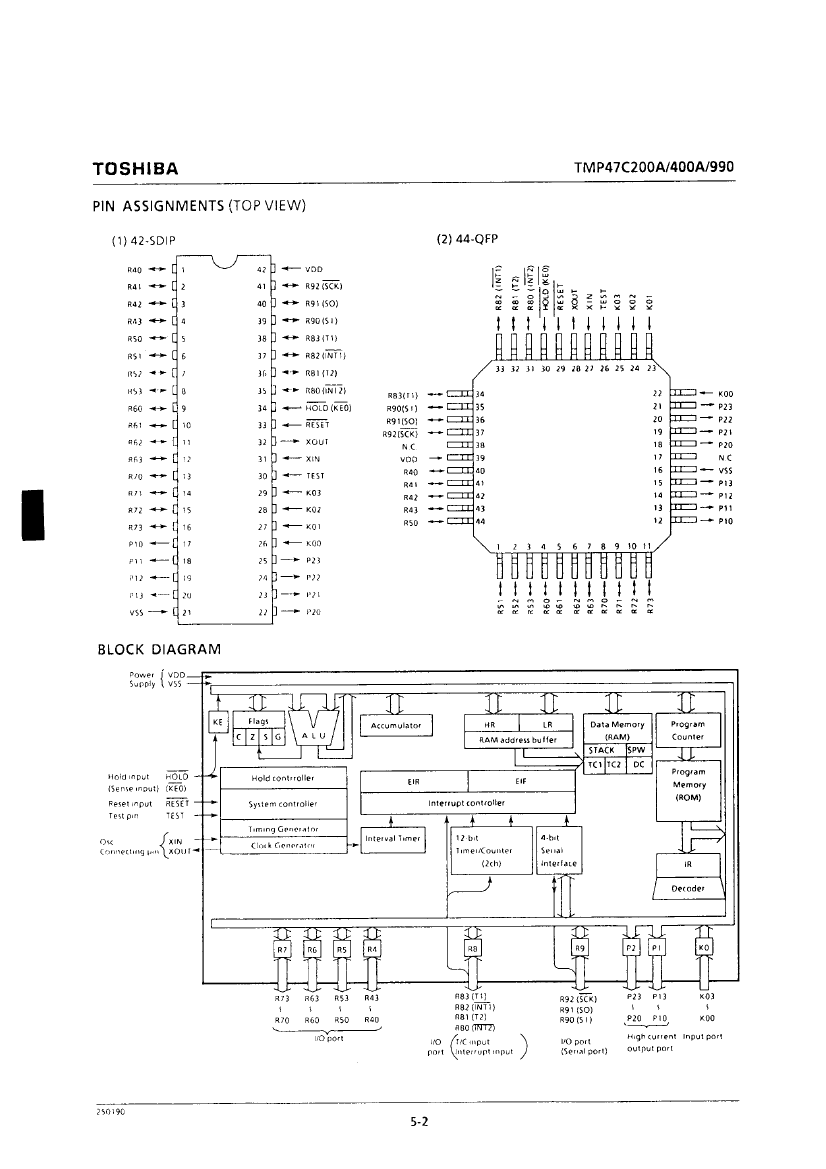

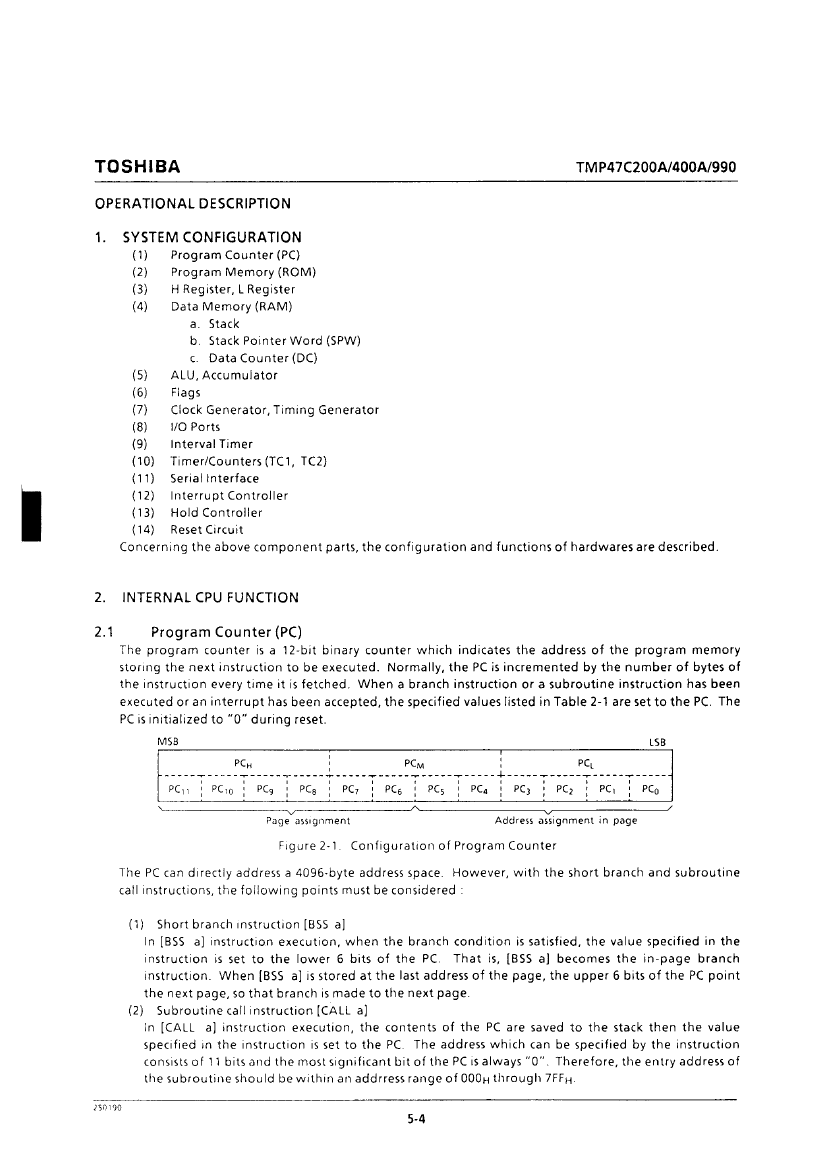

CMOS 4-BIT MICROCONTROLLER
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Reach Compliance Code | unknow |
| Has ADC | NO |
| Address bus width | 12 |
| bit size | 4 |
| CPU series | TLCS-47 |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| JESD-30 code | S-PQFP-G44 |
| JESD-609 code | e0 |
| length | 14 mm |
| Number of I/O lines | 36 |
| Number of terminals | 44 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -30 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LQFP |
| Encapsulate equivalent code | QFP44,.7SQ,32 |
| Package shape | SQUARE |
| Package form | FLATPACK, LOW PROFILE |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 64 |
| rom(word) | 2048 |
| ROM programmability | MROM |
| speed | 4.2 MHz |
| Maximum slew rate | 6.3 mA |
| Maximum supply voltage | 6 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULLWING |
| Terminal pitch | 0.8 mm |
| Terminal location | QUAD |
| width | 14 mm |
| TMP47C200AF | 47C400AN | TMP47C400AN | TMP47C400AF | TMP47C200AN | |
|---|---|---|---|---|---|
| Description | CMOS 4-BIT MICROCONTROLLER | CMOS 4-BIT MICROCONTROLLER | CMOS 4-BIT MICROCONTROLLER | CMOS 4-BIT MICROCONTROLLER | CMOS 4-BIT MICROCONTROLLER |
| Maker | Toshiba Semiconductor | - | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Reach Compliance Code | unknow | - | unknown | unknow | unknow |
| Has ADC | NO | - | NO | NO | NO |
| Address bus width | 12 | - | 12 | 12 | 12 |
| bit size | 4 | - | 4 | 4 | 4 |
| CPU series | TLCS-47 | - | TLCS-47 | TLCS-47 | TLCS-47 |
| DAC channel | NO | - | NO | NO | NO |
| DMA channel | NO | - | NO | NO | NO |
| External data bus width | 8 | - | 8 | 8 | 8 |
| JESD-30 code | S-PQFP-G44 | - | R-PDIP-T42 | S-PQFP-G44 | R-PDIP-T42 |
| Number of I/O lines | 36 | - | 36 | 36 | 36 |
| Number of terminals | 44 | - | 42 | 44 | 42 |
| Maximum operating temperature | 70 °C | - | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -30 °C | - | -30 °C | -30 °C | -30 °C |
| PWM channel | NO | - | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | LQFP | - | SDIP | LQFP | SDIP |
| Encapsulate equivalent code | QFP44,.7SQ,32 | - | SDIP42,.6 | QFP44,.7SQ,32 | SDIP42,.6 |
| Package shape | SQUARE | - | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | FLATPACK, LOW PROFILE | - | IN-LINE, SHRINK PITCH | FLATPACK, LOW PROFILE | IN-LINE, SHRINK PITCH |
| power supply | 5 V | - | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 64 | - | 128 | 128 | 64 |
| rom(word) | 2048 | - | 4096 | 4096 | 2048 |
| ROM programmability | MROM | - | MROM | MROM | MROM |
| speed | 4.2 MHz | - | 4.2 MHz | 4.2 MHz | 4.2 MHz |
| Maximum slew rate | 6.3 mA | - | 6.3 mA | 6.3 mA | 6.3 mA |
| Maximum supply voltage | 6 V | - | 6 V | 6 V | 6 V |
| Minimum supply voltage | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | YES | - | NO | YES | NO |
| technology | CMOS | - | CMOS | CMOS | CMOS |
| Temperature level | OTHER | - | OTHER | OTHER | OTHER |
| Terminal form | GULLWING | - | THROUGH-HOLE | GULLWING | THROUGH-HOLE |
| Terminal pitch | 0.8 mm | - | 1.78 mm | 0.8 mm | 1.78 mm |
| Terminal location | QUAD | - | DUAL | QUAD | DUAL |
