TMP47C1638N datasheet, PDF - EEWORLD Datasheet

TMP47C1638N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size951KB，30 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

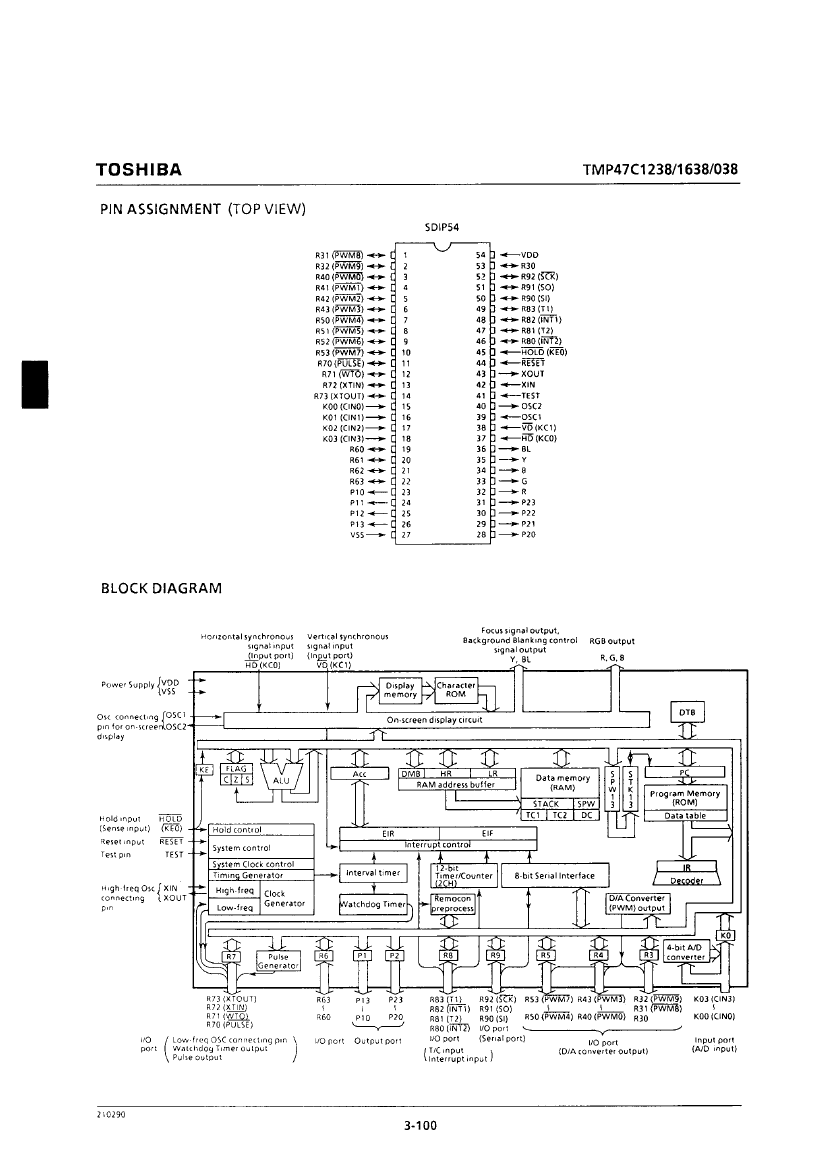

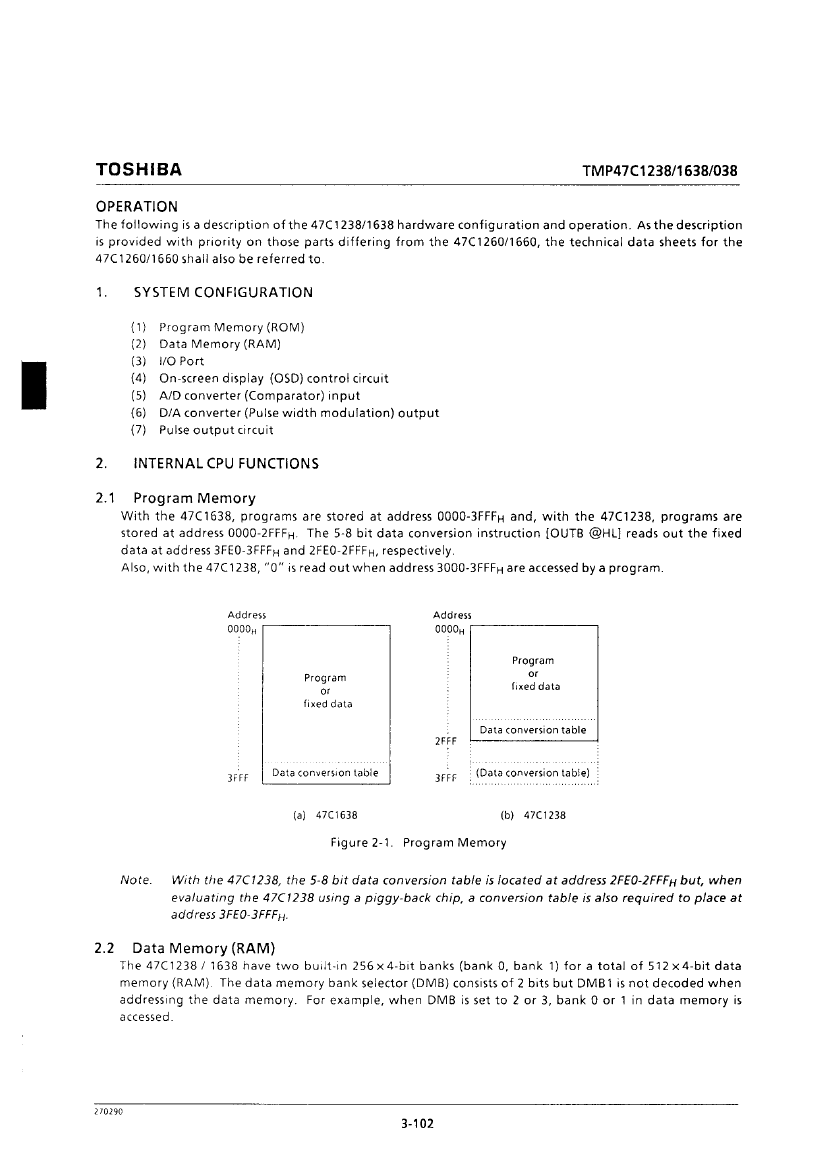

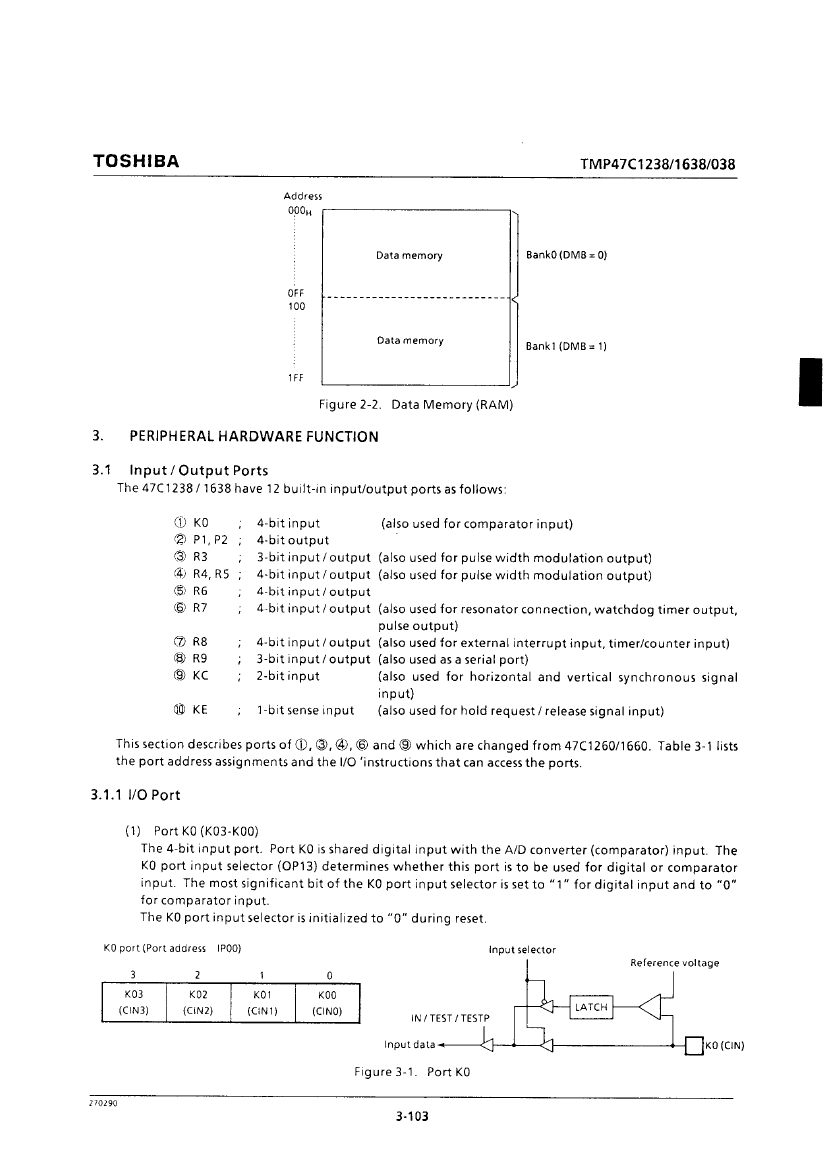

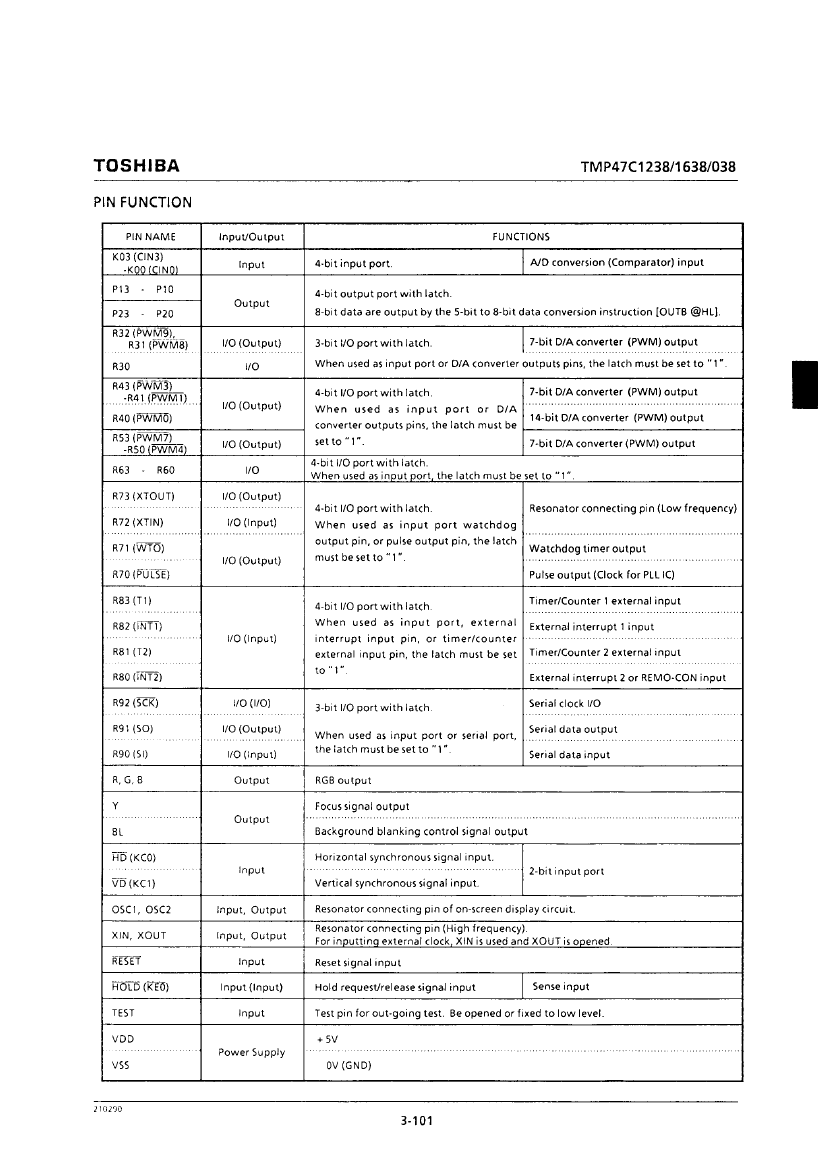

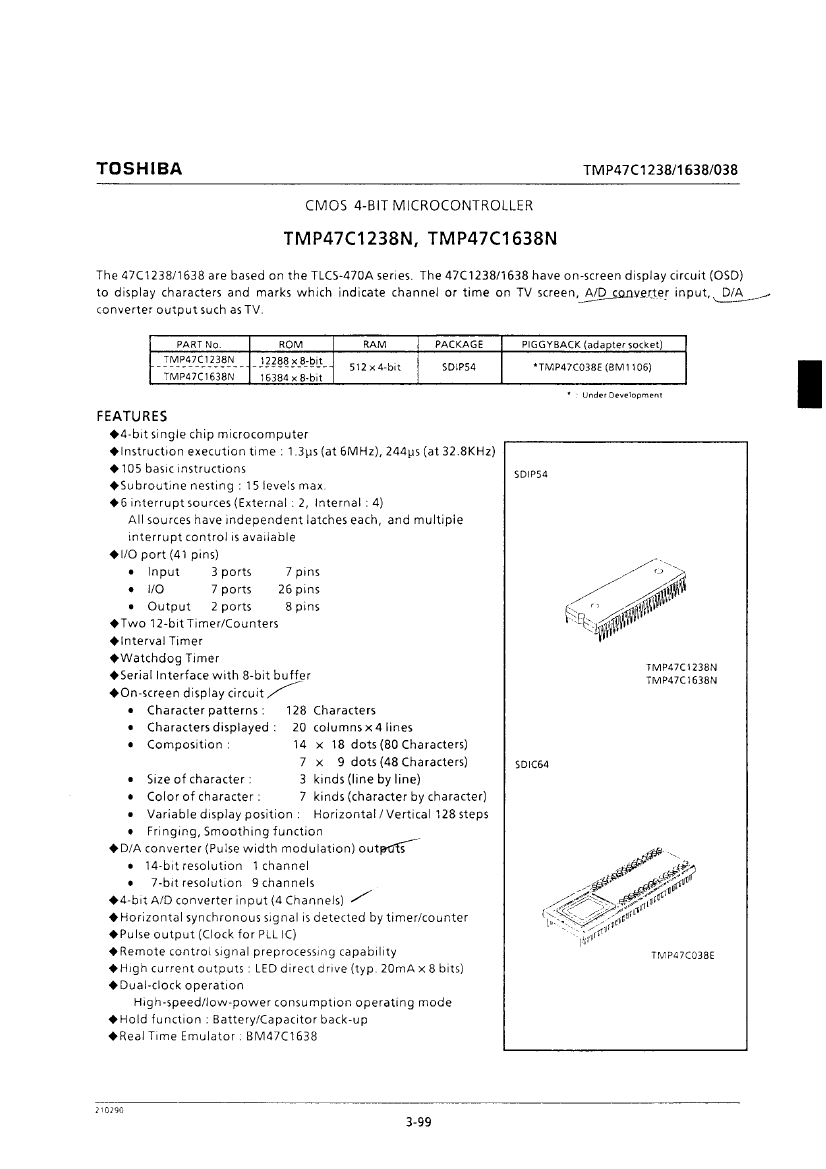

TMP47C1638N Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	SDIP, SDIP54,.6
Reach Compliance Code	unknow
bit size	4
CPU series	TLCS-470A
JESD-30 code	R-PDIP-T54
JESD-609 code	e0
Number of terminals	54
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP54,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	16384
ROM programmability	MROM
speed	4 MHz
Maximum slew rate	6 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL

	TMP47C1638N	TMP47C1238N	TMP47C1238
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-
package instruction	SDIP, SDIP54,.6	SDIP, SDIP54,.6	-
Reach Compliance Code	unknow	unknow	-
bit size	4	4	-
CPU series	TLCS-470A	TLCS-470A	-
JESD-30 code	R-PDIP-T54	R-PDIP-T54	-
JESD-609 code	e0	e0	-
Number of terminals	54	54	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-30 °C	-30 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SDIP	SDIP	-
Encapsulate equivalent code	SDIP54,.6	SDIP54,.6	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	-
power supply	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	-
RAM (bytes)	256	256	-
rom(word)	16384	12288	-
ROM programmability	MROM	MROM	-
speed	4 MHz	4 MHz	-
Maximum slew rate	6 mA	6 mA	-
Nominal supply voltage	5 V	5 V	-
surface mount	NO	NO	-
technology	CMOS	CMOS	-
Temperature level	OTHER	OTHER	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.78 mm	1.78 mm	-
Terminal location	DUAL	DUAL	-
