TMP47C1260F: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，62 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C1260F Overview

CMOS 4-BIT MICROCONTROLLER

TMP47C1260F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP,
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	4
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G64
JESD-609 code	e0
length	20 mm
Number of I/O lines	56
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3.05 mm
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

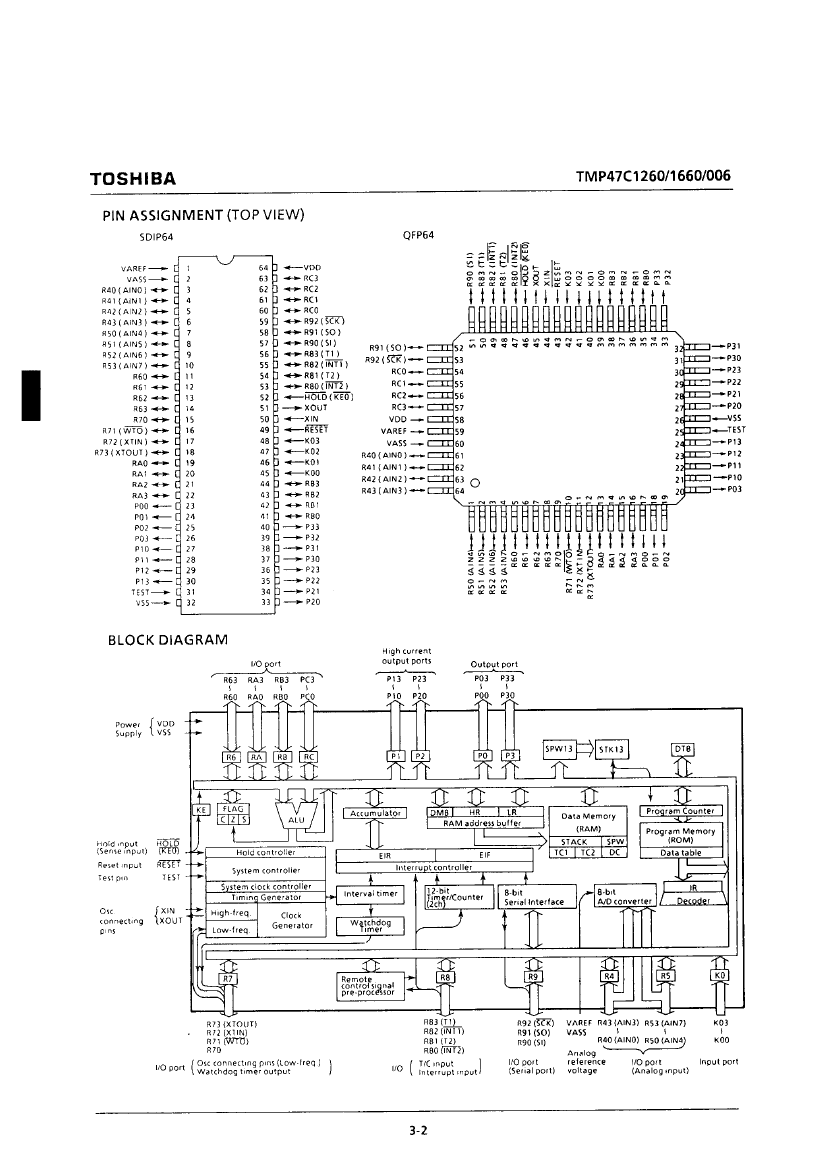

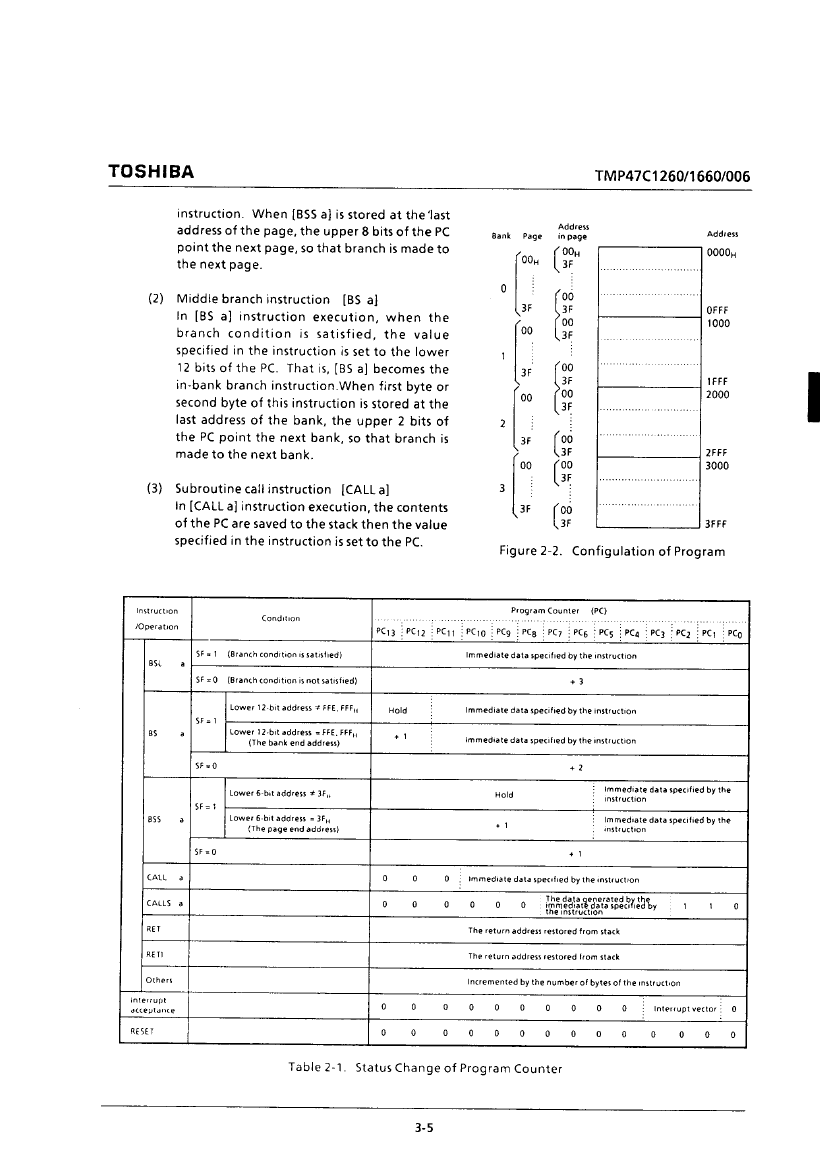

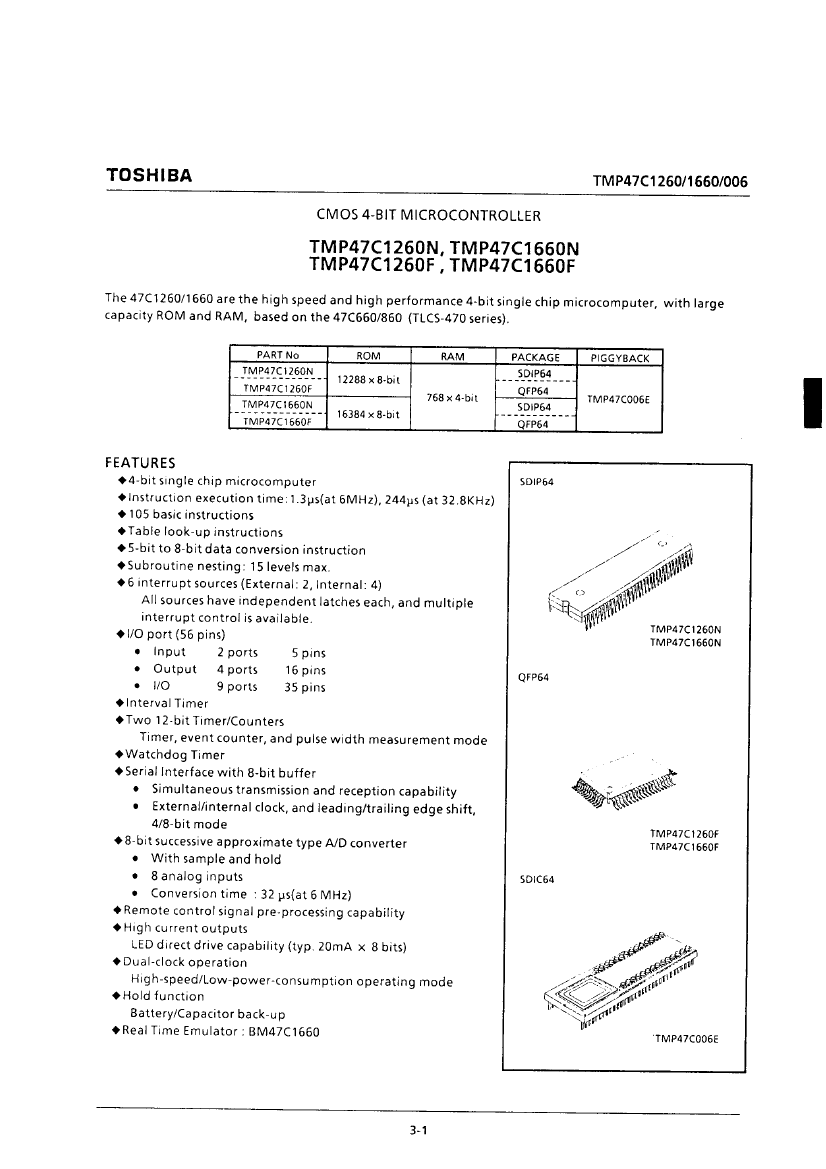

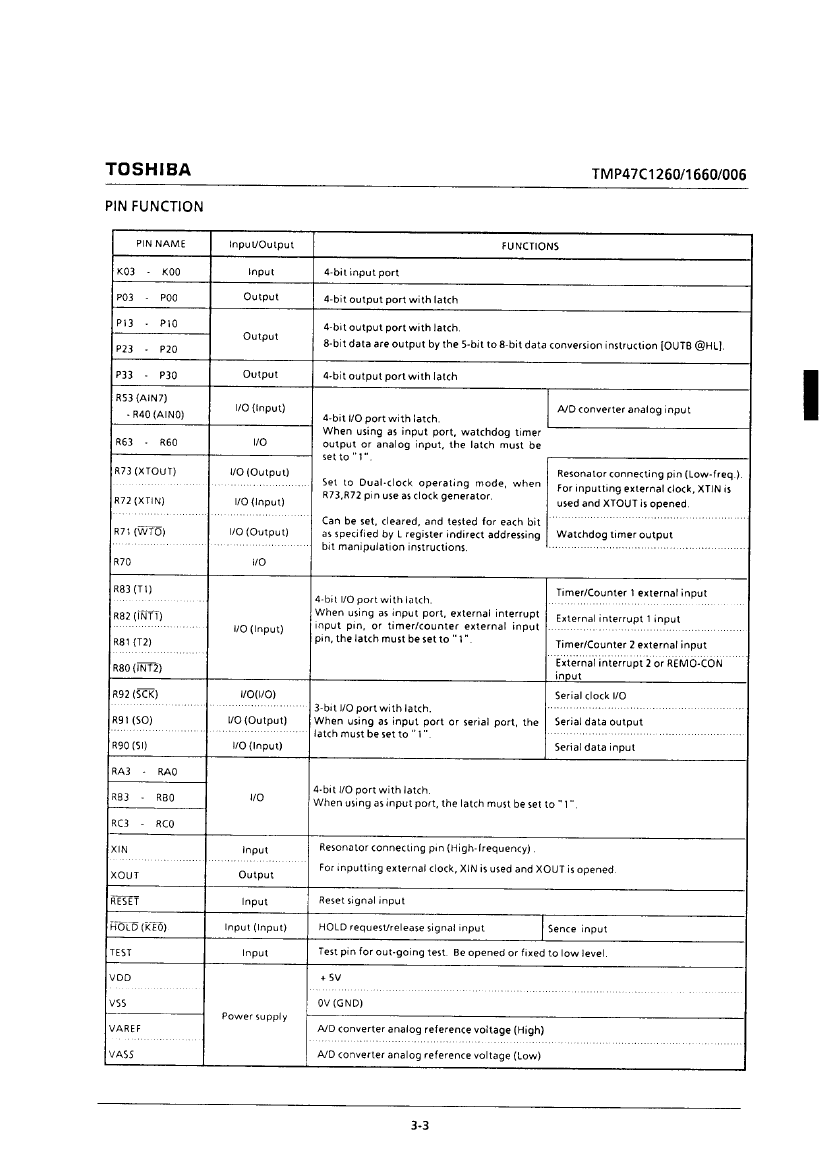

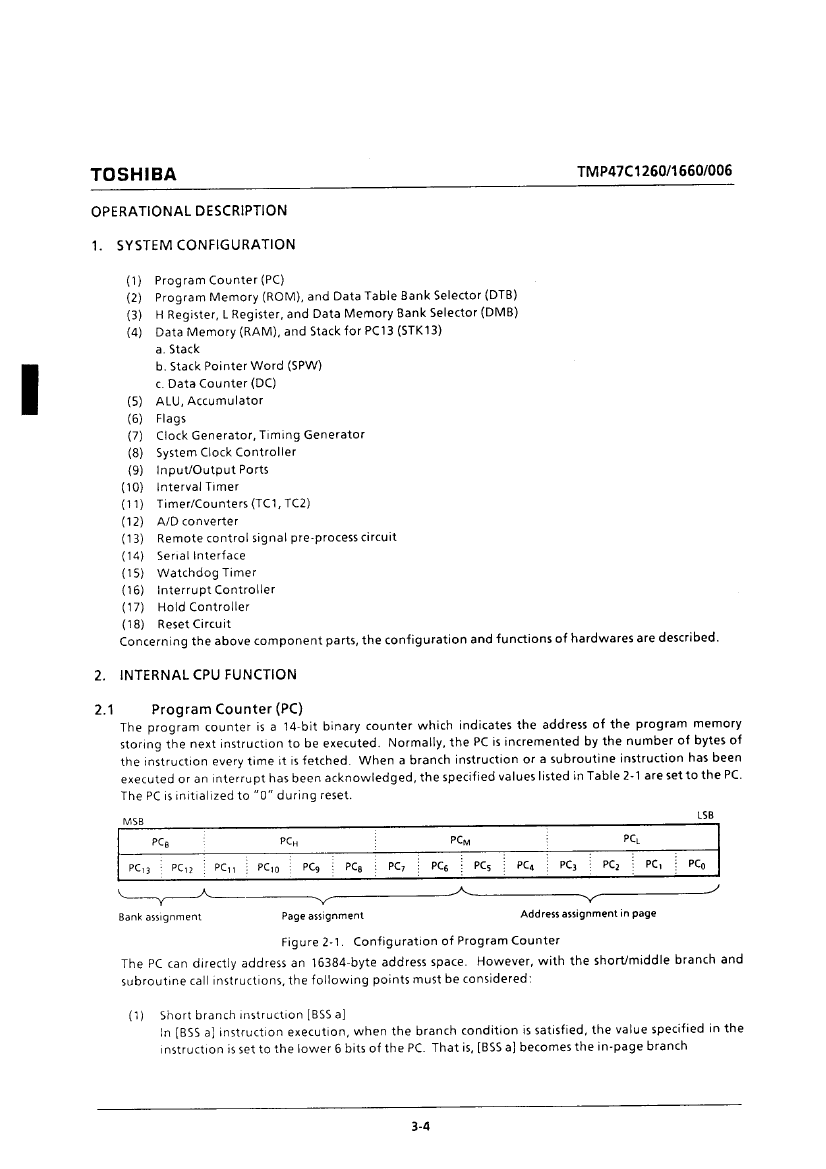

Preview

Download Datasheet

View All

TMP47C1260F Related Products

	TMP47C1260F	TMP47C1660F	TMP47C1260N
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP	DIP
package instruction	QFP,	QFP,	SDIP,
Contacts	64	64	64
Reach Compliance Code	unknow	unknow	unknow
Has ADC	YES	YES	YES
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY	ALSO OPERATES AT 2.7V MIN SUPPLY	ALSO OPERATES AT 2.7V MIN SUPPLY
bit size	4	4	4
maximum clock frequency	6 MHz	6 MHz	6 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PQFP-G64	R-PQFP-G64	R-PDIP-T64
JESD-609 code	e0	e0	e0
length	20 mm	20 mm	57.5 mm
Number of I/O lines	56	56	56
Number of terminals	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	SDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	240
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM
Maximum seat height	3.05 mm	3.05 mm	5 mm
Maximum supply voltage	6 V	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	1 mm	1.778 mm
Terminal location	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
