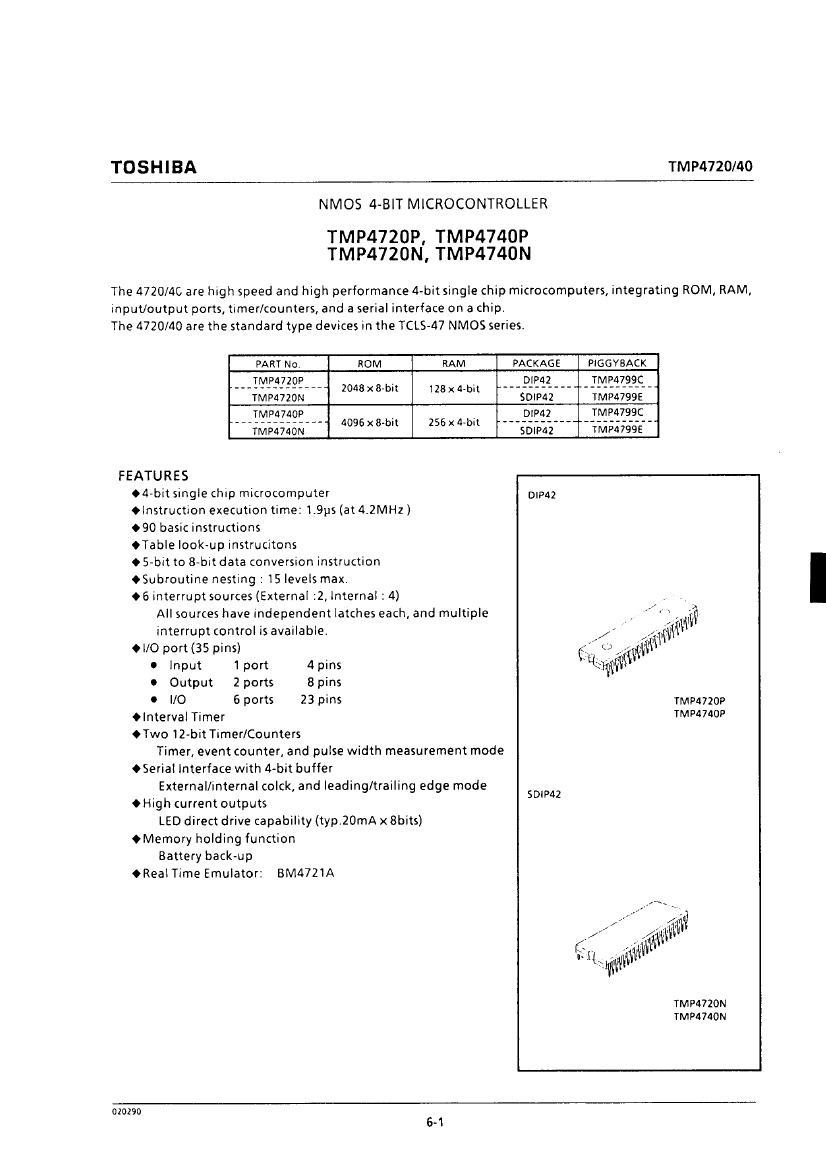

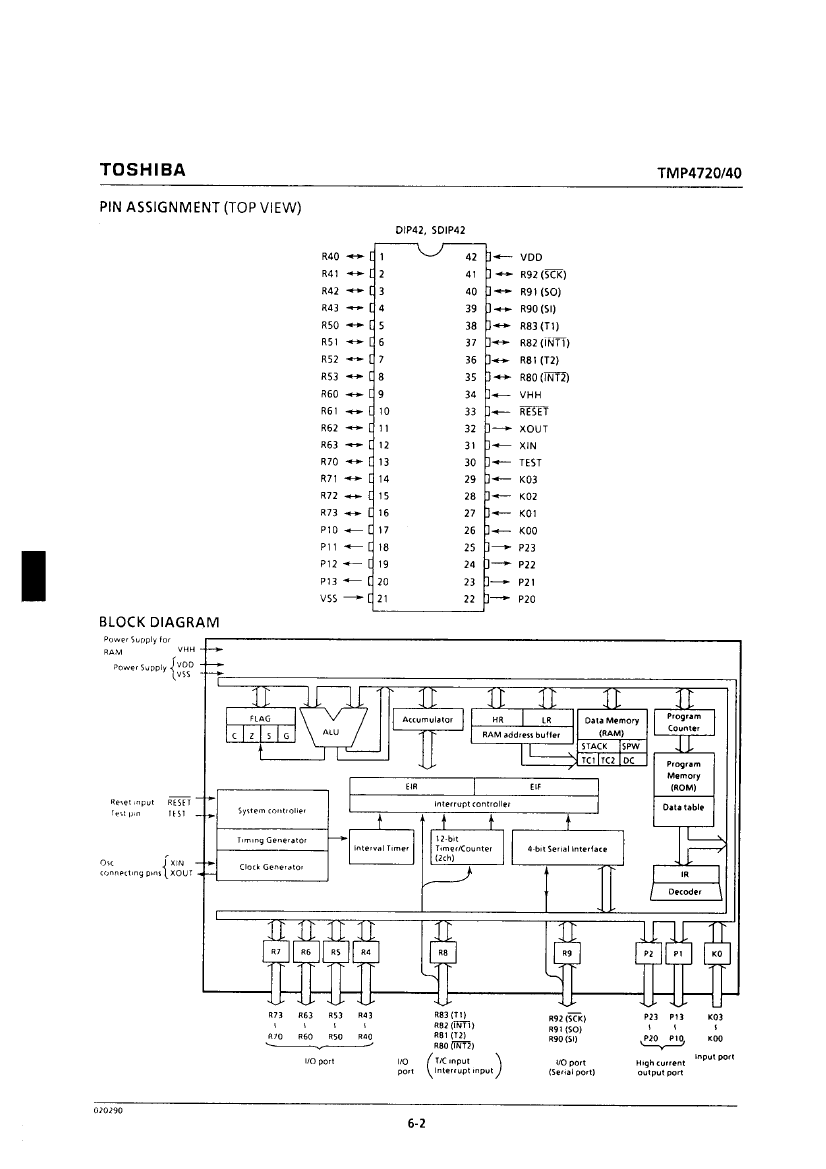

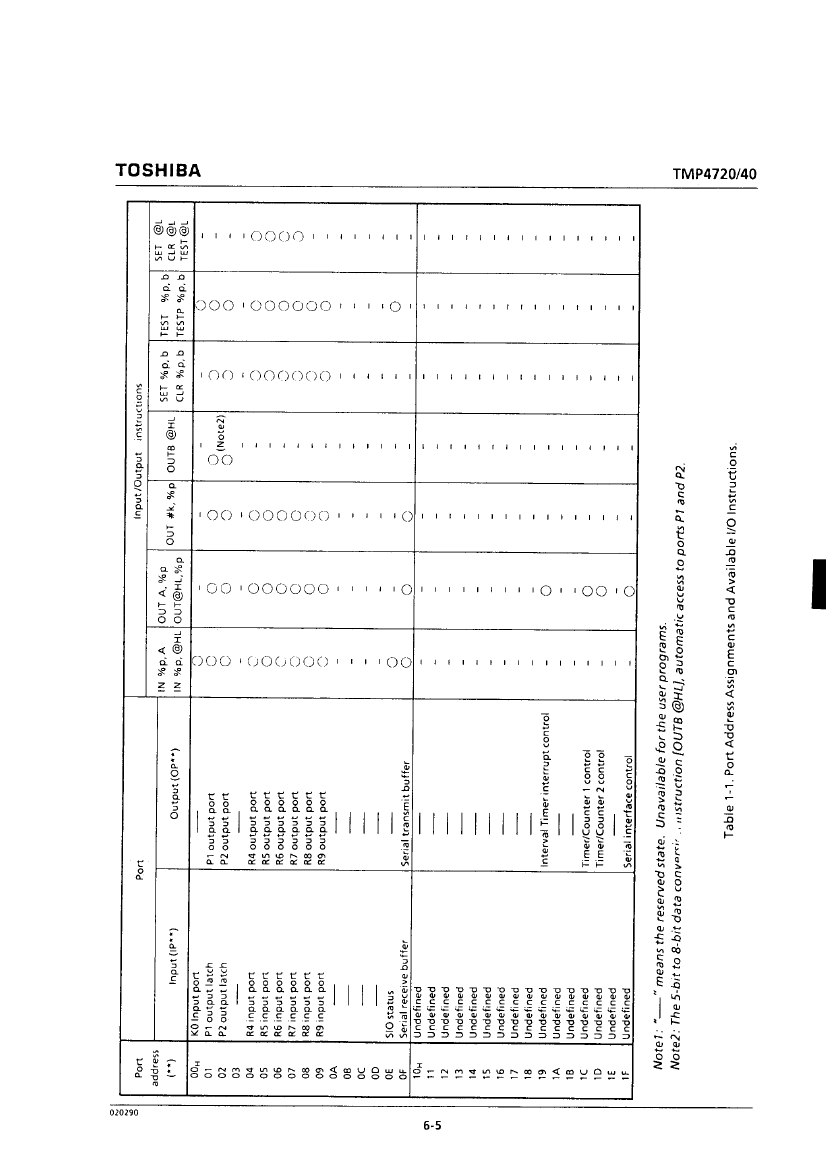

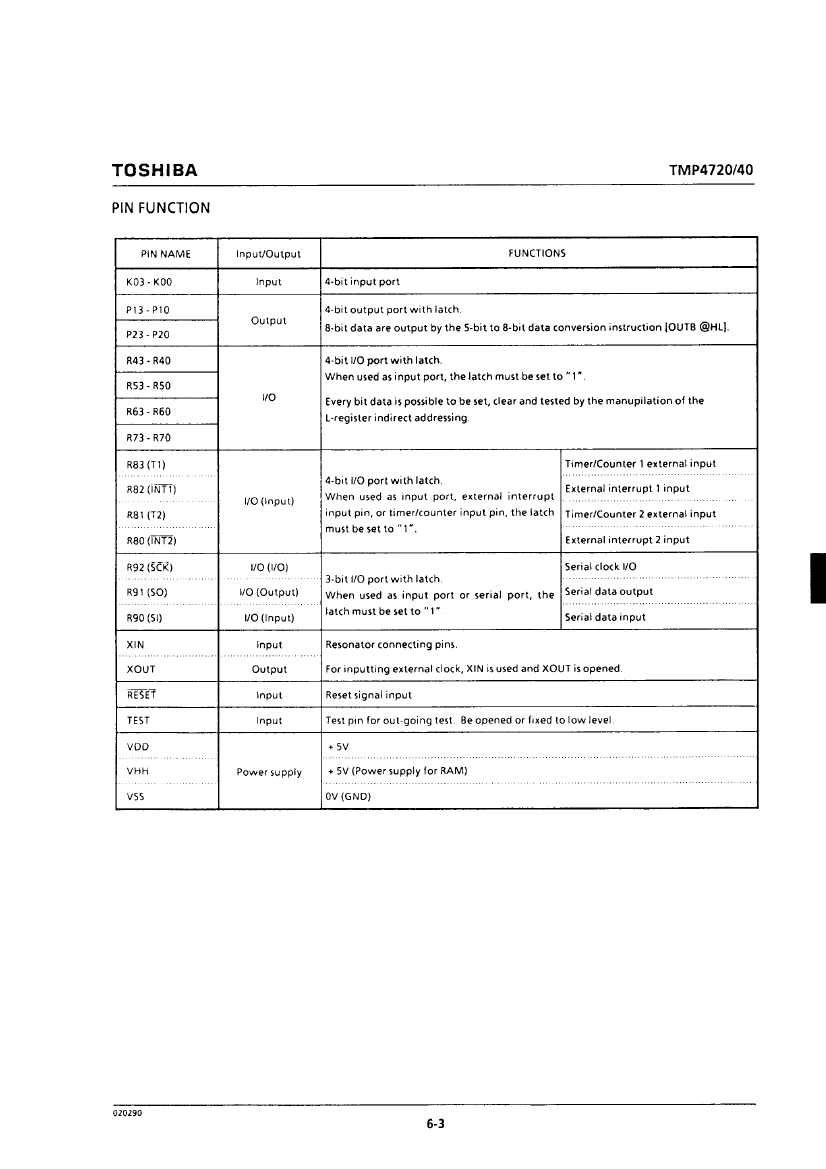

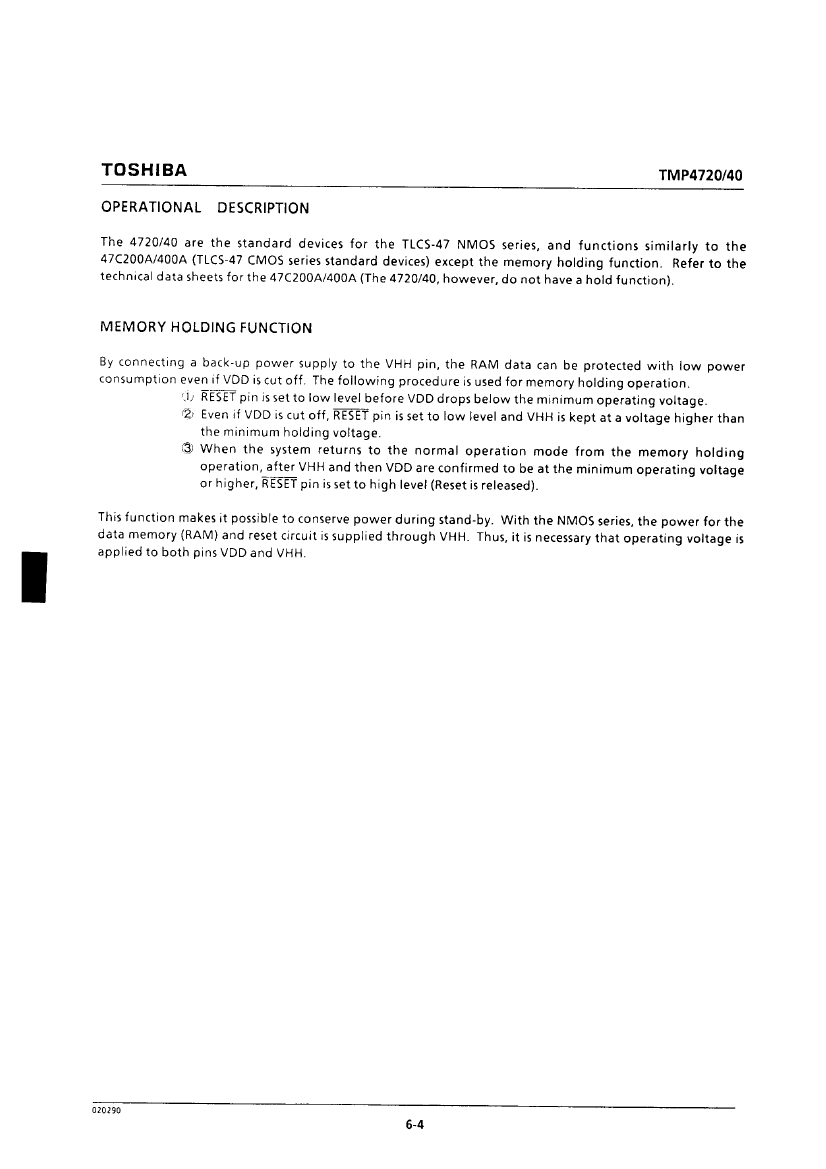

NMOS 4-BIT MICROCONTROLLER
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Reach Compliance Code | unknow |
| Has ADC | NO |
| Address bus width | |
| bit size | 4 |
| CPU series | TLCS-47 |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | R-PDIP-T42 |
| JESD-609 code | e0 |
| Number of I/O lines | 35 |
| Number of terminals | 42 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -30 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP42,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 64 |
| rom(word) | 2048 |
| ROM programmability | MROM |
| speed | 4.2 MHz |
| Maximum slew rate | 120 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | MOS |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| TMP4720P | TMP4740P | TMP4740N | TMP4720N | |
|---|---|---|---|---|
| Description | NMOS 4-BIT MICROCONTROLLER | NMOS 4-BIT MICROCONTROLLER | NMOS 4-BIT MICROCONTROLLER | NMOS 4-BIT MICROCONTROLLER |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Reach Compliance Code | unknow | unknow | unknow | unknow |
| Has ADC | NO | NO | NO | NO |
| bit size | 4 | 4 | 4 | 4 |
| CPU series | TLCS-47 | TLCS-47 | TLCS-47 | TLCS-47 |
| DAC channel | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO |
| JESD-30 code | R-PDIP-T42 | R-PDIP-T42 | R-PDIP-T42 | R-PDIP-T42 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Number of I/O lines | 35 | 35 | 35 | 35 |
| Number of terminals | 42 | 42 | 42 | 42 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -30 °C | -30 °C | -30 °C | -30 °C |
| PWM channel | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | SDIP | SDIP |
| Encapsulate equivalent code | DIP42,.6 | DIP42,.6 | SDIP42,.6 | SDIP42,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE, SHRINK PITCH | IN-LINE, SHRINK PITCH |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 64 | 128 | 128 | 64 |
| rom(word) | 2048 | 4096 | 4096 | 2048 |
| ROM programmability | MROM | MROM | MROM | MROM |
| speed | 4.2 MHz | 4.2 MHz | 4.2 MHz | 4.2 MHz |
| Maximum slew rate | 120 mA | 120 mA | 120 mA | 120 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO |
| technology | MOS | MOS | MOS | MOS |
| Temperature level | OTHER | OTHER | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.78 mm | 1.78 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
