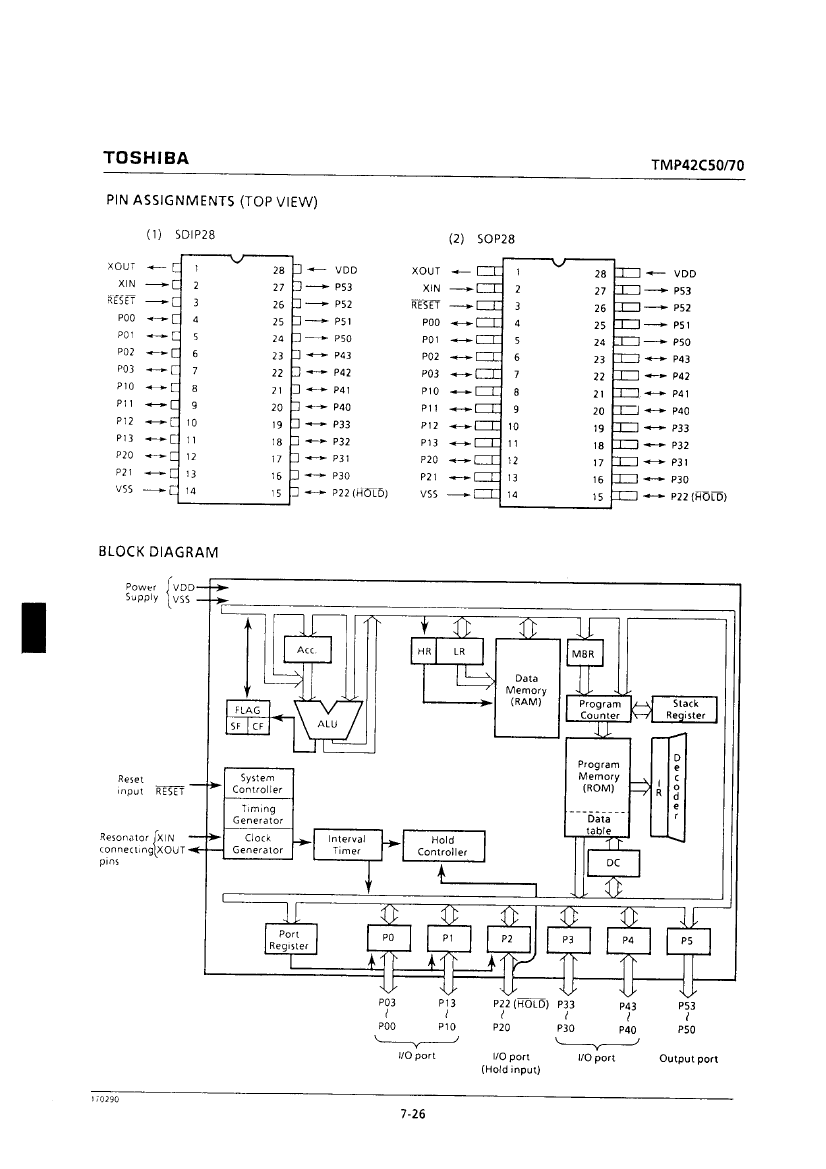

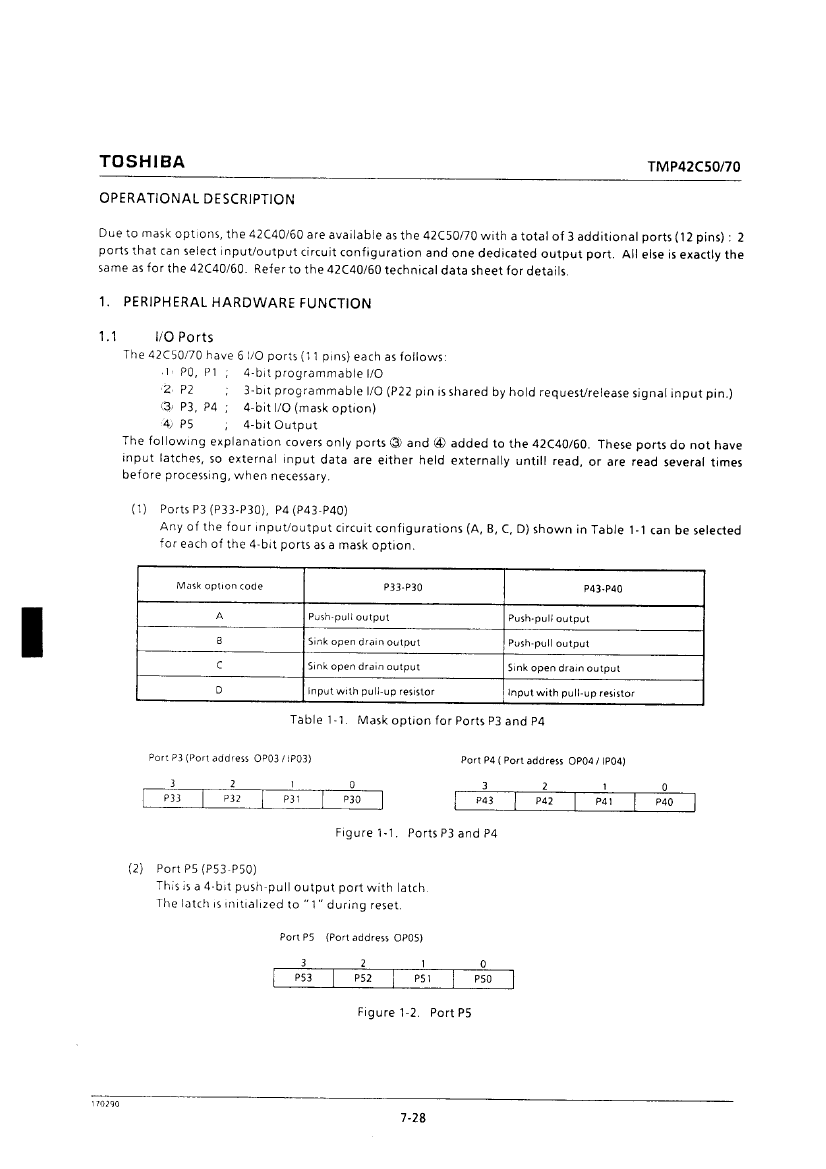

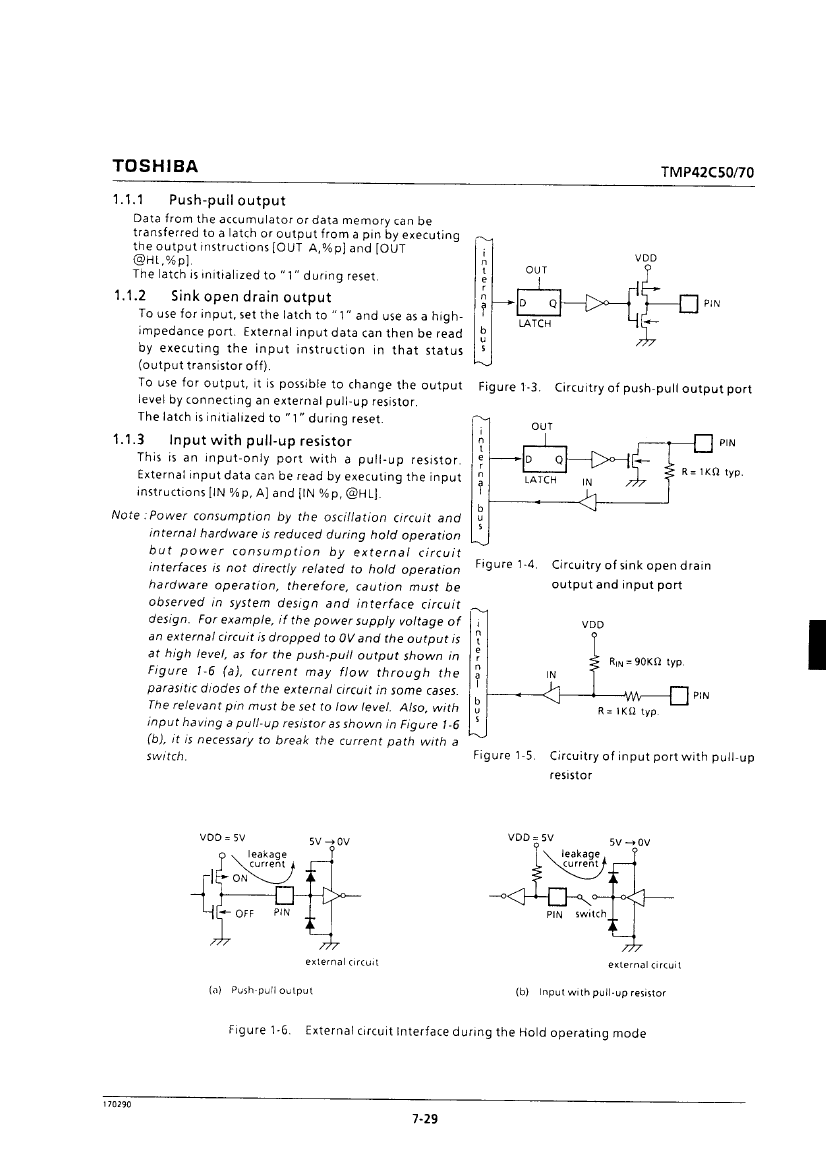

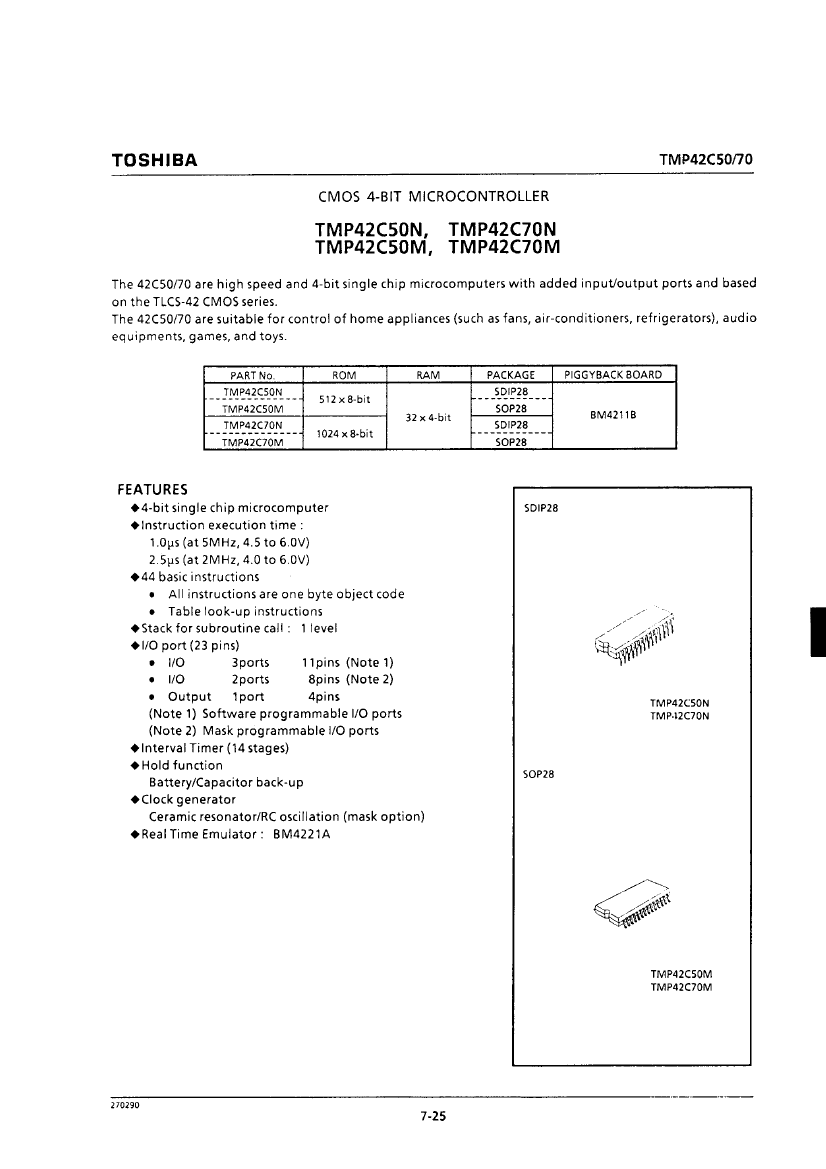

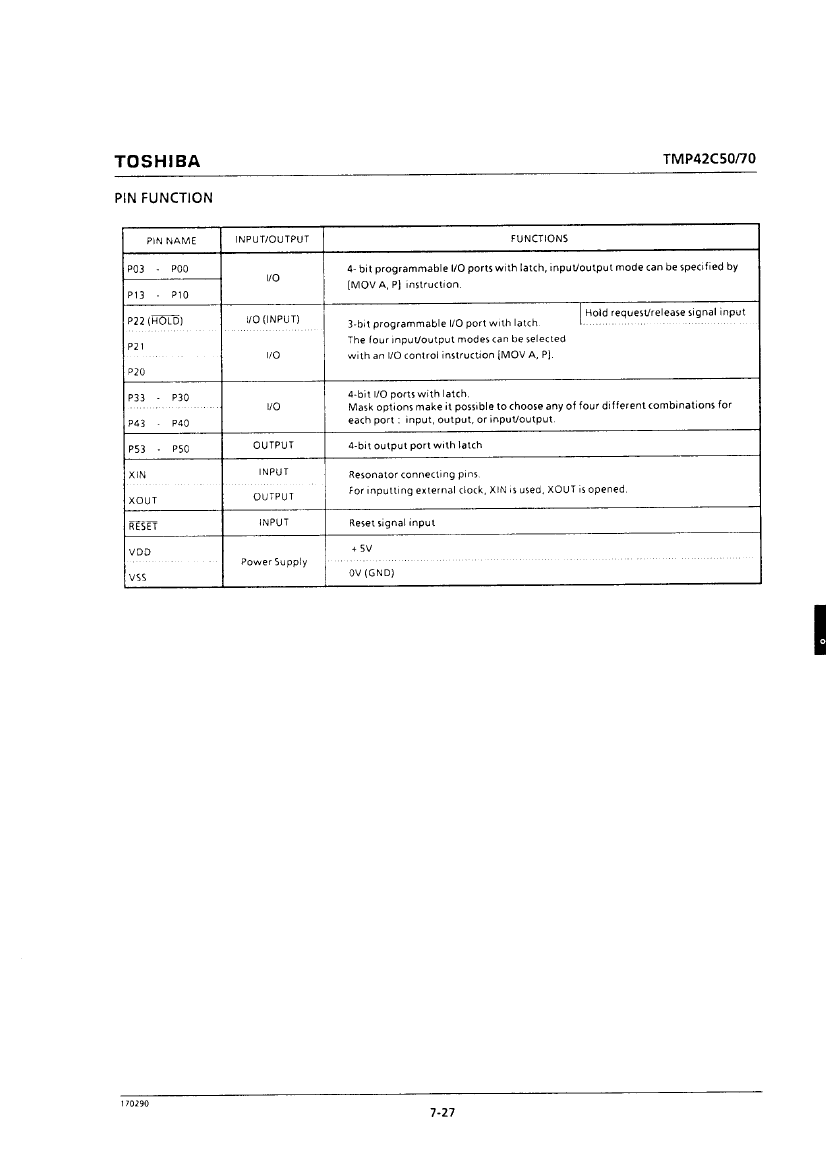

TMP42C50M Overview

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknow
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.5 mm
Number of I/O lines	23
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	2.7 mm
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.8 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	TMP42C50M	TMP42C70M	TMP42C50N
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	SOIC	-	DIP
package instruction	SOP,	-	SDIP,
Contacts	28	-	28
Reach Compliance Code	unknow	-	unknow
JESD-30 code	R-PDSO-G28	-	R-PDIP-T28
JESD-609 code	e0	-	e0
length	18.5 mm	-	25.6 mm
Number of I/O lines	23	-	23
Number of terminals	28	-	28
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	-	SDIP
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified
ROM programmability	MROM	-	MROM
Maximum seat height	2.7 mm	-	4.1 mm
Maximum supply voltage	6 V	-	6 V
Minimum supply voltage	4 V	-	4 V
Nominal supply voltage	5 V	-	5 V
surface mount	YES	-	NO
technology	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	THROUGH-HOLE
Terminal pitch	1.27 mm	-	1.778 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	8.8 mm	-	10.16 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER
